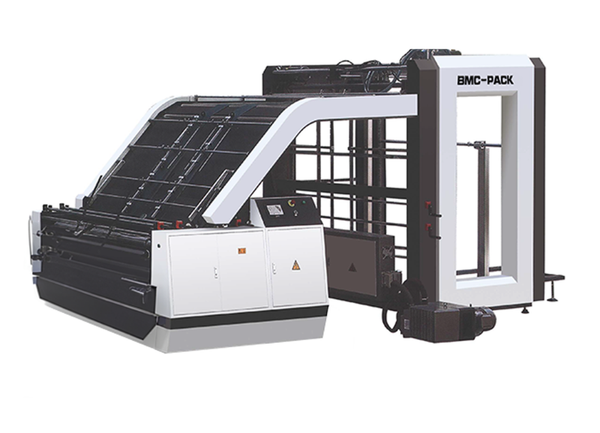

The A Type Servo Automatic Flute Laminator (Model BMC-1300FA3 / BMC-1600FA3) from BMC Pack (bmcpack) represents the pinnacle of automation in modern corrugated cardboard production line systems. Engineered to integrate seamlessly with high-volume carton box machines and packaging box making machines, this advanced laminator delivers unmatched accuracy, productivity, and durability for industrial-scale corrugated carton manufacturing.
As one of the core machines in a complete corrugated carton production line, the A Type Servo Automatic Flute Laminator ensures precise alignment between top and bottom sheets through its servo vacuum suction feeding system, enabling continuous, non-stop operation at speeds up to 8000 sheets per hour. Its fully automatic flute lamination process reduces glue waste, minimizes downtime, and enhances sheet bonding quality — ideal for producing premium packaging such as pizza boxes, display cartons, and commercial packaging solutions.
Built with Taiwan servo motors, Japanese electronics, and a German-inspired PLC system, the BMC Pack A Type Servo Automatic Flute Laminator delivers exceptional return on investment (ROI), reduced labor costs, and superior operational stability for long-term industrial use.
1. Overview and Core Advantages of A Type Servo Automatic Flute Laminator
The A Type Servo Automatic Flute Laminator is a high-speed, fully automatic machine designed for laminating corrugated sheets with printed top sheets, providing perfect adhesion and registration accuracy. It is widely used across the corrugated carton, packaging box making, and carton printing machine industries, especially for medium to large-scale production environments requiring consistency, precision, and high throughput.
Its servo-driven vacuum suction feeding system ensures accurate feeding of cardboard into the main machine. The bottom sheet automatic suction feeding system is synchronized with the top sheet feeding, maintaining precise alignment and stability even at maximum speed.
With advanced PLC controls, touchscreen operation, and intelligent glue circulation, the A Type Servo Automatic Flute Laminator eliminates manual adjustments, ensuring perfect glue coating thickness and even application.
Key Advantages
- Servo Control Accuracy: Uses multiple servo motors to ensure stable synchronization between the top and bottom sheets.
- Vacuum Suction Feeding: High-precision suction prevents double feeding and misalignment.
- Continuous Pre-stacking: Allows operators to load the next batch without stopping, achieving true non-stop operation.
- Automatic Glue Circulation System: Ensures consistent glue supply, reduces waste, and maintains clean rollers.
- Easy Pressure Adjustment: One-side adjustment with dial indicators for quick setup.
- Durable Construction: Made with imported steel frames and industrial-grade rollers for long-term reliability.
This flute laminator stands out as the backbone of modern corrugated cardboard production lines, offering superior productivity while reducing energy consumption and human dependency.
2. Technical Specifications of A Type Servo Automatic Flute Laminator
Model | BMC-1300FA3 | BMC-1600FA3 |
Max Size | 1300mm × 1250mm | 1600mm × 1250mm |
Min Size | 400mm × 400mm | 400mm × 400mm |
Top Paper Thickness | 130–800g | 130–800g |
Bottom Sheet Thickness | 2/4 ply A/B/C/E/F Flute | 2/4 ply A/B/C/E/F Flute |
Max Speed | 8000 sheets/hour | 8000 sheets/hour |
Lamination Accuracy | ±1mm | ±1mm |
Power | 14kW | 14kW |
Dimension | 13.5m × 2m × 2.9m | 13.5m × 2.25m × 2.9m |
Weight | About 4.5 tons | About 5 tons |
Main Electrical Components
- Servo Motor – Shihlin (Taiwan)
- PLC Controller – Delta (Taiwan)
- Touchscreen (HMI) – MCGS (China)
- Inverter & Servo Drives – Shihlin (Taiwan)
- Glue Sensor Relay – KACON (Korea)
- Main Drive Motor – Mengniu (China)
- Photoelectric Switch – Omron (Japan)
- Conveyor Belt – MEGAPOWER (Italy)
These imported components ensure durability, stability, and low maintenance, aligning the A Type Servo Automatic Flute Laminator with international industrial standards.
3. Advanced Automation System
The A Type Servo Automatic Flute Laminator incorporates intelligent automation that significantly reduces manual operation.
- Touchscreen PLC Interface: Simplifies setup, monitoring, and fault diagnosis.
- Automatic Glue Management: Replenishes glue automatically, circulates unused glue, and prevents clogging.
- Precision Positioning System: Corrects sheet alignment in real-time to ensure accuracy at high speed.
- Self-Cleaning Mechanism: Liftable roller and swing-bar design for easy glue cleaning.
- Energy-Efficient Servo Drive: Reduces power consumption while maintaining torque stability.
These features make it ideal for flute lamination in advanced corrugated carton production lines that demand reliability and efficiency.
4. Integration with Corrugated Cardboard Production Lines
The A Type Servo Automatic Flute Laminator is a critical component that bridges the Single Facer, Double Facer, and folder gluer stitcher making machine stages within a corrugated cardboard production line.
When combined with Flexo Printing Machines, Creasing and Die-Cutting Machines, and Carton Printing Machinery, it creates a streamlined process from raw corrugated board to finished carton box machine products.
This integration ensures that every corrugated carton, pizza box, or retail packaging box is laminated with perfect surface alignment and bonding strength — essential for premium-grade packaging solutions demanded by modern brands.
5. Engineering Design and Maintenance Efficiency
The BMC Pack A Type Servo Automatic Flute Laminator features a robust modular structure with simplified maintenance access. Its quick setup, user-friendly interface, and stable sheet tracking system minimize downtime.
The optimized roller design prevents glue splashing, while the rocker-controlled wash roller enables easy cleaning at high speeds. A built-in counter helps track daily production volume — ideal for manufacturing management and performance analysis.
6. Technical Reliability and After-Sales Assurance
bmcpack ensures every A Type Servo Automatic Flute Laminator undergoes strict quality testing and global-standard inspection before delivery.
The machine is backed by:
- 1-year warranty and lifetime maintenance,
- On-site installation & operator training,
- Remote diagnostics and support,
- OEM customization for specific corrugated carton production needs.
7. Application Fields
The A Type Servo Automatic Flute Laminator is widely applied in:
- Pizza box manufacturing
- E-commerce packaging
- Display cartons & gift boxes
- High-end corrugated carton production lines
- Food & beverage packaging
It supports a wide range of flute types (A/B/C/E/F) and top paper weights up to 800g, providing unmatched flexibility across industries.
Conclusion
In an era where automation defines competitiveness, the A Type Servo Automatic Flute Laminator by BMC Pack emerges as a must-have investment for any modern corrugated carton production line. It embodies precision, speed, and reliability — turning traditional flute lamination into a smart, seamless process.
From pizza boxes to corrugated cartons, this machine delivers consistency, saves glue, and reduces manual labor costs. Integrated with servo systems, PLC control, and imported components, the flute laminator achieves industrial excellence that meets global packaging standards.
Choosing bmcpack means choosing performance that pays back — faster ROI, lower maintenance, and long-lasting quality that drives profits and production efficiency.
Extension: Real-World ROI, Cost Savings, and Partnership Benefits
Investing in the A Type Servo Automatic Flute Laminator is not just about machinery — it’s about achieving measurable ROI and operational transformation.
Compared to semi-automatic laminators, this system saves up to 40% labor cost and 30% adhesive consumption annually. Continuous operation and smart pre-stacking reduce downtime by over 50%, while servo-driven precision minimizes misalignment and paper waste — saving thousands of dollars per production cycle.
Factories using BMC Pack laminators report improved productivity of 25–35% within the first quarter of installation. The machine’s intuitive interface reduces operator fatigue and training time, leading to faster skill adaptation and smoother workflow.
With energy-efficient motors and intelligent glue recirculation, the A Type Servo Automatic Flute Laminator reduces overall operational costs, contributing to both environmental sustainability and profit maximization.
Partnering with bmcpack ensures access to:
- Comprehensive after-sales support with 24/7 response
- OEM design customization for your specific corrugated cardboard production line
- Global shipping and on-site installation assistance
- Lifetime maintenance and spare part availability
Whether producing pizza boxes, retail packaging, or heavy-duty corrugated cartons, this flute laminator guarantees precision, speed, and long-term value.
By integrating it into your carton box machine setup, you future-proof your production for the next decade — achieving automation, efficiency, and competitive edge.
BMC Pack – Built on Trust, Driven by Quality.
