Introduction – Auto Set Automatic Folder Gluer and Stitcher Machine for High-Precision Packaging

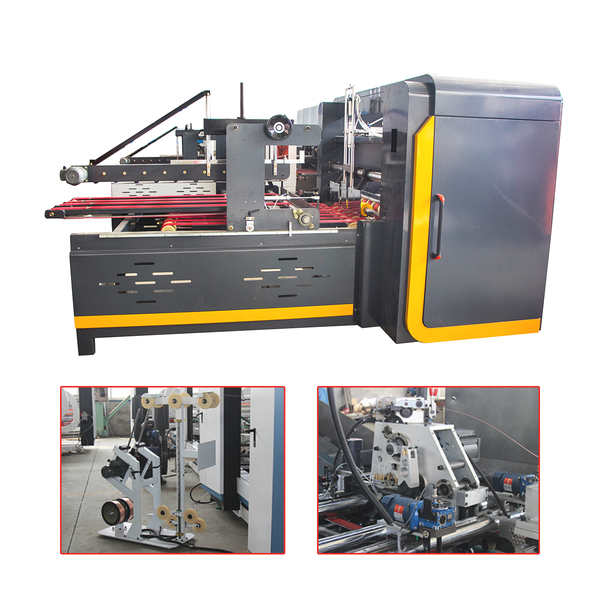

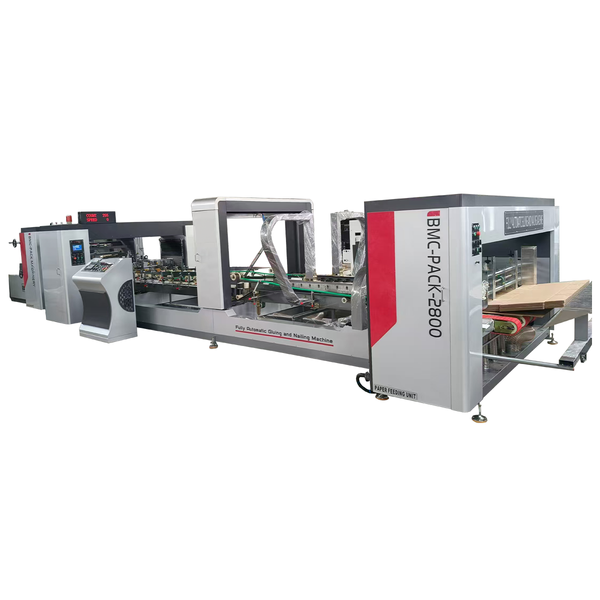

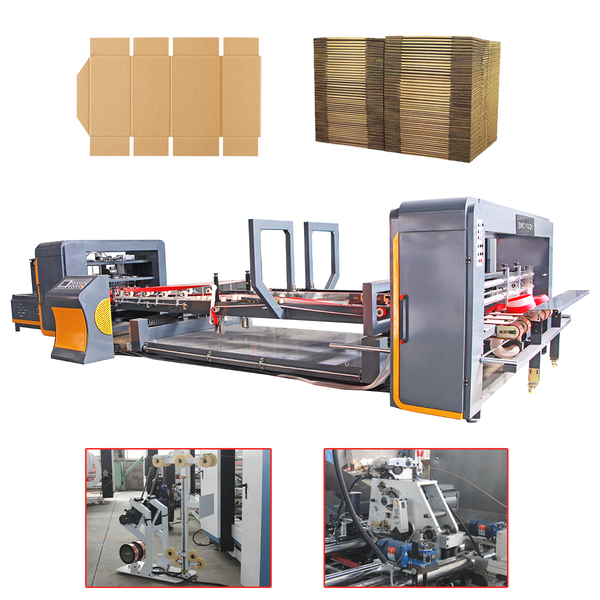

The Auto Set Automatic Folder Gluer and Stitcher Machine BMC-1224FGS / BMC-1226FGS, developed by BMC Pack, is an advanced automation system designed for high-volume corrugated carton and carton box machine production. Integrating fully automatic feeding, folding, gluing, stitching, counting, and stacking, this Folder Gluer and Stitcher Machine delivers superior productivity, consistent quality, and outstanding reliability.
Built with PLC touch-screen control, servo motors, and intelligent fault-detection, it ensures precise operation at high speed – up to 180 pcs/min in gluing mode and 70 pcs/min in stitching mode. Whether used as a stand-alone system or within a corrugated cardboard production line, this machine minimizes labor cost and optimizes energy consumption (30 % less power).
The Auto Set Automatic Folder Gluer and Stitcher Machine meets European safety standards, equipped with reliable electrical components from Schneider (France), Omron (Japan), and Delta (Taiwan). It’s a perfect solution for manufacturers producing pizza boxes, shipping cartons, and laminated corrugated cartons, and can seamlessly integrate with flute laminator, Flexo Printer Slotter Die Cutter, or Flatbed Creasing and Die Cutting Machine.
1. Design Overview of the Auto Set Automatic Folder Gluer and Stitcher Machine
The Auto Set Automatic Folder Gluer and Stitcher Machine BMC-1224FGS / BMC-1226FGS features a modular design with precision servo motors for automatic feeding, gluing, and stitching. All functions are controlled via a PLC touch panel, allowing instant operation switching between gluing and nailing modes. The machine is fitted with a smart auto-alignment and auto-stacking system to ensure flawless carton formation without manual adjustment.
Technical Specifications:
Model | BMC-1224FGS | BMC-1226FGS |
Max. cardboard | 1200 × 2400 mm | 1200 × 2600 mm |
Min. cardboard | 170 × 440 mm | 170 × 440 mm |
Dimension (L×W×H) | 13500 × 3500 × 1600 mm | 13500 × 3700 × 1600 mm |
Power required | 12 kW | 12 kW |
Design speed | 150 m/min | 150 m/min |
Working speed | 120 m/min | 120 m/min |
Stitching speed | 800 stitches/min | 800 stitches/min |
Min A | 130 mm | 130 mm |
Max A | 750 mm | 850 mm |
Min B | 40 mm | 40 mm |
Max B | 450 mm | 550 mm |
Min H | 170 mm | 170 mm |
Max H | 1200 mm | 1200 mm |
Min F | 440 mm | 440 mm |
Max F | 2400 mm | 2600 mm |
Max Speed | 180 m/min | 180 m/min |
Voltage | 220 V / 380 V / 440 V | 220 V / 380 V / 440 V |
2. Structure and Core Technology
Every section of the Auto Set Automatic Folder Gluer and Stitcher Machine is built for speed and accuracy:

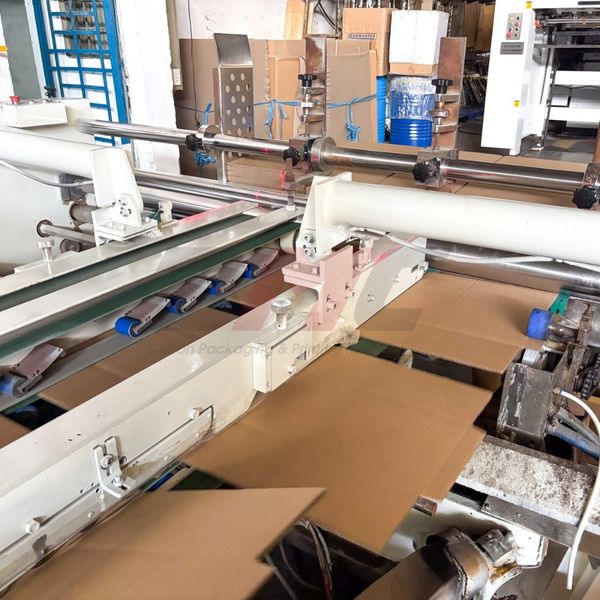

- A. Automatic Cardboard Feeding System – Adopts imported conveyor belts for smooth, high-speed feeding.
- B. Automatic Gluing System – Adjustable adhesive width (20 – 30 mm) with smart temperature and flow control.
- C. Automatic Stitching Unit – Uses high-precision servo drives and adjustable nail distance (30 – 150 mm).

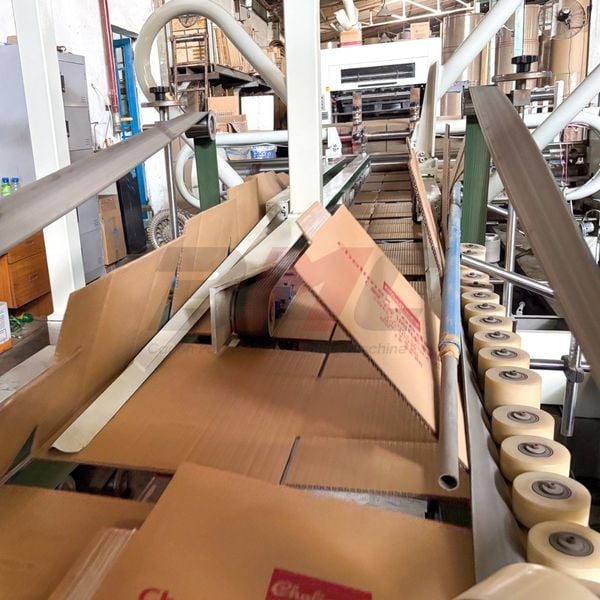

- D. Counting and Stacking System – PLC-linked counter for output accuracy and auto stack alignment.
The machine’s components include:
Delta servo motors (Taiwan), Schneider contactors & breakers (France), Omron sensors (Japan), and Airtac pneumatic system (Taiwan). The use of international brands ensures stable performance and longevity.
3. Smart Control System and Energy Efficiency
The Auto Set Automatic Folder Gluer and Stitcher Machine uses a Delta PLC Control System with a color touch HMI for intuitive operation. Operators can store and recall production data, making setup changes within seconds. The inverter motor control improves stability while reducing power consumption by up to 30 %.
Key features:
- Dual control panels (front and rear).
- Over-voltage / under-voltage / overheat protection.
- Real-time fault diagnosis and error display.
- Plug-type connectors for fast maintenance.
This smart system integrates smoothly with flute laminator, flexo printer, and rotary die cutter modules in a complete corrugated cardboard production line for modern packaging factories.
4. Precision Performance and Application Scope
The machine handles various box types – from standard shipping cartons to laminated pizza boxes. Its flexible configuration accommodates different flute lamination designs (A/B/C/E flutes or combinations).
Common applications include:
- Corrugated carton production for FMCG, electronics, and e-commerce.
- Packaging box making machine lines for logistics and warehousing.
- Integration with Flexo Printer Slotter Die Cutter and Flatbed Creasing and Die Cutting Machine for a complete end-to-end system.
- Used by printing plants and carton manufacturers worldwide for high-efficiency batch production.
5. Production Advantages
- Fully automatic operation reduces labor costs by 60 %.
- 150 pcs/min gluing speed = 20 % higher output than manual systems.
- Quick setup = less than 3 minutes between jobs.
- Compatible with 3/5/7 ply corrugated cardboard production line.
- Precision glue coating = 0 waste.
- Stainless steel frame resists rust and vibration.
- Compact footprint saves workshop space.
The Auto Set Automatic Folder Gluer and Stitcher Machine by bmcpack is the ideal choice for companies seeking to upgrade manual production lines to smart automation without sacrificing stability or accuracy.
6. Integration with BMC Pack Smart Packaging Solutions
BMC Pack offers a complete ecosystem of corrugated machinery:
- Flute Laminator for laminated board structures.
- Single Facer / Double Facer for corrugated sheet forming.
- Flexo Printer Folder Gluer for printing and slotting.
- Creasing and Die Cutting Machine and Rotary Die Cutter for finishing.
The Auto Set Automatic Folder Gluer and Stitcher Machine connects seamlessly with these systems to form a fully automated corrugated carton production line — the ultimate packaging solution for smart factories.
7. ROI and Practical Performance
Investing in the Auto Set Automatic Folder Gluer and Stitcher Machine translates directly into measurable ROI gains. Compared with manual folder gluer lines, the machine reduces labor dependency by 70 %, achieving faster payback (typically within 12 – 18 months).
Energy savings from its inverter motor and servo drive system cut operational costs by up to 30 %. The eco design also reduces glue and staple consumption without sacrificing quality. These efficiencies make the machine ideal for high-volume flute lamination and corrugated cardboard production line applications.
In real-world factories, one operator can run the entire Folder Gluer and Stitcher Machine, increasing output capacity while maintaining perfect folding accuracy. The auto-stacking unit reduces manual handling, improving safety and workflow.
For manufacturers in the packaging industry, working with BMC Pack means access to comprehensive support – machine installation, layout optimization, and after-sales service backed by experienced engineers. bmcpack provides tailored solutions to fit different factory layouts and budget requirements, ensuring every investment delivers maximum profitability.
Conclusion – Why Choose BMC Pack Auto Set Automatic Folder Gluer and Stitcher Machine
The Auto Set Automatic Folder Gluer and Stitcher Machine BMC-1224FGS / BMC-1226FGS is a powerful combination of precision, speed, and energy efficiency. It eliminates manual errors, reduces operational costs, and enhances production capacity for any corrugated carton factory.
With proven technology from BMC Pack, integration with flute laminator, Flexo Printer Slotter Die Cutter, and Creasing and Die Cutting Machine, this system forms the heart of smart packaging solutions worldwide.
Strong structure, advanced servo control, and user-friendly interface make it the perfect packaging box making machine for the modern era. Choosing bmcpack means choosing innovation, reliability, and long-term success in the global packaging industry.
