The Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper is one of the most essential and precision-focused technologies in modern packaging production. In factories producing duplex board packaging, micro-flute cartons, premium folding boxes, Corrugated Carton, Pizza Box, FMCG packaging and export-grade retail boxes, accurate creasing and die cutting determines the final quality of every product. Unlike corrugated sheets produced from a full Corrugated Cardboard Production Line, duplex paper requires extremely stable pressure, micro-adjustment accuracy and perfect sheet alignment. That is why the Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper, especially the NDAD-1080DC model, has become a global standard in mid- to high-volume manufacturing plants operated by BMC Pack and BMCPack.
This machine integrates advanced servo feeding, precision front-edge positioning, cast-steel press frames, high-pressure die-cutting platforms, and PLC-driven alignment control. When combined with upstream systems such as Single Facer, Double Facer, flute laminator, 3/5/7 ply Corrugated Cardboard Production Line, Flexo Printing Machine, Flexo Printer Folder Gluer, folder gluer stitcher making machine, sticher and gluer machine, and downstream Packaging Box Making Machine, the Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper ensures superior creasing accuracy, smooth die-cut edges, and perfect folding performance for duplex and laminated sheets.
This full SEO-optimized guide explains how the machine works, key specifications, advantages, troubleshooting methods, and technical improvements from BMC Pack, supported by real technical data from the NDAD-1080DC catalogue. It is designed for factory owners, production managers and technicians seeking high productivity, higher precision and lower operational costs in creasing and die cutting duplex paper.
Understanding the Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper and its role in duplex production
Duplex paper has different mechanical behavior compared to corrugated sheets. It has:
- Lower thickness (0.12–2.0 mm)
- Higher density
- Smoother surface (more sensitive to pressure variation)
- Higher requirement for clean edges
- Lower tolerance for alignment deviation
Because of these characteristics, the Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper must achieve extremely stable creasing and die cutting performance, often exceeding the precision level required for Corrugated Carton or Pizza Box production.
This is why high-end machine designs—such as cast-steel frames, vacuum feeding, micro-adjustment die platforms, and servo-driven belt alignment—are crucial for duplex paper.
Technical Comparison Table — NDAD-1080DC vs Standard Duplex Die Cutting Machines
Feature | NDAD-1080DC (BMC Pack) | Standard Market Machine |
Feeding System | Vacuum feeding + servo alignment | Basic friction feeding |
Positioning Accuracy | ±0.3 mm | ±1.0 mm |
Die-Cutting Accuracy | ≤ ±0.50 mm | ±1.5 mm |
Max Pressure | 300T | 150–180T |
Max Speed | 5000 S/H | 3000–3500 S/H |
Sheet Thickness | 0.12–2.0 mm | 0.25–1.5 mm |
Construction | QT500 cast steel frame | Welded mild steel |
Lubrication | Centralized automatic | Manual |
Motor | SIEMENS (Germany) | Local |
Clutch | OMPI (Italy) | Local low-grade |
Bearings | NSK/KOYO/NTN | Domestic or unknown |
The NDAD-1080DC delivers consistent precision for all creasing and die cutting tasks on duplex paper, outperforming typical machines by a wide margin.
Key structural advantages of Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper
⭐ Vacuum Feeding + Servo Belt Alignment
The NDAD-1080DC uses a vacuum roller feeding system with adjustable thickness control. This ensures smooth duplex feeding without scratching or bending the sheet.
⭐ High-Pressure QT500 Cast Steel Pressing Unit
The QT500 cast frame resists deformation under 300 tons of pressure, ensuring the creasing and die cutting platform remains perfectly parallel.
⭐ Precision Screw Shaft (φ70×240)
A heavy-duty screw shaft guarantees stable cutting depth throughout long production runs.
⭐ Micro-Adjustment Mechanism
Allows real-time correction during machine operation — essential for duplex paper due to its sensitivity.
⭐ High-End Component Configuration
- Main Motor: SIEMENS (Germany)
- Pneumatic Clutch: OMPI (Italy)
- Bearings: NSK / KOYO / NTN
- Sensor: OMRON
- Chain Drive: RENOL (Germany)
All these components contribute to sharper, cleaner creasing and die cutting on duplex sheets.
How the Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper ensures precision creasing and die cutting performance
The Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper excels because it stabilizes every stage of creasing and die cutting. Duplex paper — unlike corrugated board — requires extremely consistent pressure, perfect sheet alignment, and micro-level cutting tolerance. Below is the full breakdown of the operational process and troubleshooting considerations.

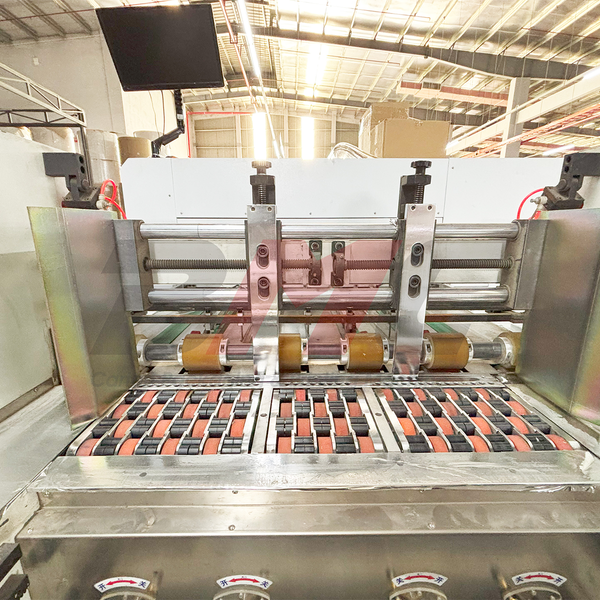

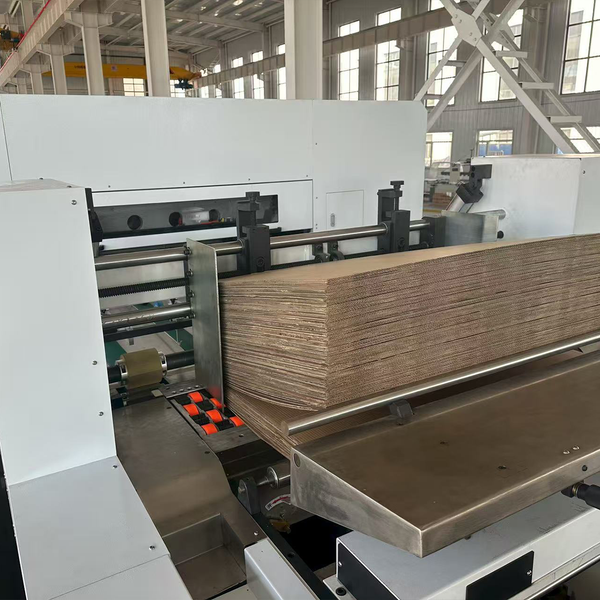

1. Duplex Paper Feeding System — Vacuum, Servo & Non-Stop Positioning
The NDAD-1080DC feeding section uses:
- A vacuum roller suction system
- Adjustable sheet-thickness controller
- Automatic left/right side guide positioning
- High-pressure fan with adjustable airflow
This ensures duplex sheets (0.12–2.0 mm) feed without bending, drifting, or slipping — critical for accurate creasing and die cutting.
The servo-controlled belt feeding system aligns sheets with ±0.3 mm precision, keeping duplex paper stable before entering the die-cutting platform.

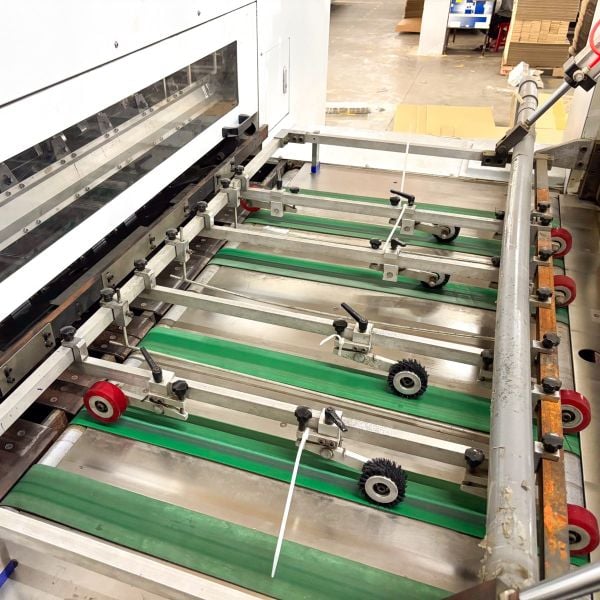

2. Positioning & Alignment System for duplex precision
Duplex paper alignment must be perfect before creasing and die cutting begins.
The NDAD-1080DC features:
- Dual-guide alignment
- High-grip conveyor belts
- Front-edge stabilizer
- Deceleration system for soft landing
This prevents misalignment, tearing, or front-edge damage — common problems on lower-end machines.
3. Drive Section — 300T pressure with zero deformation
The press unit, built from QT500 cast steel, ensures:
- No deformation under high load
- Consistent cutting depth
- Perfect creasing pressure on duplex sheets
The crankshaft (Japanese steel), coupling system, and imported screw shafts ensure smooth mechanical movement for uniform creasing and die cutting.
Centralized lubrication (Taiwan Weiliang system) keeps the unit operating at optimal temperature and friction level.
4. Chain Drive Section — high precision stability
Using RENOL (Germany) high-precision chain & sprockets ensures:
- Extremely smooth transmission
- Low vibration
- High die-cutting accuracy
- Reduced waste
For duplex sheets, vibration = misaligned creasing lines = board cracking.
NDAD-1080DC eliminates this entirely.
5. Die-Cutting Section — Micro-Adjustment + Strong Pressure + Imported Components
The NDAD-1080DC die-cutting platform is specifically engineered for duplex paper:
- Micro-adjustment during machine operation
- φ70×240 heavy screw design for equal pressure
- Imported crankshaft, inverter, couplings
- PLC monitoring & alarms
- Uniform pressure distribution across duplex sheets
This ensures ultra-clean creasing, sharp die lines, and zero burrs, even at high speeds.
6. Waste Disposal Section — Fast, Clean & Efficient
Duplex waste handling is easier with:
- Centralized positioning
- Upper die lifting
- Quick-release clamping systems
Operators can remove waste quickly, improving uptime.
⭐ Technical Specification Summary (NDAD-1080DC)
Model | NDAD-1080DC |
Max Sheet | 1070×760 |
Min Sheet | 400×370 |
Max Die-Cutting | 1070×760 |
Thickness | 0.12–2.0 mm |
Corrugated thickness | <8 mm |
Speed | 5000 S/H |
Accuracy | ≤ ±0.50 mm |
Pressure | 300T |
Power | 30 kW |
Weight | 15.5 T |
Extended section: ROI benefits, real-world duplex applications and why factories trust BMC Pack
When a factory switches to the Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper, the improvements are immediate and measurable:
✔ Higher Productivity
- Speed up to 5000 S/H
- Less downtime
- Faster setup & quicker die changes
✔ Lower Labor Cost
- Fully automatic sheet alignment
- Automatic lubrication
- Quick waste removal system
✔ Higher Duplex Packaging Quality
- Clean creasing with zero cracking
- Sharp, accurate die-cut edges
- Consistent cutting depth
Ideal for:
- Cosmetic boxes
- Medicine packaging
- FMCG folding cartons
- Pizza sleeves
- Premium duplex folding boxes
✔ ROI Impact
Factories typically achieve:
- 20–40% reduction in rejected sheets
- 15–25% improvement in cutting consistency
- Up to 30% higher machine uptime
✔ Why BMC Pack / BMCPack?
- Uses global brand components (Siemens, Omron, NSK, KOYO)
- Long-life QT500 cast structures
- Precision suitable for thin duplex and laminated sheets
- Worldwide after-sales support
The NDAD-1080DC is engineered specifically for duplex paper — not just corrugated — making it a top choice for any manufacturer seeking premium-quality creasing and die cutting performance.
Conclusion
The Automatic Flatbed Creasing And Die Cutting Machine For Duplex Paper delivers unmatched precision for all creasing and die cutting operations. Built with high-grade materials, servo-driven feeding, global-brand electrical components, and a 300T stable pressing system, it ensures professional-grade output for duplex packaging producers. With full integration into upstream and downstream lines — from Single Facer to folder gluer stitcher making machine — BMC Pack and BMCPack offer unmatched reliability, speed and ROI for modern packaging factories.
