The Automatic Pile Turner and Stacker from BMC Pack represents a revolutionary leap forward in the corrugated packaging machinery industry. As the laminating process continues to evolve within the corrugated cardboard production line, automation has become the key to higher accuracy, lower labor dependency, and improved productivity. This advanced model integrates state-of-the-art servo control, vacuum suction technology, and intelligent stacking systems to optimize sheet handling, reduce human intervention, and deliver unmatched lamination efficiency.
Engineered for precision and consistency, the Automatic Pile Turner and Stacker is designed to work seamlessly with flute laminators, Rotary Die Cutting, and creasing and die cutting systems. Whether operating within a high-volume Corrugated Carton Production Line or as part of a custom Packaging Box Making Machine, this innovative unit guarantees smooth sheet alignment, efficient pile turnover, and automatic stacking with pinpoint accuracy.
Built to meet the growing demand for automation, BMC Pack combines robust engineering with user-friendly operation and a focus on long-term reliability. This machine is not just an accessory—it’s the final stage that perfects the lamination workflow, ensuring that every sheet produced meets the highest industrial standards.
1. Overview of Automatic Pile Turner and Stacker

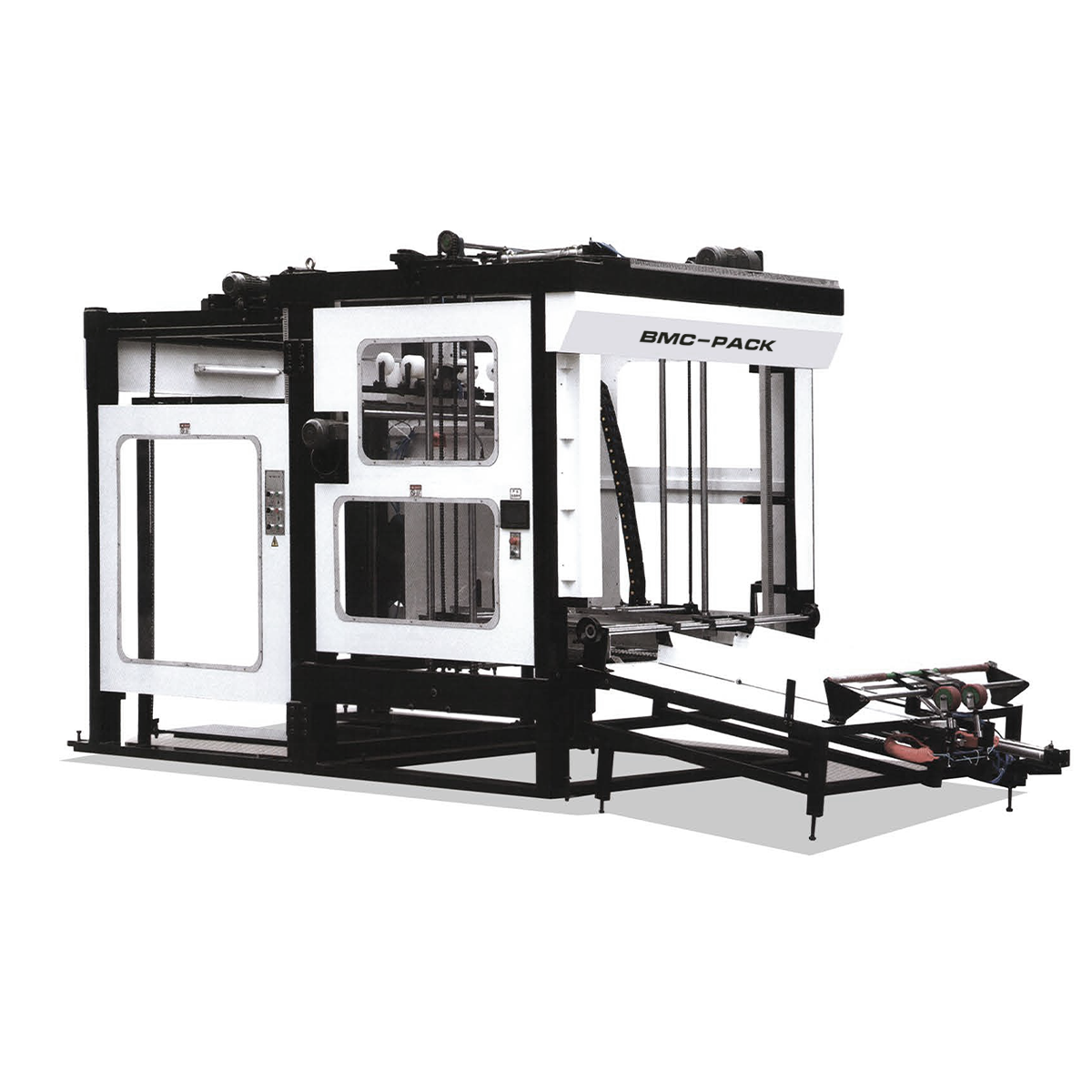

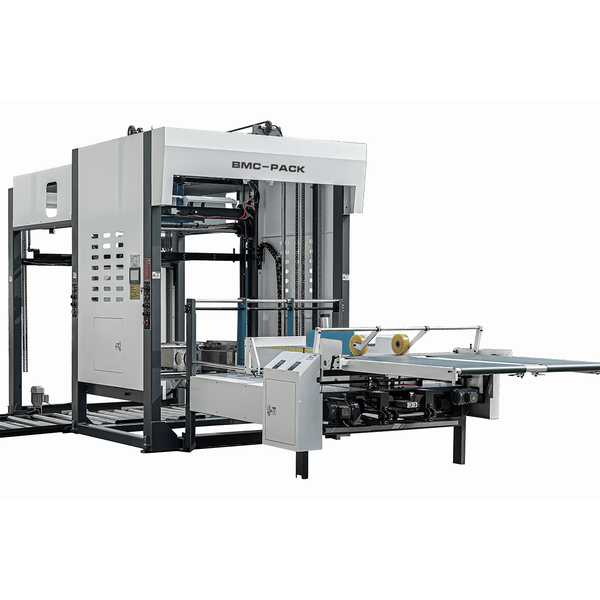

The Automatic Pile Turner and Stacker is an intelligent post-lamination system designed to collect, flip, and stack laminated sheets with maximum precision. Acting as the final automation link in the flute laminator process, it enhances overall production efficiency while minimizing manual labor. Its compact design allows easy integration into any corrugated cardboard production line, regardless of the brand or model of laminator.
Through servo synchronization and vacuum-assisted sheet control, the Automatic Pile Turner and Stacker ensures accurate front-and-back alignment. The machine prevents warping, deformation, and lamination errors, resulting in perfectly stacked sheets ready for Rotary Die Cutting or Flexo Printing Machine operations.
2. Core Features of Automatic Pile Turner and Stacker
- 🔹 Full Automation: Automatically collects laminated sheets, performs intermittent turning, and stacks them in specified batches.
- 🔹 High-Speed Stacking: Handles speeds up to 8,000 sheets/hour, maintaining accuracy under continuous operation.
- 🔹 Integrated Control System: Equipped with advanced PLC logic and touch-screen operation for precise, real-time monitoring.
- 🔹 Smart Sheet Alignment: Vacuum suction feeding and belt drive system ensure consistent sheet control and smooth transitions.
- 🔹 Ergonomic Design: Reduces operator workload, minimizes handling errors, and improves workplace safety.
- 🔹 Durable Frame: Built with industrial-grade steel and heat-treated components for stability and long lifespan.
- 🔹 Energy Efficiency: Low power consumption (6 kW) while maintaining powerful mechanical performance.
3. Technical Specifications
MODEL | ND-1450S | ND-1650S |
Max Sheet Size | 1450 × 1250 mm | 1650 × 1450 mm |
Min Sheet Size | 500 × 150 mm | 500 × 310 mm |
Overall Dimension | 5500 × 2500 × 3050 mm | 6500 × 2700 × 3050 mm |
Power | 6 kW | 6 kW |
4. Integration into Corrugated Cardboard Production Line

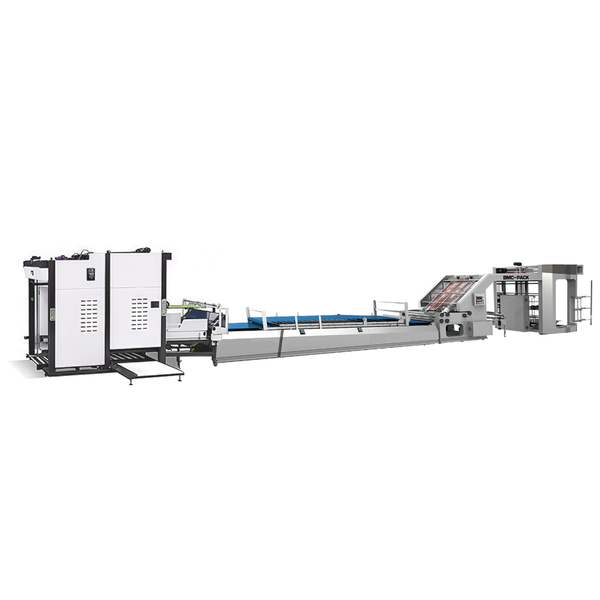

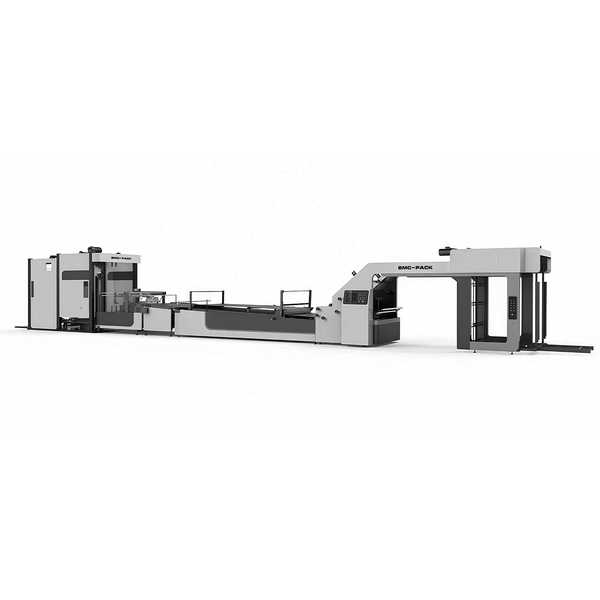

The Automatic Pile Turner and Stacker is designed for perfect integration with a wide range of corrugated carton production line configurations. It complements the Flute Laminator by completing the stacking process automatically, aligning each laminated sheet for subsequent Rotary Die Cutting or creasing and die cutting stages.
By automating the pile-turning phase, BMC Pack eliminates the need for manual stacking, which is often labor-intensive and prone to misalignment. The result is a smoother, faster, and more cost-efficient production cycle.
5. Engineering Excellence by BMC Pack
The Automatic Pile Turner and Stacker embodies BMC Pack’s reputation for quality and precision engineering. With over 25 years of expertise in the corrugated packaging machinery industry, BMC Pack continuously innovates to help manufacturers achieve higher production output, minimize waste, and maintain consistent sheet quality.
The equipment integrates seamlessly with other BMC Pack Vietnam machines, such as folder gluer stitcher making machines, carton printing machines, flexo printer slotter die cutters, and creasing and die cutting machines, forming a fully automated Packaging Box Making Machine system.
6. Benefits of Using Automatic Pile Turner and Stacker
- ✔ Enhanced Accuracy: Maintains consistent stacking alignment within ±1 mm tolerance.
- ✔ Labor Cost Reduction: Replaces 2–3 manual workers, reducing labor costs significantly.
- ✔ Improved Productivity: Shorter turnaround time between lamination and die cutting.
- ✔ Damage Prevention: Minimizes warping, bending, and surface scratches on laminated sheets.
- ✔ Versatile Compatibility: Works with multiple laminator types across 3/5/7-ply Corrugated Cardboard Production Lines.
- ✔ Long-Term ROI: Lower maintenance requirements and reduced downtime lead to long-term cost savings.
7. Smart Automation Technology
Equipped with an intelligent PLC interface, the Automatic Pile Turner and Stacker allows users to monitor operational data, production counts, and maintenance schedules directly from the control panel. The self-diagnosis function automatically detects irregularities, ensuring smooth and continuous operation.

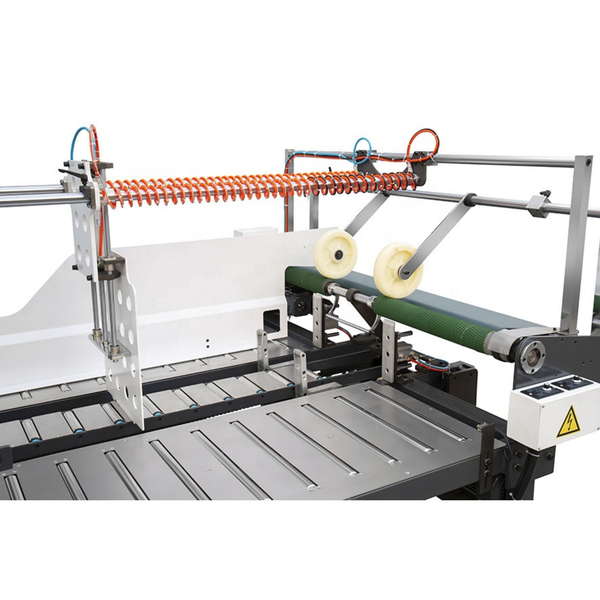

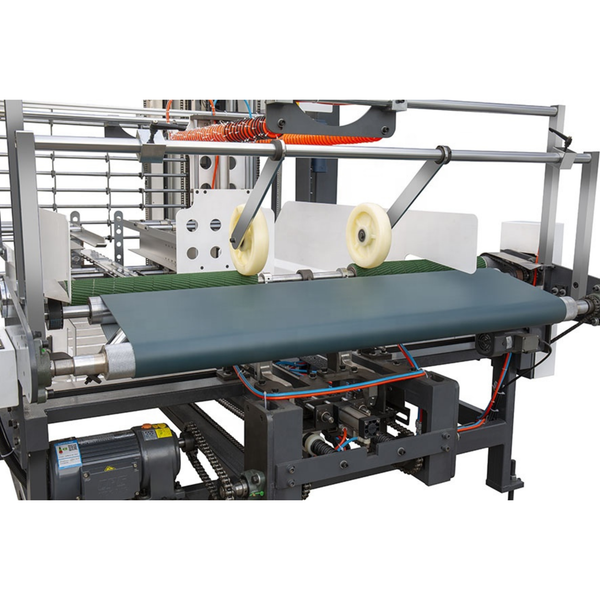

Its vacuum suction control and belt-driven transfer system deliver consistent sheet pickup without slippage, even at high speed. Combined with 2 servo motor synchronization, this mechanism provides ultra-smooth sheet stacking unmatched by conventional manual systems.
8. Application in Corrugated Packaging Solutions
The Automatic Pile Turner and Stacker is a vital component of BMC Pack’s packaging solutions ecosystem. It’s compatible with flute laminators, Rotary Die Cutting Machines, Creasing and Die Cutting Machines, Flexo Printing Machines, and other carton box machines used in modern packaging plants.
Ideal for high-volume corrugated carton production lines, it enhances output quality, consistency, and throughput, making it a critical investment for manufacturers producing export-grade cartons, advertising displays, or premium printed boxes.
9. Extended Discussion: ROI, Real-World Use & Partnership with BMC Pack
Investing in the Automatic Pile Turner and Stacker ensures both immediate and long-term financial benefits. Manufacturers report up to a 35% boost in lamination line productivity after incorporating this machine into their workflow. Labor costs drop substantially as the machine automates repetitive stacking tasks with flawless precision.
The short payback period—typically within 12–18 months—makes it one of the most cost-effective automation solutions for corrugated cardboard production lines. Operators also experience safer working conditions, as manual lifting and stacking are eliminated, reducing strain and accidents.
Moreover, BMC Pack Vietnam provides tailored consultation to integrate the Automatic Pile Turner and Stacker with existing systems such as Rotary Die Cutting or Flexo Printing Machine setups. The result is a streamlined end-to-end packaging solution that maximizes production flow and minimizes waste.
Partnering with BMC Pack means gaining access to decades of mechanical engineering expertise, after-sales support, and continuous technological innovation. The company provides on-site installation, operator training, and 24/7 global technical assistance. Spare parts and maintenance services are readily available, ensuring minimal downtime and long-term equipment stability.
With its reputation for reliability, BMC Pack continues to be the trusted choice for packaging manufacturers seeking efficiency, innovation, and quality assurance. The Automatic Pile Turner and Stacker is not just a machine—it’s a productivity multiplier and a symbol of BMC Pack’s commitment to excellence in the corrugated packaging machinery industry.
10. Conclusion
In today’s competitive packaging market, automation isn’t optional—it’s essential. The Automatic Pile Turner and Stacker by BMC Pack empowers manufacturers to achieve higher efficiency, precision, and profitability across their corrugated cardboard production lines. With intelligent stacking, reliable control, and unmatched build quality, this machine redefines what’s possible in the laminating and post-lamination process.
When integrated with flute laminators, Rotary Die Cutting, and creasing and die cutting systems, it forms the cornerstone of a fully automated packaging solution capable of meeting the highest global standards.
By choosing BMC Pack, you’re not just buying machinery—you’re investing in a trusted partnership that brings innovation, performance, and peace of mind to your production floor.
Optimize your future with the Automatic Pile Turner and Stacker — where automation meets perfection.
