Comparison: Lead Edge vs Rear Edge Feeder for Carton Printing – The Key to Precision and Efficiency in Corrugated Packaging

Introduction: Understanding the Core Difference Between Lead Edge and Rear Edge Feeder Systems

In the carton box machine industry, the feeding system plays a vital role in determining the printing quality, registration accuracy, and overall production speed. Among the most common systems in Flexographic Printer and Flexo Printing Machine setups are the Lead Edge Feeder and Rear Edge Feeder. Both are crucial mechanisms within a Flexo Printer Slotter Die Cutter, ensuring corrugated sheets are accurately transferred into the printing and die-cutting sections of the line.

While Rear Edge Feeders are often used in traditional Corrugated Carton Production Lines, Lead Edge Feeders represent a modern advancement found in high-speed Vacuum Transfer Flexo Printing Machines and Folder Gluer Stitcher systems. Choosing between the two directly affects productivity, cost-efficiency, and final print precision.

This article explores the technical comparison, advantages, and best use cases of Lead Edge vs Rear Edge Feeder, based on industrial experience, BMC Pack’s catalog specifications, and field feedback from modern Corrugated Cardboard Production Lines.

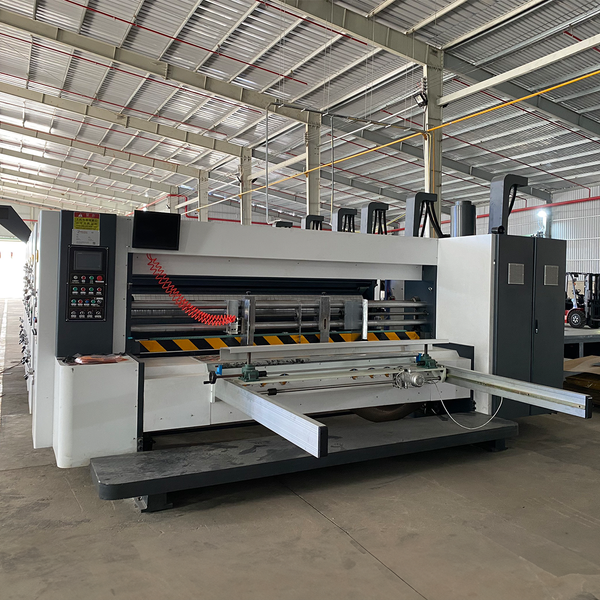

1. What Is a Lead Edge Feeder?

A Lead Edge Feeder is a front-feeding system that uses vacuum suction or mechanical grip to pull sheets from the front edge of the stack. This system ensures stable feeding even for curved or warped sheets, maintaining consistent registration during printing and Slotter and Die Cutting.

Key features include:

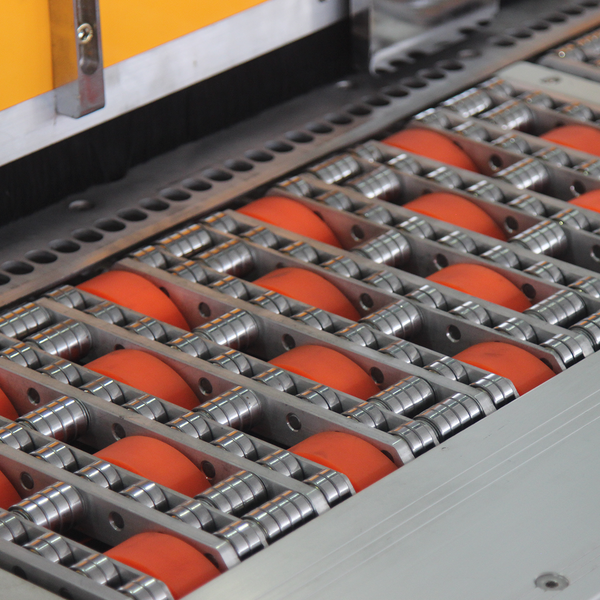

• Servo Vacuum Transfer ensures precise sheet control.
• Adjustable feeding speed up to 250 pcs/min.
• Compatible with 3/5/7 ply Corrugated Cardboard Production Lines.
• Perfect for high-end Flexo Printer Folder Gluer and Flexographic Printer setups.

This feeder type is commonly used in high-speed automatic Flexo Printing Machines for large-volume production such as pizza boxes, fruit boxes, and export packaging cartons.

2. What Is a Rear Edge Feeder?

The Rear Edge Feeder (also called back-edge feeder) works by pushing the corrugated sheet from the rear side into the printing section. This system is simpler and more affordable, but it offers less stability when operating at high speeds.

It is often found in Chain Feed Flexo Printers or older-generation Carton Printing Machines, typically running at speeds of 60–100 pcs/min.

Main characteristics:

• Mechanical feeding from the back side.
• More economical investment.
• Suitable for medium and small Corrugated Carton manufacturers.
• Easier to maintain but less precise than Lead Edge Feeders.

3. Technical Comparison Table: Lead Edge vs Rear Edge Feeder

4. Advantages and Disadvantages of Each Feeder Type

Lead Edge Feeder – Advantages:

• Perfect synchronization with the Flexographic Printer section ensures sharp and accurate printing registration.
• Capable of handling warped corrugated boards without misfeeding.
• Suitable for high-speed, automatic carton box production lines.
• Enhances print quality and reduces waste during long runs.

Lead Edge Feeder – Disadvantages:

• Higher cost due to servo and vacuum systems.
• Requires experienced operators for calibration.

Rear Edge Feeder – Advantages:

• Affordable, simple, and easy to maintain.
• Ideal for factories focusing on local or small batch production.
• Low spare part cost and minimal technical setup required.

Rear Edge Feeder – Disadvantages:

• Limited speed and accuracy.
• Feeding issues occur when processing curved or recycled boards.
• Not suitable for export-grade printing quality.

5. Which One Should You Choose for Your Carton Box Production Line?

For medium to large factories aiming to expand production and meet global standards, the Lead Edge Feeder integrated with a Servo Vacuum Transfer Flexo Printing Machine is the best solution. It maximizes ROI by reducing downtime, improving print consistency, and enabling continuous operation.

However, if your operation focuses on small-scale production with limited budget, the Rear Edge Feeder remains a practical choice—especially for basic Slotter and Die Cutting lines that do not require high-speed output.

BMC Pack provides both feeder types across its range of Flexo Printers, Carton Box Machines, and Corrugated Carton Production Lines, ensuring tailored packaging solutions for every factory need.

6. Extended Analysis: ROI and Real-World Efficiency

In today’s competitive packaging industry, efficiency defines profitability. Upgrading from Rear Edge Feeder to Lead Edge Feeder can yield 30–50% productivity improvement and reduce paper waste by 15–20%.

Practical ROI Highlights:

• Reduced Labor Cost: Lead Edge Feeder’s automation allows one operator to handle multiple production stages.
• Faster Setup: Servo-based feeders synchronize instantly with Flexo Printer Slotter Die Cutter systems.
• Consistency in Long Runs: Perfect sheet alignment guarantees premium printing on every Pizza Box or Export Carton.
• Durability: Built with hardened gears and vacuum chambers, BMC Pack feeders ensure long-term reliability with minimal maintenance.

Why Partner with BMC Pack?

• Over 25 years of expertise in Corrugated Cardboard Production Lines.
• Custom packaging box making machines with Servo Vacuum Transfer technology.
• Full technical support, on-site training, and spare parts availability.
• Trusted by top clients in Asia, Europe, and the Middle East for Carton Printing Machine solutions.

Conclusion: The Future Belongs to Lead Edge Feeder Systems

While Rear Edge Feeders still serve budget-conscious factories, the industry trend clearly favors the Lead Edge Feeder due to its precision, automation, and compatibility with modern Flexo Printing Machines. Investing in BMC Pack’s advanced feeder systems not only boosts print quality but also secures long-term savings and sustainability.

For any company seeking to modernize its Corrugated Carton Production Line or launch a new Flexo Printer Slotter Die Cutter, BMC Pack (BMCPack) remains the most trusted partner—built on trust, driven by quality.
