Difference Between Vacuum Transfer vs Chain Feed Flexo Printer: Which System Truly Delivers Precision and Profit?

Introduction

In the world of corrugated carton production, printing precision, feeding accuracy, and production efficiency are key factors that define the overall output quality of a Flexo Printing Machine. Among the most debated choices for carton factories are the Vacuum Transfer Flexo Printer and the Chain Feed Flexo Printer — two feeding systems that dominate the Corrugated Cardboard Production Line industry.

Both technologies serve the same core purpose — feeding cardboard sheets into the Flexographic Printer — yet their mechanisms, maintenance requirements, and performance levels differ significantly. Understanding these differences helps factories choose the most efficient solution for their Carton Box Machine, whether for pizza boxes, corrugated cartons, or packaging box making machines.

This article provides a comprehensive technical comparison between Vacuum Transfer and Chain Feed Flexo Printer, analyzing feeding precision, printing stability, energy consumption, ROI, and more. All specifications and comparisons are based on BMC Pack (BMCPack) machinery standards, known globally for reliable packaging solutions.

1. Technical Comparison Table

2. Working Principle

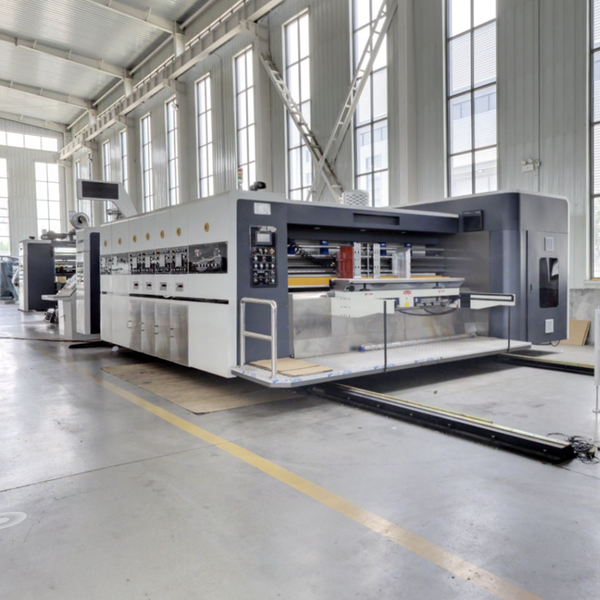

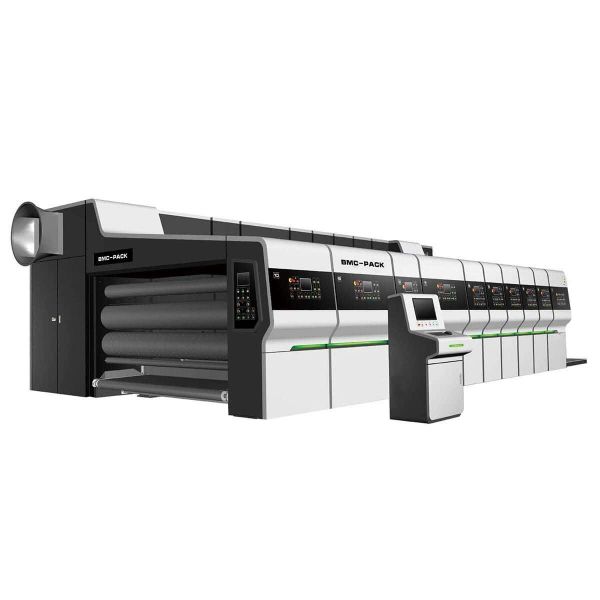

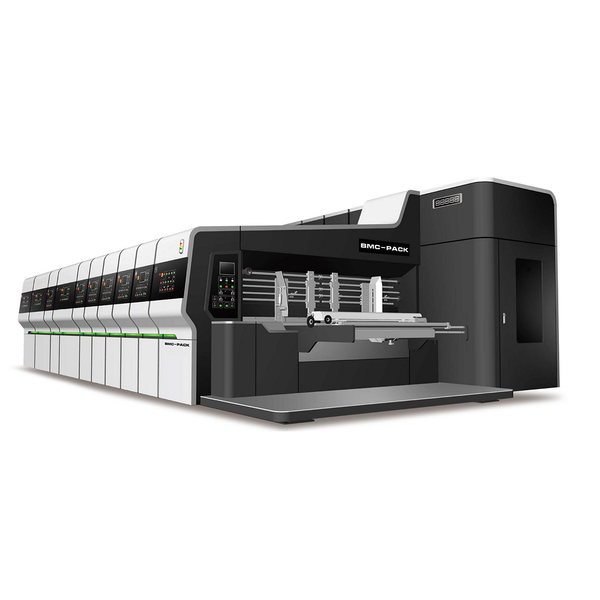

Vacuum Transfer Flexo Printer

The Vacuum Transfer system uses a servo-controlled suction belt that holds the corrugated sheet with negative pressure. This ensures perfect linear motion, avoiding slippage or skewing even at high speeds.

This system is ideal for high-end Flexographic Printer models where print registration and speed consistency are critical — such as pizza box, fruit packaging, or cosmetic box production.
The Servo Vacuum Transfer mechanism eliminates mechanical vibration, offering long-term stability, reduced waste, and minimal maintenance downtime.

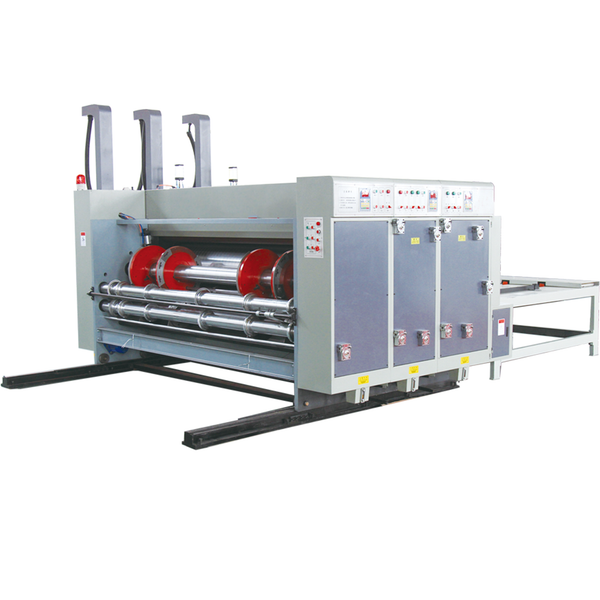

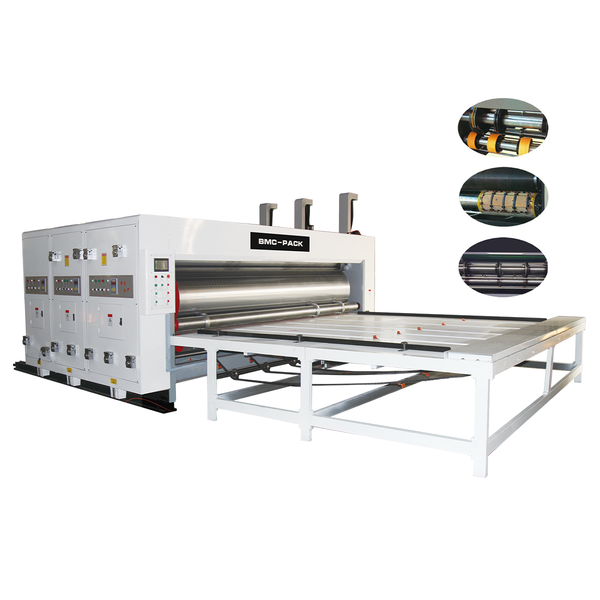

Chain Feed Flexo Printer

The Chain Feed system is a classic mechanical feeding solution found in traditional Carton Printing Machines. It uses chain hooks to pull sheets into the printing unit.

While the system is less precise, it is cost-effective and easier to maintain for small factories transitioning from manual to semi-automatic production. However, it struggles with thin or warped boards and may cause slight misalignment during slotting and die-cutting.

3. Advantages and Disadvantages

Vacuum Transfer Flexo Printer

Advantages:

• Higher accuracy and registration precision
• Supports multi-color Flexo Printing Machine configurations
• Reduced paper jam and waste
• Smooth feeding for all corrugated carton grades
• Compatible with Folder Gluer Stitcher Making Machine lines
• Excellent ROI through high productivity

Disadvantages:

• Higher initial cost
• Requires stable air pressure and clean filters
• Slightly higher power consumption

Chain Feed Flexo Printer

Advantages:

• Low investment cost
• Simple mechanical structure
• Easy maintenance and operation
• Suitable for entry-level Carton Box Machine setups

Disadvantages:

• Limited speed and accuracy
• Higher waste rate with lightweight boards
• Frequent chain tension adjustments required

4. Integration in Corrugated Carton Production Line

Both types can be integrated into Corrugated Cardboard Production Lines and Corrugated Carton Production Lines, often paired with Slotter and Die Cutting Machines and Folder Gluer Stitcher systems.

In high-end packaging solutions, Vacuum Transfer Flexo Printers are commonly linked with automatic Stacking and Counter Ejector Units, while Chain Feed Printers are used in medium-scale factories where manual collection is acceptable.

BMCPack offers both configurations under models like NDVT-920/1224FSDCS (Vacuum Transfer) and NDCF-920/1224FSDC (Chain Feed), ensuring adaptability across various production scales.

5. Applications and Industrial Uses

• Vacuum Transfer Flexo Printer:

Perfect for premium packaging, multi-color carton printing, and fast-speed production lines — particularly in food, beverage, and electronics packaging.

• Chain Feed Flexo Printer:

Ideal for basic brown box production, shipping cartons, and low-volume local manufacturing.

Factories often upgrade from Chain Feed to Vacuum Transfer Flexo Printing Machines as production demands grow — improving both speed and profitability.

6. Extended Analysis: ROI, Efficiency, and Labor Reduction

Investing in Vacuum Transfer Flexo Printers delivers measurable ROI within 12–18 months. The system’s automation reduces dependency on skilled operators by 40%, lowers rejection rates by 30%, and increases throughput by 50%.

When integrated with Folder Gluer Stitcher and Flatbed Creasing and Die Cutting Machines, it forms a complete Packaging Box Making Machine line that runs continuously with minimal manual intervention.

Chain Feed Printers, while cheaper, result in higher long-term costs due to waste, reprints, and slower cycle times.

For customers with growing volume or export packaging needs, upgrading to Servo Vacuum Transfer is a cost-effective long-term solution.

By choosing BMC Pack, clients benefit from tailored configurations — from Single Facer to Double Facer, Flexo Printer Slotter Die Cutter, and Automatic Folder Gluer — ensuring an end-to-end Corrugated Carton Production Line optimized for their factory layout and budget.

Conclusion

The debate between Vacuum Transfer vs Chain Feed Flexo Printer ultimately comes down to automation, precision, and future scalability.

If your business focuses on high-speed, high-quality Flexographic Printing, the Vacuum Transfer Flexo Printer provides unmatched feeding precision, consistent color alignment, and reduced production waste — making it the preferred choice for modern packaging lines.

For smaller operations or start-ups, the Chain Feed Flexo Printer remains a budget-friendly entry point with simple mechanics and reliable operation.

Whichever solution fits your needs, BMC Pack (BMCPack) ensures top-tier engineering, global technical support, and lifetime service commitment — helping you transform your carton printing machinery into a long-term investment that drives growth, efficiency, and quality.
