Introduction – Eco Automatic Folder Gluer And Stitcher Machine for Smart Packaging Efficiency

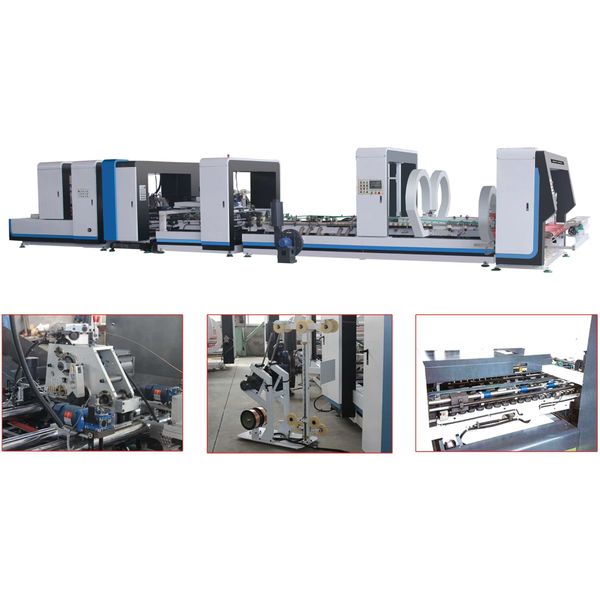

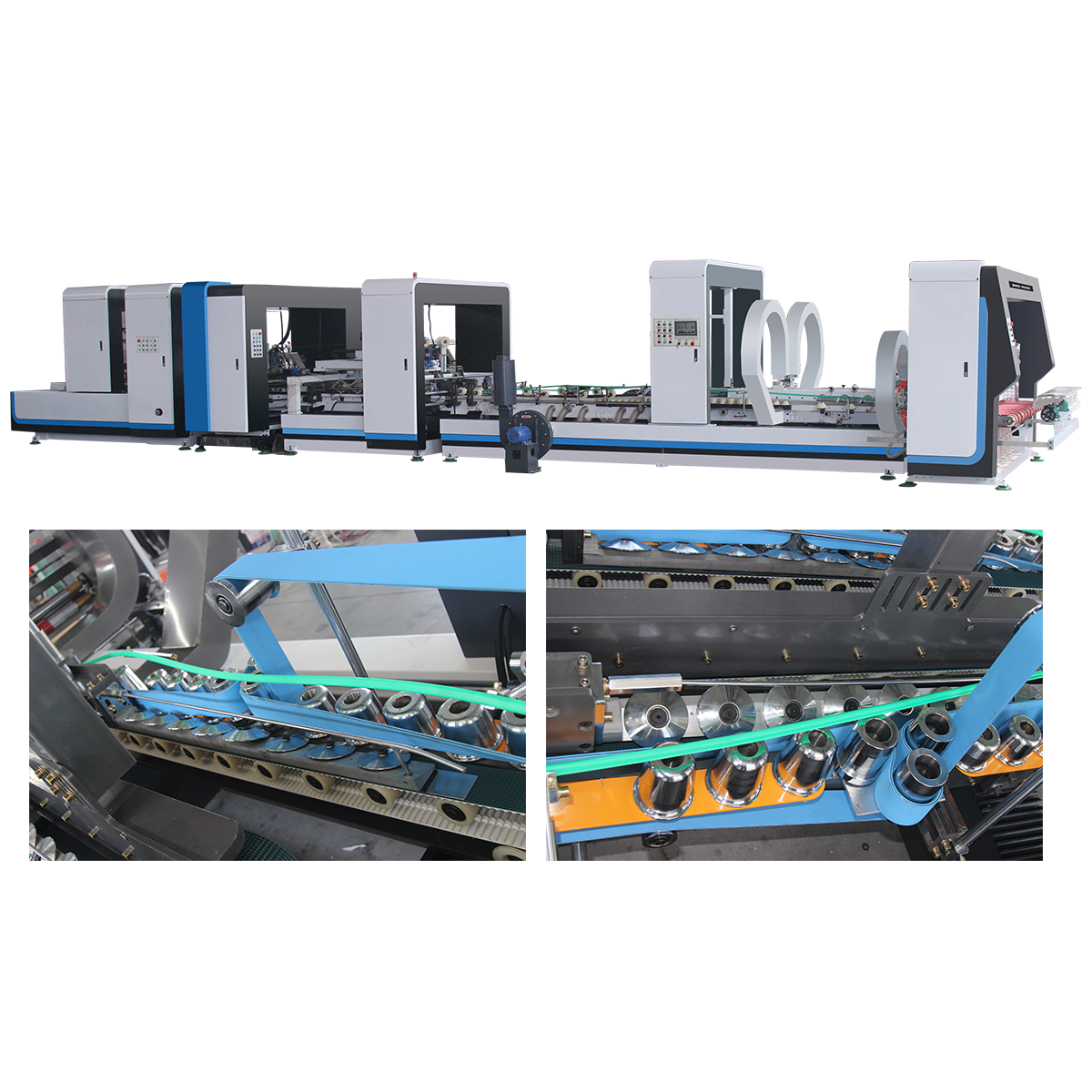

The Eco Automatic Folder Gluer And Stitcher Machine NDEA-1224FGS / NDEA-1628FGS by BMC Pack represents the next generation of automation for corrugated box manufacturing. Designed with energy efficiency and precision at its core, this high-speed solution perfectly integrates folding, gluing, and stitching functions to streamline every stage of production. In modern corrugated carton and carton box machine factories, the demand for accuracy, speed, and reliability continues to grow — this advanced system is engineered to meet those standards and exceed them.
Developed through years of R&D by bmcpack, this machine achieves the ideal balance between eco-performance and automation. The Eco Automatic Folder Gluer And Stitcher Machine minimizes waste, reduces manpower, and boosts productivity across all corrugated cardboard production line configurations, including 3/5/7 ply corrugated carton setups. Whether used in flute lamination systems, folder gluer stitcher making machine lines, or full packaging box making machine environments, it delivers stable operation, lower energy use, and high ROI.
Each model – NDEA-1224FGS and NDEA-1628FGS – offers flexibility for varying box sizes and materials, from pizza box to heavy-duty shipping cartons. Combined with smart servo control and PLC touchscreen interface, the Eco Automatic Folder Gluer And Stitcher Machine ensures reliable performance in high-volume operations.
1. Design Overview of the Eco Automatic Folder Gluer And Stitcher Machine
The Eco Automatic Folder Gluer And Stitcher Machine is designed with five servo motors, delivering full automation across the feeding, folding, gluing, nailing, and stacking processes. Its PLC Control System with a user-friendly touch-screen enables quick setup and operation, allowing technicians to monitor every detail in real time.
The machine adopts high-precision servo synchronization, ensuring perfect timing between folding and stitching. A modular architecture allows integration with flute laminator, flexo printer, and rotary die cutter systems, giving manufacturers flexibility to scale production in any corrugated carton production line.
Technical Specifications
FOLDER GLUER MODEL | NDEA-1224FGS | NDEA-1628FGS |
Max sheet size | 1200 × 2400 mm | 1600 × 2800 mm |
Min sheet size | 300 × 800 mm | 300 × 850 mm |
Design Speed | 180m/min | 180m/min |
Working Speed | 150m/min | 150m/min |
Maximum (A+B) × 2 | 2400 mm | 2800 mm |
Minimum (A+B) × 2 | 800 mm | 850 mm |
Maximum A | 750 mm | 950 mm |
Minimum A | 180 mm | 180 mm |
Maximum B | 450 mm | 450 mm |
Minimum B | 80 mm | 100 mm |
Maximum D | 700 mm | 900 mm |
Minimum D | 150 mm | 150 mm |
Maximum (C+D+C) | 1200 mm | 1600 mm |
Minimum (C+D+C) | 300 mm | 300 mm |
E width | 40 mm | 40 mm |
Maximum C | 400 mm | 400 mm |
Minimum C | 100 mm | 100 mm |
STITCH MODEL | NDEA-1224FGS | NDEA-1628FGS |
Max (A+B) × 2 | 2400 mm | 2800 mm |
Min (A+B) × 2 | 800 mm | 800 mm |
Min (C+D+C) | 300 mm | 300 mm |
Max (C+D+C) | 1200 mm | 1600 mm |
Min C | 100 mm | 100 mm |
Max C | 400 mm | 400 mm |
Max B | 500 mm | 500 mm |
Stitching Speed (stitches/min) | 1000 | 1000 |
Min A | 250 mm | 250 mm |
Max A | 850 mm | 950 mm |
Max D | 800 mm | 1000 mm |
Min D | 150 mm | 150 mm |
Max E | 38 mm | 38 mm |
Min B | 170 mm | 170 mm |
Stitch Qty | 1–99 | 1–99 |
2. High-Efficiency Folding, Gluing, and Stitching System

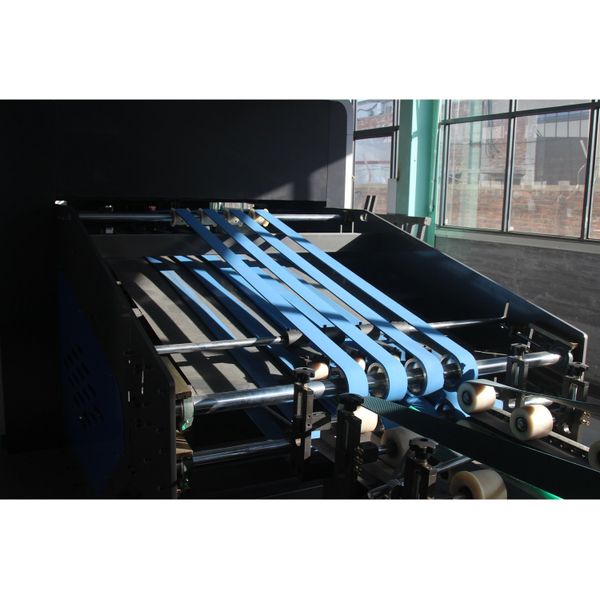

The Eco Automatic Folder Gluer And Stitcher Machine integrates multiple functions into a compact and efficient frame. Its automatic feeding section features an independent air volume control system, ensuring stable sheet feeding for all corrugated materials. The folding correction and deviation compensation functions guarantee flawless alignment, even at high speed.
The flute laminator and flute lamination compatibility allows seamless connection with upstream corrugated cardboard production line systems. A powerful glue application system ensures consistent and waste-free gluing performance, while the servo-controlled nailing head provides accurate stitching with adjustable nail spacing.
Each Eco Automatic Folder Gluer And Stitcher Machine unit by bmcpack is built using high-grade components from Schneider, Delta, and Siemens. The steel body and anti-vibration base ensure operational stability, while the energy-efficient control system reduces power usage by up to 25%.
3. Smart Control and Automation Features
This Stitcher And Folder Gluer Machine is fully computer-controlled with high-speed servo synchronization, eliminating manual setup errors. The PLC interface stores box data for repeat jobs, allowing operators to switch production in minutes. The Eco Automatic Stitcher And Folder Gluer Machine automatically completes feeding, folding, correction, stitching, counting, and stacking.
- Automatic nail box alignment: Dual correction servo system for smooth folding.
- Smart memory setup: Store up to 99 job formats with preset gluing and nailing parameters.
- Glue positioning precision: ±1 mm tolerance with adjustable glue width.
- Noise-free operation: Servo feedback system minimizes vibration and ensures quiet production.
The eco-design reduces CO₂ emissions while maintaining output consistency — a defining feature that sets BMC Pack apart in modern packaging solutions manufacturing.
4. Application in Corrugated Carton and Packaging Industry
The Eco Automatic Stitcher And Folder Gluer Machine is widely used for multiple carton box machine applications:
- Folding and gluing pizza box, fruit packaging, or logistics cartons.
- Integrating with corrugated carton production line for mass packaging supply.
- Compatible with Flexo Printer Slotter Die Cutter, Flatbed Creasing and Die Cutting, and Folder Gluer Stitcher Making Machine systems.
- Used in high-demand sectors such as food, beverage, electronics, e-commerce, and FMCG packaging.
Its smart adjustment design makes it suitable for A.B.C flute, double wall, and laminated corrugated materials. The consistent stitching quality ensures durability during shipping, while the automatic counting and stacking section simplifies packaging output.
5. Technical Strength and Production Benefits
- Speed & Productivity: Achieves up to 180 m/min working speed, supporting 3–5 layer corrugated production.
- Material Adaptability: Handles 3/5/7 ply corrugated cardboard production line outputs.
- Precision & Accuracy: Servo-driven stitching and real-time glue control.
- Reduced Labor: One operator can manage multiple machines efficiently.
- Energy Saving: Uses less electricity while maintaining high performance.
- Maintenance Ease: Quick component access, plug-type wiring, and auto lubrication system.
Each Eco Automatic Stitcher And Gluer Machine improves factory ROI by increasing throughput and reducing downtime, while bmcpack ensures full technical support and global service backup.
6. Integration with Other BMC Pack Machinery
The Eco Automatic Folder Gluer And Stitcher Machine integrates seamlessly with:
- Flute Laminator – for laminated box structures.
- Flexo Printing Machine or Flexographic Printer – for printing and slotting.
- Creasing and Die-Cutting Machine – for shaping and trimming.
- Rotary Die Cutter and Folder Gluer Stitcher Making Machine – for converting and finishing.
This modular approach allows BMC Pack clients to build a fully automated corrugated cardboard production line, connecting upstream Single Facer and Double Facer systems with downstream packaging units.
7. Real Industrial Impact and ROI Advantages
For modern factories, investing in the Eco Automatic Stitcher And Gluer Machine means faster returns and sustainable growth. Manual gluing and stitching processes typically require 4–5 workers per line, while this automated system only needs one. The labor cost savings can reach 60% annually.
Energy-efficient components, servo automation, and reduced glue consumption lower operational costs by up to 25%. The stable high-speed operation ensures 15–20% higher productivity compared to older models. With flute lamination compatibility, manufacturers can produce both laminated and non-laminated boxes using the same line — increasing flexibility and reducing changeover time.
Over time, the Eco Automatic Folder Gluer And Stitcher Machine becomes the foundation of digital transformation for any corrugated carton production line. The combination of intelligent control, low energy usage, and minimal maintenance results in consistent production with outstanding ROI.
Partnering with BMC Pack means more than purchasing equipment — it’s a long-term industrial alliance. bmcpack provides factory layout design, installation, technical training, and lifetime support. The company’s mission is to empower global packaging factories to achieve higher efficiency, lower costs, and sustainable manufacturing through advanced automation.
Conclusion – Why Choose BMC Pack Eco Automatic Stitcher And Gluer Machine
The Eco Automatic Stitcher And Gluer Machine NDEA-1224FGS / NDEA-1628FGS stands as the perfect balance between high performance and energy efficiency. It is the ideal choice for packaging companies aiming to upgrade their production capability while minimizing environmental impact.
With global expertise, cutting-edge design, and a proven record in corrugated carton and carton box machine innovation, BMC Pack continues to set the benchmark for stitcher and gluer machine excellence.
Every bmcpack solution is engineered for long-term durability, precision, and maximum profitability — ensuring your packaging business stays ahead of competition in the fast-evolving corrugated cardboard production line industry.
