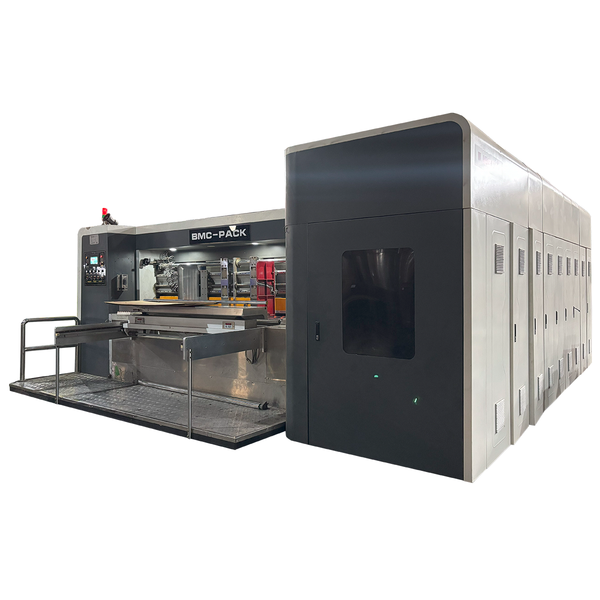

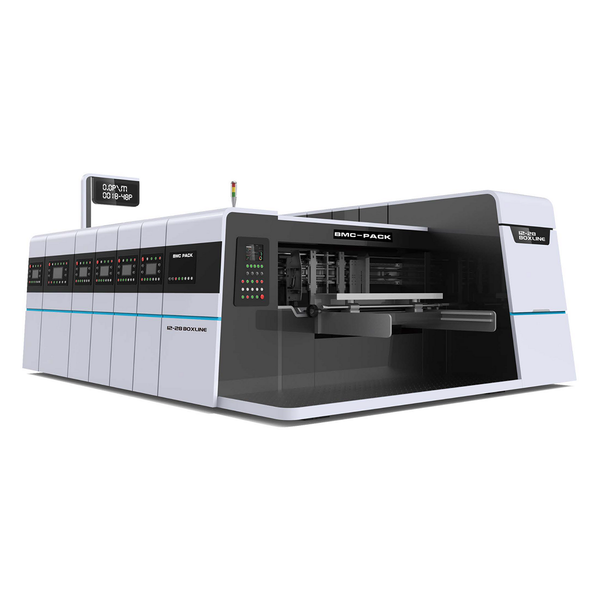

The Flexo Printer Slotter Die Cutting machine by BMC Pack (BMCPack) stands as one of the most advanced innovations in the corrugated cardboard production line industry, engineered for high speed, precision, and stability. This state-of-the-art equipment combines printing, slotting, and die-cutting into a single continuous process, delivering seamless productivity and exceptional print quality. The model’s hallmark lies in its lead-edge feeder technology, rotary die-cutting system, and servo-driven automation that collectively redefine operational efficiency in packaging manufacturing. Built with a reinforced frame, precision gears, and CE-certified electrical components, this machine is designed to meet the growing global demand for sustainability, speed, and print accuracy in corrugated carton production line facilities.
The Flexo Printer Slotter Die Cutting machine integrates robust performance with user-oriented innovation. From intelligent PLC control to vacuum adsorption feeding, every detail reflects the engineering philosophy of BMC Pack (BMCPack): providing reliable, cost-effective, and efficient packaging solutions. The modular design allows customization for diverse board sizes, while its consistent production accuracy ensures alignment with international standards for carton printing and creasing and die cutting operations. Whether in small to large-scale carton box machine plants, this solution embodies a new era of automation, energy saving, and excellence in packaging manufacturing.
Flexo Printer Slotter Die Cutting — Advanced Features and Engineering Precision
The Flexo Printer Slotter Die Cutting machine combines speed, precision, and reliability through a unique synergy of automation and mechanical durability. Its lead-edge feeder system with servo control ensures consistent feeding even at high speed, minimizing board crush and misalignment. Supported by a high-vacuum suction system, the feeder eliminates dust and impurities from the cardboard surface, resulting in cleaner printing and longer roller life. This stability ensures that every board entering the flexo printer unit maintains perfect registration for superior image quality.

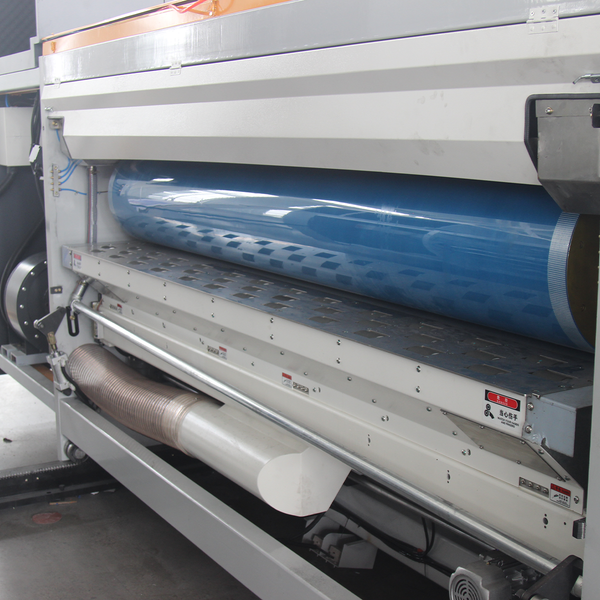

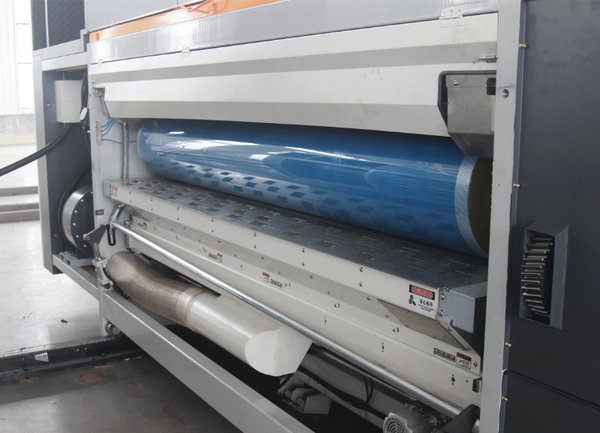

In the printing section, the system utilizes the Doctor Blade Ink System—a proven chamber-type design for consistent ink control. Each printing unit is equipped with premium ceramic anilox rolls that provide excellent ink transfer and minimize dot gain. The digital phase adjustment system allows 360° fine-tuning even during production, ensuring seamless registration across multiple colors. The integration of infrared drying technology accelerates ink curing, allowing high-speed operation while maintaining sharp print details. As part of the Flexographic Printer family, the machine’s efficient ink circulation system reduces waste, saves energy, and provides an eco-friendly solution for modern converters.

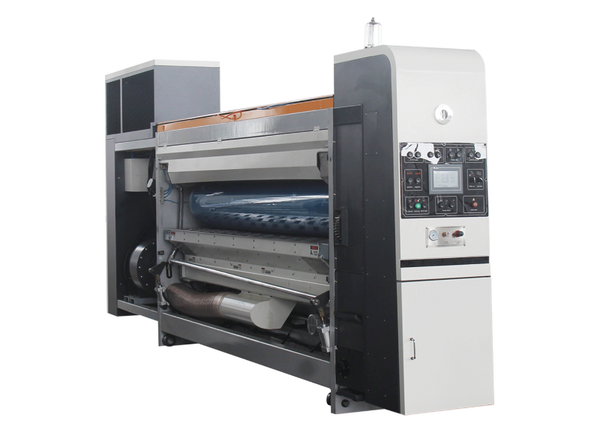

The Rotary Die-Cutting module is the machine’s powerhouse. Controlled by a high-precision servo system, it combines computer-monitored cutting alignment with automatic compensation for wear. The Cushion Roller Cam System ensures smooth operation, while the automatic gap adjustment enables continuous fine-tuning of cutting depth. The die-cutting roller, made from German steel, is designed for longevity and high performance, ensuring precise creasing, slotting, and cutting for all types of corrugated sheets. Through this innovation, BMC Pack (BMCPack) guarantees clean edges, reduced waste, and unmatched accuracy across all orders.
Flexo Printer Slotter Die Cutting — Technical Specifications and Performance Metrics
Model NDFA-920FSDC:
- Design speed: 300 pcs/min
- Working speed: 250 pcs/min
- Max feeding size: 900 × 2200 mm
- Max printing area: 900 × 2000 mm
- Min feeding size: 250 × 600 mm
- Max slotting depth: 300 mm
- Die-cutting precision: ±0.4 mm
- Slotting precision: ±1.0 mm
- Printing plate thickness: 3.94 mm
- Min slotting interval (Normal): 150 × 150 × 150 × 150 mm
- Min slotting interval (Reverse): 270 × 65 × 270 × 65 mm
Model NDFA-1224FSDC:
- Design speed: 250 pcs/min
- Working speed: 200 pcs/min
- Max feeding size: 1200 × 2600 mm
- Max printing area: 1200 × 2400 mm
- Min feeding size: 350 × 650 mm
- Max slotting depth: 350 mm
- Die-cutting precision: ±0.4 mm
- Slotting precision: ±1.0 mm
- Printing plate thickness: 3.94 mm

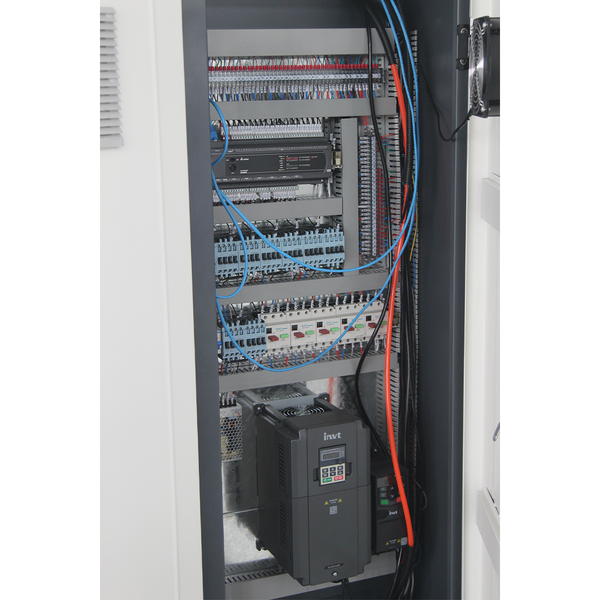

Both configurations utilize inverter-controlled motors, intelligent lubrication systems, and automatic reset functions. Electrical components are sourced from Siemens, Schneider, Omron, NSK, and Airtac—ensuring reliability and ease of maintenance. These specifications confirm the Flexo Printer Slotter Die Cutting machine as an ideal core asset within any corrugated carton production line or packaging box making machine facility.
Flexo Printer Slotter Die Cutting — Intelligent Automation and Operational Control
This Flexo Printer Slotter Die Cutting unit from BMC Pack (BMCPack) represents the latest in smart automation. Its touchscreen PLC control system centralizes management of printing, slotting, and die-cutting functions, offering precise adjustments and rapid changeovers. The system’s memory can store multiple order configurations, allowing immediate recall for repeat jobs, reducing downtime and setup time.

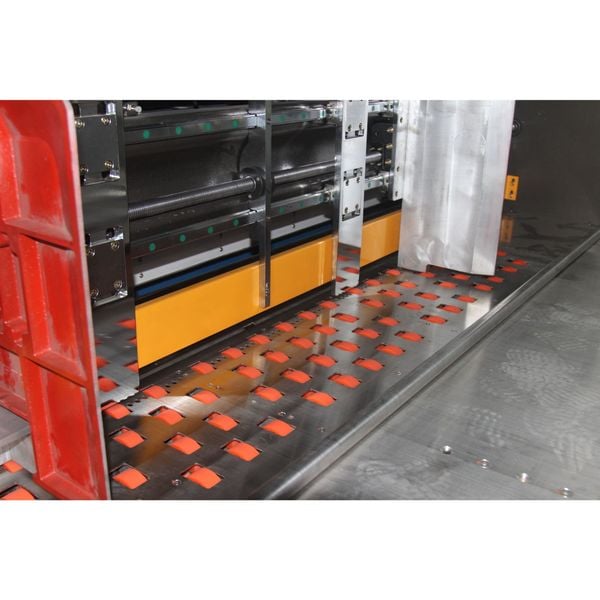

The vacuum transfer section maintains accurate paper feed even under high-speed conditions, while the servo synchronization system ensures that each module—feeding, printing, slotting, and die-cutting—works harmoniously. The automatic phase correction mechanism keeps all cylinders in precise alignment, minimizing manual intervention and operator fatigue. With real-time fault diagnosis and safety interlocks, the machine’s stability exceeds industry standards.

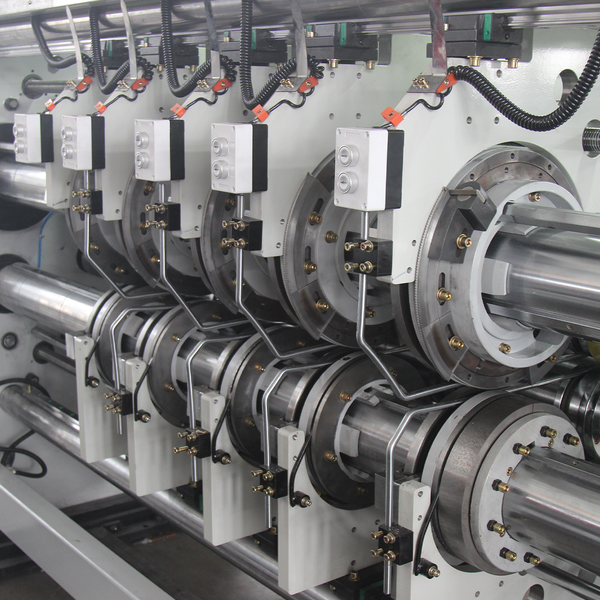

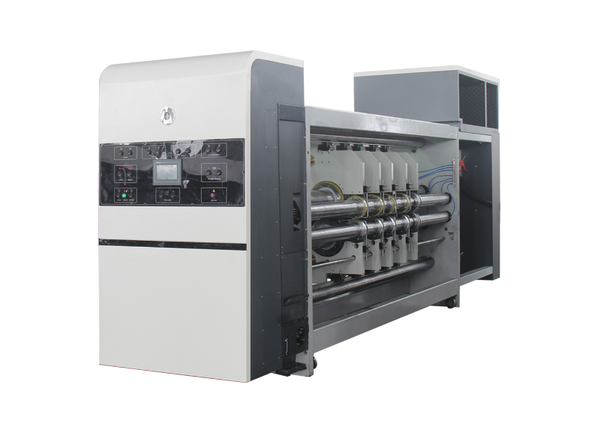

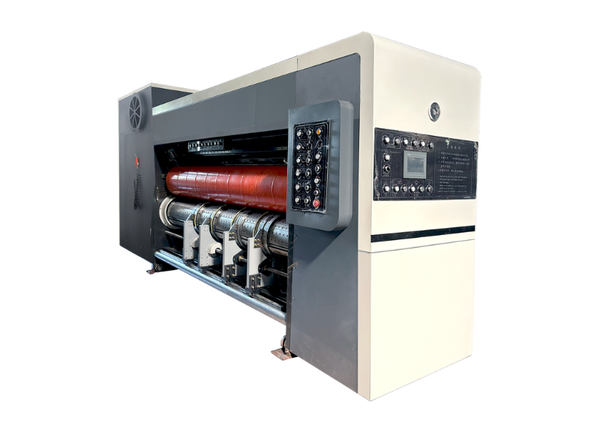

The Slotting Section integrates a pre-pressing device to prevent board deformation, a rubber-coated upper pressing wheel for protection, and a self-locking adjustment mechanism to guarantee consistent slot dimensions. Each slotting blade is made of heat-treated steel, ensuring extended lifespan even under continuous operation. Meanwhile, the creasing and die cutting performance remains smooth and consistent, maintaining ±0.5 mm precision across extended production runs.
Flexo Printer Slotter Die Cutting — Integrated Design and Manufacturing Efficiency

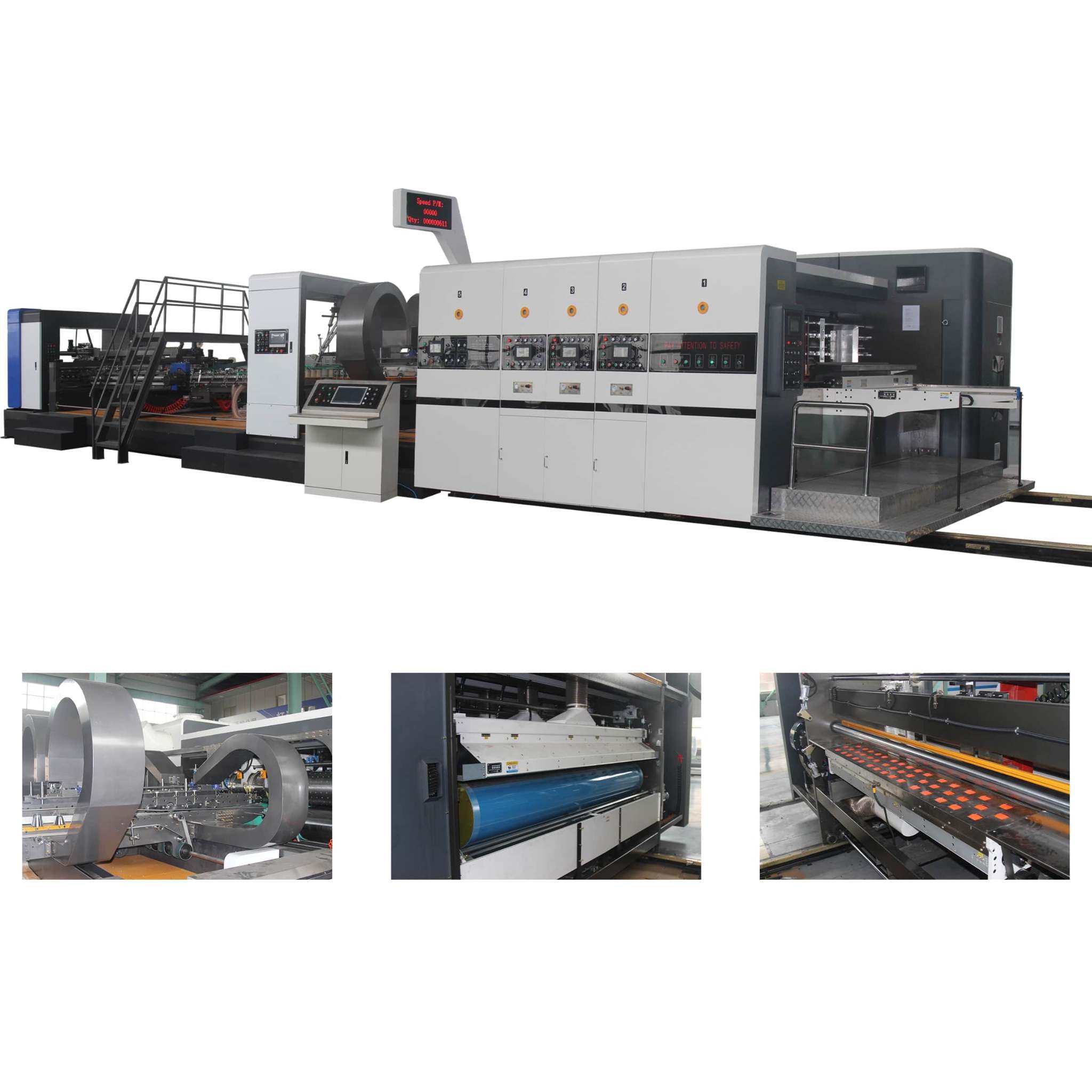

BMC Pack (BMCPack) has built this Flexo Printer Slotter Die Cutting machine as a cornerstone of the modern corrugated cardboard production line. It seamlessly connects with Single Facer, Double Facer, and Flute Laminator systems for a fully automated production workflow. The modular integration ensures quick synchronization between printing, slotting, and die-cutting operations—streamlining the entire converting process.
The heavy-duty structure guarantees vibration-free operation and high durability. Hardened helical gears, oil bath lubrication, and hardened shafts extend mechanical lifespan while maintaining precision at high speeds. The servo vacuum transfer ensures smooth board transportation between modules, eliminating misfeeds and reducing waste. Its intelligent ink management and quick-change printing plate system minimize downtime, increasing hourly output by up to 20%.
Moreover, the system’s environmental design optimizes air flow, noise reduction, and energy efficiency—meeting modern sustainability requirements for industrial manufacturing. These advancements make the Flexo Printer Slotter Die Cutting an integral part of an optimized packaging box making machine ecosystem, combining automation, intelligence, and productivity into a single streamlined solution.
Conlusion: Flexo Printer Slotter Die Cutting — The Future Of Packaging Automation
In the competitive landscape of the corrugated carton production line, the Flexo Printer Slotter Die Cutting machine by BMC Pack (BMCPack) represents not only a technological achievement but also a strategic investment in long-term production excellence. It elevates every stage—from feeding to creasing and die cutting—with unmatched precision, ensuring reduced waste, lower maintenance, and superior throughput.
With decades of experience in carton printing machine and packaging solutions, BMC Pack (BMCPack) continues to define industry benchmarks through innovation, research, and customer feedback. The company’s focus on performance-driven engineering allows global manufacturers to achieve exceptional box quality and consistency, meeting the standards of leading packaging brands.
For converters seeking to expand capacity and reduce downtime, adopting a Flexo Printer Slotter Die Cutting system is not just a machinery upgrade—it’s a leap toward smart manufacturing, higher efficiency, and sustainable growth. Connect with BMC Pack (BMCPack) today to discover how this flagship solution can transform your corrugated cardboard production line into a powerhouse of precision, quality, and profit.
