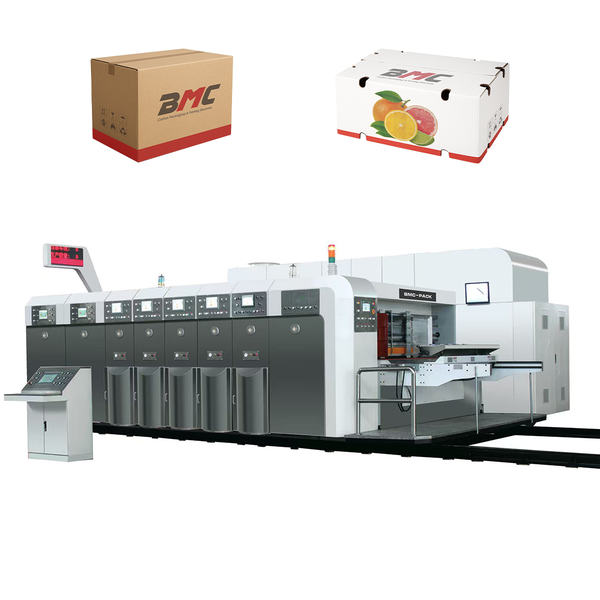

In the evolving landscape of the corrugated cardboard production line, the Flexo Printer Slotter Die Cutting machine stands as the ultimate embodiment of precision, automation, and performance. Designed to meet the dynamic needs of large-scale packaging box making machine factories, this advanced system integrates high-speed printing, accurate slotting, and precision rotary die-cutting into a seamless, fully automated workflow.
Equipped with a lead-edge feeder featuring servo phase control and vacuum adsorption, the machine ensures stable, non-crushing board feeding even at speeds exceeding 350 sheets per minute. Combined with creasing and die cutting technologies, it achieves exceptional registration accuracy, vivid color reproduction, and flawless structural conversion from plain sheets to ready-to-fold packaging boxes.
Supported by intelligent servo control, German Siemens PLC systems, and Japanese NSK bearings, the Flexo Printer Slotter Die Cutting machine exemplifies engineering perfection. It redefines what it means to produce packaging with speed, stability, and sustainability, serving as the cornerstone of any modern corrugated carton production line focused on quality and efficiency.
Main Analysis
1. Precision Engineering and Lead-Edge Feeder Design

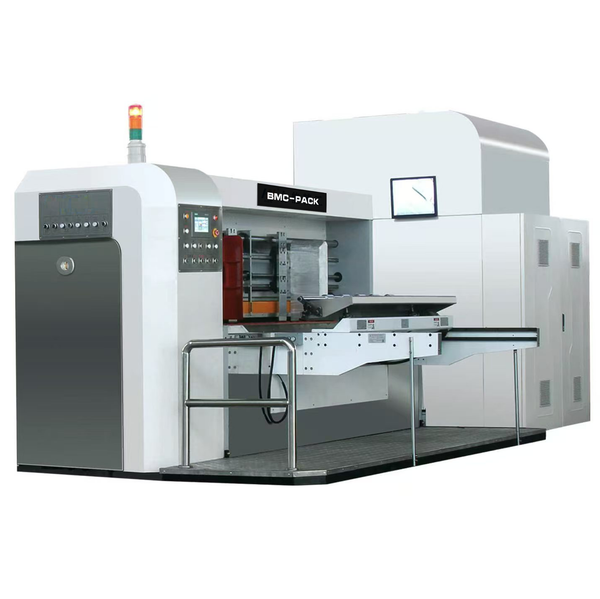

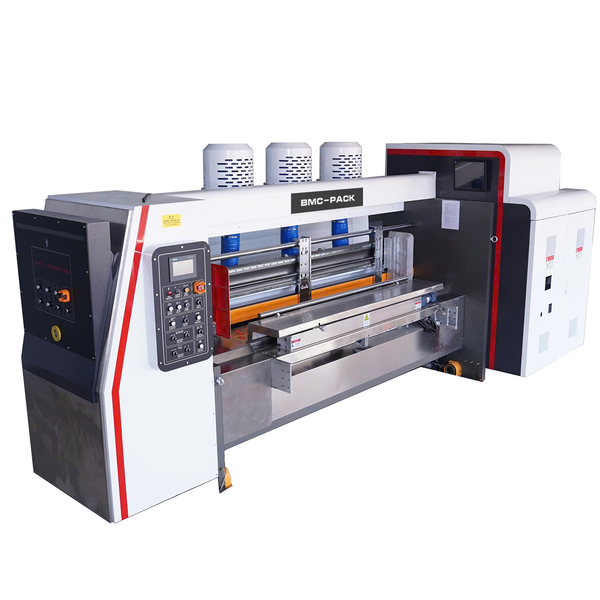

At the foundation of every Flexo Printer Slotter Die Cutting system is its revolutionary lead-edge feeder, which uses servo-controlled phase adjustment and vacuum adsorption. This ensures stable sheet transmission with zero misfeeds, maintaining alignment and accuracy throughout the production process. The vacuum system, controlled by a variable-frequency inverter, adapts to different board thicknesses and flute types—be it 3, 5, or 7-ply corrugated sheets.
The feeder’s double-layer rubber roller design (soft inner, hard outer) prevents flute damage while maintaining grip, ensuring precise feeding at speeds up to 350 pcs/min. Dust removal units and adjustable front/rear stoppers make it suitable for continuous or skip feeding. The machine’s memory stores up to 999 job parameters, allowing operators to recall and restart production effortlessly—key for high-volume packaging solutions.
2. Advanced Flexo Printing Technology
The Flexo Printer Slotter Die Cutting integrates a cutting-edge Flexo Printing Machine module designed for high-precision and high-speed multi-color operations. Equipped with a seamless steel printing cylinder (diameter Φ445 mm), anilox rollers with pneumatic clutch, and vacuum transfer fully automatic alignment, it guarantees precise ink transfer and uniform color saturation.
Each flexo printer unit features motorized registration adjustment (±10 mm), automatic ink wash-up, and controlled ink-return systems powered by ARO double diaphragm pumps. The combination of ceramic anilox rollers and magnetic plate locking mechanisms ensures clarity, consistency, and reduced ink waste.
Servo synchronization between the Flexographic Printer and feeder unit eliminates deviation even during high-speed runs. The result: smooth operation, sharp print quality, and production stability unmatched by conventional systems.
Whether producing fruit boxes, electronic packaging, or industrial cartons, the Flexo Printer Slotter Die Cutting provides an optimal balance between printing precision, ink efficiency, and environmental responsibility.
3. High-Performance Creasing and Die Cutting Unit

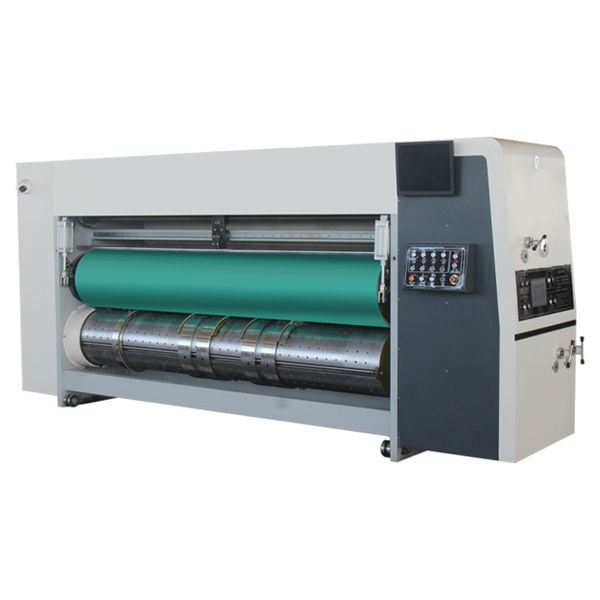

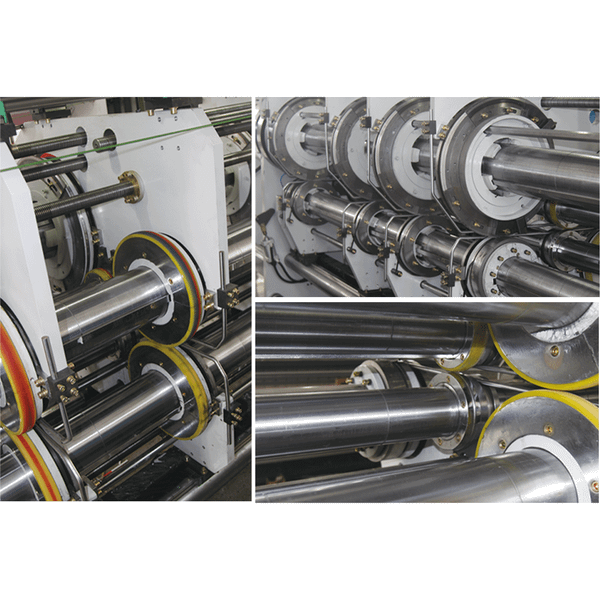

The creasing and die cutting section is where the mechanical precision of this machine truly shines. Equipped with an advanced rotary die cutter system, it performs both cutting and creasing operations simultaneously. The die-cutting cylinder and rubber blanket roll are manufactured to international standards, ensuring consistency and extended service life.
The Flexo Printer Slotter Die Cutting machine allows motorized pressure adjustment, lateral movement (±20 mm), and 360° planetary registration while running. This means job changeovers and real-time corrections can be made without stopping production. A speed compensation system maintains accuracy between die cylinders, preventing misalignment and extending the lifespan of the anvil cover.
For the creasing and die cutting machine, precision equals productivity. This unit can handle a wide range of board thicknesses (1–12 mm) with clean edges, consistent scoring, and minimal paper waste—ideal for premium packaging box making machine production.
4. Efficiency through Intelligent Automation

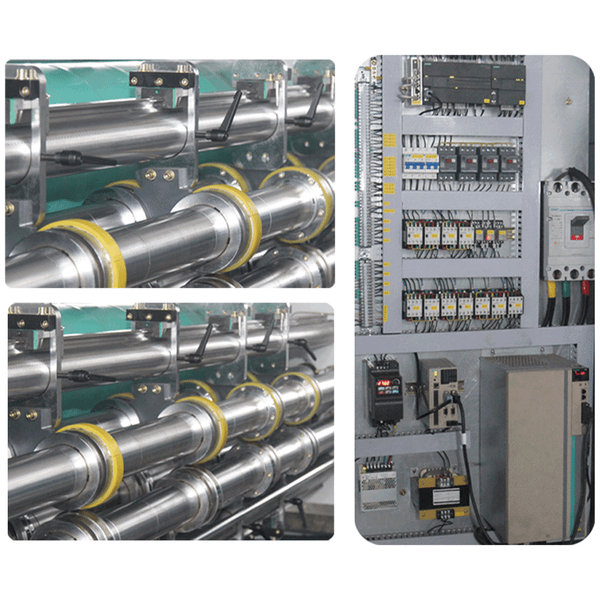

Every Flexo Printer Slotter Die Cutting system incorporates full servo automation with PLC and touchscreen control for effortless operation. From feeding to printing, slotting, and rotary die-cutting, each step is synchronized through digital phase control. Operators can monitor production parameters, adjust print registration, or change feeding modes directly from the control panel.
The inclusion of automatic job memory, quick setup functions, and an intelligent safety interlock system makes production faster and safer. Faults are displayed in real time, while remote diagnostics allow engineers to troubleshoot without downtime.
This level of integration ensures that the Flexo Printer Slotter Die Cutting performs not just as a machine—but as a smart, adaptive production ecosystem within any corrugated carton production line.
5. Durability, Stability, and Energy Efficiency
Built with a reinforced 60 mm steel frame and precision-ground gears, the Flexo Printer Slotter Die Cutting offers unmatched durability. Components from Schneider (France), Omron (Japan), NSK (Japan), and Airtac (Taiwan) guarantee international-grade reliability.

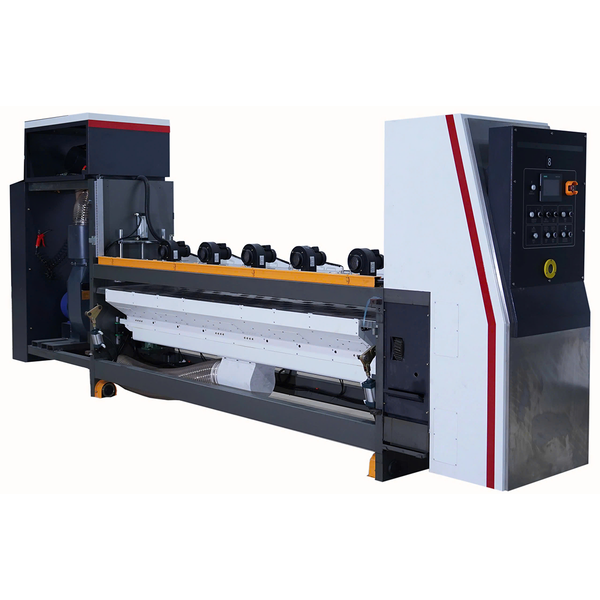

The system’s vacuum transfer fully automatic feeding minimizes mechanical stress, while temperature-controlled infrared dryers in the pre-drying and coating stages ensure optimal ink curing with reduced energy consumption. This translates to longer uptime, lower maintenance, and greater profitability for manufacturers focused on sustainable packaging solutions.
Its industrial 4.0-compatible design, integrating both software and hardware control, positions it as the new generation of smart carton box machine technology.
6. Rotary Die-Cutting Excellence and Downstream Integration
With Rotary Die-Cutting technology at its core, the Flexo Printer Slotter Die Cutting seamlessly integrates with downstream systems like the folder gluer stitcher making machine, stacking unit, or automatic case maker.
The die-cutting precision of ±0.5–1.0 mm ensures perfectly formed corrugated boxes, ready for high-speed folding and gluing. Servo-driven control systems coordinate multiple processes, reducing waste and manual intervention.
For businesses seeking comprehensive automation—from creasing and die cutting to final box gluing—this machine provides a turnkey packaging box making machine solution, aligning with the standards of modern corrugated cardboard production line operations worldwide.
Investment Efficiency and Real-World Applications

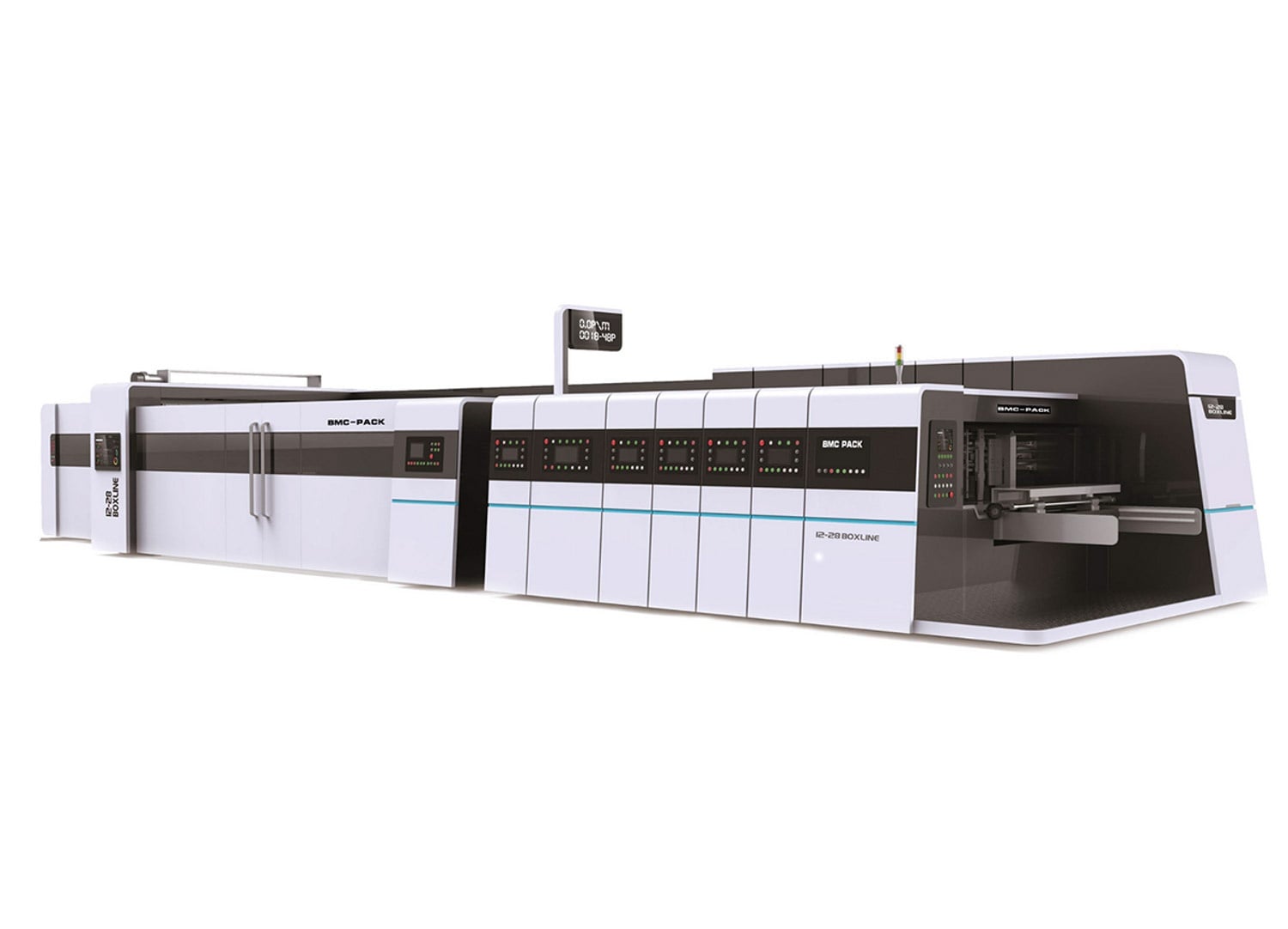

In today’s highly competitive corrugated packaging industry, production efficiency and cost optimization determine business survival. The NDVT series (NDVT-920FFG / NDVT-1224FFG) from BMC Pack has proven to be a profitable long-term investment for manufacturers worldwide by combining flexibility, automation, and durability into a single high-performance system.
1. Superior ROI (Return on Investment):
The NDVT Flexo Printer Folder Gluer delivers outstanding ROI by reducing operating costs and maximizing output. Within the first year of operation, factories typically recover their investment thanks to:
- 40–60% reduction in manpower costs, achieved through a fully automated feeding, printing, folding, and gluing process.
- Energy-efficient servo drive systems that reduce power consumption by up to 25% compared to older generation machinery.
- High-speed production (up to 350 pcs/min) that doubles or even triples daily output, accelerating the return on investment cycle.
2. Practical Applications Across Industries:
The NDVT-920FFG and 1224FFG models are versatile and suitable for multiple packaging sectors including:
- E-commerce logistics boxes, where precision folding and quick changeover reduce downtime for fast product cycles.
- FMCG and food packaging, requiring clean, accurate printing and hygienic dust-free environments.
- Electronics and industrial packaging, where rigid box strength and die-cut accuracy ensure product protection during shipping.
These applications make the NDVT line a cornerstone of modern corrugated box production facilities.
3. Operational Excellence and Cost Reduction:
Equipped with advanced servo QVT vacuum transfer, the machine maintains perfect board registration, reduces material waste, and ensures smooth operation. The quick plate-changing mechanism and automatic cleaning system minimize idle time, boosting uptime by over 30% compared to manual systems.
Operators can manage the entire process through a centralized touchscreen interface, simplifying training, reducing errors, and improving overall workflow efficiency. The result: fewer workers, faster setups, higher precision.
4. Long-Term Partnership with BMC Pack:
Working with BMC Pack (Hainan Baomingcheng Carton Packaging & Printing Machinery Co., Ltd.) means partnering with a global leader in corrugated packaging machinery. Customers benefit from:
- Comprehensive after-sales support, including on-site installation, operator training, and lifetime service consultation.
- Global-standard components (Siemens, Schneider, NSK, Airtac) ensuring reliability, availability of spare parts, and long-term stability.
- Tailored production solutions to match each client’s workflow, factory layout, and output goals.
Through BMC Pack’s expertise, carton manufacturers can confidently scale up production while maintaining consistent quality and cost efficiency. The NDVT Flexo Printer Folder Gluer stands as a symbol of smart investment, sustainable growth, and future-ready automation in corrugated packaging production.
Conclusion
The Flexo Printer Slotter Die Cutting machine represents the next frontier in corrugated carton production line technology. With its lead-edge feeder, servo vacuum system, intelligent automation, and high-speed rotary die-cutting precision, it delivers unmatched productivity and print accuracy.
By combining creasing and die cutting innovation with advanced Flexo Printing Machine control, it sets a new benchmark for packaging solutions across industries—from food to electronics and beyond. Its robust engineering and user-centric design ensure continuous, stable performance, while maintaining sustainability and cost efficiency.
For manufacturers aiming to elevate their competitive edge in the corrugated cardboard production line, investing in a Flexo Printer Slotter Die Cutting system means embracing excellence, efficiency, and long-term reliability. This isn’t just a machine—it’s the evolution of smart, automated packaging manufacturing.
