Introduction

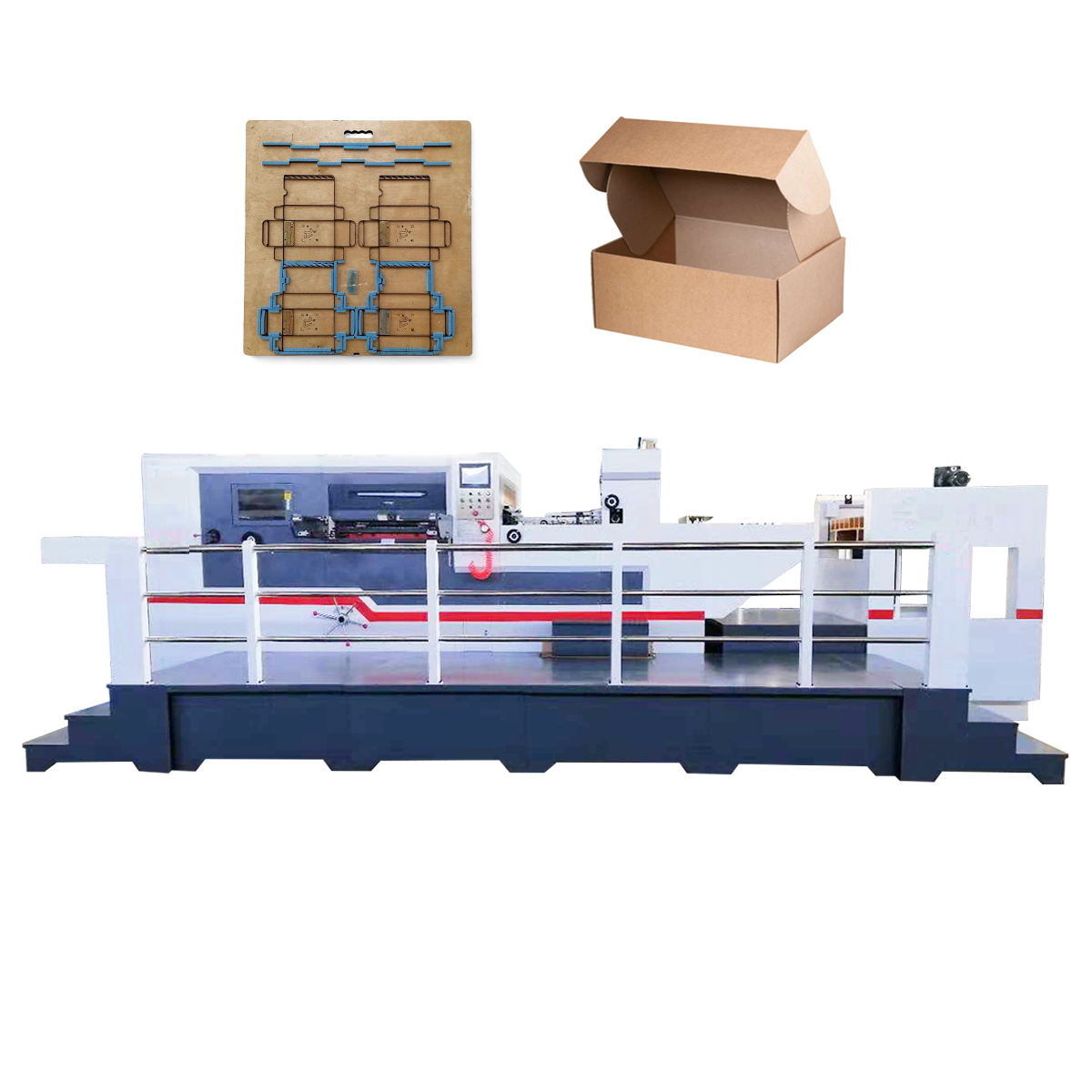

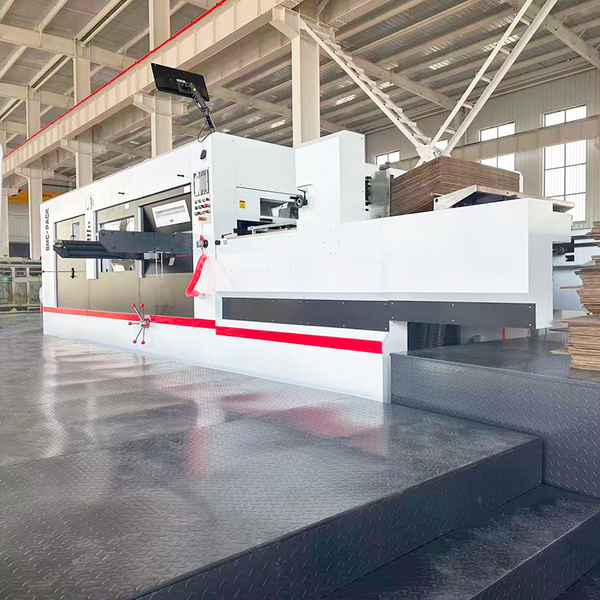

The Fully Automatic Flatbed Creasing and Die Cutting Machine NDFA-1300DC / NDFA-1500DC / NDFA-1650DC is a new-generation intelligent post-press solution designed by BMC Pack for high-precision corrugated carton and packaging box production.
Built with servo control, PLC automation, and a robust flatbed structure, these machines provide unmatched efficiency, cutting force, and accuracy for every packaging plant seeking superior creasing and die cutting performance.
Each model—NDFA-1300DC, NDFA-1500DC, and NDFA-1650DC—is tailored for different production scales and sheet sizes, yet all share the same DNA of durability, stability, and speed.
They are compatible with various corrugated cardboard production lines, suitable for 3-ply, 5-ply, and 7-ply corrugated sheets, as well as laminated boards and duplex paper.
From pizza boxes to luxury corrugated cartons, this flatbed line ensures crisp, accurate die-cutting, clean creasing, and fully automated waste removal. Designed under the principle of “Built on Trust, Driven by Quality”, BMC Pack guarantees both precision and productivity for global carton factories.
Analysis
1. Advanced Feeding and Positioning System

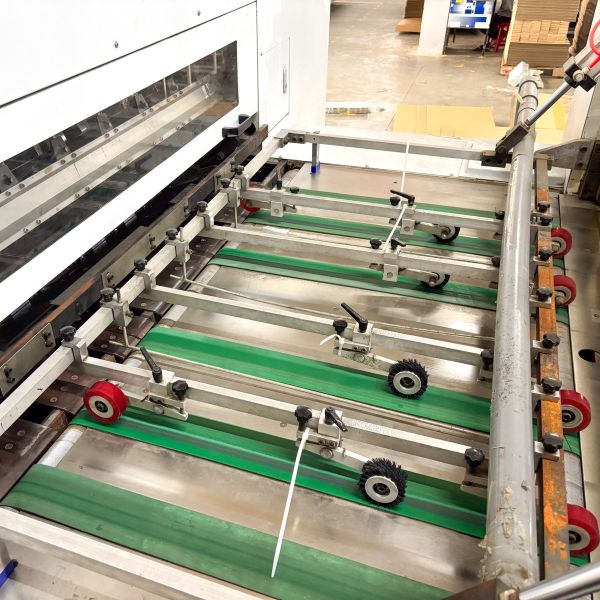

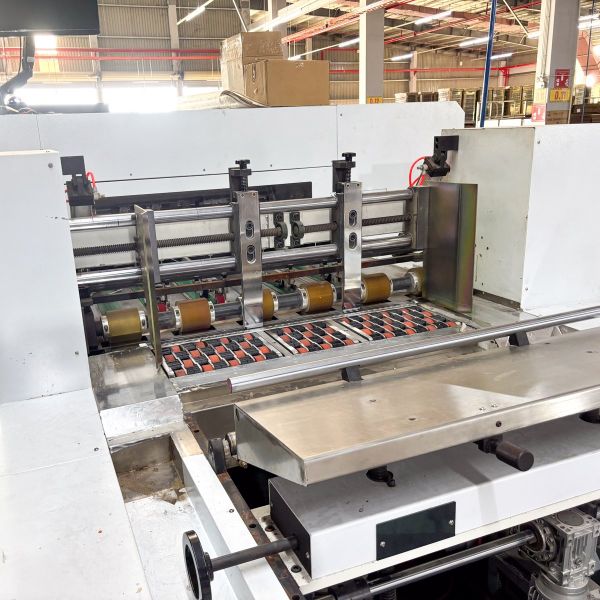

All three models—NDFA-1300DC, NDFA-1500DC, and NDFA-1650DC—adopt a vacuum suction feeding system with automatic side guides, ensuring smooth and stable paper feeding.

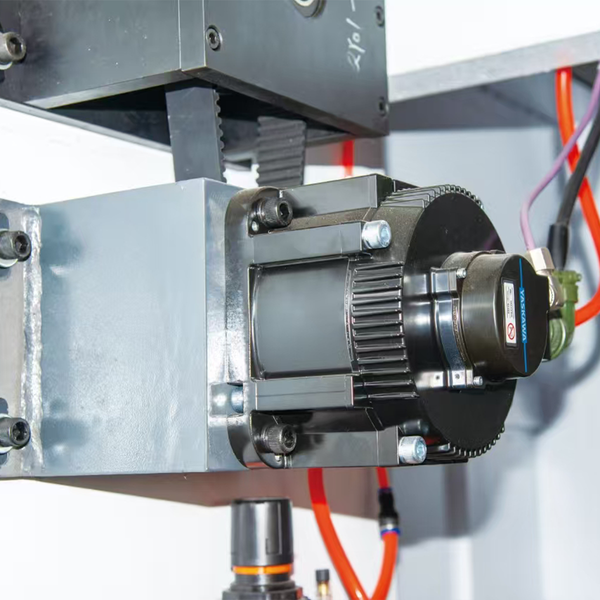

The front and side register systems are servo-driven, providing precise positioning with ±0.3 mm tolerance even at high speed.

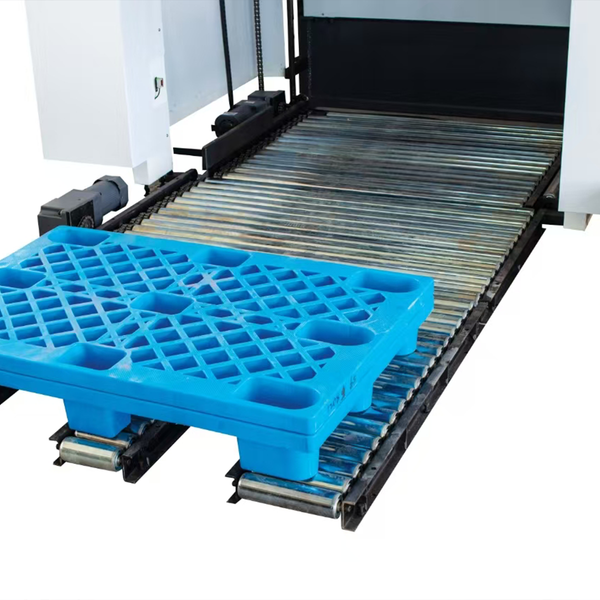

Automatic pile lifting and air-blowing systems help process both thin paperboard and heavy corrugated cardboard effortlessly.
2. Die Cutting Precision and Flatbed Strength

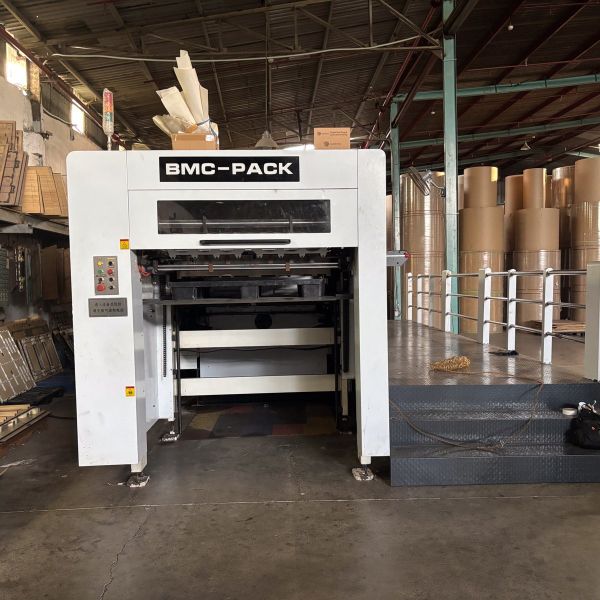

The Fully Automatic Flatbed Creasing and Die Cutting Machine is built on a heavy-duty cast iron frame (QT500) to resist vibration and deformation under continuous operation.

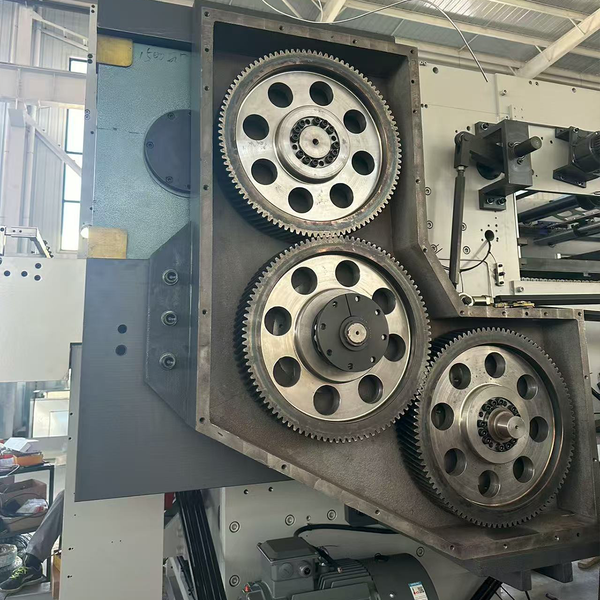

A precision crankshaft mechanism transmits a 300-ton die-cutting pressure, ensuring deep, consistent cuts across all material types.
The flatbed creasing and die cutting platform integrates a micro-adjustment mechanism for pressure and depth, allowing operators to fine-tune settings while running.
Each model’s design is reinforced with Japanese bearings, an Italian OMPI clutch, and Siemens main motor control—guaranteeing stable performance even under 24-hour operation.
3. Chain Drive and Gripper System

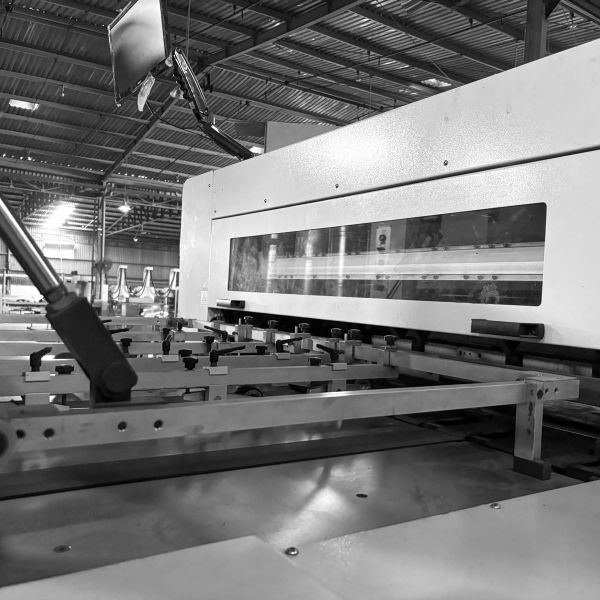

The machines use a high-tensile imported gripper chain to deliver sheets precisely to the die-cutting zone.
An optimized chain tension system and lubrication circuit ensure low noise, minimal wear, and long service life.
The chain drive synchronization with servo motors achieves high precision during continuous, high-speed operations—essential for modern corrugated carton production lines.
4. Intelligent Waste Removal and Automation

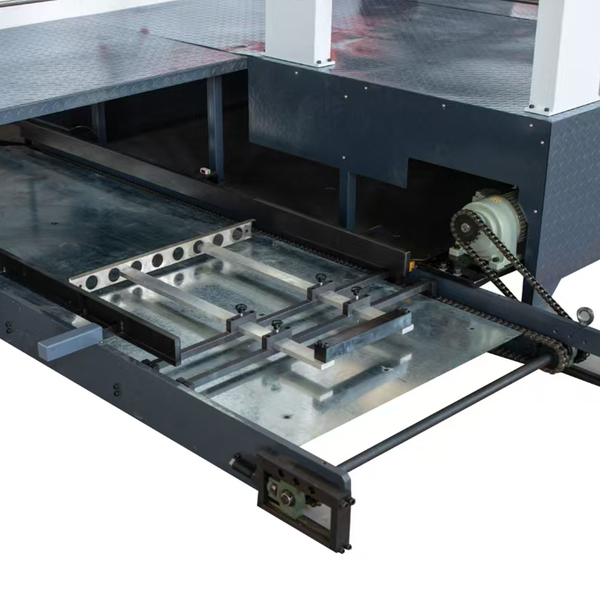

Each NDFA Series Flatbed Creasing and Die Cutting Machine integrates a pneumatic waste removal system with an automatic locking frame and lifting device.
Waste stripping is fully automated, reducing downtime and eliminating manual waste removal.

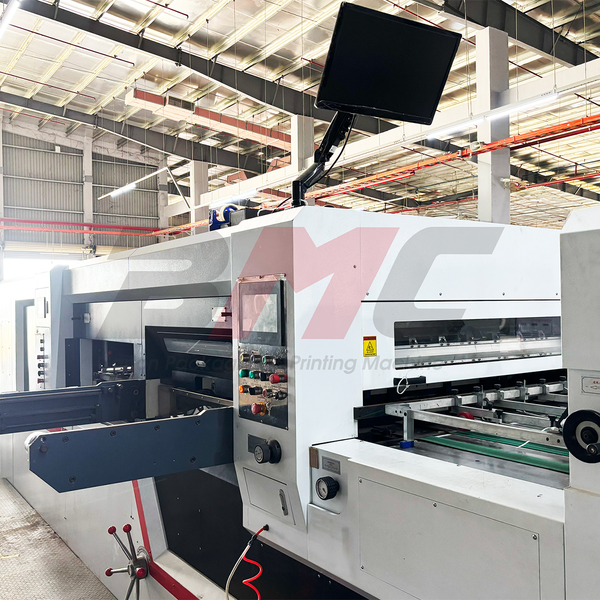

A PLC-based smart control panel displays real-time operating data, error detection, and production statistics—helping operators monitor performance efficiently.
5. Control System and Safety Design

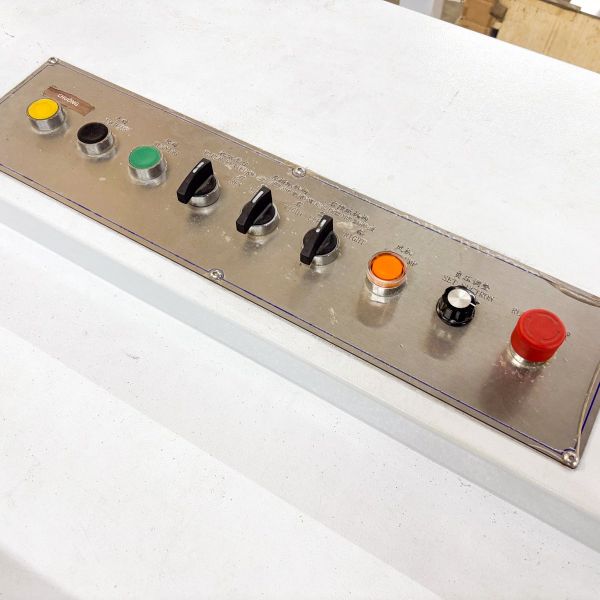

The machine control system is fully digital, using Schneider electrical components, SMC pneumatic valves, and Delta touchscreen interface.
Safety devices such as door interlocks, emergency brakes, and overload sensors protect both the operator and the machine.
This intelligent system ensures precise creasing and die cutting while maintaining operator safety and minimizing downtime.
6. Energy Efficiency and Maintenance
BMC Pack designed the NDFA Series with minimal energy loss.
A 30 kW motor drives the system efficiently, while auto lubrication reduces maintenance needs.
Each machine uses durable components—bearings (NSK, KOYO), motors (Siemens), and inverters (Toshiba)—ensuring reliability and extended machine lifespan.
Technical Specifications
Model | NDFA-1300DC | NDFA-1500DC | NDFA-1650DC |
Max. Sheet Size | 1300 × 950 mm | 1520 × 1120 mm | 1650 × 1200 mm |
Min. Sheet Size | 450 × 400 mm | 550 × 500 mm | 600 × 500 mm |
Max. Die Cutting Size | 1280 × 930 mm | 1500 × 1100 mm | 1630 × 1180 mm |
Sheet Thickness | 0.12 – 2.0 mm | 0.12 – 2.0 mm | 0.12 – 2.0 mm |
Corrugated Thickness | ≤ 8 mm | ≤ 8 mm | ≤ 8 mm |
Feeding Pile Height | 1500 mm | 1500 mm | 1500 mm |
Delivery Pile Height | 1400 mm | 1400 mm | 1400 mm |
Die-Cutting Accuracy | ±0.50 mm | ±0.50 mm | ±0.50 mm |
Working Pressure | 250 tons | 300 tons | 350 tons |
Max. Speed | 5000 sheets/hr | 5000 sheets/hr | 4800 sheets/hr |
Main Power | 25 kW | 30 kW | 35 kW |
Machine Weight | 12.5 tons | 15.5 tons | 18 tons |
Dimensions (L×W×H) | 11800×2500×2600 mm | 13200×2600×2800 mm | 13800×2700×2900 mm |
Application and ROI – Extended Analysis
The Fully Automatic Flatbed Creasing and Die Cutting Machine NDFA Series offers a high return on investment by replacing multiple manual processes.
Factories using NDFA models report up to 40% labor cost reduction and 35% faster delivery time, especially in large-volume corrugated carton production.
By automating creasing, die-cutting, and waste stripping, this line allows operators to focus on quality control rather than repetitive work.
The result: fewer errors, consistent cutting depth, and smoother folding for subsequent folder gluer stitcher making machine operations.
Each model supports flexible production setups:
- NDFA-1300DC – ideal for compact packaging plants or custom box producers.
- NDFA-1500DC – best-selling universal model balancing size and power.
- NDFA-1650DC – high-end configuration for large-format corrugated sheet processing.
When integrated with Flexo Printer Slotter Die Cutter Machines, Flute Laminators, and 3/5/7 Ply Corrugated Cardboard Production Lines, the NDFA Series completes a full packaging solution that meets industrial automation standards worldwide.
Partnering with BMC Pack means access to:
- Dual-factory production (Guangdong & Hebei);
- 24/7 technical support and spare parts;
- Custom OEM design and branding for global distributors.
Conclusion
The Fully Automatic Flatbed Creasing and Die Cutting Machine NDFA-1300DC / NDFA-1500DC / NDFA-1650DC is more than just a die-cutter — it’s a high-precision, energy-efficient automation system designed to redefine packaging box making.
Combining servo accuracy, smart automation, and international components, this series delivers superior reliability, precision, and return on investment.
Whether you produce corrugated cartons, pizza boxes, or high-end packaging, the NDFA series ensures consistent quality and continuous productivity.
Choose BMC Pack — your trusted partner in corrugated carton production line innovation.
