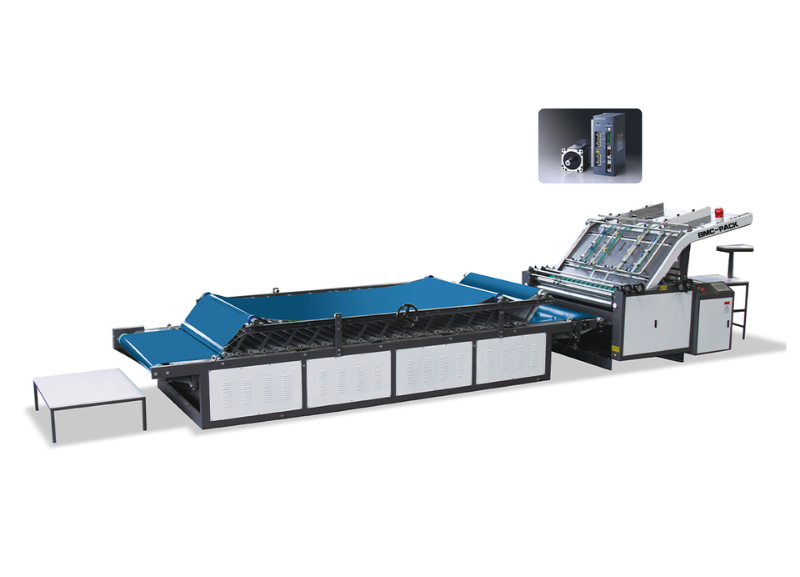

The H-III Type Semi-Automatic Flute Laminator represents the latest innovation in the corrugated cardboard production line designed by BMC Pack, a leading manufacturer of packaging solutions and carton box machines. Engineered to deliver precision, consistency, and high-speed lamination, this model combines advanced PLC control systems, belt drive transmission, and 2 servo motor synchronization to ensure seamless operation even under demanding industrial conditions.
In today’s packaging industry, where accuracy and efficiency determine production quality, the H-III Type Semi-Automatic Flute Laminator emerges as the ideal choice for manufacturers seeking a cost-effective alternative to fully automatic laminating systems. Its modular structure, stable mechanical performance, and intuitive control interface make it suitable for a wide range of corrugated carton production line setups, from small businesses to large-scale factories.
Designed for long-term durability and easy operation, this flute laminator integrates Rotary Die Cutting compatibility and creasing and die cutting adaptability, allowing smooth alignment of top and bottom sheets with ±1 mm precision. For factories that value productivity, reliability, and maintenance simplicity, BMC Pack’s H-III Type Semi-Automatic Flute Laminator is the benchmark of quality.
Main Features and Advantages of the H-III Type Semi-Automatic Flute Laminator
1. Advanced Lamination Control
The H-III Type Semi-Automatic Flute Laminator is equipped with a PLC intelligent system that coordinates every motion—from feeding and glue application to sheet alignment and stacking. The system monitors and adjusts parameters automatically, maintaining glue level, triggering alarms for malfunctions, and stopping the process when irregularities occur.
With dual inverters and high-precision servo synchronization, the machine ensures accurate lamination speed and steady pressure distribution. This advanced level of automation places it among the most efficient semi-automatic flute laminators in its category, providing stability comparable to a fully automatic unit while keeping operational costs lower.
2. High-Performance Mechanical Design
BMC Pack engineers have built the H-III Type Semi-Automatic Flute Laminator for endurance and efficiency. Its main frame integrates chain rings, synchronous rotary wheels, and heat-treated transmission belts crafted from high-grade alloy steel. The stainless-steel pressing transfer section measures 5 meters and features a bridge-type lifting frame with 28 pressing rollers and six positioning belts, delivering smooth, vibration-free lamination.
This robust configuration allows consistent adhesion even on uneven corrugated sheets, enhancing productivity and minimizing waste. The ergonomic layout also facilitates quick cleaning and maintenance—an important factor for long-term industrial use.
3. Compatibility with Corrugated Cardboard Production Line
The H-III Type Semi-Automatic Flute Laminator seamlessly integrates with various corrugated cardboard production line systems. Whether paired with Single Facer, Double Facer, or folder gluer stitcher making machines, it ensures uniform bonding between liner and corrugated boards.
By leveraging 2 servo motor belt drive control and vacuum suction feeding, the machine achieves fast sheet positioning at speeds up to 80 sheets per minute, ensuring perfect alignment even at high output rates. It supports a wide range of paper types, including A/B/C/E/F flutes, laminated duplex boards, and recycled kraft liners.
4. Precision, Stability, and User-Friendly Design
Accuracy is one of the hallmarks of the H-III Type Semi-Automatic Flute Laminator. With ±1 mm tolerance and PLC-based auto calibration, every sheet aligns perfectly, minimizing manual intervention. Operators can easily adjust settings via a touchscreen control panel with bilingual (English–Chinese) interface, making it suitable for international production environments.
The stable belt drive mechanism ensures quiet operation and reduced vibration. Combined with servo control synchronization, it keeps sheet feeding consistent across various material thicknesses. Creasing and die cutting operations downstream are simplified thanks to the lamination precision achieved at this stage.
5. Technical Specifications
Model | BMC-1300FSA3-HIII | BMC-1600FSA3-HIII |
Max Sheet Size | 1300 × 1200 mm | 1600 × 1250 mm |
Min Sheet Size | 360 × 360 mm | 360 × 360 mm |
Working Speed | 0–80 sheets/min | 0–80 sheets/min |
Tolerance | ±1 mm | ±1 mm |
Power | 7 kW | 9.5 kW |
Machine Dimensions | 2 × 2 × 1.75 m | 2.2 × 2 × 1.8 m |
Machine Weight | About 2 T | About 2.5 T |
These specifications confirm that the H-III Type Semi-Automatic Flute Laminator is ideal for diverse production scales—compact enough for mid-sized factories yet powerful enough for high-speed corrugated packaging lines.
6. Integration into Complete Packaging Solutions
Within the corrugated carton production line, the H-III Type Semi-Automatic Flute Laminator connects efficiently with other BMC Pack equipment such as the Flexo Printing Machine, Rotary Die Cutting systems, and folder gluer stitcher making machines. Together, they form a comprehensive packaging box making machine line that enhances automation while maintaining flexibility for customized orders.
This compatibility enables seamless transition from sheet lamination to Flexo Printer Slotter Die Cutter and creasing and die cutting processes—streamlining operations and reducing manual handling time.
7. Why Choose BMC Pack’s Flute Laminator?
As a global leader in carton packaging solutions, BMC Pack continues to deliver reliable machines built with international standards. The H-III Type Semi-Automatic Flute Laminator showcases decades of mechanical innovation and customer-driven design.
With BMC Pack Vietnam and BMC Pack China manufacturing centers, every product is rigorously tested for precision, durability, and operator safety.
Partnering with BMC Pack guarantees:
- Factory-direct pricing with up to 20% savings compared to market rates.
- 24/7 technical support and spare parts availability.
- Custom design options for corrugated cardboard production line integration.
8. Real-World Application
Manufacturers using the H-III Type Semi-Automatic Flute Laminator report notable increases in production efficiency and consistency. It performs excellently with Rotary Die Cutting units, Flexo Printing Machines, and creasing and die cutting equipment, making it suitable for producing premium packaging such as food boxes, electronic cartons, and display packaging.
From 3-ply to 7-ply corrugated board lamination, the machine delivers superior bonding, ensuring high compression strength, flatness, and long-term product reliability.
9. Operational Excellence and Smart Engineering in H-III Type Semi-Automatic Flute Laminator
The H-III Type Semi-Automatic Flute Laminator is engineered with cutting-edge automation and mechanical precision to meet the evolving needs of the corrugated packaging industry. Its intelligent 2 servo motor system works in harmony with the belt drive transmission to ensure precise sheet feeding and stable lamination under continuous operation. This not only enhances production accuracy but also extends the machine’s service life by reducing mechanical friction and vibration.
Thanks to its strong frame structure and optimized vacuum suction feeding mechanism, the H-III Type Semi-Automatic Flute Laminator guarantees perfect bonding even at high speeds. It easily handles diverse materials such as duplex board, kraft liner, and various flute types (A/B/C/E/F). The PLC control system automatically calculates lamination position, glue thickness, and speed ratio, minimizing manual errors and ensuring consistency across every production batch.
Its design reflects BMC Pack’s philosophy: combining advanced automation with user-oriented functionality. Each section of the machine—from the feeder and glue roller to the pressure conveyor—is carefully configured to deliver efficiency and ergonomic convenience. Operators can monitor every process in real time through a responsive touchscreen interface, supported by smart alarm and fault diagnosis systems.
The laminated sheets processed by the H-III Type Semi-Automatic Flute Laminator exhibit exceptional flatness, edge accuracy, and adhesion strength—three critical parameters that influence the quality of Rotary Die Cutting and creasing and die cutting operations later in the corrugated cardboard production line. By ensuring smooth and precise lamination, this machine helps maintain cutting and printing accuracy downstream, reducing wastage and rework rates significantly.
In high-volume corrugated carton production lines, downtime equals loss. That’s why BMC Pack Vietnam has equipped the H-III Type Semi-Automatic Flute Laminator with quick adjustment systems for glue rollers and pressure plates. The modular design allows for fast cleaning and replacement, keeping production continuous and maximizing uptime.
Another key advantage of this flute laminator is its ability to maintain stable performance under long working hours. The efficient belt drive transmission reduces energy consumption while ensuring consistent torque transfer, which is crucial for sustainable and cost-efficient manufacturing. It’s an ideal choice for factories seeking to upgrade their packaging machinery without the expense of a fully automatic laminator.
BMC Pack’s semi-automatic laminating machines, including the H-III Type Semi-Automatic Flute Laminator, are also compatible with other systems such as Flexo Printing Machines, folder gluer stitcher making machines, and flatbed creasing and die cutting equipment. Together, they form a comprehensive automation network for complete packaging box making machines—allowing manufacturers to transition smoothly from raw paper to finished cartons.
With a speed range of 0–80 sheets per minute and ±1 mm accuracy, the H-III Type Semi-Automatic Flute Laminator performs like a premium model within its class. Its stability and flexibility enable it to serve both small-scale enterprises and industrial-grade plants handling large-format corrugated board production.
In addition to its performance, BMC Pack offers full after-sales support, including installation guidance, online troubleshooting, and spare parts supply. This global approach reinforces the company’s position as a trusted provider of corrugated carton production line equipment and long-term packaging solutions.
For packaging manufacturers seeking precision, reliability, and cost savings, the H-III Type Semi-Automatic Flute Laminator from BMC Pack stands out as a benchmark of engineering excellence—bridging the gap between manual labor and full automation while maintaining optimal quality standards.
10. Real-World Applications and Return on Investment (ROI)
In the competitive landscape of modern packaging, efficiency and reliability directly influence profitability. The H-III Type Semi-Automatic Flute Laminator by BMC Pack has proven to deliver tangible value across numerous corrugated cardboard production lines globally. With its robust belt drive system, synchronized 2 servo motor control, and precise lamination mechanism, this flute laminator provides exceptional return on investment (ROI) through reduced waste, lower energy consumption, and minimal downtime.
Factories that once struggled with misalignment and inconsistent bonding now achieve up to 30% higher productivity after integrating the H-III Type Semi-Automatic Flute Laminator into their corrugated carton production lines. The improvement in lamination accuracy leads to smoother downstream creasing and die cutting processes and enhances the final carton’s compression strength and appearance quality.
Many of BMC Pack Vietnam’s customers—especially in Southeast Asia, the Middle East, and Africa—report cost savings of 20–25% within the first operational year. This efficiency comes not only from the machine’s intelligent automation but also from its compatibility with existing Rotary Die Cutting and Flexo Printing Machine systems. By reducing manual labor while maintaining consistent output, the H-III Type Semi-Automatic Flute Laminator becomes an essential upgrade for factories seeking scalable, sustainable growth.
Furthermore, the machine’s ergonomic design allows operators to make adjustments effortlessly, decreasing operator fatigue and training time. The use of durable materials and heat-treated components extends service life beyond ten years under normal maintenance schedules—making it one of the most durable flute laminators in its segment.
11. Partnership Advantage with BMC Pack
Choosing BMC Pack means more than purchasing a machine—it’s an investment in a long-term partnership. As a trusted name in packaging solutions and corrugated cardboard production line equipment, BMC Pack offers comprehensive pre-sale and post-sale services. This includes technical consultation, layout planning, customized packaging box making machines, and on-site installation assistance.
Every H-III Type Semi-Automatic Flute Laminator is manufactured under ISO-certified processes, ensuring world-class precision and durability. Clients also benefit from global support networks spanning BMC Pack Vietnam, BMC Pack China, and authorized distributors worldwide. Spare parts and maintenance are readily available, minimizing downtime and guaranteeing long-term stability.
In addition, BMC Pack regularly provides training for customer teams, ensuring that operators can fully exploit the machine’s capabilities—whether in a small-scale workshop or a large corrugated carton production line. The company’s philosophy centers on customer success, offering reliable packaging solutions that empower partners to achieve higher productivity, sustainability, and competitiveness in the global market.
For manufacturers seeking to balance affordability and automation, the H-III Type Semi-Automatic Flute Laminator stands as the optimal choice. It combines intelligent engineering, user-friendly operation, and industry-proven reliability—making it the perfect link between manual craftsmanship and full automation.
By investing in BMC Pack’s H-III Type Semi-Automatic Flute Laminator, businesses secure not just a machine, but a dependable pathway toward long-term efficiency and success in the corrugated cardboard production line industry.
Conclusion
The H-III Type Semi-Automatic Flute Laminator from BMC Pack is not just a machine—it’s a complete packaging solution designed for speed, precision, and sustainability. Its advanced automation, durable construction, and seamless integration within the corrugated carton production line make it a trusted choice for packaging manufacturers worldwide.
Whether you are upgrading an existing plant or building a new corrugated cardboard production line, investing in the H-III Type Semi-Automatic Flute Laminator ensures higher efficiency, lower costs, and consistent quality.
Contact BMC Pack today to explore how this high-speed flute laminator can revolutionize your production line.
