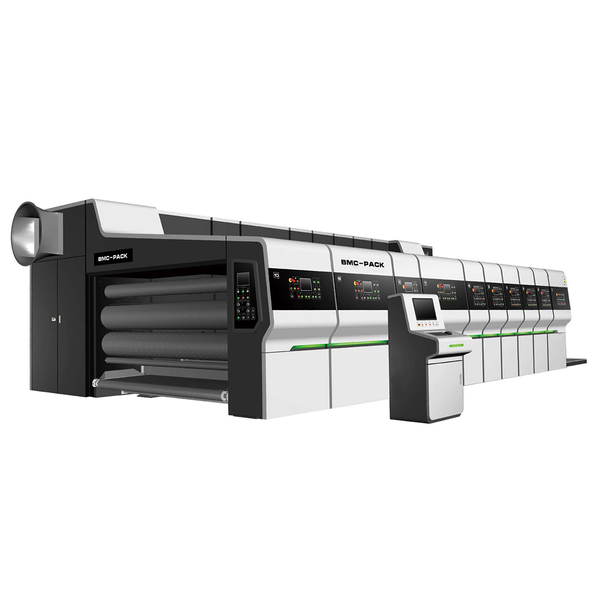

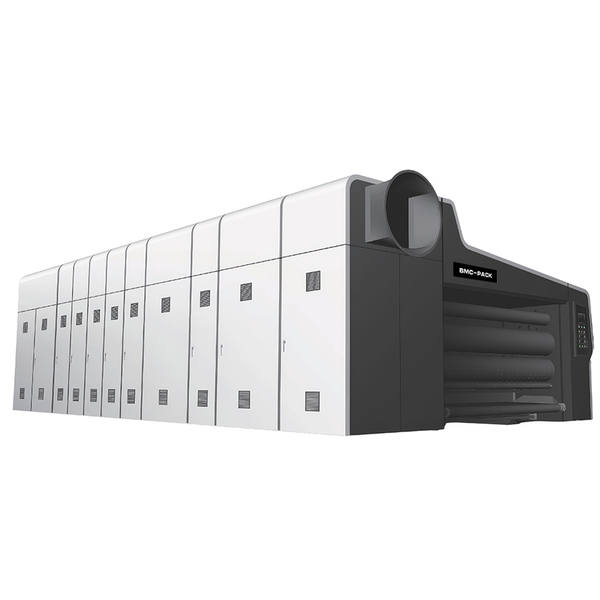

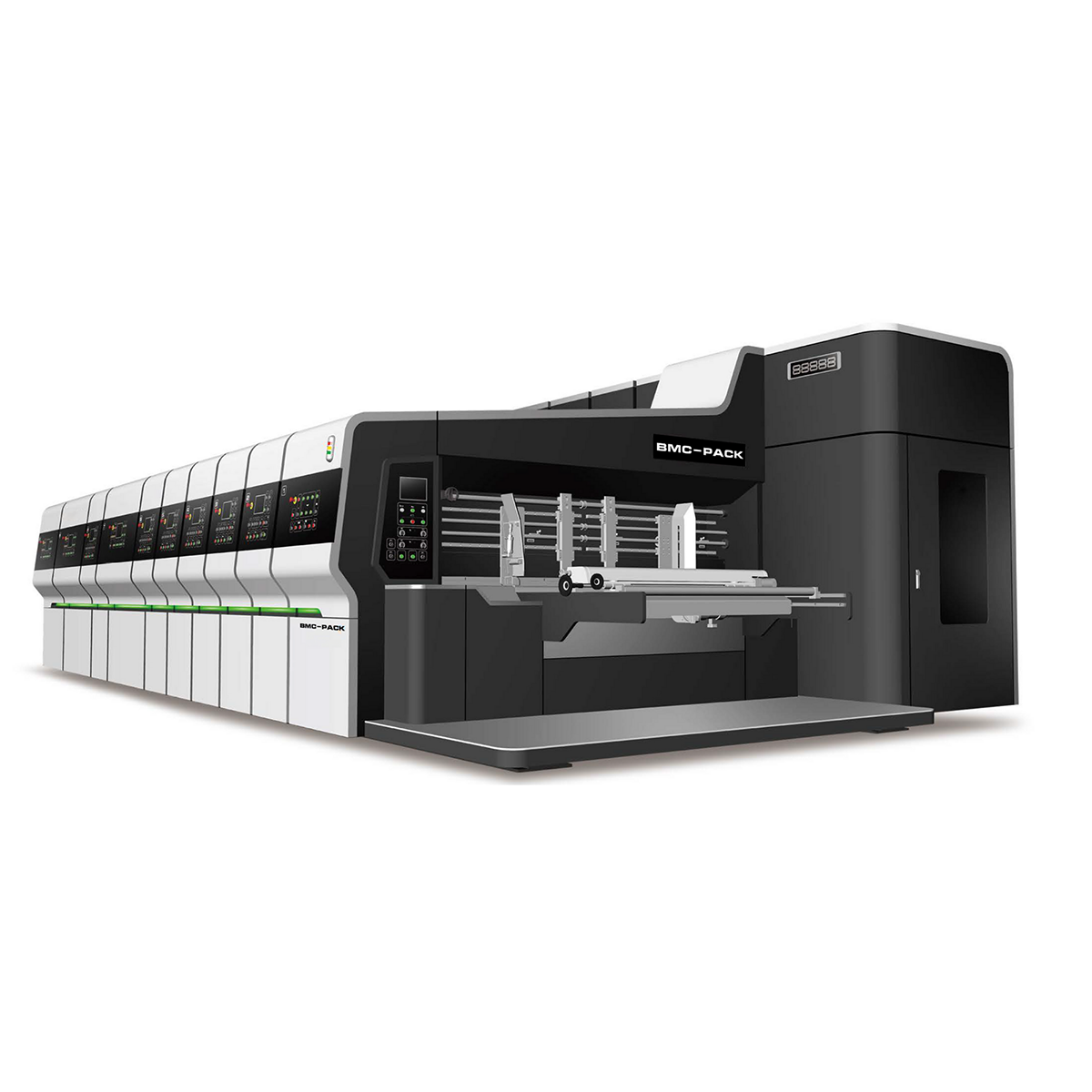

The HD High Speed Flexo Printer Slotter Die Cutting Machine NDVT-920FSDCS/NDVT-1425FSDCS by BMC Pack represents the next generation of high-efficiency carton box machines for modern packaging production lines. Designed for precision, productivity, and durability, this model is engineered to meet the increasing demand for corrugated carton manufacturing and custom packaging box making machines across global markets.
Built on decades of experience in corrugated cardboard production line innovation, the machine integrates flexographic printing, slotting, creasing, and die-cutting technologies within one streamlined system. This configuration not only simplifies workflow but also enhances production accuracy and stability.
The NDVT-920/1425FSDCS achieves remarkable consistency with its servo vacuum transfer system, ensuring perfect registration even at speeds of up to 300 sheets per minute. It’s the perfect solution for manufacturers seeking to expand capacity, reduce manual intervention, and produce high-quality printed cartons efficiently. With BMC Pack’s advanced engineering, global component partnerships, and continuous innovation, this Flexo Printer Slotter Die Cutter is truly a symbol of industrial reliability and excellence.
Advanced Design & Stability of HD High Speed Flexo Printer Slotter Die Cutting Machine NDVT-920FSDCS/NDVT-1425FSDCS
One of the most distinctive features of the HD High Speed Flexo Printer Slotter Die Cutting Machine is its robust construction. The 60 mm thick wallboard structure ensures exceptional rigidity, minimizing vibration and maintaining precise alignment even under high-speed operation. A reinforced gear-driven system guarantees long-term mechanical stability, making this model ideal for continuous production in high-volume corrugated carton production lines.
The feeding system uses a lead-edge feeder with servo phase control and vacuum adsorption technology, achieving smooth, consistent sheet transfer with no crushing of flutes. Its multi-row dislocation layout improves sheet guidance and prevents skewing during high-speed feeding. Together, these features deliver uninterrupted performance with superior cardboard protection and accuracy.
Furthermore, the use of premium components from Schneider Electric (France), Siemens (Germany), and NSK Bearings (Japan) enhances durability and ensures long-term reliability. The BMC Pack NDVT-920/1425FSDCS stands as an ideal machine for factories aiming for precision manufacturing in corrugated carton packaging.
Precision and Print Quality Excellence

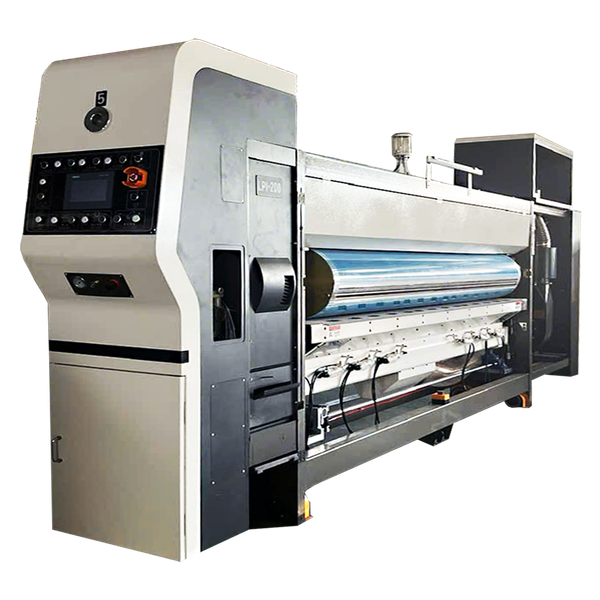

Precision is the hallmark of BMC Pack’s HD High Speed Flexo Printer Slotter Die Cutting Machine. Its flexo printing system uses an anilox roller with a pneumatic clutch that synchronizes perfectly with the main drive, optimizing ink transfer and minimizing roller wear. The rubber roller employs a double-glue coating system, providing uniform ink distribution with minimal pressure to maintain flute integrity.
The machine integrates a multi-row ceramic vacuum adsorption system, which increases cardboard grip without damaging the surface. Digital motorized controls ensure precise registration and lateral adjustment, while servo-driven phase settings deliver unmatched printing accuracy.
Printing cylinders, crafted from seamless steel tubes (Ø 445 mm), are dynamically balanced for vibration-free performance. Combined with automatic wash-up, ink-return, and resetting systems, this design offers smooth operation and reduced downtime — a vital advantage for fast-paced corrugated cardboard production lines.
Efficient Slotting and Creasing Performance

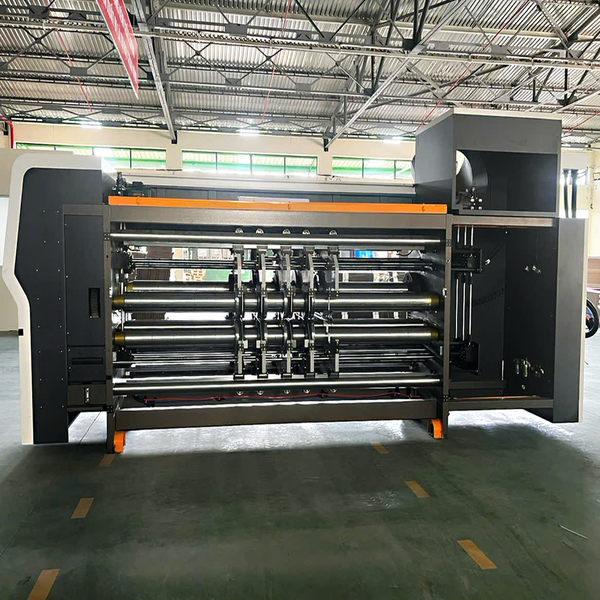

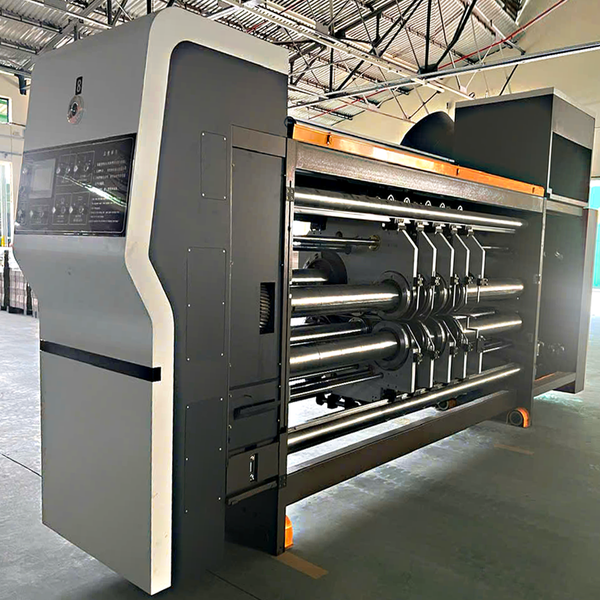

Incorporating flatbed creasing and die-cutting precision into a high-speed rotary design, the HD High Speed Flexo Printer Slotter Die Cutting Machine ensures crisp, accurate scoring and clean cuts. The single-shaft slotter features enclosed gears to prevent oil contamination, while motorized controls enable precise adjustment of creasing and slotting positions. The upper and lower shafts are gear-coupled for synchronization, extending knife life and guaranteeing consistent cutting quality.
Operators benefit from digital, motorized adjustments for creasing alignment, slot depth, and lateral positions. The spring-loaded knife design enables cutting of 3-ply, 5-ply, and even 7-ply corrugated boards without the need for frequent recalibration. These functions position the NDVT-920/1425FSDCS as one of the most advanced creasing and die-cutting machines in the market.
Rotary Die Cutting and Stacking Unit
The rotary die-cutting unit of the Flexo Printer Slotter Die Cutter incorporates a speed compensation system that maintains accuracy during cutting, even when production speed fluctuates. A high-quality rubber blanket roll and precision die-cutting cylinder ensure perfect edges and repeatable accuracy.
Adjustments such as lateral movement (± 20 mm) and 360° registration control can be performed automatically during operation, eliminating downtime and enhancing productivity.
The stacker system provides intelligent automation with a photoelectric sensor and elevator platform, automatically adjusting to sheet pile height. Operators can remove stacks easily while the platform resets itself for the next cycle, ensuring seamless workflow and optimal stacking of up to 1600 mm height.
This intelligent automation allows the NDVT-920/1425FSDCS to function flawlessly within corrugated carton production lines, offering maximum throughput and minimal operator intervention — crucial for businesses scaling up production efficiency.
Technical Specifications of HD High Speed Flexo Printer Slotter Die Cutting Machine
Specification | NDVT-920FSDCS | NDVT-1224FSDCS | NDVT-1425FSDCS |
Wallboard Thickness | 60 mm | 60 mm | 60 mm |
Designed Speed | 350 pcs/min | 300 pcs/min | 300 pcs/min |
Working Speed | 300 pcs/min | 250 pcs/min | 250–300 pcs/min |
Feeding Width | 900–2000 mm | 1200–2400 mm | 1400–2500 mm |
Printing Size | 1200 × 2000 mm | 1400 × 2400 mm | 1400 × 2500 mm |
Max. Slot Depth | 300 mm | 300 mm | 300 mm |
Board Thickness | 2.5–12 mm | 2.5–12 mm | 2.5–12 mm |
Power | 40–45 kW | 40 kW | 45 kW |
With such comprehensive specifications, BMC Pack’s HD High Speed Flexo Printer Slotter Die Cutting Machine fits seamlessly into 3/5/7 ply corrugated cardboard production lines, ensuring compatibility with diverse packaging formats.
Efficiency and Intelligent Control System
Efficiency defines the HD High Speed Flexo Printer Slotter Die Cutting Machine. It’s built on Industry 4.0 engineering design, integrating both software and hardware to ensure smart monitoring and minimal downtime. The automatic feeding width adjustment, printing unit locking, and servo vacuum transfer system work harmoniously for precise, high-speed operation.
The use of PLC control (Fatek, Taiwan) and Delta touchscreen interface gives operators intuitive control over every process — from vacuum transfer to slotting and creasing adjustments. This intelligent setup reduces setup time, improves production consistency, and guarantees superior output quality for every batch of cartons.
Application and Integration Across Corrugated Carton Production Lines
This carton printing machine is ideal for packaging manufacturers producing corrugated boxes for food, beverages, electronics, and e-commerce sectors. It’s perfectly compatible with Single Facer, Double Facer, and folder gluer stitcher making machines, forming an integrated corrugated cardboard production line.
Whether paired with a flute laminator, creasing and die-cutting machine, or a Flexo Printer Folder Gluer, the NDVT-920/1425FSDCS ensures smooth synchronization and maximum return on investment. Its adaptability allows it to serve as both a standalone flexographic printer and as a central component of a full packaging box making machine system.
Extended Section: Real-World Benefits, ROI, and Partnership with BMC Pack
Investing in the HD High Speed Flexo Printer Slotter Die Cutting Machine means investing in long-term profitability and performance. Its automation reduces manual labor requirements by over 60 %, cutting production costs while increasing output capacity significantly. The integrated servo vacuum transfer and precision control systems minimize waste and reprints, enhancing production efficiency and ensuring consistent box quality.
From an ROI perspective, factories adopting this system often report payback within 12–18 months due to higher throughput and reduced operator dependency. Maintenance requirements are minimal thanks to the use of imported components (Schneider, NSK, Siemens), ensuring long service life and low operational downtime.
Partnering with BMC Pack means more than buying machinery — it means gaining access to full technical support, operator training, and lifetime assistance. BMC Pack has established itself as a trusted leader in corrugated carton production lines, offering complete packaging solutions that include Flexo Printing Machines, Folder Gluer Stitchers, Flute Laminators, and Creasing & Die-Cutting Machines.
Our commitment to innovation, customization, and after-sales service ensures that every customer achieves maximum operational efficiency and competitive advantage.
With BMC Pack’s expertise and high-precision engineering, the HD High Speed Flexo Printer Slotter Die Cutting Machine becomes not just a machine — but a strategic investment in your company’s future success.
Conclusion: The Future of Corrugated Carton Printing with BMC Pack
The HD High Speed Flexo Printer Slotter Die Cutting Machine from BMC Pack redefines what efficiency, precision, and stability mean in the packaging industry. Its superior build, global-grade components, and intelligent automation make it the ultimate choice for any modern corrugated carton production line.
Whether you’re upgrading your current system or establishing a new packaging box making machine facility, this model ensures consistent quality, reduced costs, and unmatched ROI.
With BMC Pack’s continued innovation, you can be confident that your production line is powered by cutting-edge technology designed for excellence in corrugated cardboard packaging.
