Introduction: Precision, Speed, and Perfection in One Complete Packaging Solution

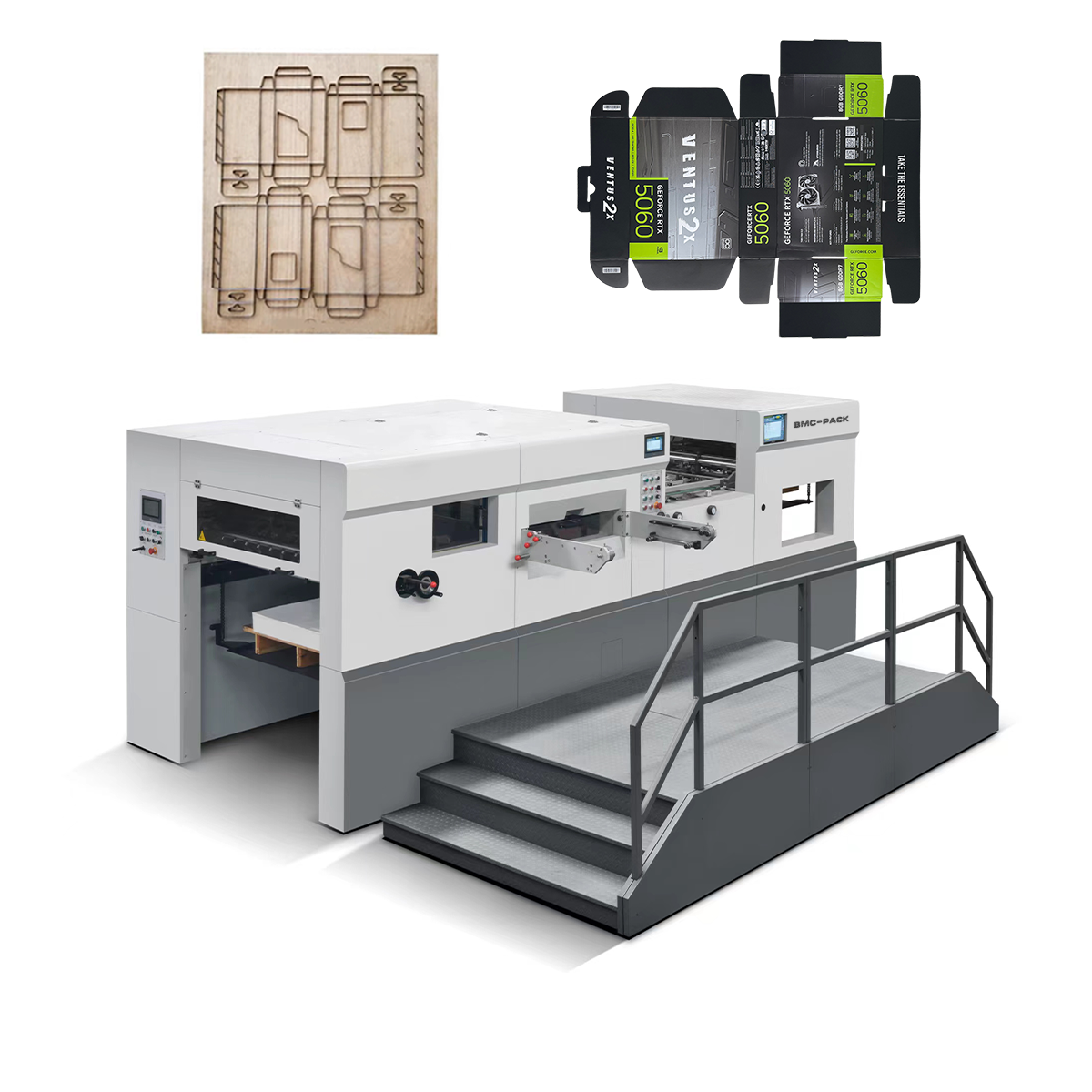

The HE – Flatbed High Speed Automatic Stitcher And Gluer Machine (Duplex) or the Automatic Flatbed Creasing and Die Cutting Machine represent a new generation of intelligent, high-performance packaging systems from BMC Pack (BMCPack).
These machines are designed for manufacturers demanding both productivity and perfection in corrugated carton, pizza box, and carton box machine production.
By combining Flatbed High Speed stitching, gluing, creasing and die cutting in one seamless system, this duo optimizes every stage of the Corrugated Cardboard Production Line — from structural forming to finishing.
The Automatic Stitcher And Gluer Machine ensures perfect folding, nailing, and bonding, while the Automatic Flatbed Creasing and Die Cutting Machine delivers accurate cuts, sharp edges, and flawless creases for even the most complex box designs.
With servo-driven systems, precision alignment, and high-speed automation, BMC Pack has created a fully integrated packaging box making machine solution built for today’s fast-paced, high-volume packaging demands.
1. Overview and Structure of the HE – Flatbed High Speed Automatic Stitcher And Gluer Machine (Duplex)
The HE – Flatbed High Speed Automatic Stitcher And Gluer Machine (Duplex) combines folding, stitching, and gluing into a single automated workflow.
It eliminates multiple manual operations, providing manufacturers with a 2-in-1 machine that can both assemble and seal boxes with industrial-grade precision.
The Duplex design enables simultaneous processing of two sheets or double-piece cartons. A high-speed feeder transfers sheets into the flatbed unit, where the servo-controlled folding system and intelligent alignment module ensure perfect squareness.
The gluing unit applies water-based adhesive evenly, while the Automatic Stitcher And Gluer Machine performs consistent nailing through servo-controlled stitch heads.
Key Features:
- Dual working stations for stitching and gluing
- Servo vacuum feeding system for consistent sheet alignment
- Automatic counting and stacking system
- PLC control with HMI touchscreen interface
- Tool-free size changeover within minutes
- Heavy-duty steel frame for vibration-free performance
Together, these features make the Flatbed High Speed Automatic Stitcher And Gluer Machine ideal for large-scale Corrugated Carton Production Lines and packaging solutions requiring both speed and flexibility.
2. Technical Specifications
Model NDAD-1080DC | HE-Flatbed Duplex |
Max Sheet Size | 1070 × 760 mm |
Min Sheet Size | 400 × 370 mm |
Sheet Thickness | 0.12 – 2.0 mm |
Corrugated Board Thickness | ≤ 8 mm |
Die-Cutting Accuracy | ≤ ±0.5 mm |
Max Machine Speed | 5000 sheets/hour |
Working Pressure | 300 tons |
Total Power | 30 kW |
Overall Dimensions (L×W×H) | 13200 × 2600 × 2800 mm |
Machine Weight | 15.5 tons |
Electrical System Components
Component | Brand / Origin |
Servo Motor | Mitsubishi (Japan) |
PLC | Omron (Japan) |
Main Motor | Siemens (Germany) |
Clutch | OMPI (Italy) |
Touch Screen | Delta (Taiwan) |
Bearing | NSK (Japan) |
Chain | RENOL (Germany) |
Relay / Contactor | Schneider (France) |
Lubrication Pump | Weiliang (Taiwan) |
Each imported component ensures maximum stability and precision for long-term operation in any corrugated carton factory environment.
Component Name, Brand, Origin
No. | Name | Brand | Origin |
1 | Touch Screen | Delta (10.4" TFT) | Taiwan |
2 | Die Cutting Plate | DAE DONG | Shanghai, China |
3 | Main Motor | SIEMENS | Germany |
4 | Pneumatic Clutch | OMPI | Italy |
6 | Gripper Chain | RENOL | Germany |
7 | Connector Valve | SMC | SMC Japan |
8 | Solenoid Valve | SMC | SMC Japan |
9 | Time Distributor | SHENGBAO | Taiwan |
11 | Lubrication Pump | weiliang | Taiwan |
12 | Bearings | NSK、KOYO、NTN | Japan; SKF (Switzerland) |
13 | Turbine & Screw | WANCHENG | Taiwan |
14 | Crankshaft |
| Tang Shan, China |
15 | Crankshaft Processing |
| Tang Shan, China |
★ Electrical System
No. | Name | Brand | Origin |
1 | Inverter | TOSHIBA | Japan |
2 | Photoelectric Sensor | OMRON | Japan |
3 | Proximity Switch | SCHNEIDER | France |
4 | Alarm Buzzer | LIGHT | Korea |
5 | Push Button | SCHNEIDER | France |
6 | PLC | YONGHONG | Taiwan |
7 | Encoder | OMRON | Japan |
8 | Filter | CHELIC | Taiwan |
9 | Contactor | ONRON | Japan |
10 | Relay | SCHNEIDER | Pháp |
11 | Delivery Motor | WUBANG | Taiwan |
12 | Feeder Motor | WUBANG | Taiwan |
15 | Guide Rail | SUNG SAN | Korea |
3. The Automatic Flatbed Creasing and Die Cutting Machine: Accuracy Meets Automation
The Automatic Flatbed Creasing and Die Cutting Machine is engineered to deliver unparalleled cutting precision for all types of corrugated cartons and paperboard.
It uses a robust flatbed pressure system to achieve ultra-smooth cutting lines and perfect creases, even at high speeds.
Core Features:
- Fully automatic feeding and collecting system
- Pneumatic locking and die adjustment system
- Servo-controlled gripper chain for ±0.1 mm precision
- Automatic pressure balance for consistent results
- Safety clutch and overload protection system
This Creasing and Die Cutting Machine perfectly complements the HE – Flatbed High Speed Automatic Stitcher And Gluer Machine (Duplex), creating a continuous line from die-cutting to final box assembly.
Manufacturers can easily integrate both machines into Corrugated Cardboard Production Lines, Flexo Printer Folder Gluer systems, or 3/5/7 ply corrugated cardboard setups — achieving full-scale automation from raw sheet to finished carton.
4. Benefits of the HE – Flatbed High Speed Automatic Stitcher And Gluer Machine (Duplex)
A. High-Speed Productivity
With speeds of up to 5000 sheets/hour, the Automatic Stitcher And Gluer Machine drastically reduces production time while maintaining high precision.
B. Dual Functionality
The Duplex design allows simultaneous folding and stitching or gluing, doubling efficiency without increasing floor space.
C. Flatbed High Speed Performance
Thanks to its flatbed structure, the machine maintains even pressure across the entire sheet, ensuring clean folding lines and durable joints for each corrugated carton.
D. Seamless Integration
The system easily connects with Flexo Printing Machine, Rotary Die Cutter, Folder Gluer, and Flute Laminator to form a fully automated Packaging Box Making Machine line.
E. Labor and Cost Reduction
The combination of automation and servo synchronization reduces manual operations by 60–70%, optimizing labor efficiency and material usage.
5. Application Range
The HE – Flatbed High Speed Automatic Stitcher And Gluer Machine (Duplex) and Automatic Flatbed Creasing and Die Cutting Machine are used across diverse industries:
- Food Packaging: pizza boxes, bakery cartons, fast-food containers
- E-Commerce: shipping boxes and protective corrugated cartons
- Consumer Goods: cosmetic and retail boxes with precision die cuts
- Industrial Packaging: heavy-duty export cartons
These machines guarantee perfect squareness, strong bonding, and aesthetic quality — vital for maintaining structural integrity during transportation.
6. Advanced Technology for the Future of Packaging
Both the HE – Flatbed High Speed Automatic Stitcher And Gluer Machine (Duplex) and Automatic Flatbed Creasing and Die Cutting Machine employ next-generation Servo Vacuum Transfer and PLC control technologies.
This provides precise synchronization across feeding, folding, and die-cutting units, minimizing waste and enhancing output.
Their energy-efficient motors, automatic lubrication, and low-noise transmission further strengthen BMC Pack’s commitment to sustainable packaging solutions.
Combined with Flexographic Printer, Creasing and Die-Cutting Machine, and Stitcher and Gluer Machine, these models establish a foundation for high-speed, eco-efficient Corrugated Carton Production Lines.
7. Extended Insights: ROI, Real-World Value, and Partnership with BMC Pack
Investing in the HE – Flatbed High Speed Automatic Stitcher And Gluer Machine (Duplex) and Automatic Flatbed Creasing and Die Cutting Machine provides one of the best ROI opportunities in the packaging sector.
Factories report payback periods as short as 12–16 months thanks to automation-driven productivity and lower labor requirements.
ROI Highlights
- Reduced labor cost: One operator can manage two connected units.
- Energy savings: 25% lower power consumption versus traditional setups.
- Fewer rejections: 0.1 mm accuracy reduces material waste.
- Higher speed: 2× faster output compared to conventional gluer lines.
Partnering with BMC Pack means gaining a long-term manufacturing ally — from system design and installation to lifetime technical support.
BMC Pack Partnership Advantages:
- 🌍 Global after-sales service and engineer training
- 💡 OEM customization for box size, nail type, and glue configuration
- 🔧 Full integration with Flexo Printer Folder Gluer or Rotary Die Cutter
- 🧠 Expert consulting on Corrugated Cardboard Production Line optimization
BMCPack doesn’t just sell machines — it delivers a roadmap to smarter, more profitable packaging production.
Conclusion: Where Power Meets Perfection
The HE – Flatbed High Speed Automatic Stitcher And Gluer Machine (Duplex) and Automatic Flatbed Creasing and Die Cutting Machine stand at the forefront of modern corrugated carton manufacturing.
Together, they deliver the ultimate blend of flatbed precision, high-speed automation, and industrial reliability — ideal for any corrugated cardboard production line or packaging box making machine system.
From printing to folding, creasing, gluing, and stitching — BMC Pack ensures every stage runs flawlessly.
Efficiency, precision, and profitability are not just goals — they’re guaranteed results.
BMC Pack – Built on Trust, Driven by Quality.
