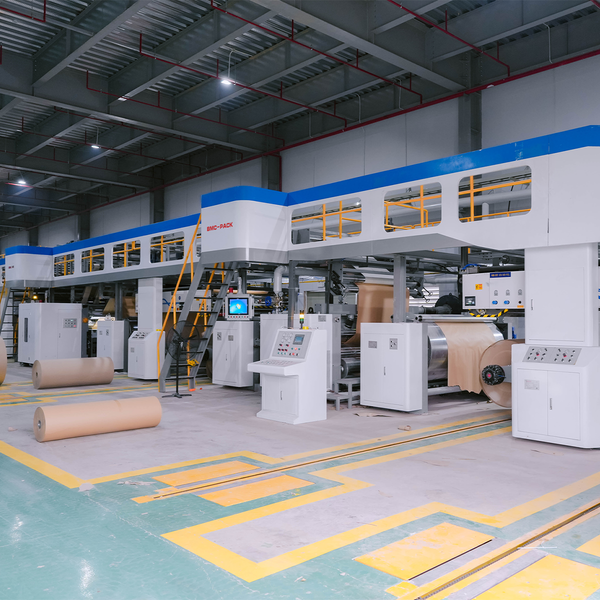

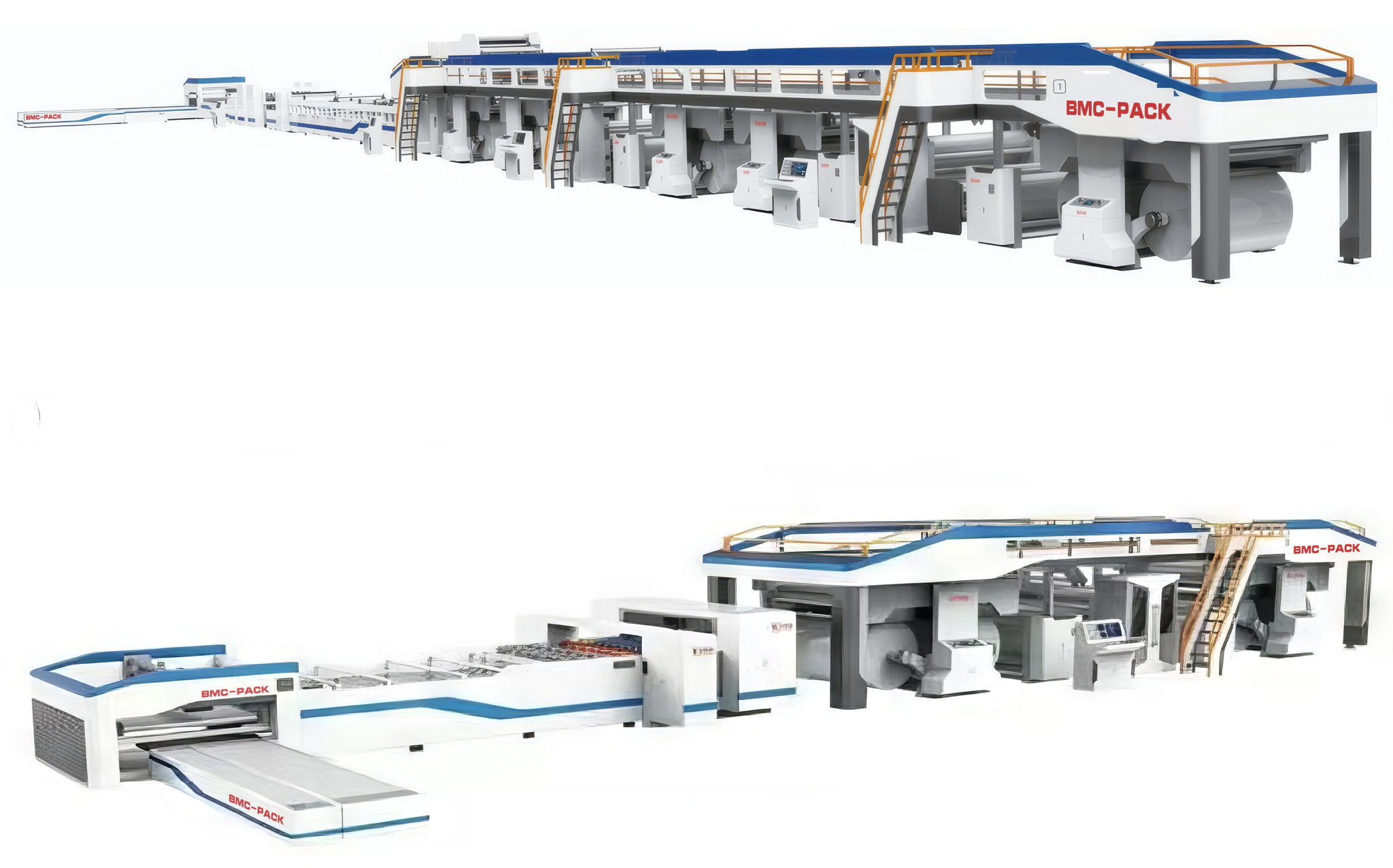

The High Quality 3 5 7 Ply Corrugated Cardboard Production Line from BMC Pack represents a new generation of intelligent and automated packaging systems designed to meet the growing demands of modern carton manufacturing industries. Built with advanced engineering, precision technology, and durable components, this system ensures high-speed, energy-efficient, and stable performance across multiple layers of corrugated board production.
With a design speed of up to 300 m/min and working speed reaching 250 m/min, the High Quality 3 5 7 Ply Corrugated Cardboard Production Line provides exceptional productivity and consistency, even under continuous operation. From Hydraulic Mill Roll Stand, Cassette Single Facer, Overbridge Conveyor, and Double Facer, to Computer Thin Blade Machine and Helical Knives NC Cutting Machine, each component is carefully integrated to achieve superior accuracy and reliability.
For manufacturers looking to expand capacity, reduce production waste, and maintain excellent board quality, BMC Pack offers a complete solution that blends efficiency, innovation, and long-term cost-effectiveness.
1. Overview and Technical Configuration of High Quality 3 5 7 Ply Corrugated Cardboard Production Line
The High Quality 3 5 7 Ply Corrugated Cardboard Production Line integrates multiple modules optimized for heavy-duty and continuous production environments.
Key specifications include:
- Working Width: 2200 mm
- Flute Type: UV, A, B, C, E options
- Steam Pressure: 0.8–1.2 MPa
- Total Power: Approx. 450 kW
- Hydraulic Pressure: 6–10 MPa
- Air Compression: 0.6–1.0 MPa
Each module is engineered to operate harmoniously under real-time control, supported by PLC and servo drive technology, ensuring precise synchronization throughout the corrugated cardboard production line.
MODEL | NDW3300 / 2200 / 2500 / 3000 |
Total Length | About 110 meters (based on foundation layout) |
Design Speed | 300 m/min |
Working Speed | Within the normal cardboard range 200 m/min |
Max. Paper Size | 2200 – 2500 – 3000 mm |
Total Power | Approximately 450 kW |
Line Direction | Left |
Steam Pressure | 0.8 – 1.2 MPa |
Air Compression | 0.6 – 1.0 MPa |
Oil Compression | 6 – 10 MPa |
Direction of Operating | Customer decides (left or right side) |
2. Key Components and Their Functions

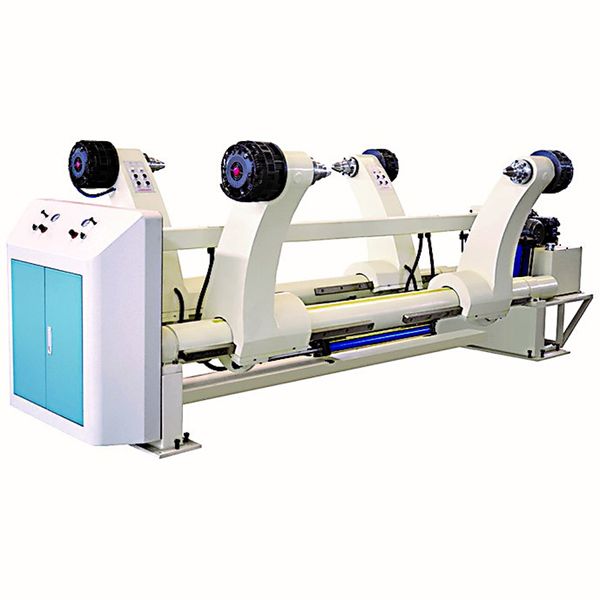

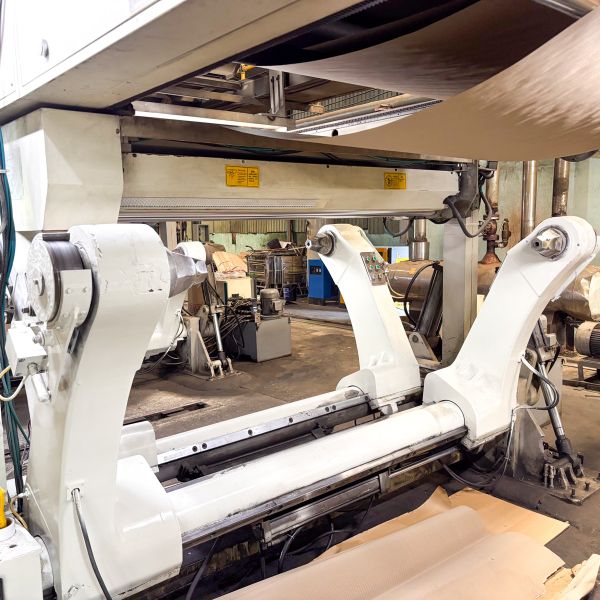

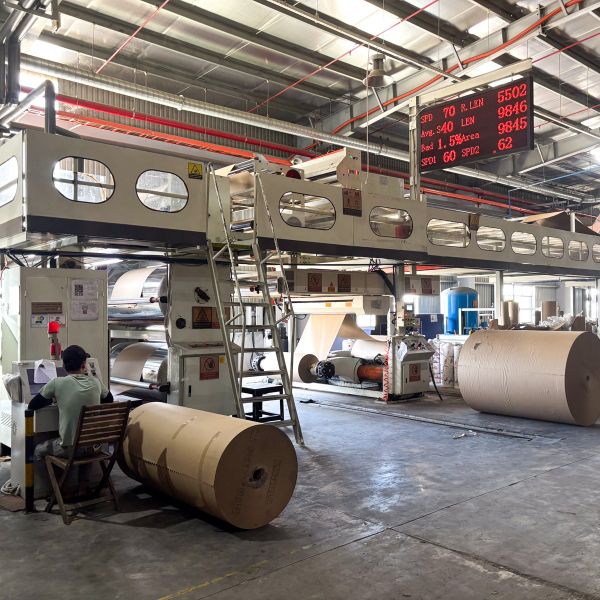

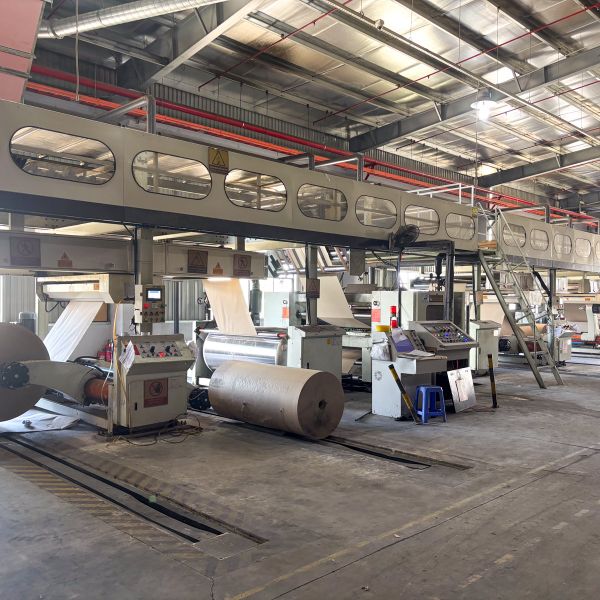

Hydraulic Mill Roll Stand
The Hydraulic Mill Roll Stand (Model YZJ6-2200) is the foundation of this line, designed for heavy-duty paper roll handling. With hydraulic lifting, lateral movement, and multi-point pneumatic tension control, it ensures continuous feeding with zero downtime. Each unit includes 8-meter rails for smooth loading, reducing manual intervention and improving productivity.

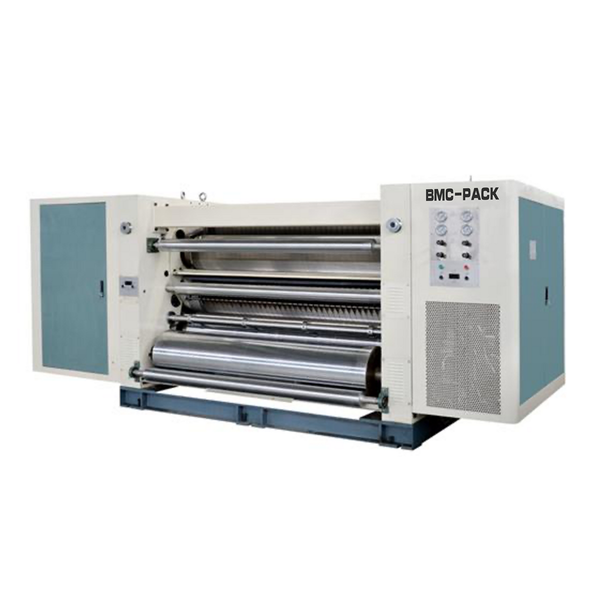

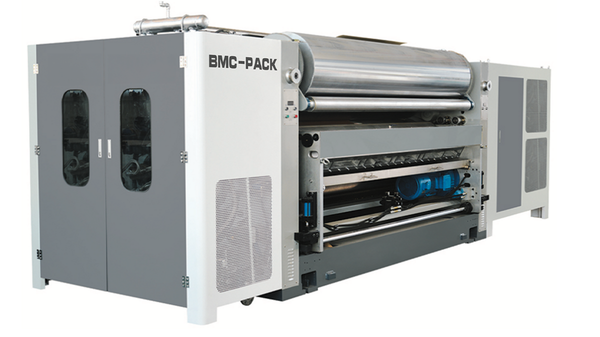

Cassette Single Facer Double Roller
The Cassette Single Facer Double Roller (Model KFW4-2200) features vacuum inside type, universal coupling drive, and 420 mm flute roll diameter. The rolls are made of Ni-Cr-Mo alloy steel with tungsten carbide coating, guaranteeing 26–30 million meters of service life. The quick-change cassette design allows flute roll replacement within 20 minutes — optimizing flexibility for different corrugated carton production line demands.

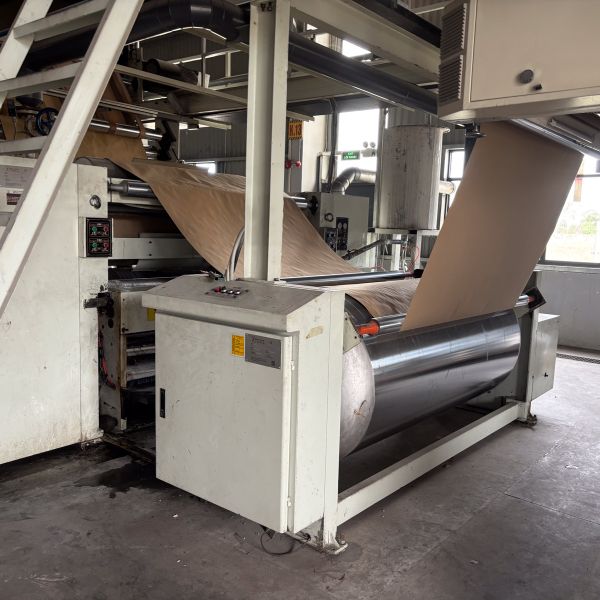

Preheater and Gluing Machine
The Preheater Series (MY4-2200, XY4-2200, DY4-2200) uses electric adjustable heating zones (60–350°C), ensuring stable moisture control and bonding strength. The Duplex and Three-Layer Gluing Machines adopt pressing-type gluing methods, stainless steel glue tanks, and servo synchronization to guarantee precise glue application across all paper layers.

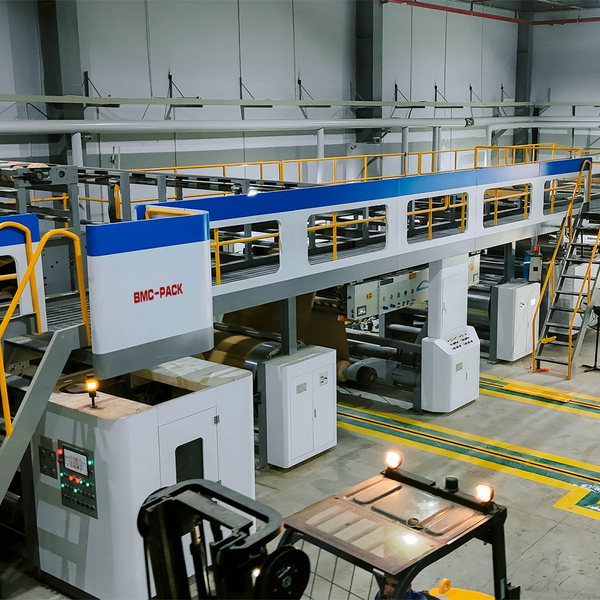

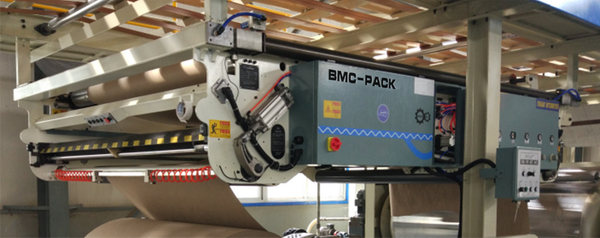

Overbridge Conveyor
The Overbridge Conveyor (GQ4-2200) connects single facers to the double facer, equipped with infrared alignment, automatic edge control, and independent motor drive. Its German-engineered system ensures perfect alignment of top, middle, and bottom sheets—crucial for multi-ply corrugated board accuracy.

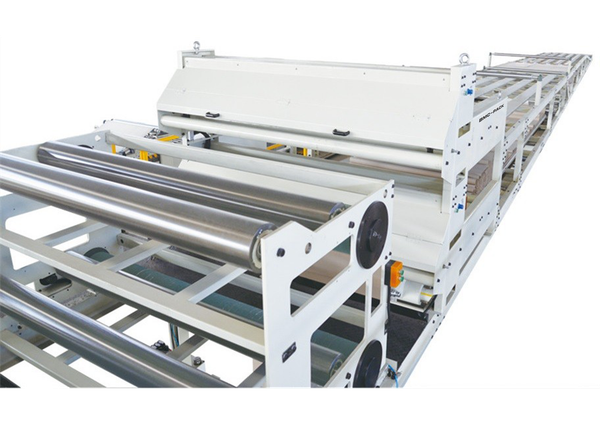

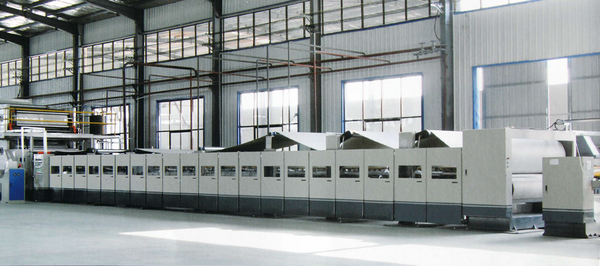

Double Facer
The Double Facer HE420 combines 12–14 heating plates, airbag pressure control, and cooling zones with heavy press rolls. Its hydraulic lifting and pneumatic correction system stabilize board bonding while preventing warping. This ensures uniform heating and pressure for flawless bonding at high speed.

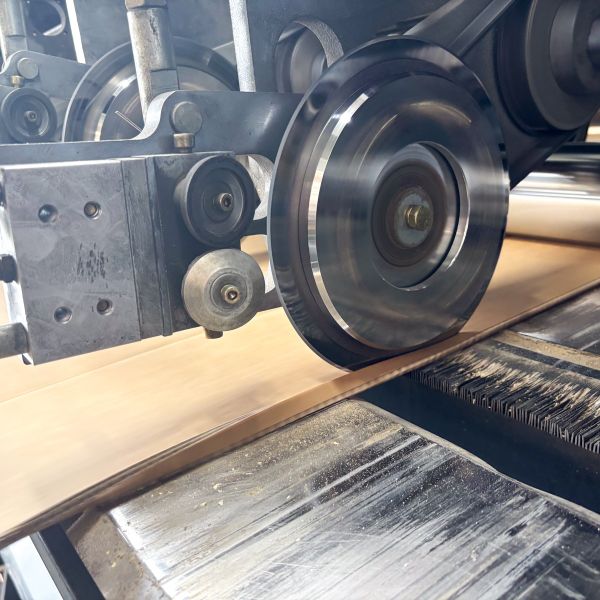

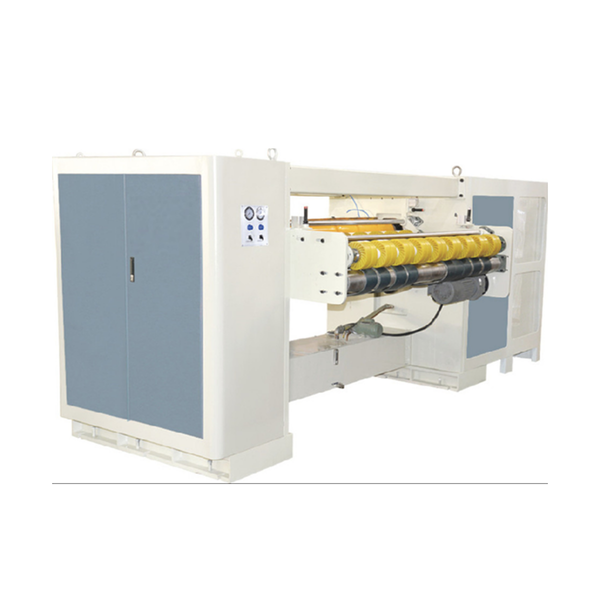

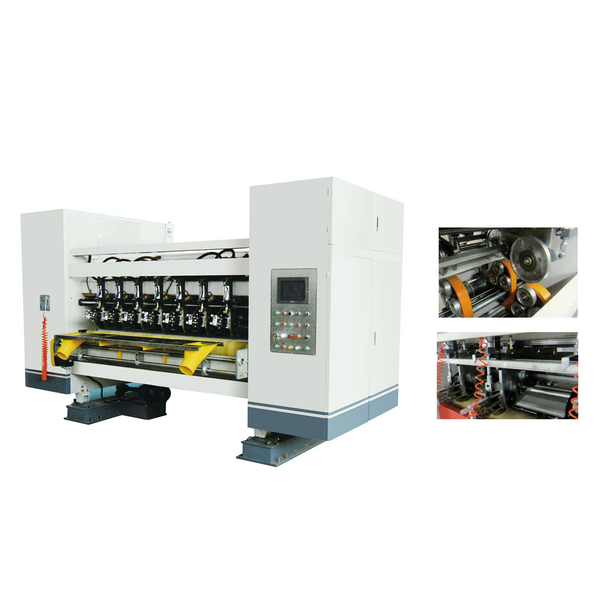

Computer Thin Blade Machine
The Computer Thin Blade Machine offers 5 knives and 8 scoring lines with ±0.5 mm accuracy. It utilizes servo-driven slitting and scoring, auto grinding, and real-time synchronization with the line’s speed. The intelligent control via PLC and touch screen ensures seamless integration with production orders.
Helical Knives NC Cutting Machine
The Helical Knives NC Cutting Machine (HQ2-2200) features AC servo control, low inertia spiral cutting, and ±1 mm precision. It enables smooth, efficient, and burr-free cutting for all sizes of corrugated sheets, improving quality and reducing material waste.

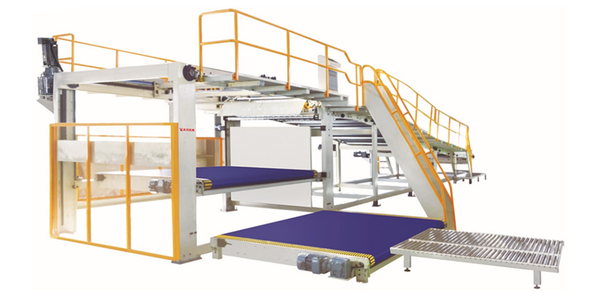

Automatic Stacking System
The DM4-2200 Automatic Stacker uses servo-controlled offset stacking, 5-section conveyor belts, and synchronized order changing. It ensures clean, uniform stacking, saving labor while maintaining continuous production flow.

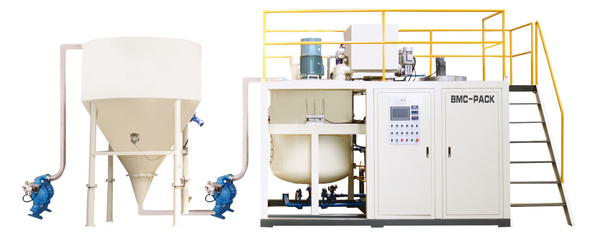

Automatic Glue Making Machine
The QZJ-1500 Glue Making Machine automates glue preparation with PLC control, temperature monitoring, and real-time alarms for ingredient shortages or overheating. It ensures consistent viscosity and saves up to 30% of glue consumption.
Auxiliary Systems
Complementary systems like Steam Heating, Compressed Air, and Electrical Control (inverter + PLC integration) ensure overall process stability. The Production Management System tracks each unit’s performance, synchronizes order changes, and provides real-time data display.
3. Advantages of High Quality 3 5 7 Ply Corrugated Cardboard Production Line
High-Speed Production & Stability
The High Quality 3 5 7 Ply Corrugated Cardboard Production Line achieves steady 250 m/min working speed, even under full load, ensuring high throughput without compromising board flatness or bonding strength.
Smart Automation & Control
Every section is managed by BMC Pack’s advanced PLC system with servo synchronization and digital touch screen interfaces, delivering superior operational stability and minimal human intervention.
Energy Efficiency & Durability
The Preheater, Double Facer, and Hydraulic Mill Roll Stand are designed to optimize steam and power usage, cutting energy costs while maintaining strong structural durability over years of operation.
Seamless Integration
Compatible with Flexo Printing Machines, Rotary Die Cutter, Creasing and Die-Cutting Machine, and folder gluer stitcher making machine, the line enables end-to-end packaging solutions from corrugation to final box conversion.
Customization & Scalability
Available in 3, 5, and 7 ply configurations, BMC Pack provides tailored solutions that meet diverse client needs — from compact operations to large-scale industrial packaging plants.
4. Why Choose BMC Pack
With over 30 years of expertise, BMC Pack (also known as BMCPack) is a trusted global manufacturer specializing in corrugated carton production lines and advanced packaging solutions. The company integrates R&D, production, and after-sales service under a strict ISO-certified system, ensuring each machine meets international quality standards.
BMC Pack has exported to over 60 countries, offering full technical support, installation training, and lifetime service. Each High Quality 3 5 7 Ply Corrugated Cardboard Production Line undergoes rigorous testing before delivery, ensuring optimal stability and precision under continuous operation.
I. Comparison Table — 3-Ply vs 5-Ply vs 7-Ply Corrugated Cardboard Production Line
Specification | 3-Ply Line (ND3WJ300-2200) | 5-Ply Line (ND5WJ300-2200) | 7-Ply Line (ND7WJ300-2200) |
Working Width | 2200 mm | 2200 mm | 2200 mm |
Total Line Length | Approx. 60–70 m | Approx. 73–85 m | Approx. 100–110 m |
Design Speed | 300 m/min | 300 m/min | 300 m/min |
Working Speed | 250 m/min | 250 m/min | 250 m/min |
Flute Type | A, B, C, E | A, B, C, E (UV V-type optional) | A, B, C, E (UV V-type optional) |
Steam Pressure | 0.8–1.2 MPa | 0.8–1.2 MPa | 0.8–1.2 MPa |
Air Compression | 0.6–1.0 MPa | 0.6–1.0 MPa | 0.6–1.0 MPa |
Hydraulic Pressure | 6–10 MPa | 6–10 MPa | 6–10 MPa |
Total Installed Power | Approx. 380 kW | Approx. 450 kW | Approx. 450 kW |
Main Corrugating Roll Diameter | Ø420 mm | Ø420 mm | Ø420 mm |
Cassette Single Facer | 1 unit | 2 units | 3 units |
Hydraulic Mill Roll Stand | 3 units | 5 units | 7 units |
Double Facer Heating Plates | 10 plates | 12 plates | 14 plates |
Preheaters | 1 for liner + 1 for medium | 2 for liner + 2 for medium + 1 three-layer | 3 for liner + 3 for medium + 1 four-layer |
Overbridge Conveyor | Single-layer | Two-layer | Three-layer |
Automatic Splicer | 3 sets | 5 sets | 7 sets |
Automatic Stacker | 1 set | 1 set | 1 set |
Glue Making System | 1 set (QZJ-1500 PLC-controlled) | 1 set (QZJ-1500 PLC-controlled) | 1 set (QZJ-1500 PLC-controlled) |
Control System | Siemens PLC + HMI | Siemens PLC + HMI | Siemens PLC + HMI |
Production Management System | Optional | Standard | Standard |
Application | Light cartons (inner packaging) | Medium & export cartons | Heavy-duty export cartons |
II. Technical Specification — ND5WJ300-2200 (5-Ply Line)
Parameter | Specification |
Model | ND5WJ300-2200 |
Design Speed | 300 m/min |
Working Speed | 250 m/min |
Working Width | 2200 mm |
Line Length | Approx. 73–85 m |
Flute Type | UV-type, A/B/C/E optional |
Steam Pressure | 0.8–1.2 MPa |
Air Compression | 0.6–1.0 MPa |
Hydraulic Pressure | 6–10 MPa |
Total Power | ~450 kW |
Cassette Single Facer | 2 units, Ø420 mm corrugating rolls, tungsten-coated |
Double Facer | 12 heating plates (800 mm width) |
Preheaters | 5 total (2 liner, 2 medium, 1 three-layer) |
Overbridge Conveyor | Two-layer, automatic tension balance |
Cutting Accuracy | ±1 mm |
Automatic Stacker | DM4-2200 Servo-driven type |
Glue Making System | QZJ-1500 (2,000 kg per batch, PLC control) |
Power Supply | 380 V / 50 Hz / 3 Phase |
Factory Space | ≥ 85 × 15 × 6 m |
Base Paper | Face 120–200 g/m², Medium 80–180 g/m² |
Production Management | Real-time speed & order control (Kunshan Weikong System) |
III. Technical Specification — ND7WJ300-2200 (7-Ply Line)
Parameter | Specification |
Model | ND7WJ300-2200 |
Design Speed | 300 m/min |
Working Speed | 250 m/min |
Working Width | 2200 mm |
Line Length | Approx. 100–110 m |
Flute Type | UV-type, A/B/C/E optional |
Steam Pressure | 0.8–1.2 MPa |
Air Compression | 0.6–1.0 MPa |
Hydraulic Pressure | 6–10 MPa |
Total Power | ~450 kW |
Cassette Single Facer | 3 units, Ø420 mm corrugating rolls |
Double Facer | 14 heating plates (800 mm width) |
Preheaters | 7 total (3 liner, 3 medium, 1 four-layer) |
Overbridge Conveyor | Three-layer, servo alignment & IR tracking |
Automatic Splicer | 7 sets, 99% success rate |
Automatic Stacker | DM4-2200 Servo-driven type |
Glue Making System | QZJ-1500 (2,000 kg per batch, Siemens PLC) |
Power Supply | 380 V / 50 Hz / 3 Phase |
Factory Space | ≥ 110 × 20 × 6.5 m |
Base Paper | Face 120–200 g/m², Medium 80–180 g/m² |
Production Management | Full-line monitoring system, order sync & real-time data display |
IV. Technical Specification — ND3WJ300-2200 (3-Ply Line)
Parameter | Specification |
Model | ND3WJ300-2200 |
Design Speed | 300 m/min |
Working Speed | 250 m/min |
Working Width | 2200 mm |
Total Line Length | Approx. 60 – 70 m |
Flute Type | A, B, C, E flutes (optional UV V-type) |
Steam Pressure | 0.8 – 1.2 MPa |
Air Compression | 0.6 – 1.0 MPa |
Hydraulic Pressure | 6 – 10 MPa |
Total Installed Power | Approx. 380 kW |
Main Corrugating Roll Diameter | Ø420 mm (alloy steel 48CrMo, tungsten-coated) |
Cassette Single Facer | 1 unit (quick-change cassette type) |
Hydraulic Mill Roll Stand | 3 units (auto clamp + hydraulic lift) |
Double Facer | 10 heating plates (800 mm width) |
Preheaters | 2 sets (1 liner + 1 medium roller preheater) |
Overbridge Conveyor | Single-layer type with auto tension balance |
Automatic Splicer | 3 sets high-precision auto splice |
Automatic Stacker | DM4-2200 Servo stacker (PLC controlled) |
Glue Making System | QZJ-1500 automatic starch mixing (1,500 kg per batch, PLC control) |
Cutting Accuracy | ±1.0 mm (Slitter Scorer unit) |
Power Supply | 380 V / 50 Hz / 3 Phase |
Factory Space | ≥ 80 × 12 × 5 m (recommended 85 × 15 × 6 m) |
Base Paper | Face paper 120 – 200 g/m² Medium paper 80 – 180 g/m² |
Control System | Siemens PLC + HMI touch panel + Schneider electric components |
Production Management | Optional order control module (Weikong System) |
5. Extended Section – ROI, Applications & Investment Benefits
Investing in a High Quality 3 5 7 Ply Corrugated Cardboard Production Line is a strategic decision for factories seeking high ROI and long-term efficiency.
By automating key stages — from paper splicing and flute forming to cutting and stacking — the line significantly reduces labor dependency. On average, it lowers workforce demand by 40–50%, while increasing output by 30–60%.
The modular design with advanced Servo Vacuum Transfer, Cassette Single Facer, and Helical Knives NC Cutting Machine ensures minimal downtime, quick order switching, and less paper waste, directly contributing to cost reduction and higher profitability.
In real-world applications, this line is ideal for producing corrugated cartons, e-commerce packaging, industrial boxes, and food-grade containers that require strength and precision. It seamlessly integrates with Flexo Printer Folder Gluer and Creasing and Die-Cutting Machines, enabling a complete automated packaging box making machine workflow.
Beyond machinery, partnering with BMC Pack means gaining a strategic manufacturing ally. The company provides pre-installation layout design, operator training, on-site commissioning, and remote support, ensuring a smooth transition to high-efficiency production.
From the Hydraulic Mill Roll Stand to the Electric Mill Roll Stand, from Overbridge Conveyor to Computer Thin Blade Machine, every detail of the High Quality 3 5 7 Ply Corrugated Cardboard Production Line is crafted for excellence and reliability.
Factories that have adopted this solution report up to 25% reduction in production cost, 30% shorter delivery time, and fewer product rejects, proving that the system not only pays for itself but drives sustainable business growth.
Conclusion
The High Quality 3 5 7 Ply Corrugated Cardboard Production Line by BMC Pack delivers a comprehensive, automated, and reliable solution for the corrugated packaging industry. Designed for performance, energy efficiency, and precision, it empowers manufacturers to achieve consistent product quality, higher output, and lower operational costs.
Backed by advanced technology, robust construction, and decades of expertise, BMC Pack stands as your most trusted partner in delivering total packaging solutions for a competitive global market.
