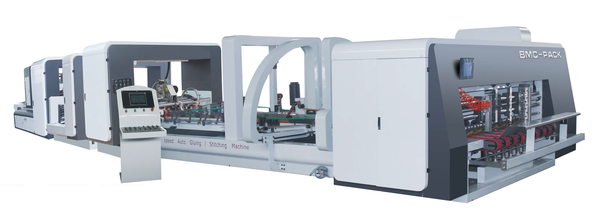

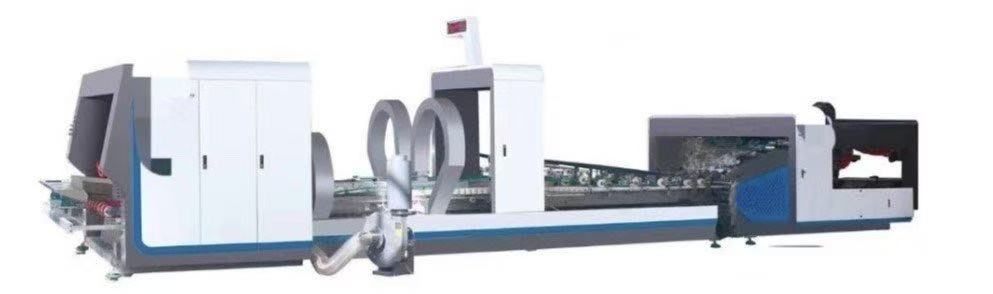

High Speed Automatic Stitcher And Gluer Machine NDHA-1224/1226FGS by BMC Pack represents the latest innovation in carton converting technology. Designed for high-speed, precision gluing and stitching, this machine combines advanced automation with intelligent control to deliver the highest level of productivity and consistency. In modern corrugated carton manufacturing, efficiency, accuracy, and quality are critical — and this equipment provides all three in one integrated system.
Unlike conventional manual or semi-automatic equipment, the High Speed Automatic Stitcher And Gluer Machine offers complete automation from feeding to folding, gluing, stitching, counting, and stacking. Its user-friendly PLC control panel with touch-screen operation ensures seamless production with minimal labor. This machine not only enhances output capacity but also reduces human error and operational downtime, bringing sustainable and measurable ROI to every packaging plant.
The NDHA-1224/1226FGS model is designed to handle a wide range of carton box machine applications, including standard corrugated boxes, A.B.C flute boxes, and pizza box packaging. Its adaptive servo-driven feeding and intelligent glue control system make it ideal for high-speed corrugated cardboard production line operations where reliability and flexibility are paramount.
1. Structure and Design Excellence of the High Speed Automatic Stitcher And Gluer Machine

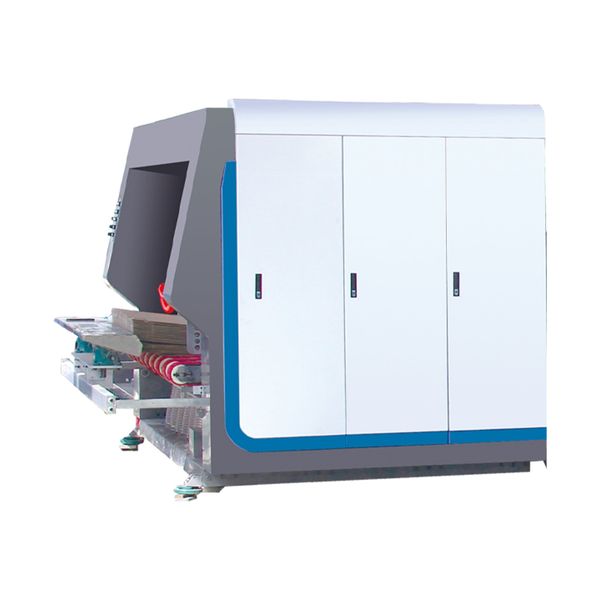

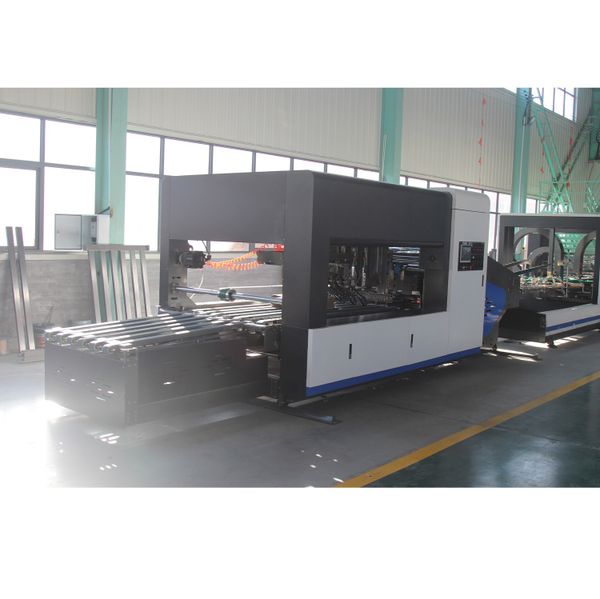

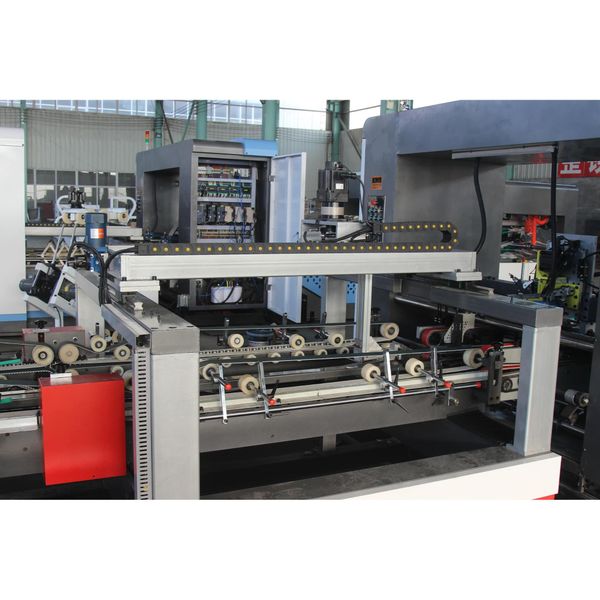

The High Speed Automatic Stitcher And Gluer Machine consists of several advanced modules: automatic feeding section, creasing and folding section, gluing section, stitching section, and automatic counting and stacking section. Each unit is interconnected through a centralized computer-controlled system. The entire setup is powered by a 30 kW system with a design speed of up to 420 m/min, ensuring smooth synchronization between units.
Equipped with Delta, Schneider, Siemens, and Omron components, the NDHA-1224/1226FGS achieves exceptional reliability. All bearings are imported SKF units from Sweden, ensuring stability and longevity. The advanced servo motors from Japan provide precise control during high-speed folding and stitching.
Key Technical Specifications
Model | NDHA-1224FGS / NDHA-1226FGS |
Total Power | 30 kW |
Machine Width | 13 m |
Design Speed | 420 m/min |
Working Speed | 180 m/min |
Glue Box Speed | 130 m/min |
Max. Carton Length | 650 mm |
Min. Carton Length | 285 mm |
Max. Carton Width | 600 mm |
Min. Carton Width | 200 mm |
Machine Weight | 13 Tons |
2. Functionality and Operation

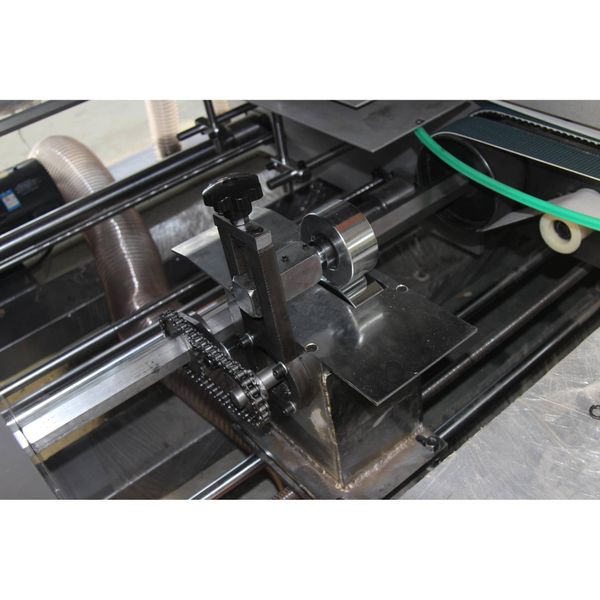

The High Speed Automatic Stitcher And Gluer Machine is engineered for automatic pasting, gluing, and nailing of corrugated carton and paperboard boxes. It integrates paste and nail functions within one system, capable of completing multiple box types including double-wall, triple-wall, and flute lamination designs.
Operators can easily set up box parameters within 3–5 minutes, allowing rapid changeovers for different production orders. The paste box and nail box systems allow one-key conversion, simplifying the transition between different box structures. The electronic control of line pressure ensures consistent folding and bonding quality.

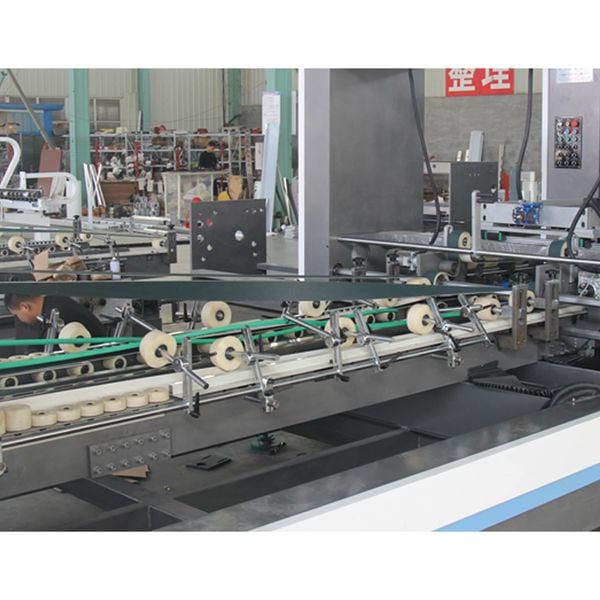

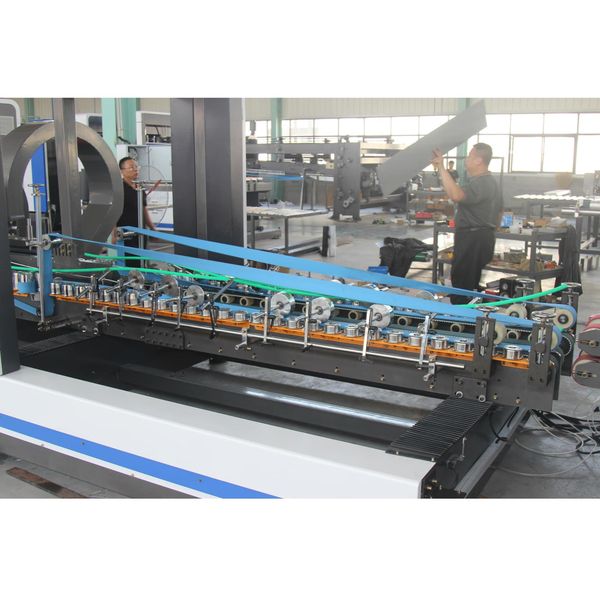

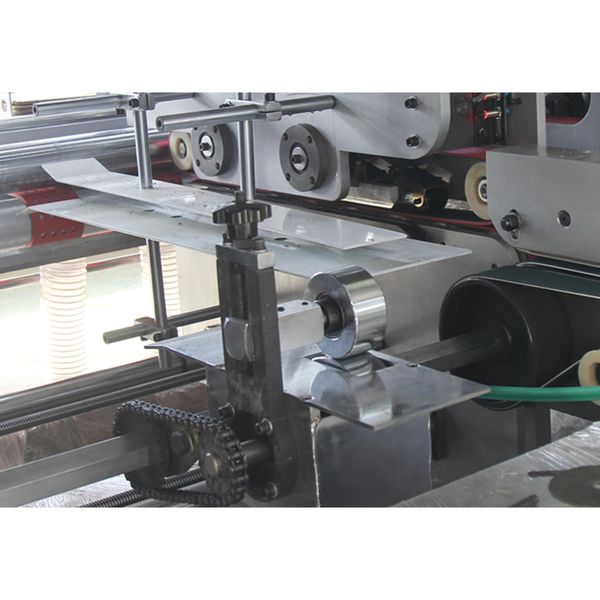

The machine’s smart forming system utilizes pressure line adjustments for A.B.C flutes and flute laminator compatibility, supporting 3/5/7 ply corrugated cardboard production line integration. The automatic correction system prevents deviation and ensures accurate alignment of each sheet before gluing and stitching.

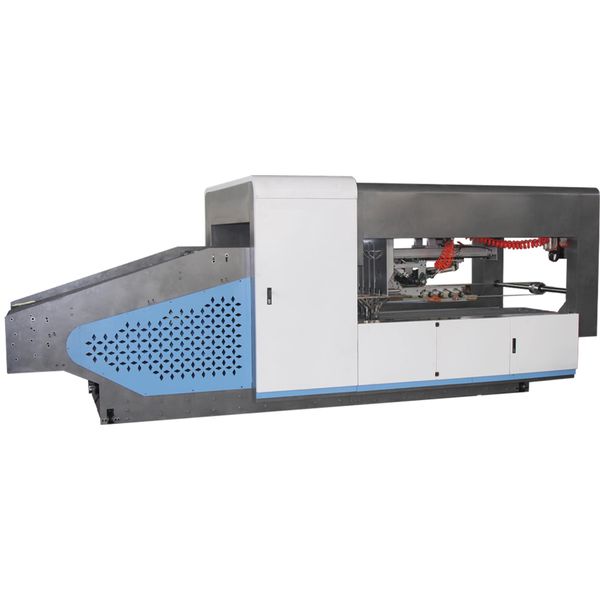

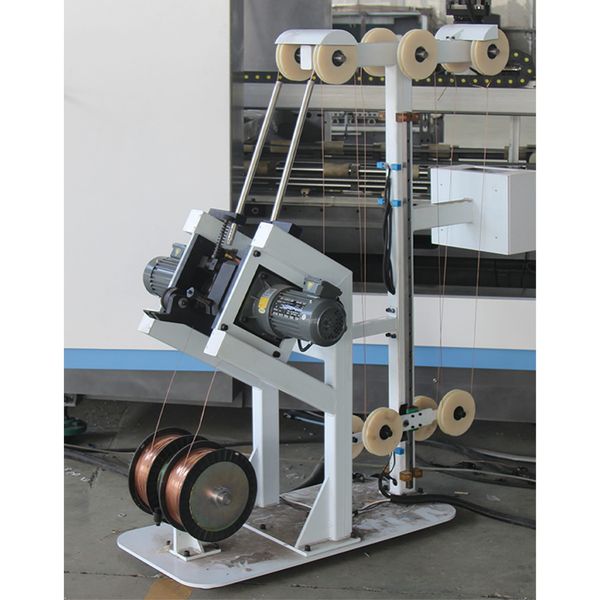

Its adjustable nailing and gluing systems enable perfect finishing even for small-size pizza box or custom carton packaging. The stitching pressure adapts to board thickness automatically, guaranteeing consistent staple depth and bonding strength.
3. Automation and Control System

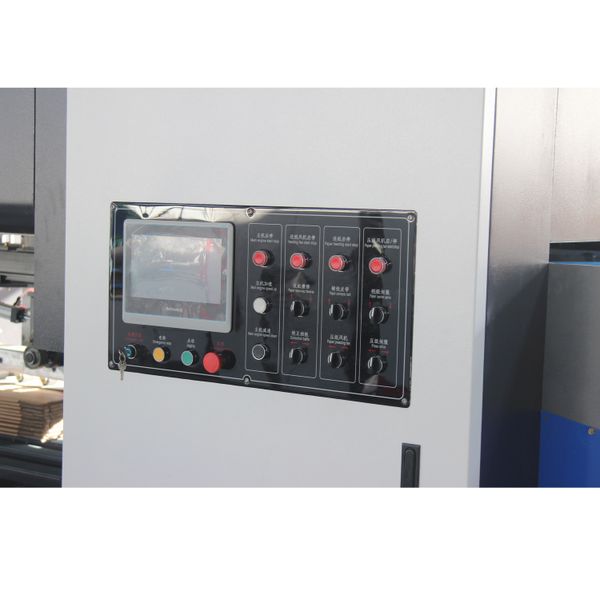

The NDHA-1224/1226FGS uses a full computer-controlled PLC system with color HMI, providing real-time data monitoring, glue temperature adjustment, and diagnostic alerts. Safety sensors detect abnormal conditions, such as wire breakage or overload, immediately stopping the machine to prevent damage.
The main motor applies frequency-inverter speed regulation, saving up to 30% energy while maintaining stable speed. The dual operation panels at the front and rear ensure maximum convenience for technicians. The intelligent glue feeding system prevents wastage and maintains stable viscosity, reducing adhesive costs by over 20%.
The High Speed Automatic Stitcher And Gluer Machine not only improves productivity but also significantly reduces the number of operators required per shift, enhancing the automation level of the corrugated carton production line.
4. Core Advantages of the High Speed Automatic Stitcher And Gluer Machine
- 🏭 Full Automation: From feeding to counting — no manual intervention required.
- ⚙️ High-Speed Efficiency: Up to 180 m/min working speed, enabling mass production.
- 🔩 Precision Stitching and Gluing: Servo-controlled wire nailing, automatic glue adjustment.
- 🧠 Intelligent Operation: PLC + HMI touch panel ensures simplified control and fast changeovers.
- 🔋 Energy Saving: Frequency-controlled main motor with 30% power reduction.
- 🛡️ Durability: Stainless steel design, SKF bearings, and BMC Pack engineering guarantee long-term stability.
Each High Speed Automatic Stitcher And Gluer Machine unit by bmcpack passes strict quality tests, meeting international CE safety standards. With continuous innovations, BMC Pack positions itself among the world’s leading carton box machine manufacturers, offering sustainable packaging solutions for medium and large-scale packaging factories.
5. Integration with Corrugated Carton Production Lines
The NDHA-1224/1226FGS perfectly matches the output of corrugated cardboard production line systems. It works seamlessly after the Double Facer, Flute Laminator, or Flexo Printer Folder Gluer stages.
When combined with upstream machines such as the Single Facer and downstream Folder Gluer Stitcher Making Machine, it completes a continuous corrugated carton production line from sheet to finished packaging box.
This integration reduces manual transfer time and optimizes overall plant workflow. The modular design allows easy connection with conveyor systems or automatic stacking units, transforming traditional production into a fully smart packaging line.
6. Applications and Industry Use
The High Speed Automatic Stitcher And Gluer Machine is widely used in:
- Corrugated carton and paperboard factories
- Packaging box manufacturers for electronics, food, furniture, and pizza box industries
- Large carton box machine production lines for logistics and e-commerce packaging
- Factories integrating flute lamination and flute laminator processes
It is compatible with a variety of flexo printing machine, flatbed creasing and die-cutting machine, and rotary die cutter, forming a complete converting system with high flexibility.
7. Extended Benefits, ROI, and Production Efficiency
Investing in the High Speed Automatic Stitcher And Gluer Machine ensures rapid ROI through reduced labor cost, enhanced output, and lower maintenance. Traditional manual stitching lines typically require 4–6 workers per shift, while this fully automatic line needs only 1–2 operators. Labor cost savings can reach 60–70% annually.
Energy consumption is minimized by its intelligent frequency-control system, while the servo-driven feeding ensures zero waste in sheet transfer. For every 1,000,000 boxes produced, manufacturers save up to 8–10% in material and adhesive usage.
Maintenance is simplified thanks to the plug-type wiring and accessible panel design. Daily setup time is reduced by 50%, enabling quicker order turnovers. This machine supports both small-batch pizza box orders and continuous high-volume corrugated carton production, making it ideal for packaging factories serving diversified clients.
From an ROI perspective, the High Speed Automatic Stitcher And Gluer Machine pays for itself within 12–18 months, depending on production scale. When integrated with flute laminator, flexo printer slotter die cutter, and flatbed creasing and die cutting machine, it becomes a powerful packaging box making machine network capable of doubling productivity while maintaining precision.
Partnering with BMC Pack means more than buying a machine — it means joining a global network of reliable packaging solutions providers. Every bmcpack product includes technical guidance, installation support, and after-sales service tailored to each client’s production needs. With decades of industry expertise, BMC Pack continues to innovate, ensuring that every corrugated cardboard production line equipped with its machinery achieves maximum efficiency, reliability, and profit generation.
Conclusion – Why Choose the High Speed Automatic Stitcher And Gluer Machine by BMC Pack
In today’s competitive corrugated carton industry, automation and precision determine long-term success. The High Speed Automatic Stitcher And Gluer Machine NDHA-1224/1226FGS by BMC Pack provides the perfect balance of speed, accuracy, and cost-efficiency. From flute lamination to folder gluer stitcher making machine integration, it delivers seamless performance and durable reliability.
With proven engineering, advanced control systems, and customer-focused service, bmcpack ensures every carton box machine not only meets but exceeds modern production standards. This equipment stands as a cornerstone for the future of packaging box making machines, redefining the standards of innovation and industrial performance in corrugated cardboard production line manufacturing.
