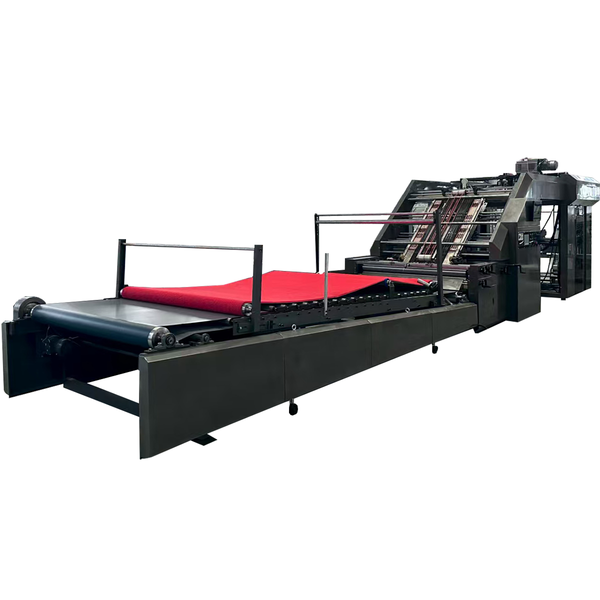

The High Speed Servo Flute Laminator BMCVT-HFA3 by BMC Pack (BMCPack) represents a revolutionary leap in modern corrugated carton manufacturing. Designed for high-speed precision bonding of corrugated board and liner paper, this advanced flute laminator ensures perfect alignment, superior adhesion, and consistent accuracy at speeds up to 12,000 sheets per hour.
Engineered to meet the demanding requirements of today’s corrugated cardboard production line, it integrates servo control, photoelectric positioning, and PLC touch-screen operation to deliver unmatched performance and ease of use. Whether used for pizza box, retail packaging, or carton box machine lines, the High Speed Servo Flute Laminator BMCVT-HFA3 guarantees outstanding lamination accuracy and smooth surface bonding — essential for high-grade packaging quality.
With years of R&D experience, BMC Pack developed this lamination system to optimize productivity, minimize glue waste, and reduce human errors. Built with precision-ground rollers, Siemens electronics, and dual-servo synchronization, the BMCVT-HFA3 stands as the ultimate solution for efficient and sustainable packaging solutions.
1. Overview of High Speed Servo Flute Laminator BMCVT-HFA3

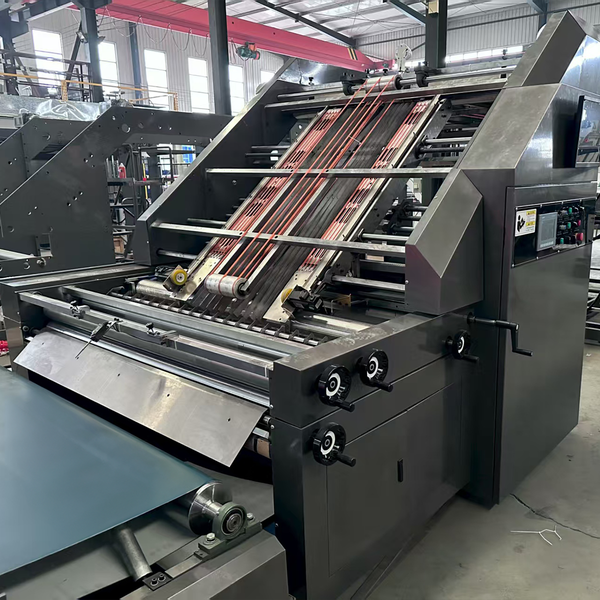

The High Speed Servo Flute Laminator BMCVT-HFA3 is specially developed for bonding top sheets (printed liner paper) to bottom sheets (corrugated board). Its advanced servo-driven suction feeding and automatic positioning guarantee consistent lamination even at maximum speed.
The system uses a perfect combination of motion control and photoelectric servo correction, automatically adjusting sheet alignment by detecting relative paper positions. This ensures that each laminated sheet achieves millimeter-level precision without manual intervention — ideal for integrating into 3/5/7-ply corrugated cardboard production line setups.
2. Technical Specifications of High Speed Servo Flute Laminator BMCVT-HFA3
Item | BMCVT-1450HFA3 | BMCVT-1650HFA3 |
Max. Sheet Size (W × L) | 1450 × 1250 mm | 1650 × 1450 mm |
Min. Sheet Size (W × L) | 400 × 400 mm | 400 × 400 mm |
Top Paper Thickness | 130 – 800 g/m² | 130 – 800 g/m² |
Bottom Sheet Thickness | Corrugated 0.5–10 mm (B, A, AB, E flute) / Paper ≥350 g | Corrugated 0.5–10 mm (B, A, AB, E flute) / Paper ≥350 g |
Laminating Accuracy | Corrugated ±1 mm / Paper ±0.5 mm | Corrugated ±1 mm / Paper ±0.5 mm |
Max. Speed | 12,000 sheets/h | 12,000 sheets/h |
Power | 20 kW | 22 kW |
Dimensions (L × W × H) | 13.5 × 2.4 × 2.4 m | 14.5 × 2.6 × 2.6 m |
Bottom Paper Height | 400 mm | 400 mm |
Top Paper Height | 1800 mm | 1500 mm |
Machine Weight | 6200 kg | 7000 kg |
3. Structural Innovation and Servo Control System
At the heart of the High Speed Servo Flute Laminator BMCVT-HFA3 lies a sophisticated servo-driven feeding mechanism.
- Bottom Sheet Feeding: Equipped with imported servo motors and Japanese suction belt transmission, it ensures smooth transport without slippage.

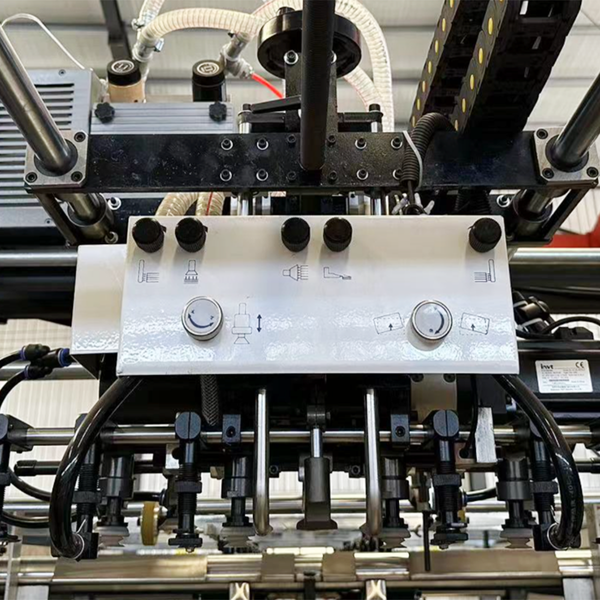

- Top Sheet Feeding: Features four-suction, four-feed design for reliable paper pick-up at high speeds.
- Automatic Deviation Correction: Servo system compensates real-time misalignment using photoelectric sensors, achieving ±0.5 mm precision.
The use of dual-servo synchronization for both top and bottom sheets makes it a benchmark among high-speed flute laminator systems, perfectly compatible with automated corrugated carton production line layouts.
4. Intelligent Bridge and Drive System
The bridge transport system of this flute laminator adopts web correction and automatic paper-size setting functions, which save setup time and enhance productivity.
- Automatic Baffle Adjustment: Adjusts according to paper width and length input.
- Synchronous Belt Transmission: Double-sided tooth belt design ensures even power distribution with minimal vibration and noise.
- All-Roller Gap Synchronization: Adjusted via one hand-wheel — fast, reliable, and user-friendly.
This structure guarantees precise alignment even during long production runs, ensuring laminated sheets remain consistent and smooth — an essential advantage for pizza box manufacturers seeking uniform bonding and branding.
5. Advanced Gluing and Positioning System

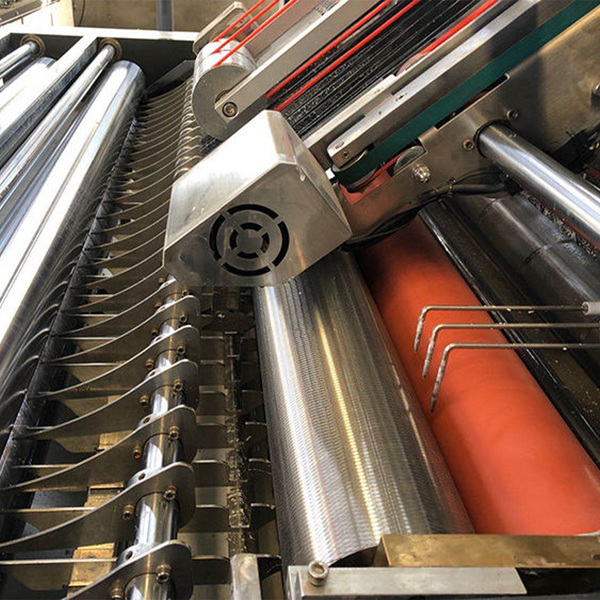

The gluing section of the High Speed Servo Flute Laminator BMCVT-HFA3 employs scientifically designed glue metering rollers to achieve accurate, splash-free coating at high speeds.
- Glue Consumption: 25–30 g/m² (optimized via servo control).
- Automatic Glue Supply and Recovery System: Reduces waste and improves efficiency.
- Copper Block Design: Prevents roller detachment and ensures backflow regulation.
- Liftable Glue Cleaning Roller: Enables easy maintenance and extended equipment lifespan.
This combination of mechanical precision and servo-driven automation ensures stable adhesion across a variety of substrates — from lightweight pizza box liners to heavy corrugated carton boards.
6. Conveyor and Output System
The delivery conveyor (6 m length) features motorized adjustment for belt tension and position. Increased conveyor height reduces worker fatigue and allows continuous stacking without interruption. The integrated counter system records daily output data for streamlined production management.
This automation capability integrates smoothly into existing carton box machine setups, improving output flow in full-scale corrugated cardboard production lines.
7. Electrical System & Global Component Integration
Every High Speed Servo Flute Laminator BMCVT-HFA3 is equipped with globally recognized components for unmatched reliability:
- PLC / HMI: Siemens (Germany)
- Servo Motors: INVT (China)
- Relays & Buttons: IDEC (Japan)
- Contactors: Siemens (Germany)
- Transformers: Jintai (China)
- Air Switch & Motor Protection: Chint (China)
- Bearings: NSK (Japan)
This ensures long-term stability, faster response, and safe, intelligent control throughout the packaging box making machine process.
8. Efficiency and Operator Convenience
The High Speed Servo Flute Laminator BMCVT-HFA3 simplifies operations and maintenance:
- Touch-screen PLC interface for one-button adjustment.
- Full auto setup for paper width and positioning.
- Pneumatic press for smoother lamination.
- Noise-reduced synchronous transmission.
Operators enjoy a quieter, cleaner, and more efficient workspace — reducing fatigue while improving throughput and production quality.
9. Quality Assurance & After-Sales Service
Each BMC Pack flute laminator undergoes multi-stage inspection and testing prior to shipment. The company provides:
- One-year warranty and lifetime technical support.
- On-site installation and training for customer operators.
- Regular technical exchange programs and maintenance assistance through local partners.
This reinforces BMC Pack’s reputation as a dependable partner in the corrugated carton and packaging solutions industry.
10. Extended Section – Real ROI, Production Efficiency & Partnership Benefits (400 words)
Investing in the High Speed Servo Flute Laminator BMCVT-HFA3 provides measurable business impact.
By automating the most precision-critical process in the corrugated cardboard production line, it allows manufacturers to achieve higher throughput with fewer workers.
- Reduced Labor Costs: One trained operator can manage the entire lamination stage.
- Lower Glue Consumption: Servo-driven metering saves up to 15% glue annually.
- Minimized Waste: Photoelectric correction reduces misalignment errors and rejected sheets.
- Energy Savings: Power-optimized drive system cuts electricity consumption by 20–25%.
For pizza box and corrugated carton producers, this translates directly into better ROI, faster order fulfillment, and consistent product quality.
Integrated with folder gluer stitcher making machines, Flexo Printing Machines, or Single/Double Facers, the BMCVT-HFA3 forms part of a smart, fully automated packaging solution.
Partnering with BMC Pack (BMCPack) means more than buying a machine — it means gaining access to a global network of engineers, responsive after-sales support, and guaranteed spare-part supply.
Their 25+ years of industry expertise ensure every client receives optimized productivity, technical training, and genuine profitability in the long run.
11. Conclusion – Choose the High Speed Servo Flute Laminator BMCVT-HFA3 for Your Packaging Future
The High Speed Servo Flute Laminator BMCVT-HFA3 stands as a pinnacle of engineering for modern corrugated carton and pizza box production.
Combining servo vacuum transfer, smart correction control, and energy-efficient automation, it achieves unmatched lamination precision and operational stability.
For packaging factories looking to upgrade efficiency, consistency, and ROI, BMC Pack’s flute laminator delivers long-term value and reliability.
It seamlessly integrates with corrugated cardboard production lines, ensuring every layer of your packaging is perfectly bonded — fast, strong, and flawless.
BMC Pack – Building the future of intelligent corrugated packaging
