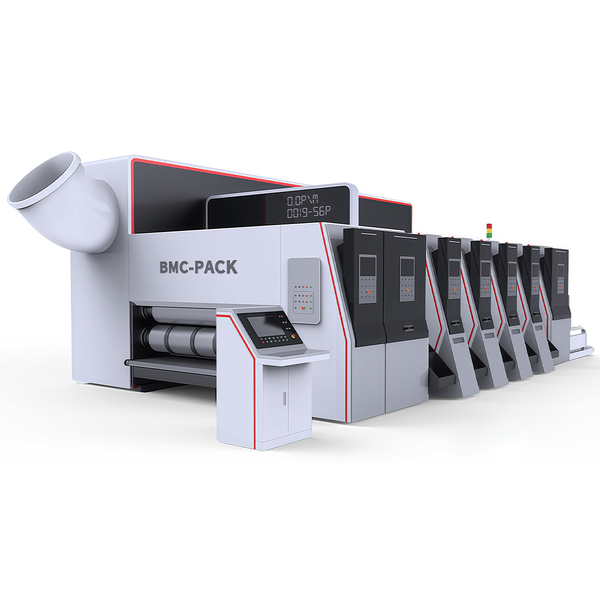

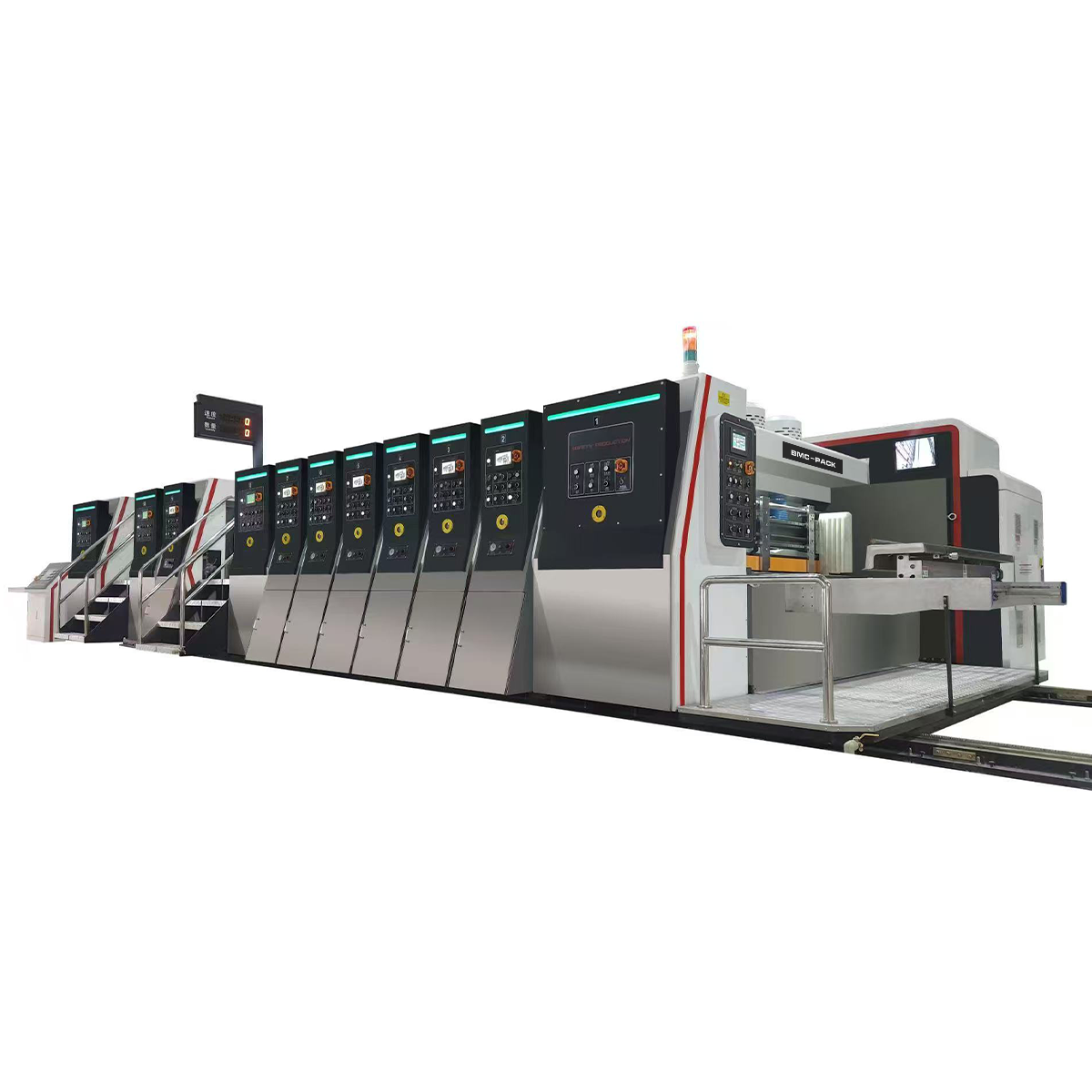

High Speed Vacuum Transfer Fully Automatic Flexo Printer Slotter Die Cutting NDVT-920FSDCH / NDVT-1224FSDCH – HD High Speed Series By BMCPack

High Speed Vacuum Transfer Fully Automatic Flexo Printer Slotter Die Cutting – Precision, Power, And Productivity

The High Speed Vacuum Transfer Fully Automatic Flexo Printer Slotter Die Cutting Machine, engineered and manufactured by BMC Pack, represents a new benchmark in the evolution of the corrugated cardboard production line industry. Specifically designed for high-efficiency carton box manufacturing, this equipment combines multi-color Flexo Printing Machine, precision creasing and die cutting, and fully synchronized rotary die-cutting technology in a single integrated system.

Built for heavy-duty and continuous operation, the HD Series—featuring models NDVT-920FSDCH and NDVT-1224FSDCH—delivers exceptional print accuracy, stable sheet feeding, and outstanding durability. Its lead-edge feeder with vacuum adsorption guarantees smooth, non-crushing sheet delivery, while its servo vacuum transfer fully automatic system ensures consistent registration at high speed.

With BMCPack’s decades of expertise in packaging solutions, this machine offers perfect harmony between speed, precision, and sustainability. It is not just a piece of equipment—it is the intelligent heart of a modern packaging box making machine system, tailored for global customers demanding reliability, cost-effectiveness, and top-tier printing performance.

Cutting-Edge Structure And Design Philosophy

The Flexo Printer Slotter Die Cutting HD Series by BMC Pack was engineered with performance and operator convenience as its foundation. The machine body is constructed from high-strength cast iron, precision-ground, and stress-relieved to maintain alignment during high-speed production.

Its lead-edge feeder system employs vacuum adsorption and servo phase control, ensuring smooth and precise board feeding for 3-ply, 5-ply, and 7-ply corrugated sheets. This design prevents flute crush, reduces paper waste, and improves alignment accuracy even at 350 sheets per minute. Each section of the machine—printing, slotting, creasing and die cutting, and rotary die-cutting—is modular and motorized, providing flexibility and easy maintenance.

Equipped with an intelligent PLC control system and touchscreen interface, operators can store, recall, and fine-tune production parameters for up to 999 job memories. The combination of high automation and mechanical stability makes BMCPack’s High Speed Vacuum Transfer Fully Automatic Flexo Printer Slotter Die Cutting an indispensable part of any advanced corrugated carton production line.

Lead-Edge Feeder With Servo Precision

The lead-edge feeder of this machine is one of its core innovations. Its vacuum adsorption and frequency-conversion control allow the feeding system to handle various board thicknesses without manual adjustment.

Each corrugated sheet is transferred with high precision through a vacuum transfer fully automatic system, powered by servo synchronization. A built-in dust removal brush and anti-static device reduce contamination on the print surface. The system’s dual rubber rollers ensure grip stability while protecting the corrugation’s integrity.

With intelligent phase memory and servo compensation, BMCPack’s High Speed Vacuum Transfer Fully Automatic Flexo Printer Slotter Die Cutting achieves unmatched feeding accuracy—crucial for high-end printed packaging where every millimeter counts.

Flexographic Printing Unit – Perfect Color, Perfect Control

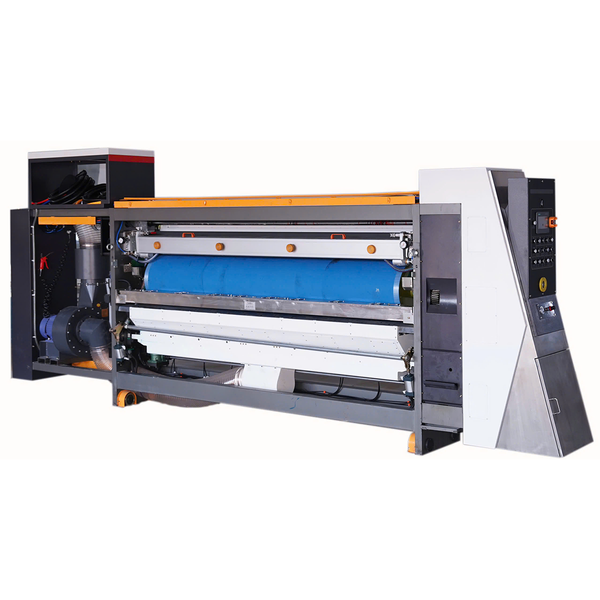

The printing section of the High Speed Vacuum Transfer Fully Automatic Flexo Printer Slotter Die Cutting is equipped with ceramic anilox rollers, pneumatic chamber doctor blades, and magnetic plate locking systems. The design ensures sharp, uniform, and high-density ink transfer even at high speed.

Each High Speed Vacuum Transfer Fully Automatic Flexo Printing Machine unit is independently servo-driven, featuring automatic registration adjustment, color memory, and rapid wash-up. The ink circulation system uses ARO double diaphragm pumps to maintain steady ink viscosity and reduce downtime during color change.

Thanks to BMC Pack’s innovative vacuum transfer fully automatic design, the printing surface remains smooth and aligned throughout production. With this precision, print deviation stays below ±0.5 mm. The result is a consistently vivid, sharp, and stable print quality across multiple jobs—ideal for branded packaging manufacturers.

Slotting, Creasing And Die Cutting Excellence

The slotting and creasing section employs creasing and die cutting technology for sharp, durable, and perfectly aligned box flaps. High-precision slotting knives are mounted on linear guideways, allowing smooth movement and accurate cut positioning.

In the die cutting section, a rotary die-cutting cylinder made of premium alloy steel provides long-term dimensional accuracy. The anvil roll uses an automatic wear-compensation system, extending the rubber’s lifespan and maintaining cutting consistency.

The die-cutting pressure, lateral movement, and 360° registration are all motorized and controlled through the PLC interface. This precision guarantees that BMCPack’s High Speed Vacuum Transfer Fully Automatic Flexo Printer Slotter Die Cutting consistently produces high-quality packaging boxes that meet global standards.

Technical Specifications Of NDVT-920FSDCH / NDVT-1224FSDCH

Each technical detail reflects BMCPack’s dedication to accuracy, speed, and operator comfort. Both models are ideal for medium to large-scale packaging box making machine operations demanding high flexibility and consistent quality.

Safety, Automation, And Sustainability

The Flexo Printer Slotter Die Cutting High Speed Vacuum Transfer Fully Automatic Series includes automatic locking, warning systems, and motorized safety guards. The main motor is equipped with interlocks to prevent misoperation.

Energy efficiency is enhanced through intelligent air management, vacuum transfer fully automatic systems, and low-energy servo drives. The use of water-based inks reduces VOC emissions, aligning with BMCPack’s environmental policy and international sustainability standards.

All electrical and pneumatic components are sourced from trusted global suppliers—Siemens, Schneider, Omron, NSK, and Airtac—ensuring consistent quality and reliability across every unit.

Integrated Packaging Line Compatibility

The High Speed Vacuum Transfer Fully Automatic Flexo Printer Slotter Die Cutting system can be seamlessly integrated with downstream equipment, including folder gluer stitcher making machine, automatic stackers, and strapping systems.

Its flexible modular configuration makes it the perfect centerpiece for a fully automated corrugated carton production line, enhancing operational efficiency, reducing manual labor, and ensuring precise synchronization from printing to final folding.

This adaptability ensures that BMC Pack customers can scale their production capacity while maintaining uniform quality, making this model one of the most efficient packaging solutions available globally.

Conclusion

The High Speed Vacuum Transfer Fully Automatic Flexo Printer Slotter Die Cutting Machine by BMCPack is not only a representation of modern mechanical mastery but a statement of commitment to performance and precision. Built for the global corrugated cardboard production line market, this machine offers unparalleled reliability, high-speed output, and superior print quality.

Its integration of lead-edge feeder, vacuum transfer fully automatic feeding, and advanced Rotary Die-Cutting technology positions it as a top-tier choice for packaging manufacturers worldwide. Every component—designed, tested, and perfected by BMC Pack—reflects a passion for innovation, durability, and sustainability.

For those seeking excellence in creasing and die cutting, precision in color registration, and total automation in packaging box making machines, BMCPack’s Flexo Printer Slotter Die Cutting HD Series remains the gold standard. It is more than a production tool—it is the embodiment of innovation and craftsmanship from a brand trusted across the world of corrugated packaging machinery.
