In today’s fast-paced global economy, corrugated cardboard has become the backbone of modern packaging — lightweight, durable, and environmentally friendly. From e-commerce shipping boxes to retail packaging and industrial storage, corrugated cardboard plays a vital role in protecting goods and maintaining supply chain efficiency. Behind every box lies a sophisticated production process that blends engineering precision, high-speed automation, and sustainable materials.
Understanding how corrugated cardboard is made offers insight into one of the world’s most efficient and eco-conscious manufacturing systems. This process combines paper technology, heat, pressure, and advanced machinery to transform simple paper reels into strong, multi-layered structures capable of withstanding immense pressure and impact.
At the core of this transformation are highly specialized machines such as the Single Facer, Double Facer, Glue Machine, Slitter Scorer, and Folder Gluer — each designed to execute a specific function within the corrugated production line. Together, these machines convert raw kraft paper into the strong fluted sheets that make up corrugated boards used in millions of cartons produced every day.
In this article, we’ll explore the complete journey of corrugated cardboard, from raw materials to finished packaging. You’ll learn about each stage of production, the role of key machinery, the science behind fluting and adhesion, and the innovations that continue to drive the packaging industry toward automation and sustainability. Whether you’re a manufacturer, packaging designer, or industry enthusiast, understanding this process will deepen your appreciation for how precision and innovation combine to create the world’s most widely used packaging material.
1. Raw Materials – The Foundation of Strength and Sustainability
Every corrugated board begins with paper — primarily kraft liner and corrugating medium. These papers are produced from virgin wood fibers or recycled pulp, giving them both strength and environmental value.
- Kraft liner serves as the outer and inner layers of the board. It provides rigidity, printability, and moisture resistance.
- Corrugating medium forms the wavy inner flutes, which provide cushioning, stacking strength, and shock absorption.
Depending on packaging requirements, manufacturers choose between 3-ply, 5-ply, or 7-ply corrugated cardboard, combining multiple liners and mediums for increased durability.

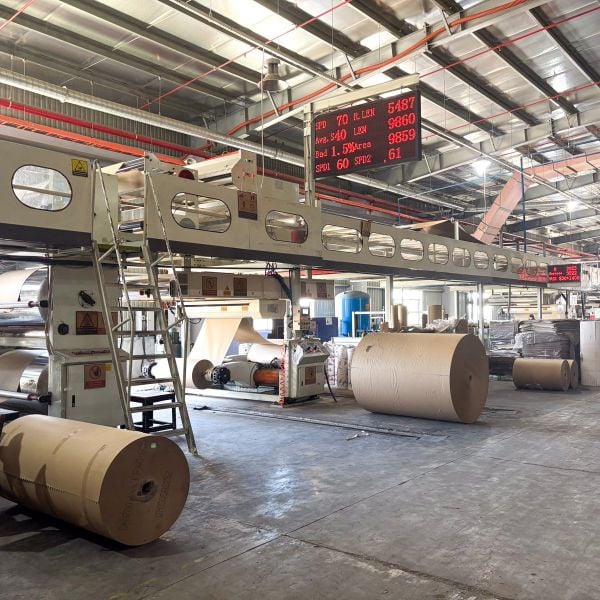

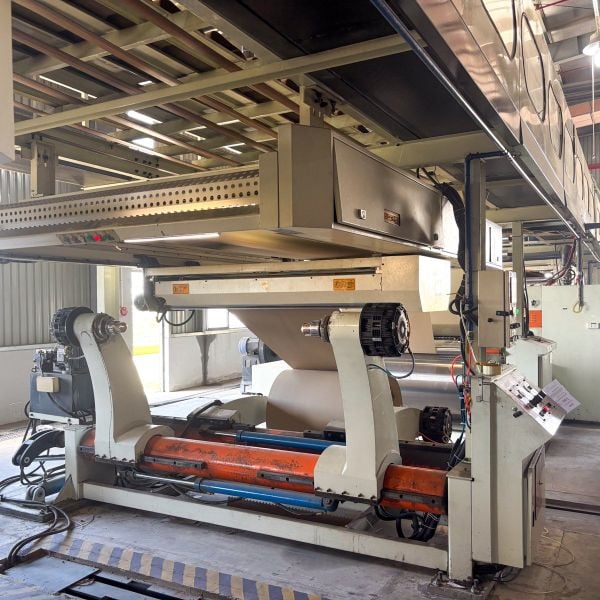

The paper reels are delivered to the corrugator line, where they are mounted on hydraulic or electric mill roll stands. These stands ensure constant paper feeding under controlled tension, keeping production stable at high speeds — often exceeding 200 meters per minute.
2. Preheating and Conditioning – Preparing Paper for Corrugation

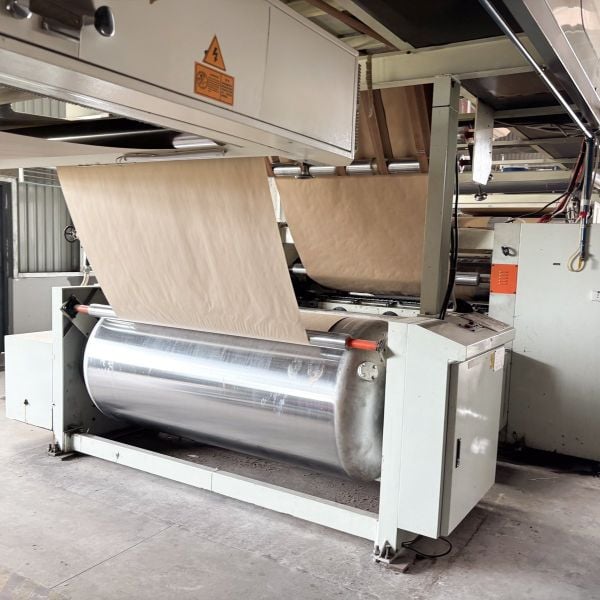

Before paper can be shaped into flutes, it must be conditioned to achieve optimal flexibility and bonding quality. This is done using preheaters and preconditioners, which apply controlled heat and steam to the paper.
- The liner paper passes over heated drums to remove moisture and improve surface bonding.
- The medium paper receives steam conditioning to soften its fibers, allowing it to form perfect corrugations when pressed between the corrugating rolls.
The preheating process ensures consistent moisture content — typically between 8–12% — which is critical for achieving stable flute formation without tearing or crushing.
3. Corrugating Process – Creating the Flutes
The heart of the production line lies in the Single Facer — a precision-engineered machine that transforms flat paper into the wavy, fluted structure characteristic of corrugated cardboard.
In this section:
- The softened corrugating medium passes between two corrugating rolls — one heated and one pressure roll — which shape it into continuous waves (the flutes).
- A thin layer of starch-based adhesive is applied to the flute tips.
- One liner (usually the inside layer) is immediately pressed onto the flute tips under heat and pressure, creating single-faced board.
This sheet can either be used as-is (for lightweight applications) or passed along to the Double Facer for lamination with additional liners.
4. Double Facing – Building the Multi-Layer Board
In the Double Facer, the single-faced web meets another liner to form a complete 3-ply corrugated board. The adhesive between the fluted medium and the outer liner is cured using steam-heated plates and belt conveyors that maintain uniform pressure and temperature.
At this stage, the corrugated board gains its full structural integrity. Advanced machines ensure even glue distribution and temperature control — typically between 160–180°C — to prevent warping and maintain board flatness.
For thicker constructions like 5-ply or 7-ply, additional single-faced sheets are laminated together using flute laminator machines, achieving higher compression strength for heavy-duty packaging applications.
5. Drying, Cooling, and Cutting – Turning Sheets into Usable Boards
After bonding, the continuous corrugated sheet passes through cooling sections that stabilize the adhesive and reduce internal stress. The board then reaches the Slitter Scorer, where it is trimmed to the desired width and pre-scored for folding.
Automatic cutoff knives slice the sheet into precise lengths, often controlled by servo-driven systems to ensure accuracy even at high speeds. The finished sheets are stacked neatly by automatic stackers, ready for the next phase — printing, slotting, and folding.
6. Printing, Slotting, and Die-Cutting – Adding Function and Design
Once the corrugated board is complete, it undergoes conversion — the process of turning sheets into finished cartons.
Flexo Printing Machine: orrugated sheets are fed into Flexographic Printing Slotter Die-Cutters, where high-quality water-based inks are applied using anilox rollers. These machines can print up to six colors with perfect registration, ensuring clear logos, product details, and barcodes.
Slotting Unit: After printing, the board enters the slotter section, which cuts slots and creases the sheets, defining the carton’s folding lines.
Rotary Die-Cutting: For complex shapes or rounded designs, rotary die-cutters create precise cuts, handles, and ventilation holes — especially for packaging food, beverages, and consumer goods.
Folding and Gluing: Finally, Folder Gluer Machines fold and glue the carton into shape. Modern systems feature servo control, automatic folding belts, and electronic gluing systems for high-speed accuracy. The finished boxes are then bundled and strapped, ready for shipment.
7. Quality Control and Inspection
Quality is paramount in corrugated manufacturing. Throughout the process, automated systems monitor parameters such as flute height, adhesive application, moisture balance, and board thickness.
Key tests include:
- Edge Crush Test (ECT) – measures stacking strength.
- Bursting Strength Test – evaluates resistance to puncture.
- Flat Crush Test – checks flute durability.
- Moisture and GSM Analysis – ensures consistency of raw material.
Vision inspection systems and laser alignment tools also help detect defects early, minimizing waste and ensuring only high-quality boards move forward to printing and packaging.
8. Automation and Industry 4.0 – The Smart Corrugator Era
The corrugated industry has embraced automation and digitalization to improve efficiency, consistency, and sustainability.
- PLC and HMI Control Systems provide real-time adjustments for speed, temperature, and tension.
- Servo drives ensure perfect synchronization across different units of the corrugator line.
- Automatic splicing and glue kitchens minimize downtime.
- Energy recovery systems reuse waste heat from steam units, improving sustainability.
Factories are now integrating Industry 4.0 technologies, including IoT sensors, AI-based quality inspection, and cloud data analytics, to track production performance and predictive maintenance in real time.
The result is a new generation of Smart Corrugated Box Production Lines — faster, cleaner, and more energy-efficient — capable of delivering consistent results 24/7.
9. Environmental Sustainability – Closing the Loop
Corrugated packaging is one of the most eco-friendly materials in global commerce. It is made primarily from renewable fibers, and over 80% of corrugated products are recycled worldwide.
Manufacturers are investing in closed-loop recycling, water treatment systems, and bio-based adhesives to further reduce their carbon footprint.
The lightweight design of corrugated boxes also lowers transportation emissions, while innovations such as paper-based waterproof coatings replace plastics, aligning with modern sustainability goals.
At BMC Pack, for example, the focus is on high-speed corrugator lines, energy-saving systems, and recyclable materials — ensuring packaging solutions that protect both products and the planet.
Conclusion
From raw kraft paper to the final printed carton, the process of making corrugated cardboard is a masterpiece of engineering and precision. Each stage — from corrugating to gluing, printing, and folding — reflects decades of innovation aimed at balancing strength, cost-efficiency, and sustainability.
The use of automated corrugator lines, servo-controlled folder gluers, and vacuum transfer flexo printers has elevated packaging manufacturing to new levels of productivity and quality control. Today’s corrugated board factories can produce thousands of boxes per hour, each designed to meet specific customer needs in industries ranging from e-commerce to agriculture and electronics.
As consumer demand shifts toward sustainable and customized packaging, corrugated cardboard stands out as the ultimate solution — renewable, lightweight, and fully recyclable. The integration of digital systems, AI-based inspection, and smart energy recovery is transforming this traditional industry into a model of smart manufacturing.
Ultimately, understanding how corrugated cardboard is made reveals more than a production process — it reflects a perfect blend of engineering, sustainability, and creativity. Each box carries not just a product, but the story of innovation that began with a simple sheet of paper and ended as one of the most essential packaging solutions in the world.
