How to Choose the Right Flute Laminator for High-Speed Packaging Lines

By: Chris LA 11/11/2025 0 Comment

Introduction: Why the Right Flute Laminator Matters

Choosing the right Flute Laminator is one of the most crucial decisions for packaging manufacturers aiming to achieve high-speed, high-accuracy, and zero-defect lamination in corrugated box production. Whether you’re producing 3-ply, 5-ply, or 7-ply boards, the right Servo Automatic Flute Laminator ensures perfect alignment between top sheets and flute sheets, minimizing paper waste and enhancing production efficiency.

At BMC Pack, a global leader in Corrugated Carton Production Line and Packaging Box Making Machine technology, we design both Servo Automatic Flute Laminator and Semi-Automatic Flute Laminator models tailored for different plant sizes, speeds, and investment levels. This article explores how to evaluate and select the most suitable Flute Laminator for your factory, with detailed comparisons, performance insights, and ROI analysis for modern Corrugated Cardboard Production Line setups.

Understanding the Role of a Flute Laminator in Corrugated Box Production

A Flute Laminator is an essential component in a Corrugated Cardboard Production Line, responsible for bonding printed sheets (top liners) to corrugated flutes. The process ensures a stable structure, flat surface, and high print accuracy for boxes used in industries such as food, e-commerce, and electronics.

There are mainly two categories:

Servo Automatic Flute Laminator – fully automated system with servo-driven alignment, precise sheet feeding, and high-speed gluing.
Semi-Automatic Flute Laminator – manual feeding system suitable for smaller batches or entry-level production lines.

Key Differences Between Servo Automatic and Semi-Automatic Flute Laminators

Feature	Servo Automatic Flute Laminator	Semi-Automatic Flute Laminator
Feeding System	Servo motor control with top & bottom suction feeding	Manual top sheet feeding
Alignment Precision	±1 mm via CCD or electronic correction	±3 mm manual correction
Speed (Sheets/Hour)	9,000 – 12,000 sheets/hour	4,000 – 6,000 sheets/hour
Glue System	Automatic water-based glue roller with recirculation	Manual glue feeding
Operation Mode	PLC touch-screen control	Mechanical & manual switch control
Paper Range	200 – 600 gsm top paper, 3/5/7-ply flutes	200 – 450 gsm top paper, 3/5-ply flutes
Operator Requirement	1 operator per line	2–3 operators per line
ROI Period	8–12 months	18–24 months

The Servo Automatic Flute Laminator clearly outperforms the semi-automatic version when the production line requires continuous, high-speed operation, tight alignment tolerance, and reduced labor involvement. For smaller factories or new entrants, a Semi-Automatic Flute Laminator remains a reliable, cost-effective solution.

How to Choose the Right Flute Laminator for Your Packaging Line

When choosing a Flute Laminator, consider the following factors:

1. Production Speed and Volume

If your Flexo Printer Slotter Die Cutter or Folder Gluer Stitcher machines are running above 150 pcs/min, a Servo Automatic Flute Laminator is the ideal match. It synchronizes with high-speed systems to maintain lamination precision.

2. Sheet Size and Corrugated Type

For 3/5/7-ply Corrugated Cardboard Production Line, the laminator’s feeding width and adjustment range (e.g., 9002000, 12002400, 1400*2400) should match your main Carton Printing Machine and Die Cutting Machine setups.

3. Glue and Paper Compatibility

Choose a laminator with an advanced automatic glue circulation system to ensure uniform coating and minimal glue waste, especially when working with high-GSM top papers or water-based adhesives.

4. Automation Level and Labor Efficiency

Factories with skilled technicians but limited labor can benefit greatly from the Servo Automatic Flute Laminator, which reduces operator dependency and ensures consistent lamination quality during long production runs.

5. Integration with Existing Equipment

For integrated Corrugated Carton Production Line, ensure that your Flute Laminator communicates seamlessly with other systems like Flexo Printing Machine, Folder Gluer Machine, and Creasing and Die Cutting Machine.

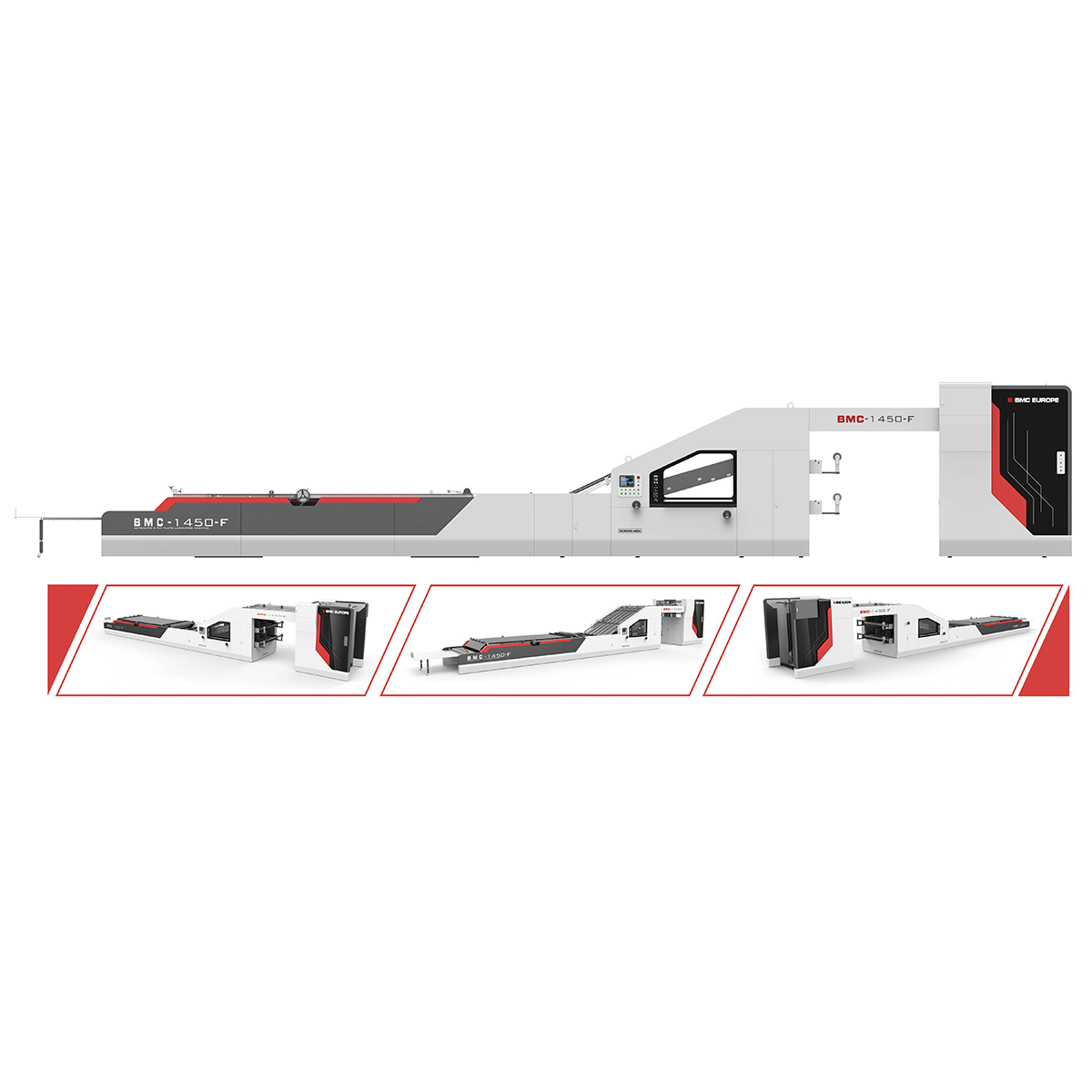

Advantages of BMC Pack Servo Automatic Flute Laminator

Servo-driven precision feeding system for accurate lamination alignment.
High productivity with speed up to 12,000 sheets/hour.
Energy-efficient glue circulation with auto-cleaning system.
Quick changeover design, minimizing downtime between paper types.
Stable PLC control with fault diagnosis and safety alarms.
Compatible with 3/5/7-ply production lines, ensuring flexible adaptation.

Technical Specifications (Typical Models)

Model	Feeding Size (mm)	Speed (sheets/hour)	Power (kW)	Paper Type	Control System
BMC NDSA-1800FG	900*2000	9000	12	3/5/7-ply corrugated + 250-600gsm top paper	Servo PLC
BMC NDSA-2200FG	1200*2400	10,500	14	3/5/7-ply corrugated + 250-600gsm top paper	Servo PLC
BMC NDSA-2800GM	1400*2800	12,000	15	3/5/7-ply corrugated + 250-600gsm top paper	Full Servo PLC

Common Applications of Flute Laminator

Pizza Box and food packaging laminations.
E-commerce and electronics boxes requiring smooth, vibrant prints.
Luxury packaging with laminated printed liners.
High-speed carton box machine lines for industrial shipments.

Extended Section: ROI, Efficiency, and Partnership with BMC Pack

Investing in a Servo Automatic Flute Laminator from BMC Pack yields an immediate return through labor reduction, material savings, and production efficiency. Customers typically report:

35–40% labor cost reduction due to automation.
Up to 20% material savings by reducing glue overuse and misalignment.
Higher output consistency, supporting continuous Corrugated Carton Production Line operations.
Improved print flatness, essential for modern Flexo Printer performance.

Moreover, partnering with BMC Pack ensures access to complete packaging solutions, including Flexographic Printer, Folder Gluer Stitcher Machine, Flatbed Creasing and Die Cutting, and Rotary Die Cutter systems. Our integrated technology and technical training guarantee seamless production, from sheet lamination to final box delivery.

Conclusion: Your Smart Investment for Future Packaging

Selecting the right Flute Laminator — especially the Servo Automatic Flute Laminator — is not merely about speed, but long-term sustainability and production reliability.

BMC Pack provides tailored models for every scale of packaging business, ensuring that your Corrugated Carton Production Line delivers the best balance of precision, output, and cost efficiency.

Upgrade today — and transform your lamination process into a smarter, faster, and more profitable operation.
