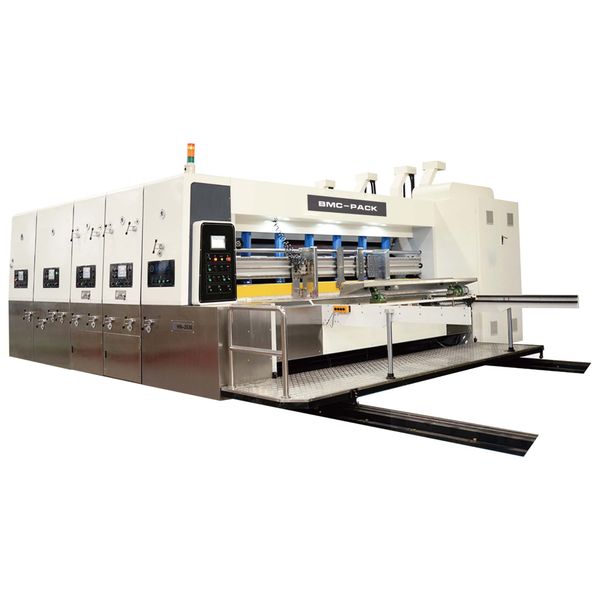

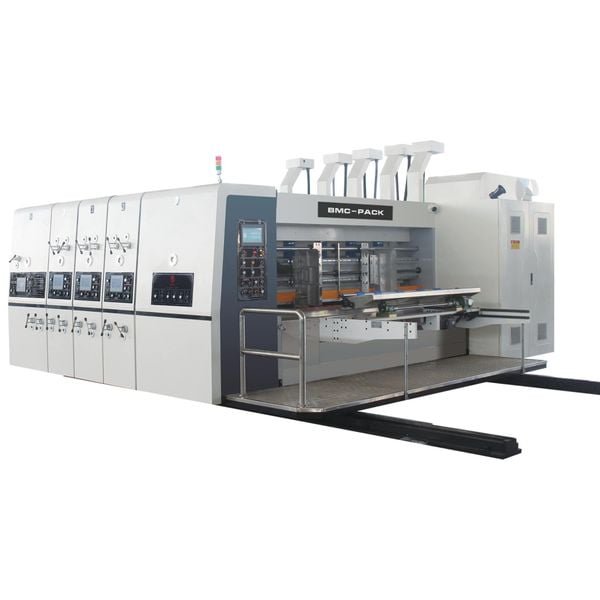

The Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I from BMC Pack (BMCPack) is a next-generation solution designed to meet the demands of modern corrugated cardboard production line facilities. This advanced system integrates flexo printing, slotting, and rotary die-cutting functions into one highly efficient platform, delivering superior print accuracy, fast changeovers, and unmatched durability. Built for continuous high-speed operation, it supports various packaging requirements, from lightweight boxes to multi-layer industrial cartons. The result is an intelligent, reliable, and high-performance machine optimized for today’s fast-moving packaging box making machine market.

What makes this Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I stand out is its structural precision and component quality. With its lead-edge feeder, chromium-plated shafts, hardened gears, and reinforced cast-iron frame, this machine guarantees consistent alignment, stable feeding, and extended mechanical life. Each section—feeding, printing, slotting, and creasing and die cutting—is engineered with BMC Pack’s dedication to stability, precision, and energy efficiency, ensuring operators achieve the best possible output in every run.

Main Analysis:

Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I: Intelligent Design and Structural Excellence

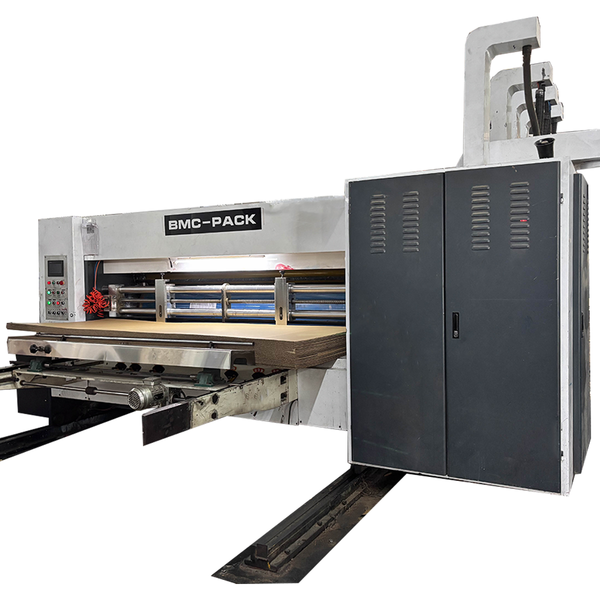

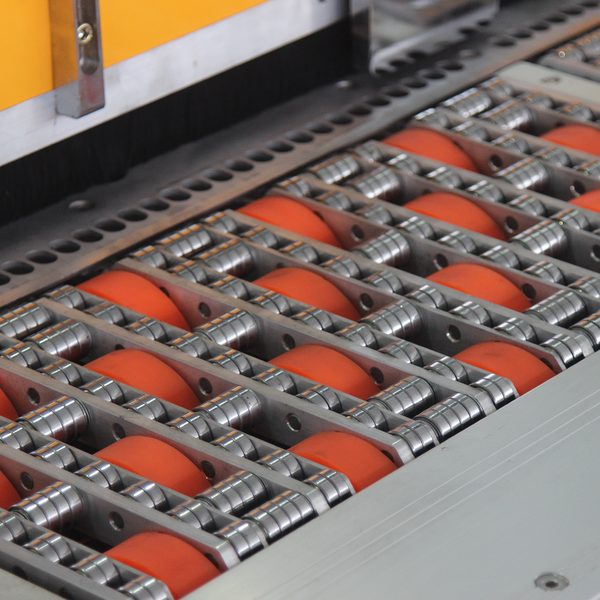

At the heart of the Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I lies its lead-edge feeder system, a vacuum roller mechanism engineered for smooth, precise sheet feeding. Equipped with four suction roller rows, the feeder guarantees exact positioning, even with large corrugated sheets. Its integrated dust removal brush ensures a clean sheet surface, enhancing print clarity and roller longevity.

The feeding system also includes an adjustable front stop, ensuring seamless sheet transition regardless of carton size. Operators can choose between continuous or skip feeding, allowing flexibility for different board thicknesses or job types. The main drive motor, powered by a frequency inverter, enables precise speed control—supporting stable performance during continuous operation.

A PLC-based control system manages all machine functions, allowing storage of up to 999 production orders. Operators can quickly switch between jobs, minimizing downtime and boosting throughput. This level of automation places BMC Pack (BMCPack) among the leading innovators in corrugated carton production line technology, delivering smarter workflow management for industrial packaging.

Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I: Printing Performance and Precision Control

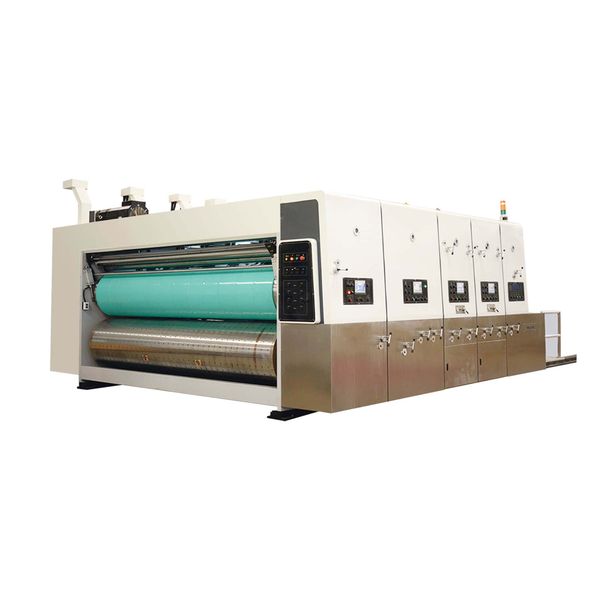

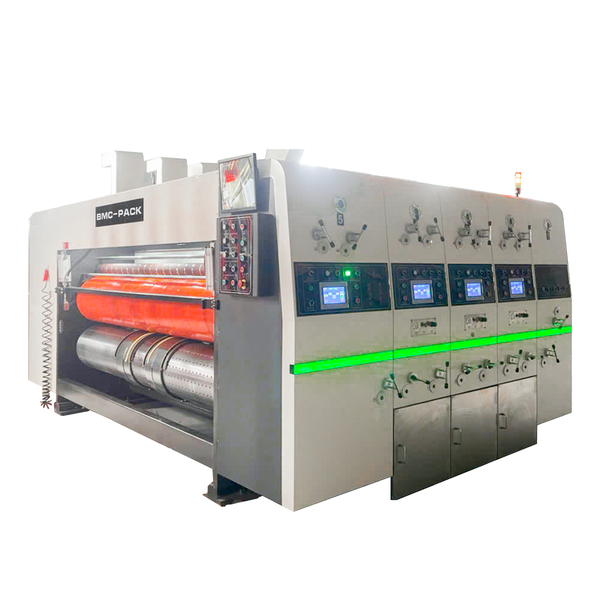

In the printing section, the Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I integrates a fully automatic flexo printer with robust rollers, precision inking, and a fine-tuned feeding system for high-quality outputs.

• Printing Rollers:
  The main printing cylinder, with a diameter of Ø380 mm (including printing plate), is polished and hard-chrome plated to ensure stability and smooth rotation. Each roller undergoes static balancing and engraving for easier plate mounting.

• Impression Roller:
  Made from seamless steel and statically balanced, this roller ensures even pressure distribution. The entire system maintains precise engagement via cross-slide gear coupling, preventing vibration and guaranteeing uniform ink transfer. Manual pressure adjustment (0–12 mm) allows exact control for various board thicknesses.

• Anilox Roller:
  Constructed from metal and chromed using high-frequency thermal quenching, the anilox roller’s pneumatic lift system prevents ink from drying on the surface during short stops.

• Rubber Roller and Doctor Blade System:
  The rubber metering roll uses a pneumatic diaphragm pump for consistent ink feeding. Its filtration system removes impurities, protecting the print cylinders and ensuring color uniformity.

• Electric Phase Adjustment:
  The planetary gear structure enables 360° phase control—both during operation and stoppage—ensuring quick setup and fine-tuning without production interruptions.

This section embodies the engineering standards of BMC Pack (BMCPack), providing precise registration (±1 mm), perfect color alignment, and reduced ink waste—all core requirements in flexographic printer and carton printing machine applications.

Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I: Rotary Die-Cutting and Creasing Functionality

The rotary die-cutting section of the Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I is designed for exceptional precision and long-term performance. Its die-cutting cylinder and rubber anvil roll are manufactured under strict quality controls, ensuring uniform pressure across all cutting surfaces.

• Creasing and Die Cutting:

Using international standards for creasing and die cutting, this unit guarantees clean creases and precise cuts on every board. Adjustable creasing blades and slots allow operators to adapt quickly to different box designs.

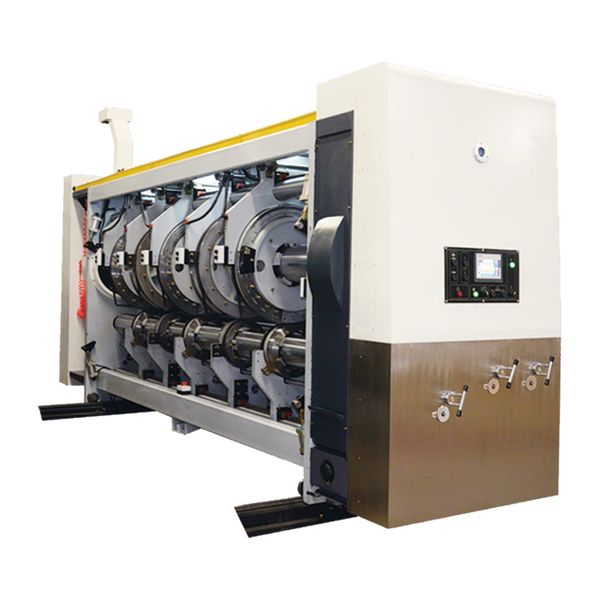

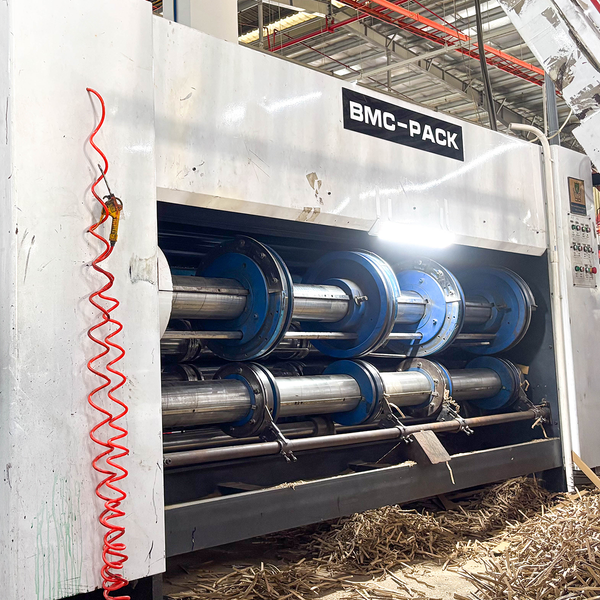

• Slotting Section:

Equipped with an auto-positioning mechanism, this section creates clean, uniform slots with an adjustable range of 150 × 150 × 150 × 150 mm (normal) or 260 × 70 × 260 × 70 mm (reverse). The result is flawless folding and assembly of finished cartons.

The die-cutting pressure and depth are easily adjustable, ensuring consistency across long runs while minimizing wear. By integrating rotary die-cutting technology with automated controls, BMC Pack (BMCPack) delivers superior accuracy and reduced waste—vital for large-scale corrugated cardboard production line operations.

Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I: Stacking and Collection Efficiency

The delivery section features a two-section anti-slip conveyor belt with a liftable front segment for easy maintenance. Using photoelectric sensors, the system automatically stacks sheets up to 1600 mm high.

Once the preset height is reached, the paper support platform lifts automatically while a temporary holding plate secures the pile—allowing the operator to remove finished stacks safely. After a short delay, the platform resets to its original position to continue stacking. The high-pressure air blower and reinforced rubber belts ensure complete removal of scraps, maintaining a clean output zone.

This integration of automation, safety, and ergonomic design reflects BMC Pack (BMCPack)’s dedication to high-efficiency packaging solutions.

Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I: Technical Specifications

Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I: Component Quality and Material Durability

The machine’s reliability derives from its meticulously sourced components:

• Frame and Shafts: 50 mm-thick, high-strength cast iron from BMC Pack (BMCPack) ensures rigidity and vibration resistance.
• Gears: Alloy steel (40CrMo) with high-frequency hardening for durability.
• Bearings: Premium NSK and BMC-engineered designs for wear resistance and extended service life.
• Motors and Drives: Main inverter-controlled motor by Taima; auxiliary motors by Dongbang and domestic suppliers.
• Pneumatic Systems: Airtac solenoid valves from Taiwan ensure stable performance.

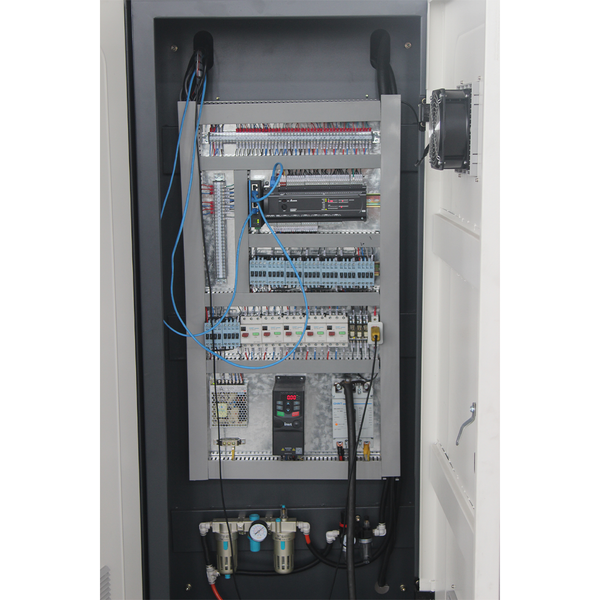

• Electrical Components: Schneider (France), Chint (China), and Fatex (Taiwan) PLCs for intelligent control.
• Ink Pump: Pneumatic diaphragm model by Dajiang for steady ink supply.

Every detail—from the hardened chromium shafts to the precision anilox rollers—reflects BMC Pack (BMCPack)’s commitment to long-term reliability in corrugated carton production line environments.

Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I: Operational Advantages and Market Impact

The Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I is more than just a piece of equipment—it’s a productivity engine. Its modular design, ease of maintenance, and automation capabilities make it ideal for manufacturers seeking higher efficiency, faster turnaround, and superior print quality.

In global packaging box making machine operations, this system stands out for its simplicity and stability. It supports consistent output, reduces downtime, and enhances operator safety. Integrated with rotary die cutter functionality and precise creasing and die cutting, it forms a critical link in a high-performance corrugated cardboard production line.

Whether producing single-color industrial boxes or multi-color retail packaging, BMC Pack (BMCPack) ensures each carton meets the highest standards of precision, strength, and visual appeal.

Conclusion:

Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I: The Ultimate Packaging Investment

For factories aiming to modernize production and meet increasing market demands, the Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I offers an unmatched combination of strength, intelligence, and efficiency. Designed by BMC Pack (BMCPack) with decades of engineering expertise, it integrates world-class components, smart automation, and precise rotary die-cutting performance into one compact solution.

As a cornerstone of the corrugated carton production line, it empowers businesses to achieve sustainable growth through reduced waste, improved print accuracy, and superior throughput. For packaging professionals looking to elevate productivity and quality, the Lead Edge Flexo Printer Slotter Die Cutting Machine – Type I represents the pinnacle of innovation and dependability.

Contact BMC Pack (BMCPack) to explore how this machine can redefine your packaging solutions and set a new benchmark for excellence in the flexo printer industry.
