Introduction

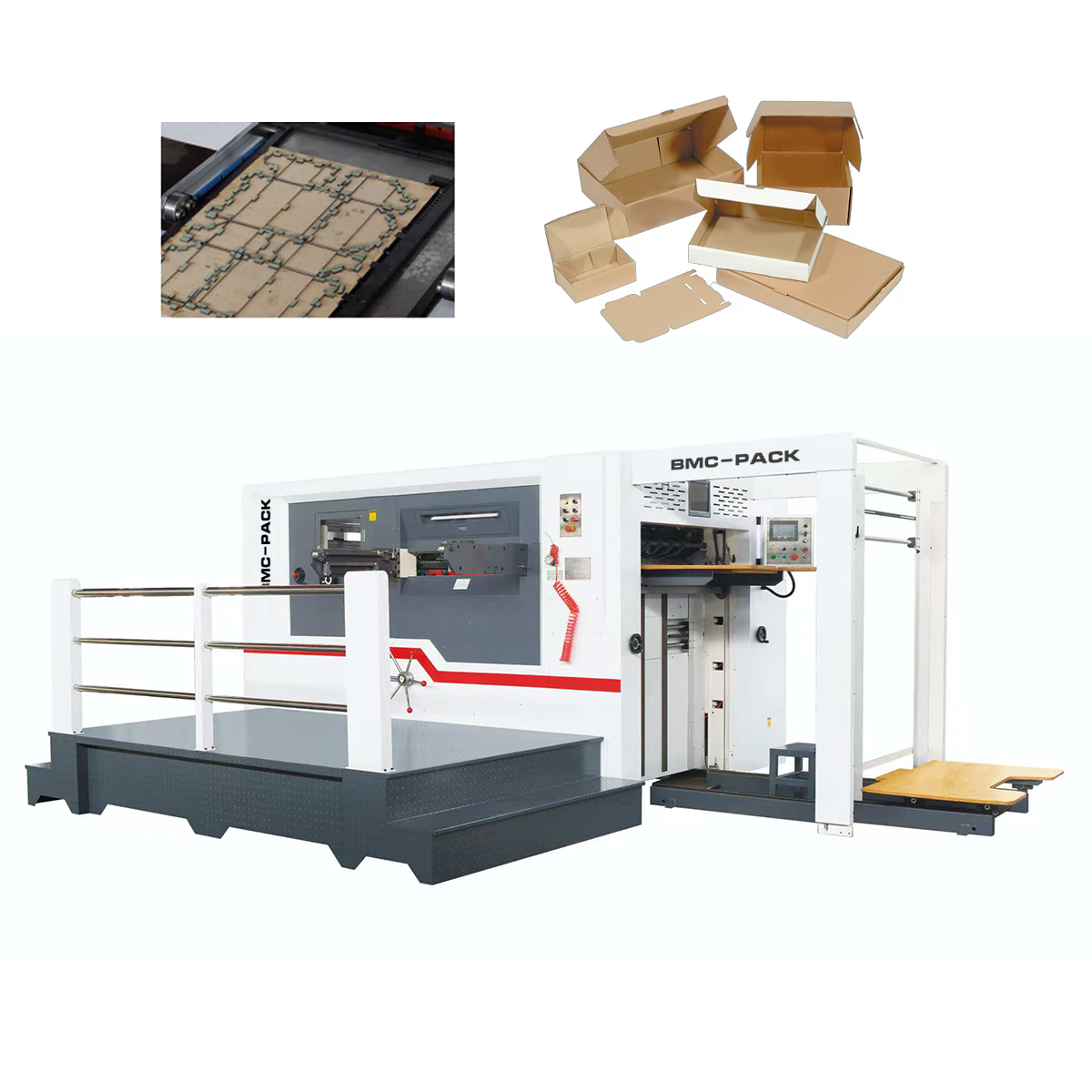

The Semi-Automatic Flatbed Creasing And Die Cutting Machine NDSA-1300DC / NDSA-1500DC from BMC Pack represents the perfect blend between precision engineering and cost-effective automation in the corrugated carton industry. Designed for mid- to large-scale packaging box making operations, this system delivers the same accuracy as a fully automatic model but at a fraction of the investment cost.
Ideal for processing corrugated cardboard, duplex board, and laminated paper, this creasing and die cutting line combines servo-driven stability, manual feed flexibility, and intelligent PLC control. Whether producing pizza boxes, corrugated cartons, or custom retail packaging, this solution ensures efficient output and long-term durability.
Every detail — from its cast-iron frame to its Italian pneumatic clutch — is built with one goal: precision under pressure. The Semi-Automatic Flatbed Creasing And Die Cutting Machine ensures reliable cutting results, extended component lifespan, and high ROI for businesses looking to modernize their corrugated cardboard production line without fully transitioning to a robotic system.
Main Analysis
1. Robust Frame and Mechanical Stability

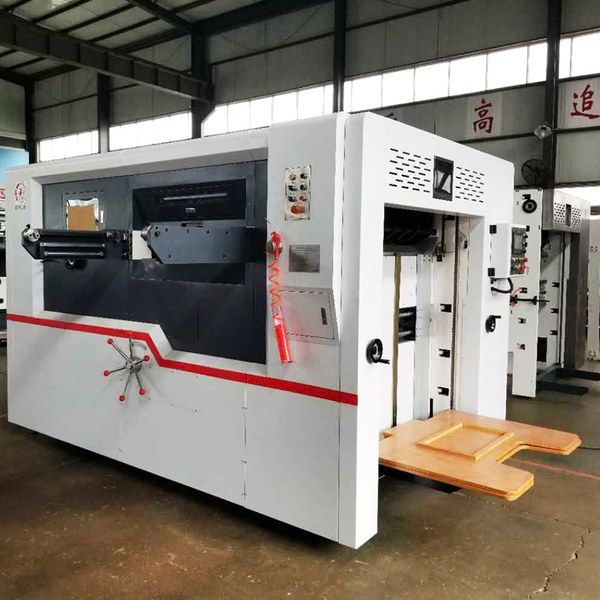

The Semi-Automatic Flatbed Creasing And Die Cutting Machine is constructed from high-strength ductile cast iron (QT500-7), precision-cast to resist deformation under extreme cutting loads.
Each unit is powered by a Japanese alloy crankshaft and a German SEW transmission system, ensuring perfect synchronization during high-speed operations.
The main pressure section applies up to 350 N/cm², maintaining consistent die-cutting accuracy even with large corrugated sheets. Heat-resistant gears imported from Japan and Italy operate at temperatures above 210°C, ensuring smooth, vibration-free performance.
High-precision gear alignment and an integrated torque-limiting system (Germany OMPI) prevent overload damage, enhancing operational safety and system longevity.
2. Feeding & Paper Alignment System
The machine’s semi-automatic feeding design offers manual flexibility while maintaining mechanical precision.

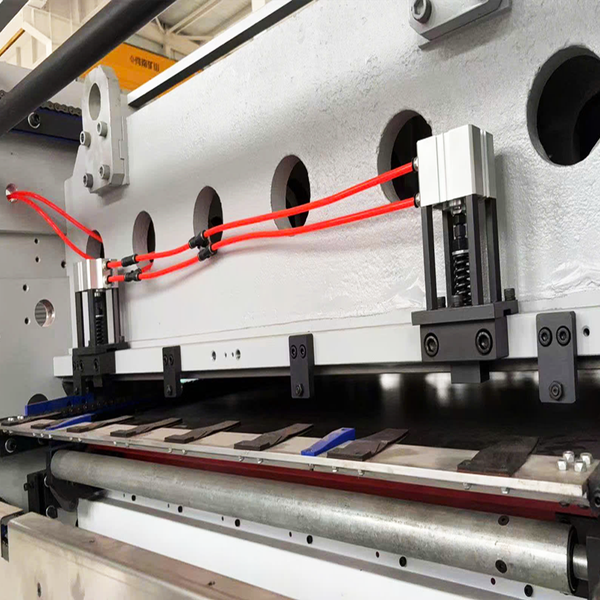

An auxiliary pneumatic collection unit ensures safe manual handling during production, while photoelectric sensors automatically control paper stack lifting and positioning.
This hybrid configuration gives operators control while preserving accuracy — ideal for factories producing small batch runs or specialty cartons.

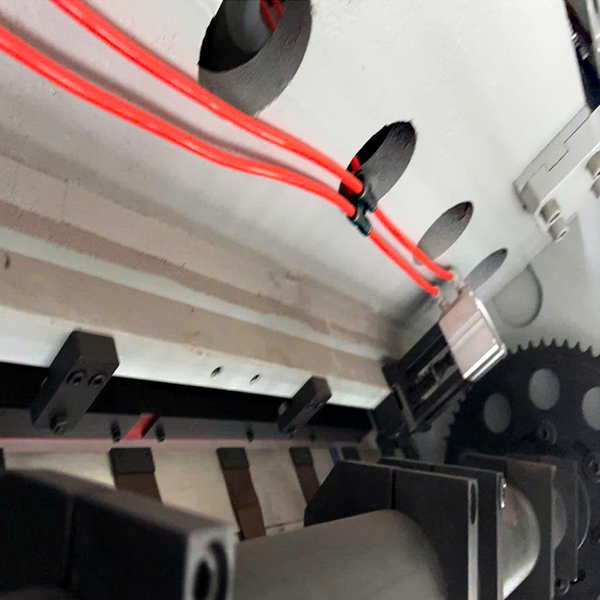

A reverse-feed prevention mechanism and light-sensor logic prevent paper jams, while automatic chain drive adjustment guarantees smooth operation.

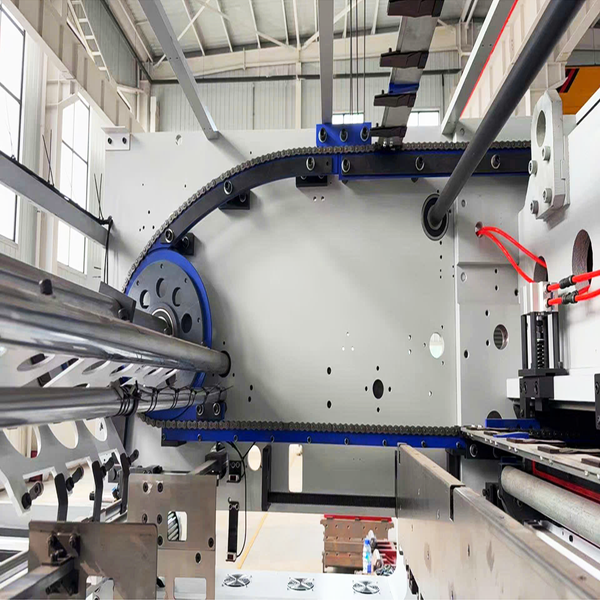

The feeding area integrates with the main chain system, reducing friction and ensuring steady transport of corrugated sheets to the creasing and die-cutting section.
3. Creasing and Die-Cutting Precision
The flatbed creasing and die cutting mechanism features a four-point shaft structure that evenly distributes pressure to reduce friction and extend component life.
Cutting pressure and blade alignment are easily adjustable through the control panel, maintaining ±0.1 mm accuracy across all material types.
An Italian OMPI pneumatic clutch and American dual coupler system deliver smooth, responsive operation.
The 350N/cm² maximum pressure ensures sharp creasing and clean die cuts on all standard carton box machines, pizza boxes, and corrugated packaging solutions.
Each model’s lubrication system automatically distributes oil through YSETE brand pumps (Taiwan), optimizing system longevity and minimizing maintenance.
4. Intelligent PLC Control System
The Semi-Automatic Flatbed Creasing And Die Cutting Machine employs a touch-screen interface with an intelligent PLC controller.
Operators can adjust machine functions directly on the display, monitor real-time error diagnostics, and access system manuals instantly.
Taiwanese microelectronic control systems guarantee synchronization accuracy between feeding, cutting, and delivery.
Power supply and electrical components are CE-certified and sourced from internationally recognized brands such as Schneider, Delta, and Siemens, ensuring compliance with European safety standards.
5. Energy Efficiency and Safety
While maintaining a heavy-duty structure, the Semi-Automatic Flatbed Creasing And Die Cutting Machine consumes significantly less energy compared to fully automatic models.
With a total power of ≤17 kW (variable) and optimized servo coordination, energy savings reach up to 30%.
Multiple safety sensors monitor pressure, motion, and clutch activation.
The machine is equipped with overload protection, pneumatic locking systems, and automatic emergency shutdown to prevent operator hazards.
Technical Specifications
Model | NDSA-1300DC | NDSA-1500DC |
Max. Sheet Size | 1290 × 940 mm | 1510 × 1100 mm |
Min. Sheet Size | 550 × 480 mm | 550 × 480 mm |
Max. Die Cutting Size | 1280 × 930 mm | 1490 × 1090 mm |
Max. Cutting Pressure | 350 N/cm² | 350 N/cm² |
Max. Working Speed | 4000 sheets/hour | 4000 sheets/hour |
Electrical Power | 13.5 kW | 13.5 kW |
Total Power | ≤17 kW (Variable) | ≤15 kW (Variable) |
Blade Deviation | ±0.1 mm | ±0.1 mm |
Compatible Flute Type | ≤7 mm | ≤8 mm |
Machine Weight | 15 tons | 16 tons |
Feeding Speed | 50 mm/m | 50 mm/m |
Minimum Distance | 7 mm | 7 mm |
Machine Dimensions | 6100 × 4400 × 2300 mm | 6600 × 4600 × 2300 mm |
Extended Section: ROI, Applications, and Real-World Advantages
The Semi-Automatic Flatbed Creasing And Die Cutting Machine is the ideal choice for factories seeking a balance between manual flexibility and automation efficiency.
By integrating this machine into your corrugated carton production line, manufacturers typically achieve a 30–40% increase in daily throughput and 25% reduction in labor dependency.
Key ROI Benefits:
- Lower Labor Costs: Semi-automatic operation reduces manpower without compromising accuracy.
- Reduced Maintenance: Lubrication and overload protection systems minimize unplanned downtime.
- Material Compatibility: Handles duplex board, flute laminated sheets, and corrugated cardboard with ease.
- Extended Durability: Each BMC Pack component is built for 10+ years of industrial lifespan.
For small to medium packaging plants, the NDFA series integrates seamlessly with folder gluer stitcher making machines, flute laminators, and Flexo Printer Slotter Die Cutter systems — creating a complete packaging solution that optimizes floor space and improves overall workflow.
The investment in a Semi-Automatic Flatbed Creasing And Die Cutting Machine pays for itself within 12–18 months through reduced waste, shorter setup time, and higher throughput.
Conclusion
The Semi-Automatic Flatbed Creasing And Die Cutting Machine NDSA-1300DC / NDSA-1500DC stands as the benchmark for durable, cost-efficient carton production.
Engineered by BMC Pack, this system combines manual precision, servo automation, and European component reliability into one compact powerhouse.
From corrugated cartons to pizza boxes, it guarantees consistent performance, minimal maintenance, and long-term profitability.
If your goal is to modernize without overspending, this semi-automatic model is your next upgrade in the corrugated cardboard production line.
Choose BMC Pack — Built on Trust, Driven by Quality.
