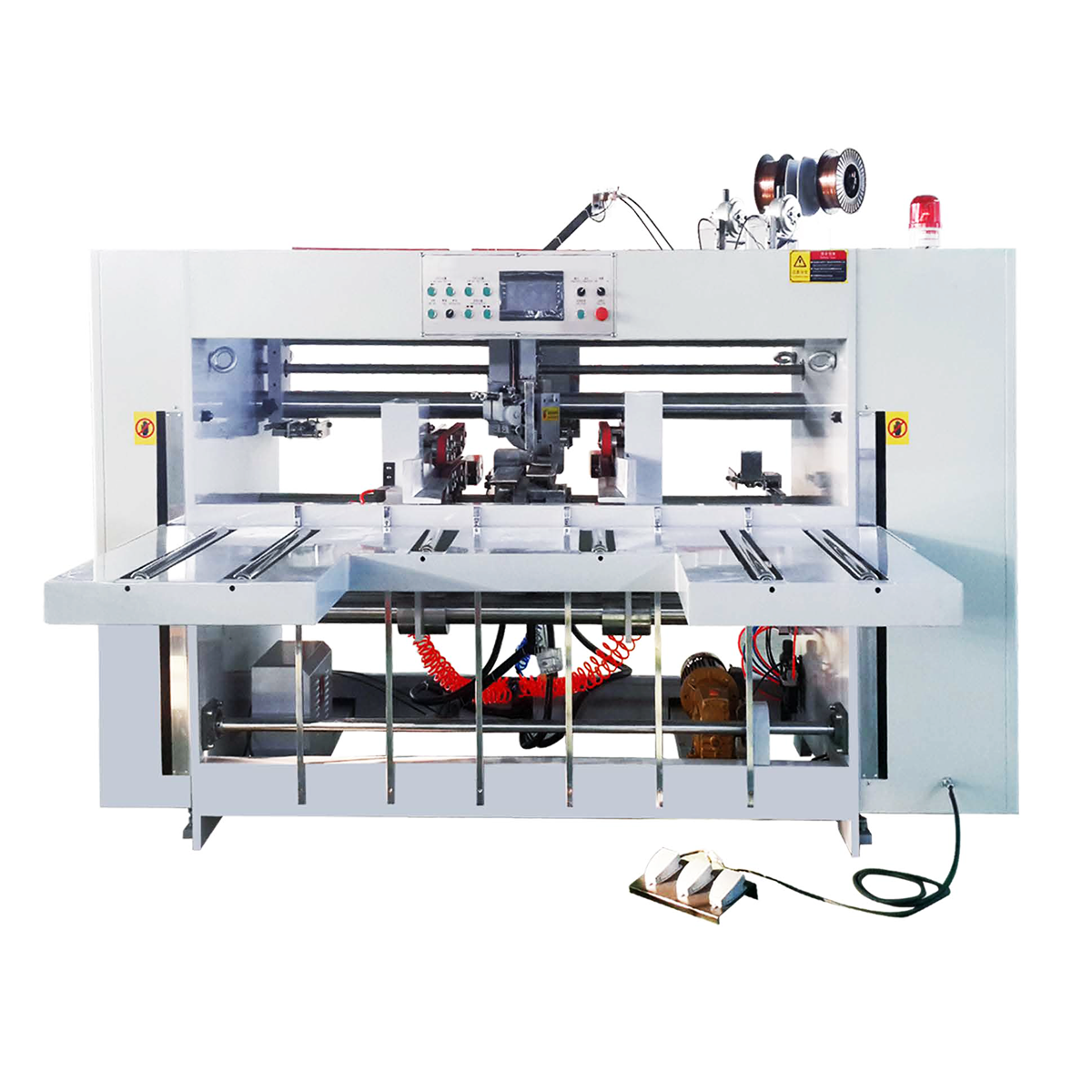

Semi-Automatic Stitching Machine Double Piece – Model NDSA-3200DSM

Introduction: Smart Stitching Power for Corrugated Packaging

The Semi-Automatic Stitching Machine Double Piece (Model NDSA-3200DSM) by BMC Pack is the next-generation industrial Stitching Machine designed to revolutionize carton production efficiency. With cutting-edge automation and high-precision mechanics, this equipment ensures perfect nailing and stitching performance for both Single Piece and Double Piece cartons.

Engineered for speed, flexibility, and accuracy, this Stitching Machine can perform single nail, double nail, and reinforced nail operations in one go, meeting diverse carton packaging demands — from corrugated carton to pizza box and heavy-duty carton box machine applications.

Whether integrated into a complete Corrugated Cardboard Production Line or used as a standalone Packaging Box Making Machine, the NDSA-3200DSM delivers consistent performance, reduced downtime, and an excellent return on investment. It’s the perfect combination of automation, durability, and cost-efficiency, setting a new standard for the global packaging machinery industry.

1. Overview and Structural Design of the Semi-Automatic Stitching Machine Double Piece

The Semi-Automatic Stitching Machine Double Piece adopts a robust dual-motor system that provides exceptional control and high-speed operation. The machine features servo AC drive from Mitsubishi Japan, Omron PLC intelligent control, and Schneider French relay components, ensuring precise synchronization between feeding, stitching, and bundling.

Its automatic size adjustment allows quick changeover between carton sizes — within just one minute — saving valuable production time. The cardboard feeding section includes an automatic counting sensor that accurately tracks each bundle, reducing manual input and potential error.

With only two operators required per line, this Stitching Machine dramatically lowers labor costs and improves efficiency, making it a core asset in any corrugated carton production line or folder gluer stitcher making machine setup.

2. Technical Specifications – Model NDSA-3200DSM

Electric System Configuration

This precise combination of Japanese, Taiwanese, and European technologies ensures the Semi-Automatic Stitching Machine Double Piece maintains top-tier reliability, accuracy, and durability.

3. Key Features and Advantages of the Semi-Automatic Stitching Machine Double Piece

1. Multi-Nail Functionality

The Stitching Machine can perform single, double, or reinforced nails in one operation, catering to different carton strengths and customer requirements.

2. Quick Size Change

Carton size can be changed within 1 minute — perfect for flexible production with varying order sizes. The intelligent design reduces downtime, increasing daily productivity.

3. High-Speed Output

With a working speed of 500–600 nails/min, the Semi-Automatic Stitching Machine Double Piece outperforms traditional manual stitching by more than 4 times.

4. Automation and Smart Counting

Automatic feeding, photoelectric sensing, and back-end carton counting systems guarantee accurate bundle handling and consistent production flow.

5. Labor Cost Reduction

Only 2 operators are needed to manage semi-finished to finished boxes. The Double Piece system saves wages and minimizes human error while maintaining high output quality.

6. Premium Build and Longevity

The machine frame is built from 35mm thick steel plates. The bottom die and tungsten steel blades (Japan) extend service life and reduce wear and tear, ensuring long-term stability.

7. Seamless Integration with Production Lines

It integrates easily into Corrugated Carton Production Line, Flexo Printing Machine, Creasing and Die-Cutting Machine, and Folder Gluer systems to form a complete Packaging Box Making Machine workflow.

4. Applications in Corrugated Packaging Industry

The Semi-Automatic Stitching Machine Double Piece is a crucial component in modern packaging automation. Its flexibility allows it to handle multiple box types such as:

• Corrugated cartons for logistics and export packaging.
• Pizza boxes and food-grade cartons.
• Heavy-duty industrial boxes requiring reinforced stitching.
• E-commerce delivery cartons requiring consistent folding and strength.

When paired with Flexo Printer Folder Gluer, Flatbed Creasing and Die Cutting Machine, and Double Facer, the system delivers a smooth, fast, and energy-efficient corrugated cardboard production line setup.

BMC Pack has designed this model specifically for manufacturers who demand both quality and scalability in their carton box machine operations.

5. Operational Benefits and Technical Highlights

• ⚙️ Mitsubishi dual servo motors ensure powerful and stable driving performance.
• ⚙️ Quick setup & size changeover = zero downtime.
• ⚙️ PLC automatic counting minimizes error rates.
• ⚙️ Siemens touchscreen for intuitive operation.
• ⚙️ Durable tungsten blades & imported stitching heads guarantee long lifespan.
• ⚙️ Auto nail alarm prevents missing nails & faulty cartons.
• ⚙️ Operates seamlessly for 3–5 ply corrugated cardboard production lines.

This machine redefines stitcher and gluer machine performance by merging automation efficiency with mechanical precision.

6. Extended Insights: ROI, Real Applications, and Partnership with BMC Pack

Investing in the Semi-Automatic Stitching Machine Double Piece is a direct step toward higher profitability and reduced operational cost. Its automation saves 50% on labor and 60% on maintenance costs, while the precision stitching system eliminates waste and rejects.

Factories using this Stitching Machine report a 3–4x productivity boost and faster order turnaround compared to manual operations. The machine’s capability to switch between Single Piece and Double Piece modes allows flexible order fulfillment without sacrificing quality.

When integrated with folder gluer stitcher making machine, Flexo Printing Machine, and flatbed creasing and die cutting units, the line can achieve full automation — from printing to die-cutting to gluing and stitching — under one continuous corrugated carton production line.

Partnering with BMCPack means working with a manufacturer that not only supplies machines but also provides complete packaging solutions — from layout design, installation, and training to after-sales support. BMC Pack’s engineers ensure fast installation (6 hours within 300 km, 8 hours within 500 km), global service, and long-term spare part supply.

By choosing BMC Pack, you gain access to:

• 💡 Full OEM customization for carton size & nail configuration.
• 💡 Integration consulting for corrugated cardboard production lines.
• 💡 Free operator training & long-term maintenance support.
• 💡 Proven ROI within 12–18 months.

The result: More boxes per hour. Less cost per box.

Conclusion: Power, Precision, and Profit in One Stitch

The Semi-Automatic Stitching Machine Double Piece – Model NDSA-3200DSM represents the future of efficient carton packaging. Built for speed, precision, and flexibility, it transforms how factories handle corrugated cartons, pizza boxes, and industrial carton box machines.

From servo-driven accuracy to intelligent counting and fast adjustment, this Stitching Machine is the perfect balance between performance and cost efficiency — a true productivity engine for every corrugated cardboard production line.

When you choose BMC Pack, you choose innovation, stability, and results.
BMC Pack – Built on Trust, Driven by Quality.
