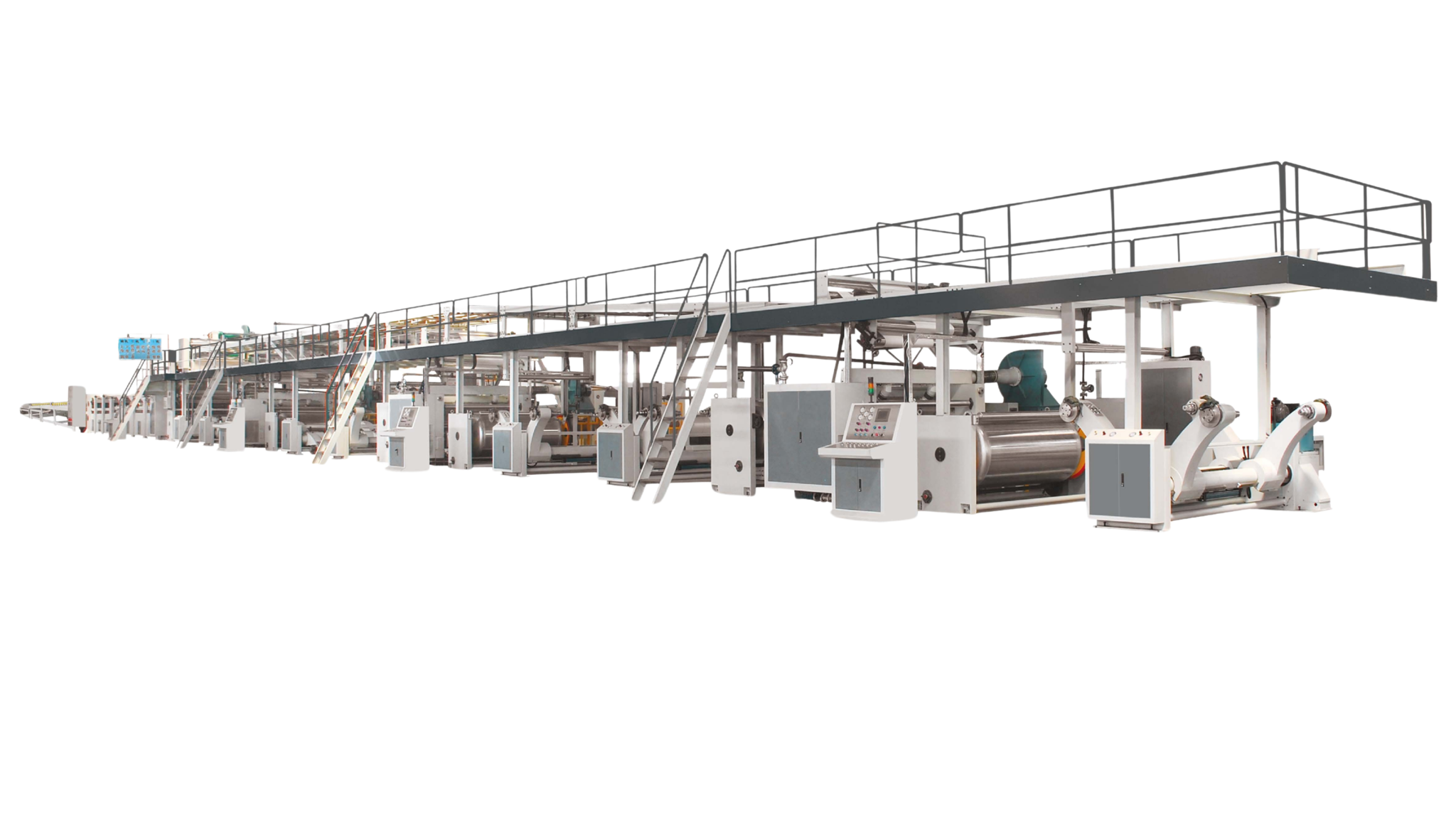

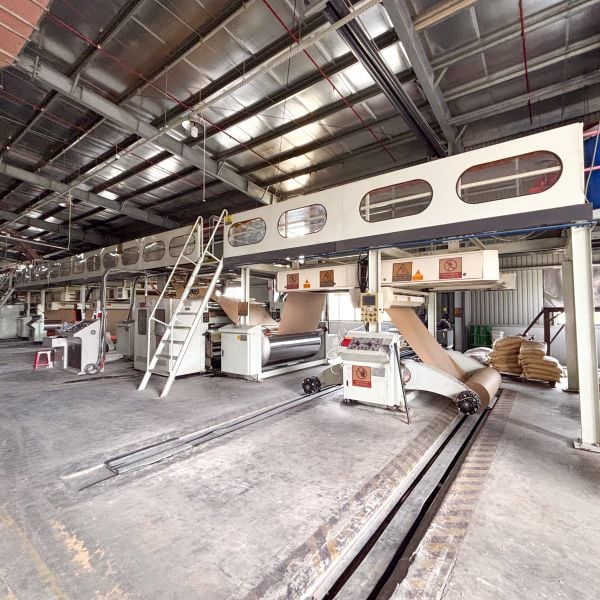

The Standard 3 5 7 Ply Corrugated Cardboard Production Line by BMC Pack represents the perfect balance between efficiency, performance, and affordability for medium and large carton manufacturers. Designed for stability and durability, this production line is a core solution for factories looking to produce high-quality corrugated board with consistent precision at an optimal investment cost.
Built with modular design and advanced control systems, the Standard 3 5 7 Ply Corrugated Cardboard Production Line combines high-speed operation (up to 200 m/min) with energy-saving configurations. From Hydraulic Mill Roll Stand and cassette single facer to gluing machine, overbridge conveyor, and Helical Knives NC Cutting Machine, each section is engineered for seamless synchronization, ensuring smooth, continuous production.
For companies expanding or upgrading their facilities, BMC Pack’s standard corrugated line offers exceptional ROI, stable operation, and compatibility with advanced flexo printer folder gluer and creasing and die cutting systems—delivering a total packaging solution that elevates both productivity and profit.
Precision Engineering for Multi-Layer Corrugated Sheet Production
The Standard 3 5 7 Ply Corrugated Cardboard Production Line supports multiple flute types (A, B, C, E, UV) across 3, 5, and 7-layer configurations. Its flexible design ensures adaptability for different cardboard thicknesses and strengths, allowing manufacturers to meet diverse packaging demands efficiently.
Technical Highlights:
- Design speed: 200 m/min
- Working speed: 180 m/min
- Effective width: 1800 mm
- Heating system: Steam or thermal oil (0.8–1.2 MPa)
- Power requirement: Approx. 380–420 kW
- Total length: 65–95 meters depending on layer count
Each component in the Standard 3 5 7 Ply Corrugated Cardboard Production Line is engineered to ensure precise alignment, consistent moisture balance, and excellent bonding between liners and mediums, ensuring superior board quality for both high-end and bulk packaging applications.

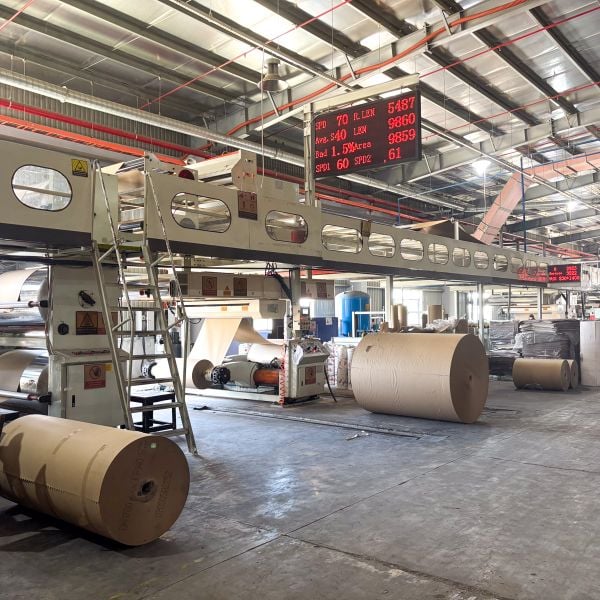

Advanced Modules of Standard 3 5 7 Ply Corrugated Cardboard Production Line

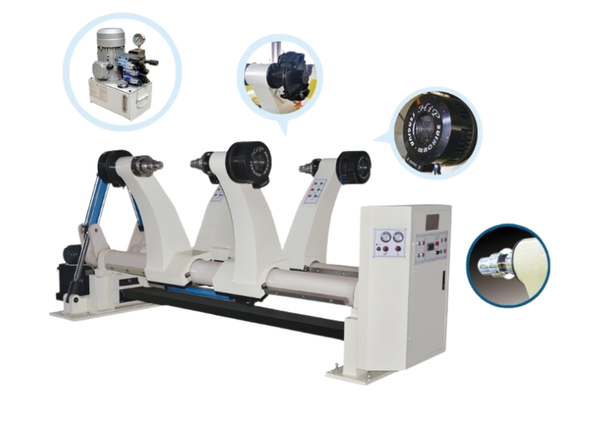

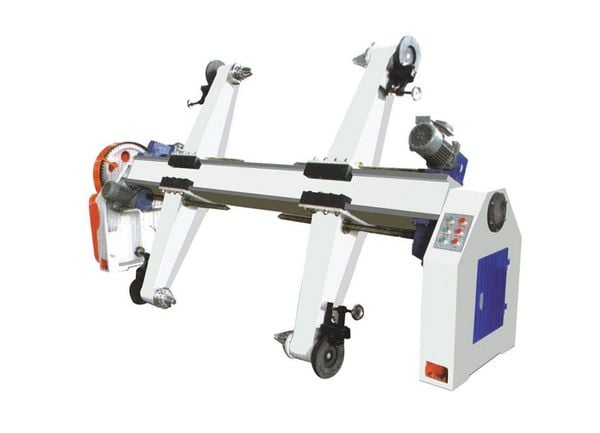

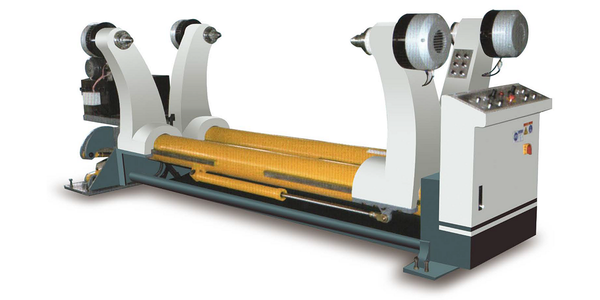

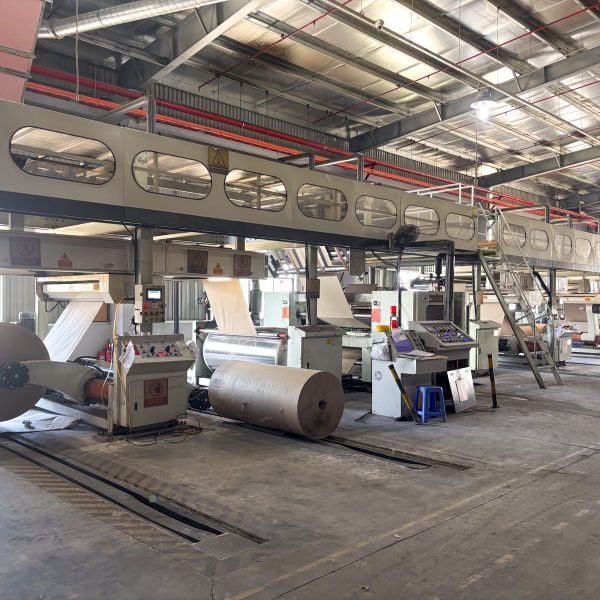

Hydraulic Mill Roll Stand and Electric Mill Roll Stand

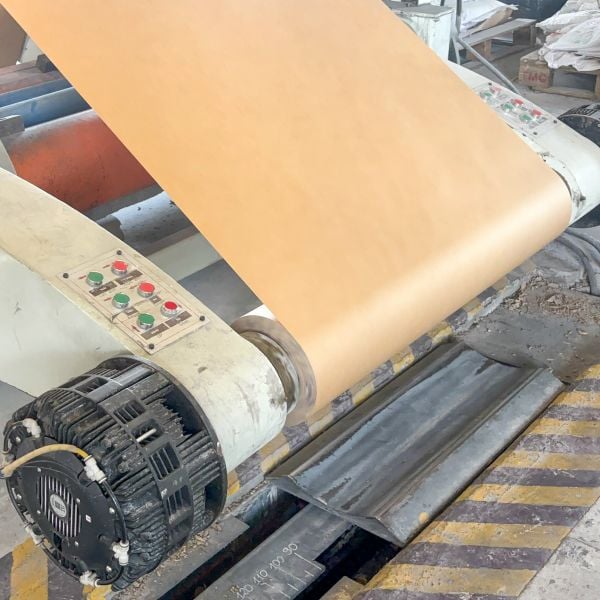

These modules handle heavy rolls with hydraulic lifting and clamping mechanisms, ensuring efficient feeding and paper tension control. Their shaftless chuck design and centralized pneumatic braking minimize downtime and guarantee steady material delivery, forming the foundation of the corrugated cardboard production line.

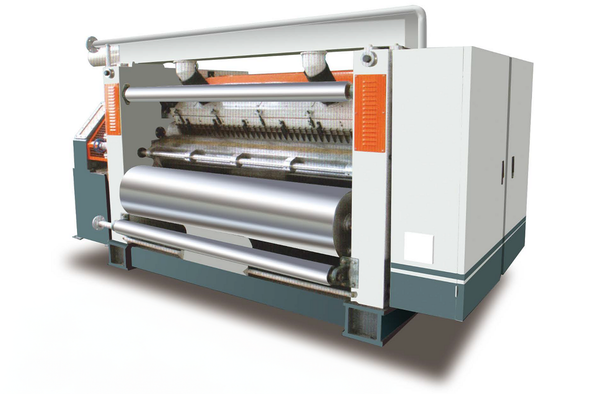

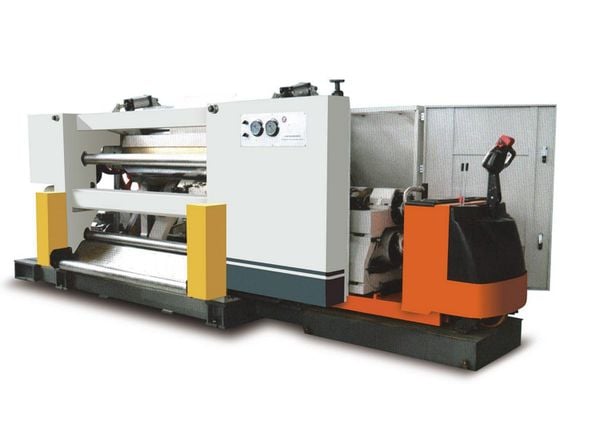

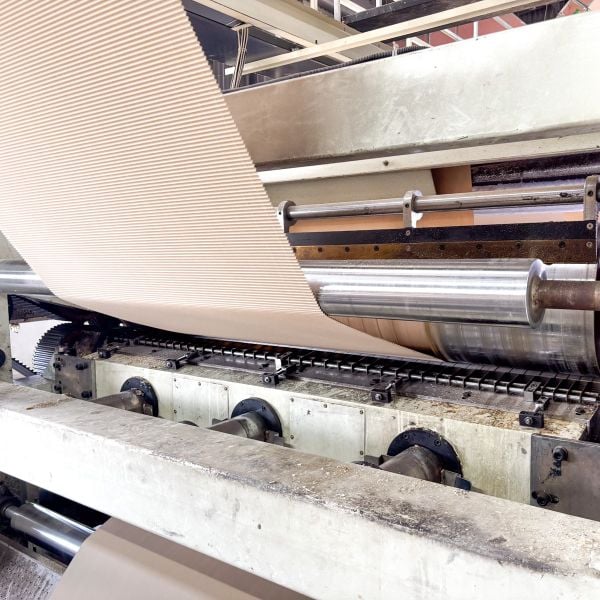

Cassette Single Facer and Cassette Single Facer Double Roller
Equipped with a fingerless vacuum system, flute roll quick-change cassette, and gear-drive transmission, the cassette single facer ensures quick flute conversion between A/B/C/E types. The double roller configuration enhances speed stability while preserving precise flute geometry for better carton compression strength.

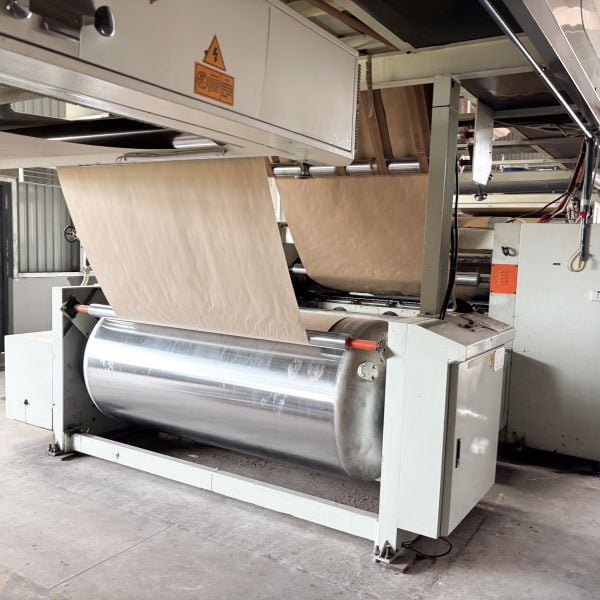

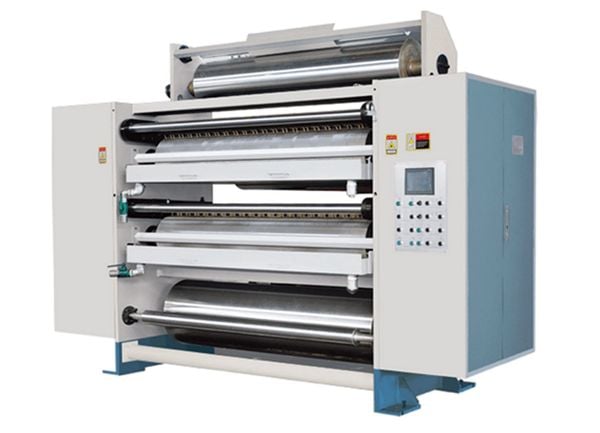

Preheater and Gluing Machine
The preheater regulates paper temperature between 60°C and 350°C, maintaining ideal moisture for adhesive bonding. The gluing machine—available in single, duplex, or triple type—adopts precision roller application, servo control, and stainless-steel glue tanks for uniform coating. Together, they ensure optimal adhesion and prevent delamination during stacking or folding.

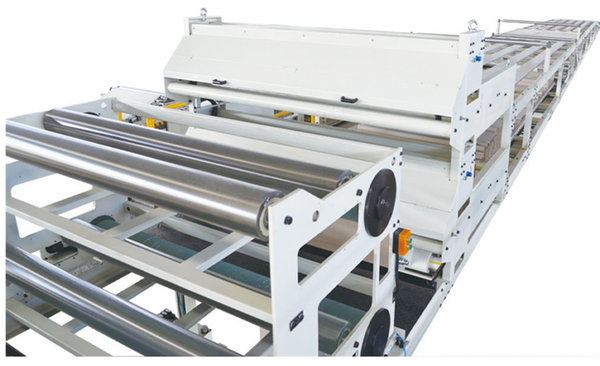

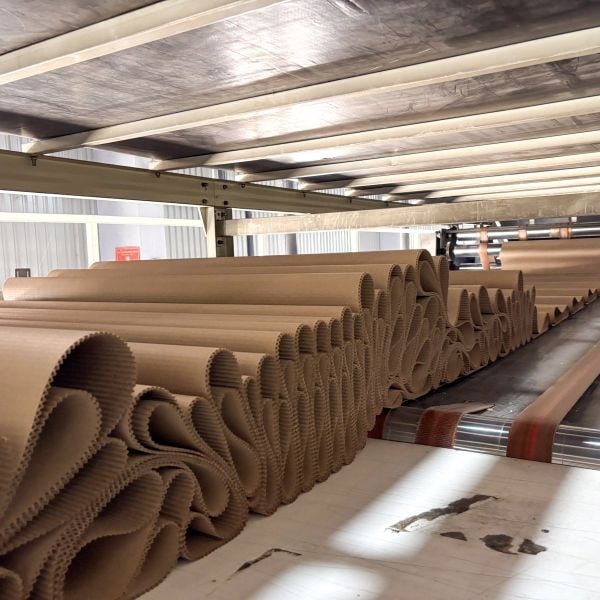

Overbridge Conveyor
This key link in the Standard 3 5 7 Ply Corrugated Cardboard Production Line transfers single-faced paper to the double facer through an intelligent conveyor network. Equipped with photoelectric sensors, air-guided alignment, and motorized synchronization, it guarantees exact paper overlap, reducing waste and maintaining board uniformity.

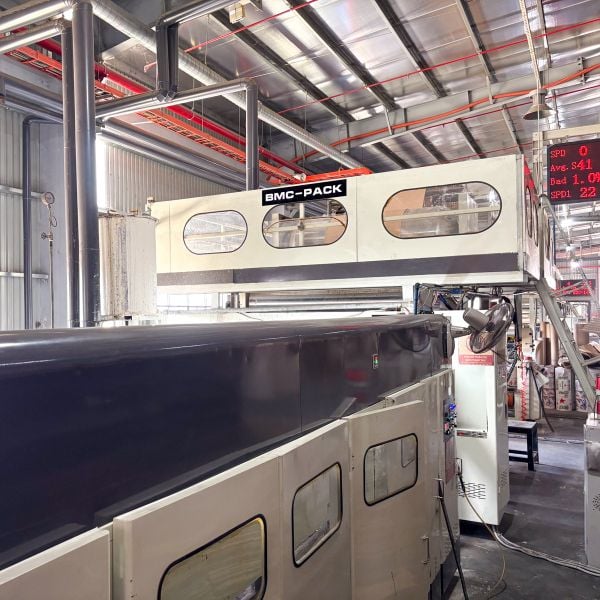

Double Facer
The Double Facer combines airbag pressure system, 14-section heating plates, and cooling rollers to stabilize board bonding at high speed. Its precision temperature zones prevent edge curling and ensure consistent flatness, a hallmark of BMC Pack’s production technology.

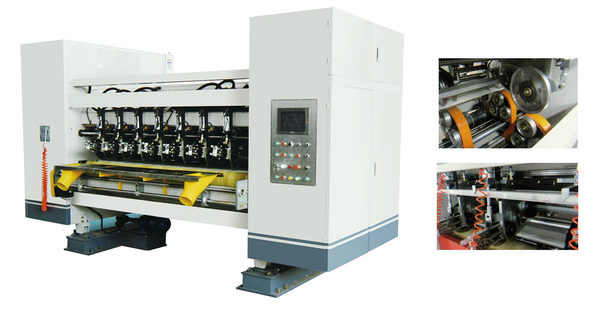

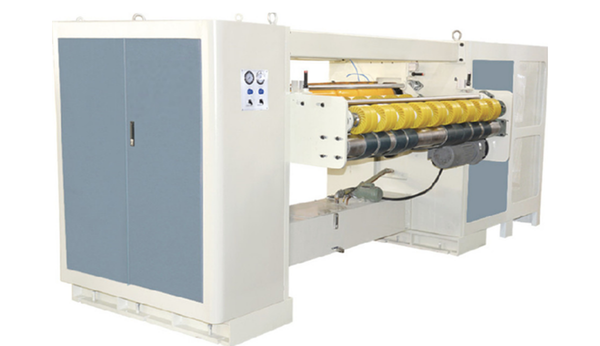

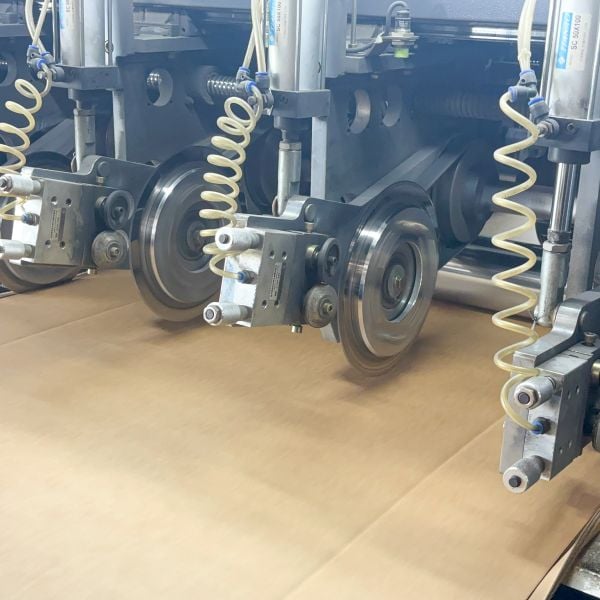

Computer Thin Blade Machine
Integrated with five cutting blades and eight scoring wheels, the computer thin blade machine offers ±0.5 mm accuracy through servo synchronization. The automatic blade grinding and computerized order management system reduce downtime, improving both efficiency and safety.
Helical Knives NC Cutting Machine
Driven by a servo motor system, this NC cutter performs fast, smooth, burr-free trimming of corrugated boards. Precision helical blades ensure clean edges and minimal dust generation, vital for maintaining downstream creasing and die cutting accuracy.

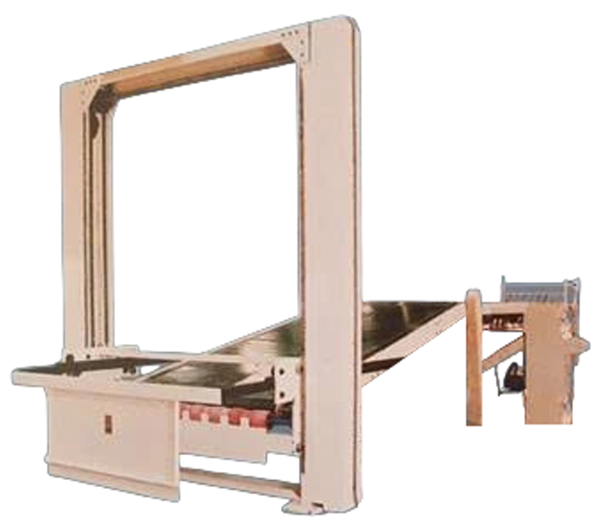

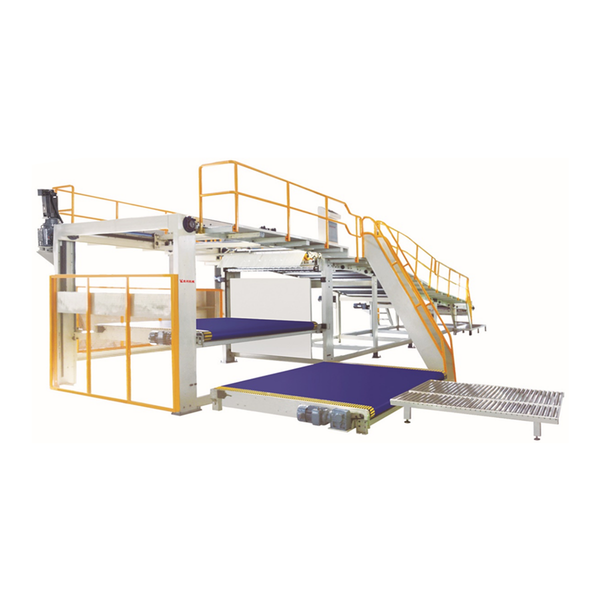

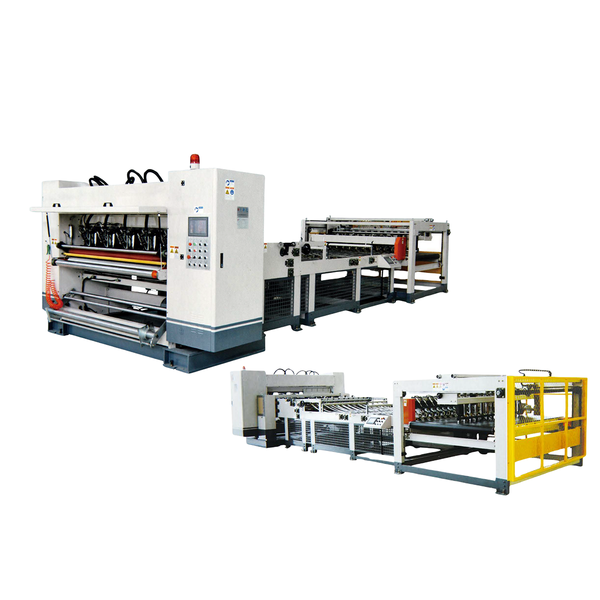

Computer 2 Ply Corrugated Cutter and Stacker
For multi-layer setups, this unit automates the cutting, sorting, and stacking of 2-ply sheets with servo control. It ensures continuous feeding and reduces manual handling, making the production process safer and more efficient.
System Integration and Control
The entire Standard 3 5 7 Ply Corrugated Cardboard Production Line is governed by an intelligent PLC system with touch-screen interface, enabling real-time monitoring, auto fault detection, and digital synchronization of all modules. Operators can easily adjust parameters to match order specifications, while BMC Pack’s modular architecture allows upgrades with Flexo Printing Machines, Rotary Die Cutters, or Folder Gluer Machines for a complete packaging solution.
Energy Efficiency and Maintenance Advantages
Energy-saving is a core philosophy of BMCPack’s engineering. Components like preheater, double facer, and Hydraulic Mill Roll Stand are optimized for low energy loss and long service life. Smart insulation systems minimize heat dissipation, while easy-access maintenance zones reduce downtime by up to 35%.
The Standard 3 5 7 Ply Corrugated Cardboard Production Line is not only built for consistent quality but also for long-term operational stability, offering a practical solution for manufacturers seeking high performance with low maintenance costs.
Quality Assurance and Global Support
Every unit produced by BMC Pack undergoes full-load testing before shipment, ensuring peak performance upon installation. The company provides global technical support, operator training, and spare parts logistics to help partners sustain continuous production with minimal interruptions.
With installations across Asia, the Middle East, and Europe, BMCPack has earned a global reputation for precision engineering, reliable machinery, and comprehensive after-sales service.
I. Comparison — 3-ply vs 5-ply vs 7-ply Corrugated Production Lines
Specification | 3-ply (WJ180-1800) | 5-ply (WJ200-1800) | 7-ply (industrial typical) |
Product structure | Single face + corrugated medium + single liner | Two liners + two corrugated mediums + middle liner | Three liners + three corrugated mediums + middle liner |
Design speed | 200 m/min | 200 m/min | 180–200 m/min |
Working width | 1800 mm | 1800 mm | 1800 mm |
Line length (approx.) | 45–50 m | 73–85 m | 95–110 m |
Supported flute types | A, B, C, E | A, B, C, E | A, B, C, E (some F) |
Steam consumption | 3,200–3,800 kg/h | 3,200–3,800 kg/h | 4,500–5,500 kg/h |
Steam pressure (max) | 1.6 MPa | 1.6 MPa | 1.6 MPa |
Power supply | 380V, 50Hz, 3φ | 380V, 50Hz, 3φ | 380V, 50Hz, 3φ |
Total installed power | ~265 kW | ~265 kW | ~320 kW |
Typical running power | ~185 kW | ~185 kW | ~230 kW |
Minimum factory space | 80×12×5 m | 80×12×5 m | 100×18×6 m |
Recommended factory size | 85×15×6 m | 85×15×6 m | 110×20×6.5 m |
Paper consumption (est.) | ~2.8 t/h | ~4.5 t/h | ~6.5 t/h |
Annual output (typical) | 10–12M m²/year | 20–25M m²/year | 35–40M m²/year |
Typical applications | Light packaging (pharma, cosmetics) | Medium/heavy packaging (appliances, export cartons) | Heavy-duty cartons, palletized exports |
II. Technical Specifications — WJ200-1800 (5-ply) — Summary
- Design speed: 200 m/min
- Working width: 1800 mm
- Approx. total line length: 73–85 m
- Steam requirement: 3,200–3,800 kg/h (max pressure 1.6 MPa)
- Power supply: 380V, 50Hz, 3 phase
- Total installed power: ~265 kW
- Typical running power: ~185 kW
- Minimum factory dimensions: 80 × 12 × 5 m (recommended 85 × 15 × 6 m)
- Supported flute types: A / B / C / E (per customer choice)
- Control & drives: PLC (Siemens/Delta), VFD (Delta), main electric parts Schneider / ABB; servo motors for key drives
- Main components included: hydraulic mill roll stand, single facer, preheater & glue unit, double facer, thin-blade slitter, overbridge conveyors, stacker
- Cutting accuracy (slitter): ±1.0 mm (depending on setup)
- Material & construction: alloy steel rollers (48CrMo), HT cast parts, industrial steel frame; automatic lubrication and hydraulic systems
- Special features: automatic tension control, preheat glue circulation, PLC monitoring with HMI, safety interlocks, optional automatic stacking
Here are the complete English technical specification tables for the 3-layer and 7-layer corrugated carton production lines, extracted and standardized from your uploaded BMC Pack documents.
III. Technical Specification — WJ180-1800 3-Layer Corrugated Carton Production Line
Item | Specification |
Model | WJ180-1800 |
Design speed | 200 m/min |
Working width | 1800 mm |
Line length | About 45 – 50 m (based on layout drawing) |
Paper grades for speed test | Face paper: 120 – 150 g/m² Liner: 90 – 125 g/m² Corrugated medium: 90 – 125 g/m² |
Moisture content | 11 % ± 1 % |
Flute types | A, B, C, E (as requested) |
Steam requirement | 3,200 – 3,800 kg/h Max pressure 1.6 MPa |
Power supply | 380 V / 50 Hz / 3 phase (or 4 phase) |
Total installed power | 265 kW (Commonly used: 185 kW) |
Minimum plant size | 80 × 12 × 5 m (L × W × H) |
Recommended plant size | 85 × 15 × 6 m (L × W × H) |
Machine direction | Left or Right transmission (customized) |
Customer-supplied items | Steam boiler (≥ 4,000 kg/h @ 1.4 – 1.6 MPa), piping, air & glue lines, power connection, water supply, foundation, raw paper & starch materials, lubricants etc. |
IV. Technical Specification — WJ200-1800 7-Layer Corrugated Carton Production Line
Item | Specification |
Model | WJ200-1800 |
Design speed | 200 m/min |
Working width | 1800 mm |
Line length | About 100 – 110 m (based on layout drawing) |
Paper grades for speed test | Face paper: 120 – 150 g/m² Liner: 90 – 125 g/m² Corrugated medium: 90 – 125 g/m² |
Moisture content | 11 % ± 1 % |
Flute types | A, B, C, E (as requested) |
Steam requirement | 3,200 – 3,800 kg/h Max pressure 1.6 MPa |
Power supply | 380 V / 50 Hz / 3 phase (or 4 phase) |
Total installed power | 265 kW (Commonly used: 185 kW) |
Minimum plant size | 80 × 12 × 5 m (L × W × H) |
Recommended plant size | 85 × 15 × 6 m (L × W × H) |
Machine direction | Left or Right transmission (customized) |
Customer-supplied items | Steam system (≥ 4,000 kg/h @ 1.4 – 1.6 MPa), compressed air & glue lines, electrical wiring, water supply, foundation, raw materials (starch, borax, caustic soda), lubrication oils etc. |
Extended Section – Real-World ROI and Partnership Benefits
Investing in a Standard 3 5 7 Ply Corrugated Cardboard Production Line is not just about buying equipment — it’s about securing a long-term manufacturing advantage.
This line is specifically designed to reduce production costs by up to 25%, increase output by 40%, and cut labor requirements by 30–50%, thanks to automation and servo synchronization.
Its compatibility with Flexo Printing Machines, Creasing and Die-Cutting Machines, and Rotary Die Cutters transforms a traditional factory into a fully automated packaging hub. Manufacturers experience faster order switching, higher consistency, and improved board flatness — key indicators for export-quality cartons.
In practical applications, the Standard 3 5 7 Ply Corrugated Cardboard Production Line is ideal for producing shipping cartons, industrial packaging boxes, e-commerce boxes, and customized retail packaging. It delivers stable output with minimal waste, ensuring higher profit margins.
When you partner with BMC Pack, you gain more than machinery — you gain a strategic advantage. The company’s expert team provides factory layout planning, remote installation guidance, and continuous optimization consulting. With more than 30 years of experience, BMCPack has helped hundreds of packaging manufacturers scale efficiently while achieving sustainable growth.
Conclusion
The Standard 3 5 7 Ply Corrugated Cardboard Production Line by BMC Pack is the cornerstone of efficient, intelligent, and cost-effective corrugated sheet manufacturing. Combining precision mechanics, servo automation, and modular design, it offers manufacturers a reliable path toward automation and productivity excellence.
Whether you are upgrading from a semi-automatic setup or establishing a new production facility, BMC Pack’s Standard 3 5 7 Ply Corrugated Cardboard Production Line ensures long-term reliability, superior quality, and measurable ROI — making it the preferred choice for the global corrugated packaging industry.
