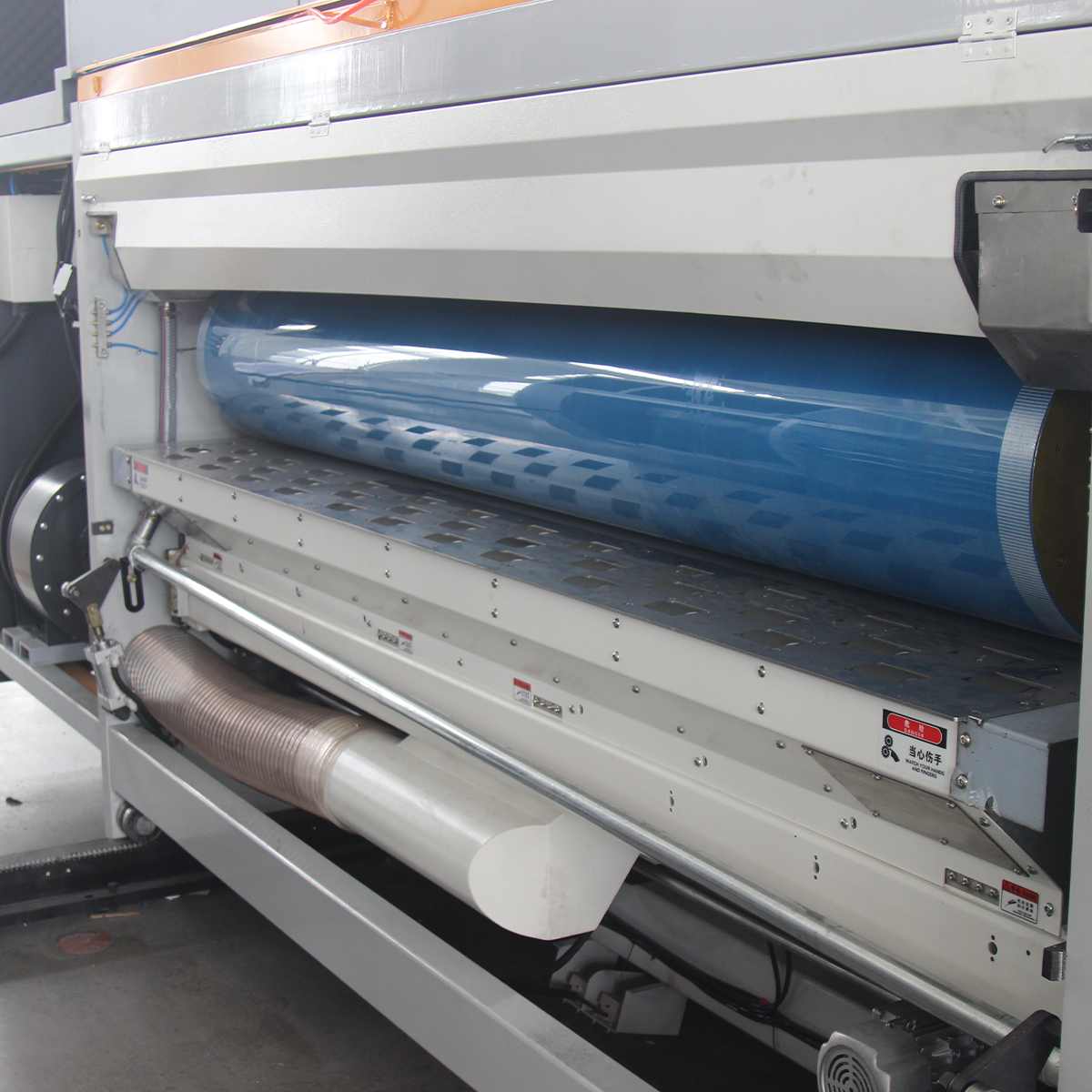

Step-by-step guide: Changing anilox rollers on Flexo Printer

By: Chris LA 02/12/2025 0 Comment

The anilox rollers on a Flexo Printer play an essential role in ink transfer accuracy and the overall print quality of any modern flexo printer used in a Corrugated Cardboard Production Line, Carton Box Machine, or Packaging Box Making Machine. A well-maintained anilox rollers system ensures stable ink volume, consistent density, and perfect registration during high-speed production of Corrugated Carton, Pizza Box, e-commerce packaging and export-grade corrugated boxes.

For factories using equipment from BMC Pack or BMCPack, changing and calibrating the anilox rollers on a Flexo Printer is a necessary routine to keep print output sharp and reliable. This article presents a complete, practical, and deeply technical step-by-step guide to changing anilox rollers safely and efficiently, integrating experience from hundreds of global installations, data from Single Facer, Double Facer, flute laminator, 3/5/7 ply Corrugated Cardboard Production Line, Servo Vacuum Transfer, Flexo Printing Machine, Creasing and Die Cutting Machine, flatbed creasing and die cutting, rotary die cutter, Flexo Printer Slotter Die Cutter, stitcher and gluer machine, and other equipment commonly integrated into modern packaging solutions inside a full Corrugated Carton Production Line.

Understanding anilox rollers on Flexo Printer and why it matters

The anilox rollers inside a high-performance Flexo Printer determine how efficiently ink transfers from chamber to plate. When producing large volumes of Corrugated Carton or Pizza Box, worn or contaminated anilox rollers cause streaking, poor ink density, ghosting, and variation in color. Factories running Carton Box Machine systems within a Corrugated Cardboard Production Line rely on consistent ink metering to maintain output stability. That’s why regular inspection, cleaning, and replacement of anilox rollers is critical for any flexo printer, especially those from BMC Pack and BMCPack, known for high-speed precision printing.

Technical comparison table: Standard vs High-Performance BMC Pack anilox rollers

Specification	Standard Anilox Roller	BMC Pack High-Performance Anilox Roller
Surface Material	Chrome-plated steel	Ceramic laser-engraved
Cell Structure	Hexagonal	Ultra-fine 60° hex / elongated hybrid
LPI Range	180–360 LPI	250–600+ LPI
Ink Capacity (BCM)	Medium	High precision low-variation
Lifetime (Hours)	4,000–7,000	8,000–12,000
Best Use Case	Basic Carton Printing Machine	High-speed flexo printer, Flexo Printing Machine, Flexo Printer Folder Gluer

These advanced anilox rollers in Flexo Printer units from BMC Pack ensure optimal print consistency during high-volume production of Corrugated Carton and Pizza Box, making them highly effective for integrated systems across a full Corrugated Cardboard Production Line or Corrugated Carton Production Line.

Step-by-step guide: Changing anilox rollers on Flexo Printer

Step 1: Power down and lockout the Flexo Printer

Safety is always the first priority. Technicians must fully power down the Flexo Printer and perform mechanical lockout. This is mandatory for all flexo printer, Carton Box Machine, or Vaccum Transfer Flexo Printing Machine units.

Step 2: Release the doctor blade chamber

Detach the doctor blade clamp, disconnect ink hoses and drain excess ink. This gives clear access for removing the anilox rollers without contamination.

Step 3: Remove the anilox rollers carefully

Support the anilox rollers firmly using dedicated lifting brackets. Ceramic rollers are fragile; improper handling causes micro-chipping that affects ink volume.

Step 4: Inspect bearings, gears, and journal ends

Before installing new anilox rollers, clean and inspect bearing housings, drive gears and the journal ends for wear. A misaligned bearing drastically reduces print accuracy, especially for high-speed flexo printer models used in Pizza Box and Corrugated Carton production.

Step 5: Install new anilox rollers

Slide the new anilox rollers into place, ensuring correct rotational direction and cell orientation. Align both ends precisely to prevent vibration at high speed.

Step 6: Reassemble chamber and calibrate ink system

Reinstall the doctor blade chamber, reconnect ink hoses and purge the ink system. Calibrate ink pressure and flow according to ink type and LPI of the installed anilox rollers.

Step 7: Test run the Flexo Printer at low speed

Run the Flexo Printer slowly, checking for uniform ink transfer. Gradually increase speed until the machine reaches its rated output. For flexo printer, Carton Box Machine, and Corrugated Carton plants, this calibration ensures consistent density across long production runs.

Advantages and disadvantages of replacing anilox rollers regularly

Advantages

• Improved ink density and color consistency

• Stable print quality on high-speed flexo printer

• Reduced downtime on Carton Box Machine lines

• Perfect for large-volume Corrugated Carton and Pizza Box production

Disadvantages

• Requires skilled technicians

• Handling must be careful to avoid ceramic damage

• Higher LPI rollers require more precise cleaning routines

Extended section: ROI, cost savings and benefits of partnering with BMC Pack

Replacing anilox rollers in a timely manner increases overall productivity in factories operating a full Corrugated Cardboard Production Line. When paired with high-speed flexo printer systems, optimized anilox rollers reduce ink waste, minimize misprints, and prevent the need for re-runs. This typically lowers production costs by 10–20% for plants producing Corrugated Carton, Pizza Box, and export-grade boxes.

Partnering with BMC Pack gives major operational advantages:
• Access to long-life ceramic anilox rollers engineered for high-speed Flexo Printing Machine systems

• Compatibility across folder gluer stitcher making machine, flute laminator, Single Facer, Double Facer, Creasing and Die Cutting Machine and full converting lines

• Technical support from BMCPack’s global engineering teams

• Significant reduction in downtime

• Improved efficiency across all workflow stages, from printing to slotting, die-cutting, folding and gluing

Customers using BMC Pack equipment consistently achieve higher return on investment (ROI) because print quality remains stable over long production runs, labor cost decreases due to reduced manual intervention and equipment reliability increases overall throughput.

Conclusion

Changing anilox rollers on a Flexo Printer is not simply a maintenance task—it's a core requirement for achieving world-class printing quality in any flexo printer, Carton Box Machine, or fully integrated Corrugated Cardboard Production Line. With the correct procedures, proper calibration and the advanced designs from BMC Pack and BMCPack, factories can maintain exceptional consistency, minimize waste, reduce production costs and achieve premium print quality across all Corrugated Carton and Pizza Box applications. Choosing BMC Pack ensures long-term reliability, high-speed precision and a competitive advantage in the global packaging market.
