⭐ Step-by-step: Setting Up PLC Parameters for a Flexo Printing Machine – Full Technical Guide for Precision Control

The Flexo Printing Machine has become the operational core of every modern packaging factory producing high-volume Corrugated Carton, Pizza Box, duplex board packaging and large-scale commercial printing jobs. In advanced manufacturing lines—especially those integrating a full Corrugated Cardboard Production Line, Flexo Printer Folder Gluer, Vacuum Transfer Flexo Printing Machine, Carton Printing Machine or Flexo Printer Slotter Die Cutter—the quality of output depends almost entirely on two critical factors: the precision of anilox rollers and the accuracy of PLC parameter settings.

This is why the correct configuration of PLC logic, servo synchronization and digital registration within the Flexo Printing Machine determines overall print sharpness, ink density stability, machine lifespan and final packaging quality.

For factories running Pizza Box, Corrugated Carton, and high-speed Carton Box Machine production, mastering PLC setup is not optional—it is the foundation of performance, cost efficiency and reliability. This expert guide explains the full step-by-step method of setting PLC parameters for any Flexo Printer, including how these settings interact with flexographic ink transfer, vacuum feeding systems, anilox rollers, printing register control, speed coordination and safety logic.

⭐ 1. Understanding the Role of PLC Control in a Modern Flexo Printing Machine

A Flexo Printing Machine integrates multiple automation subsystems: vacuum feeding, servo-side registration, main motor drive, conveyor phasing, infrared drying, ink circulation, doctor blade management, and error detection. The PLC is not only the operating “brain” of the equipment but also the synchronizer ensuring that every mechanical movement is perfectly timed. On a Flexo Printer, PLC parameters determine:

• Timing of sheet feeding and vacuum suction activation

• Synchronization between printing plates and anilox rollers

• Mechanical-to-servo communication on color registration

• Automatic zero-positioning and repeat job memory

• Drying temperature and IR lamp intervals

• Slotting, die-cutting and scoring timing for hybrid models

• Fault diagnosis, alarm thresholds and emergency interlock logic

In packaging plants using integrated Corrugated Cardboard Production Line systems, a properly configured Flexo Printing Machine directly influences the efficiency of downstream systems such as the folder gluer stitcher making machine, sticher and gluer machine, flatbed creasing and die cutting, rotary die cutter, and other packaging solutions. With the rising demand for high-quality flexographic printing, precise PLC tuning is essential for maintaining consistent output and avoiding defects such as ink pinholes, misregistration, color drift, uneven pressure and roller wear.

⭐ 2. Step-by-step PLC Parameter Setup for a Flexo Printing Machine

Below is the professional-grade configuration process used by engineers at BMC Pack and BMCPack, applicable to most servo-driven Flexo Printer platforms. The process focuses on optimizing performance, print accuracy and stability during long production cycles.

Step 1: Initialize System Parameters

On a Flexo Printing Machine, initialization activates the default PLC logic required for safe operation. The PLC loads:

• Factory-set speed curves

• Zero-phase positions for anilox rollers

• Pressure thresholds for plate-to-paper contact

• Vacuum blasting intervals

• Safety lock sequencing for printing, slotting and die-cutting units

Correct initialization ensures consistent control for integrated Flexo Printing, flexographic color alignment and ink transfer stability.

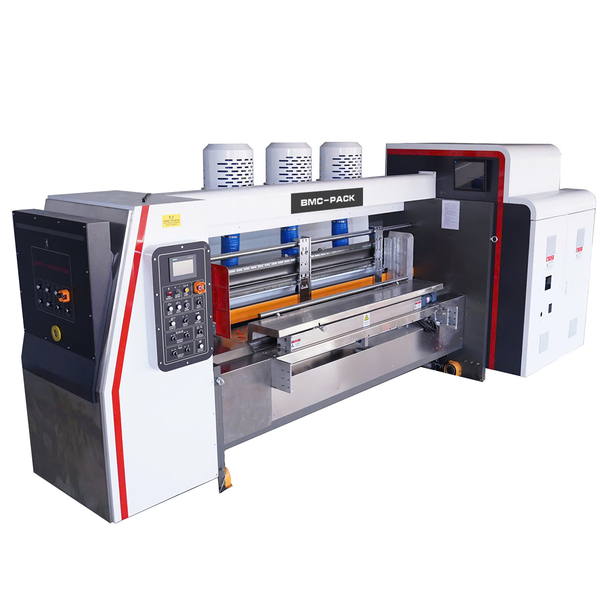

Step 2: Configure Feeding Parameters

Feeding parameters determine how the machine handles sheets from the stacker into printing units. For plants running Corrugated Carton and Pizza Box jobs, critical items include:

• Feeder speed (sheets/min)

• Vacuum suction strength

• Skip-feeding allowance

• Sheet thickness calibration

• Double-sheet detection sensitivity

PLC settings ensure the feeder synchronizes with the anilox rollers, preventing misfeeds, crush lines and poor print density.

Step 3: Set Print Registration Parameters

Servo-controlled registration is the core of a high-performance Flexo Printer. PLC logic manages:

• Longitudinal register adjustment

• Lateral (side) register via servo-motor

• Circumferential alignment based on plate repeat length

• Print-to-cut compensation when working with slotting or die-cutting units

This is where Flexo Printing Machine performance directly influences final print precision, especially on full Corrugated Cardboard Production Line operations.

Step 4: Configure anilox roller parameters

The most important PLC block involves the anilox rollers, since these rollers determine:

• Ink volume (cell count and BCM capacity)

• Transfer stability

• Dot gain and halftone clarity

• Micro-text and barcode accuracy

• Color repeatability

PLC-driven functions include:

• Rotational speed ratio between plate cylinder and anilox rollers

• Ink viscosity alarm thresholds

• Chamber doctor blade pressure timing

• Clean-rinse cycles and backflow control

The number of times anilox rollers are referenced in PLC configuration reflects how critical they are to every Flexo Printer.

Step 5: Control Drying, IR Lamps, and Ink Temperature

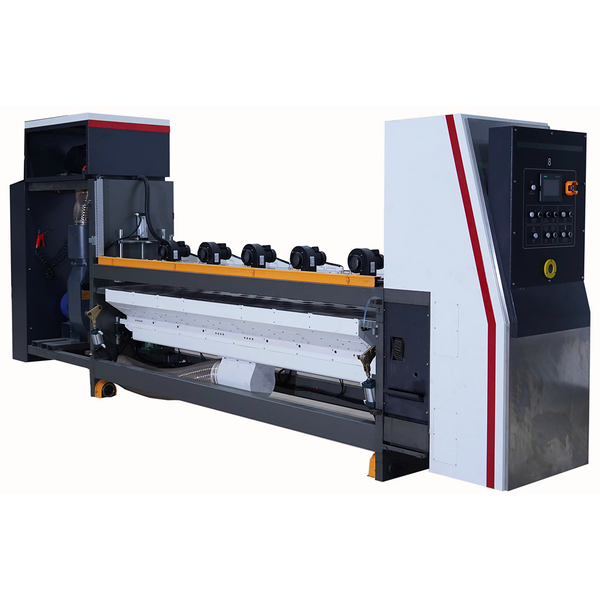

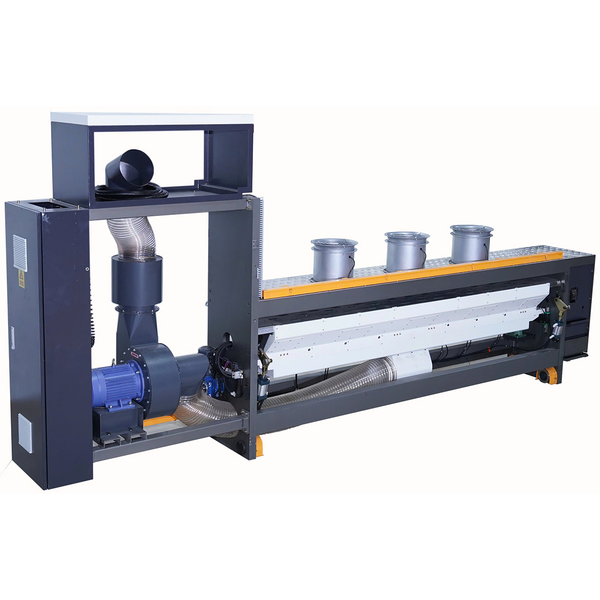

High-speed flexographic systems rely on accurate drying to avoid smudging, blistering or ghosting. PLC modules control:

• IR lamp duration

• Drying temperature

• Inter-unit air flow

• Power-saving modes during idle periods

A high-speed Flexo Printing Machine integrated with a Carton Box Machine must maintain consistent ink temperature across long runs.

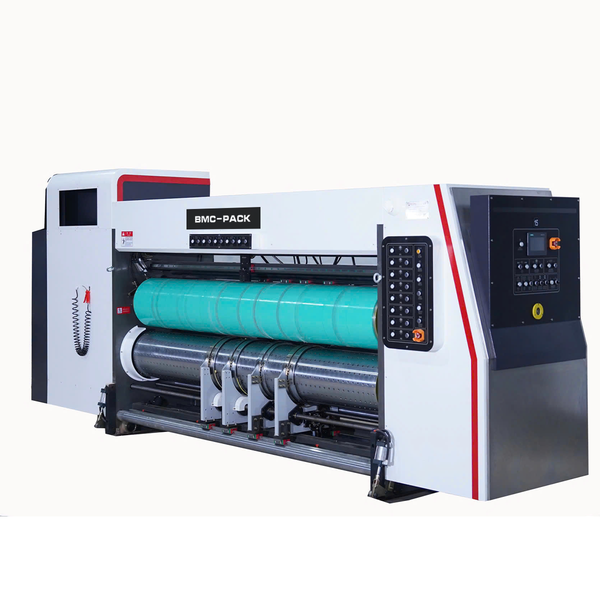

Step 6: Setup Slotting and Die-Cutting Parameters (for combined units)

On hybrid systems (e.g., Flexo Printer Slotter Die Cutter):

• Slotting depth

• Crease pressure

• Die-cutting angle

• Anvil roller lateral movement

• Compensated speed mode for knife wear

• Registration between printing and slotting

These parameters prevent common issues such as over-crush lines or uneven creasing.

Step 7: Safety Logic and Alarm Thresholds

PLC safety interlocks protect the operator and the Flexo Printing Machine itself. Engineers configure:

• Emergency stop chain

• Unit lock sensors

• Overload thresholds

• Ink pump overflow detection

• Low-pressure vacuum alarm

• Over-temperature shutdown

Systems from BMC Pack and BMCPack include advanced relays and diagnostics for seamless performance on Corrugated Carton production.

⭐ 3. Technical Comparison Table – PLC Functions Across Common Flexo Printers

⭐ 4. Advantages & Limitations of PLC-based Flexo Printing Machines

Advantages

• Extremely stable print consistency

• Better control of anilox rollers and doctor blade systems

• Reduced downtime and fewer printing defects

• Supports flexographic printing across high-speed production

• Increased accuracy for Corrugated Carton packaging

• Fully compatible with Pizza Box, duplex, and Kraft liner jobs

• Easier integration with upstream and downstream machines

Limitations

• Requires skilled technicians

• Incorrect parameter input may lead to over-inking or misregistration

• Higher cost of components such as servo drives or anilox rollers

⭐ 5. Common PLC Parameter Mistakes That Destroy Flexo Print Quality

• Incorrect feeder delay → sheet skew

• Wrong anilox rollers RPM → poor ink density

• Unbalanced plate pressure → smudging

• Faulty drying timing → ink blistering

• Over-tight doctor blade → roller abrasion

Over time, these mistakes lead to increased waste and reduced machine lifespan.

⭐ EXTENDED SECTION – Ứng dụng, ROI và lợi ích hợp tác với BMC Pack

Factories operating a Flexo Printing Machine as part of a modern Corrugated Cardboard Production Line experience immediate operational improvements when PLC parameters are set correctly and when global-standard components are used. Companies running large Pizza Box and Corrugated Carton batch orders report significantly lower rejection rates thanks to stable ink transfer and optimized anilox rollers synchronization. Since Flexo Printing is designed for long-run, high-speed jobs, proper PLC calibration increases uptime, protects printing plates, enhances flexographic clarity and reduces the need for manual adjustments. This directly improves production quality and reduces operator fatigue.

A well-configured Flexo Printer can reduce manpower requirements by enabling fully automatic cleaning cycles, job memory recall, automatic ink circulation and smart drying control. When integrated with automatic Packaging Box Making Machine, folder gluer stitcher making machine, flute laminator, Single Facer, Double Facer and downstream finishing equipment, the PLC-controlled Flexo Printing Machine becomes the central driver of efficiency for mass manufacturing. ROI increases dramatically when production speed stabilizes and the rate of printed defects decreases. Factories commonly report lower ink consumption, better print uniformity and longer anilox rollers lifespan.

Partnering with BMC Pack provides additional advantages. The company supplies high-grade Flexo Printer, engineering support, global components, long-term spare parts accessibility and integrated service for BMCPack installations. Their PLC training, remote diagnostics and localized in-plant technical guidance help factories shorten installation time and reach full operating speed more quickly. In high-volume Corrugated Carton and Pizza Box manufacturing, the combination of a servo-driven Flexo Printing Machine, accurate PLC parameters and the expertise of BMC Pack produces measurable gains in productivity, energy efficiency and total operational quality.

⭐ Conclusion – Why PLC Mastery Defines Flexo Printer Success

A Flexo Printing Machine is only as accurate as its PLC configuration. With proper parameter setup, factories running flexographic applications, Corrugated Carton, Pizza Box, and full Corrugated Cardboard Production Line integration achieve higher precision, cleaner ink transfer, lower waste and longer mechanical lifespan. The synchronized control of anilox rollers, feeding systems, drying intervals, registration alignment and color calibration ensures that each Flexo Printer run delivers industrial-grade consistency. By combining advanced PLC architecture with professional engineering support from BMC Pack and BMCPack, manufacturers secure long-term stability, improved ROI and superior packaging quality.
