Misalignment during die-cut, die-cutting, and die cutting operations is one of the most common and costly problems in the corrugated packaging industry. Whether the factory is running a high-speed flexo printer, a flatbed Creasing and Die-Cutting Machine, a rotary Die Cutting Machine, or a fully integrated Flexo Printer Slotter Die Cutter, even a 1–2 mm deviation in die-cut accuracy can cause entire batches of Corrugated Carton, Pizza Box, or export-grade packaging to be rejected. In a modern Corrugated Cardboard Production Line, where thousands of sheets pass through every hour, a small die-cutting error can create massive losses in material, labor, and machine uptime. This is why BMC Pack and BMCPack emphasize precise calibration, synchronized feeding, stable vacuum transfer, and correct pressure settings across Servo Vacuum Transfer, Single Facer, Double Facer, flute laminator, and all converting units connected to a Carton Box Machine or Packaging Box Making Machine.
This complete troubleshooting guide explains—step-by-step—how to identify, diagnose, and correct misalignment issues in die-cut, die cutting, and die-cutting systems. Drawing on real-world data from global installations of BMC Pack machines, including folder gluer stitcher making machine, sticher and gluer machine, Creasing and Die Cutting Machine, and Flexo Printing Machine, this guide ensures factories achieve perfect cutting precision during high-volume production on any flexo printer or converting line.
Why die-cut & die cutting misalignment happens in corrugated packaging
Misalignment in die-cut and die cutting processes typically comes from one of four sources:
1. Feeder instability
If sheets enter the flexo printer or rotary die cutting unit at an angle, all downstream die-cutting accuracy is lost. Vacuum feeding, side guides, and lead edge alignment must be calibrated perfectly.
2. Worn or uneven die board
A warped die plate causes inconsistent depth and skewed die cutting across the sheet.
3. Incorrect pressure setup
Too much pressure causes over-cutting; too little causes incomplete cuts. This is a major cause of die-cut misalignment during long runs of Corrugated Carton or Pizza Box production.
4. Synchronization errors
If the print-to-cut timing between the flexo printer and the rotary die cutter is off by even milliseconds, the die-cutting result shifts.
Technical comparison table — causes of die-cut misalignment
Root Cause | Common Result | BMC Pack Recommended Solution |
Feed skew from lead edge | Angled die cutting, poor registration | Adjust side guides, calibrate feeder, stabilize vacuum |
Worn die blade | Rough edges, inconsistent cut | Replace die board, check die hardness |
Wrong pressure | Over/under die-cut depth | Set uniform pressure (digital or hydraulic) |
Wrong sheet moisture | Curling → misalignment | Stabilize via 3/5/7 ply Corrugated Cardboard Production Line moisture control |
Machine timing error | Print doesn’t match cut | Resync flexo printer with die cylinder |
Worn bearer rings | Back-and-forth miscut | Replace bearer rings and lubricate correctly |
Step-by-step guide to troubleshoot die-cut misalignment

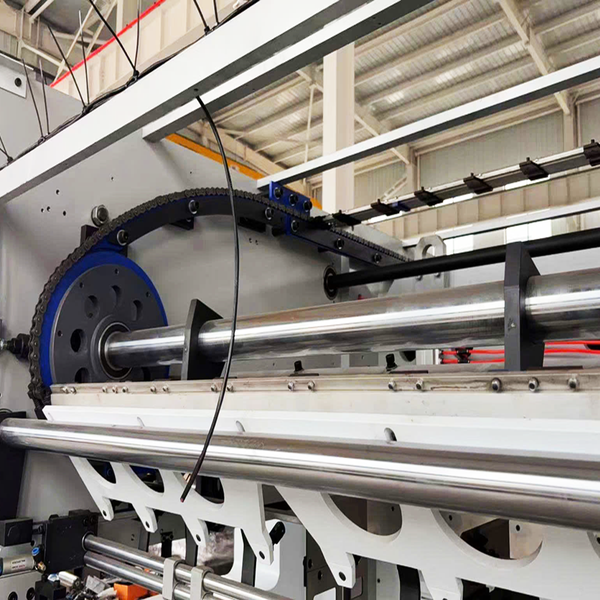

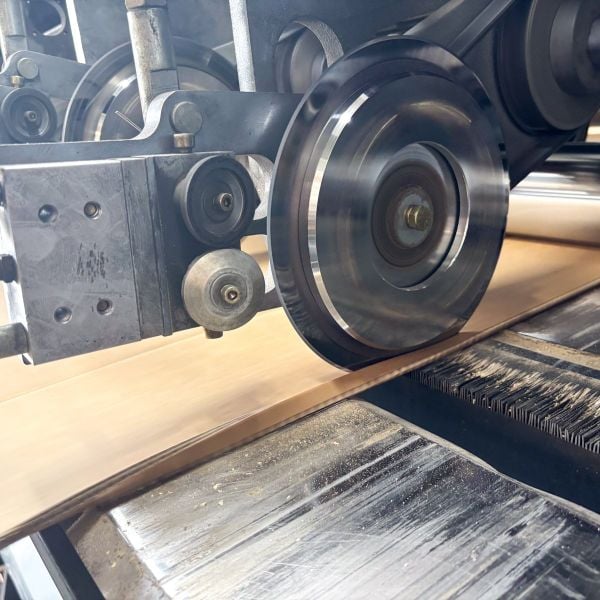

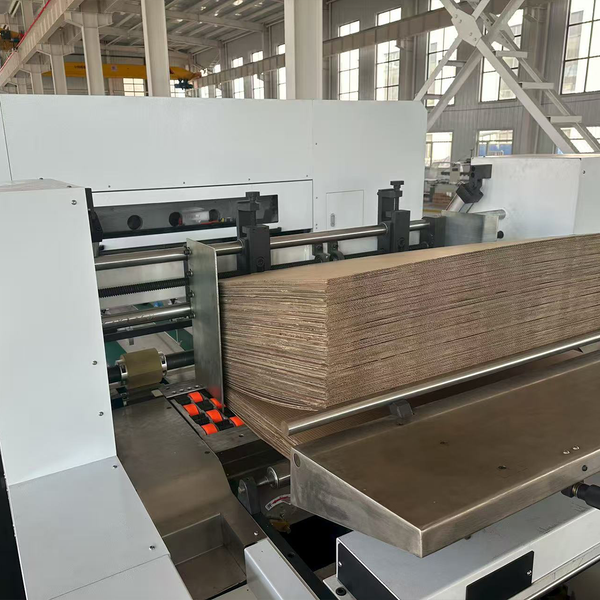

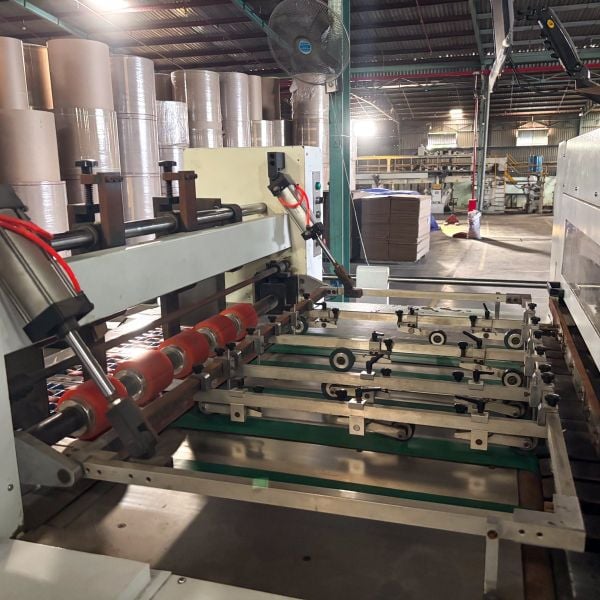

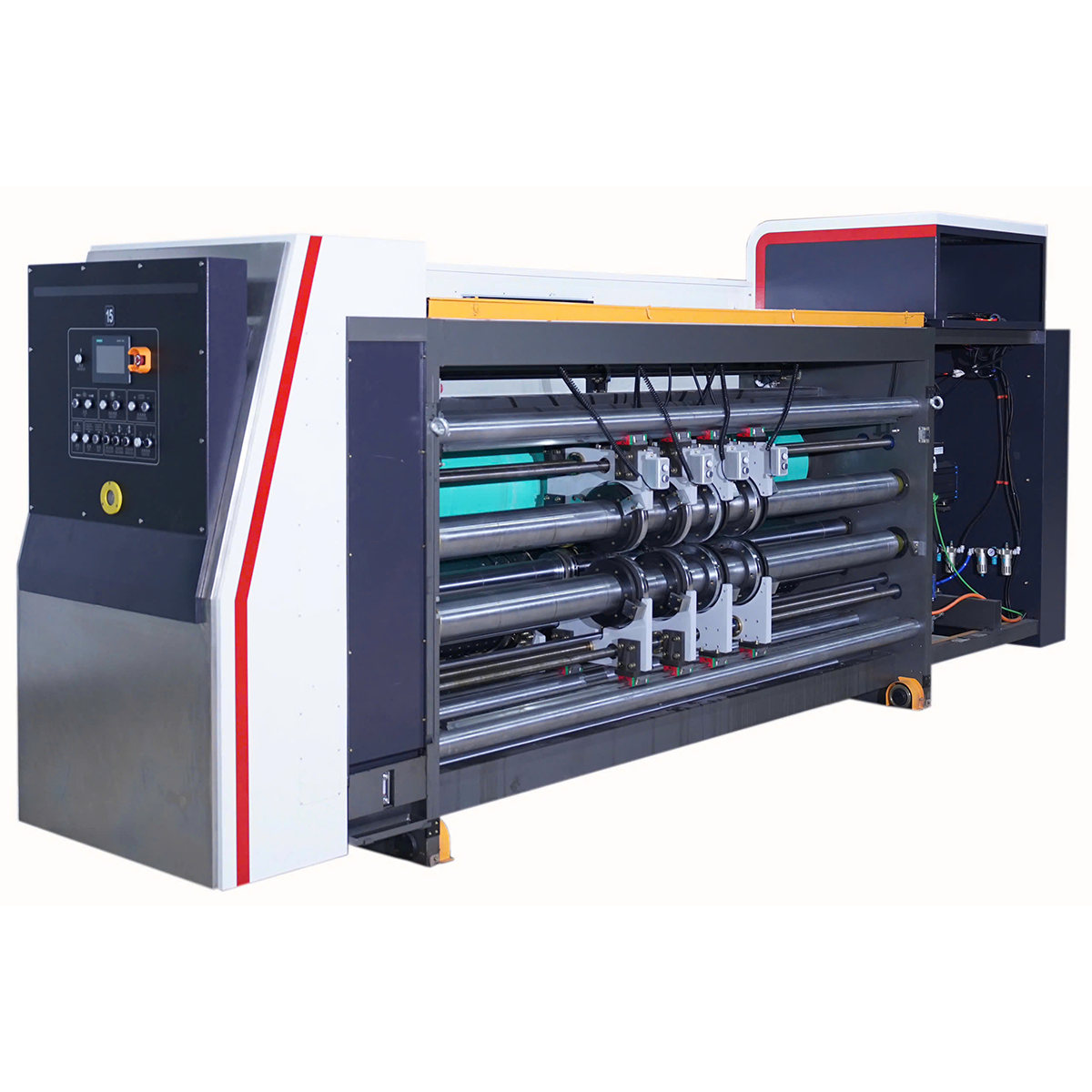

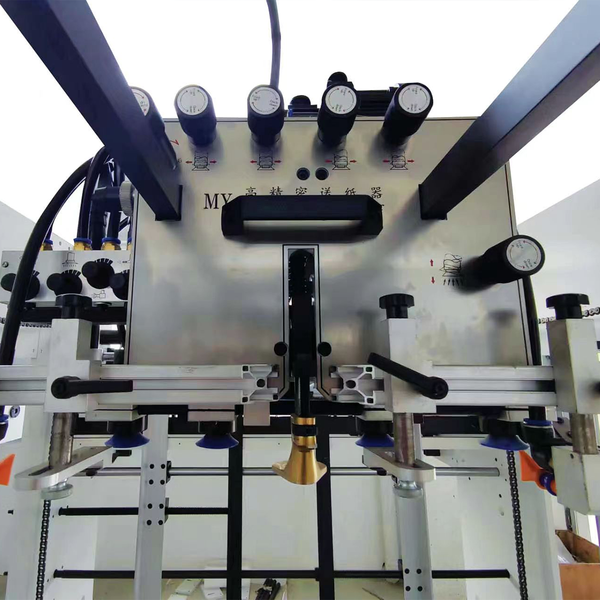

Step 1 — Check feeder parallelism before die cutting begins
Misalignment starts at the feeder of the flexo printer. If the sheet enters even 0.5 mm crooked, the die-cut output on the Carton Box Machine will shift.
- Clean vacuum holes
- Align front stops
- Calibrate side guides
- Ensure Servo Vacuum Transfer stability
This is especially important when running thin E-flute Corrugated Carton or lightweight Pizza Box sheets.
Step 2 — Inspect die board condition thoroughly
Worn blades or loose rules cause irregular die cutting depth and shift.
Technicians must check:
- Rule height
- Rubber hardness
- Blade straightness
Factories using BMC Pack machines typically reduce misalignment by replacing die boards after every 700,000–1,200,000 sheets, depending on material quality.
Step 3 — Recalibrate pressure rollers
Uneven pressure is one of the TOP reasons for misaligned die-cut output.
Adjust pressure using equal increments on both sides and test across sheet width.
This is crucial for:

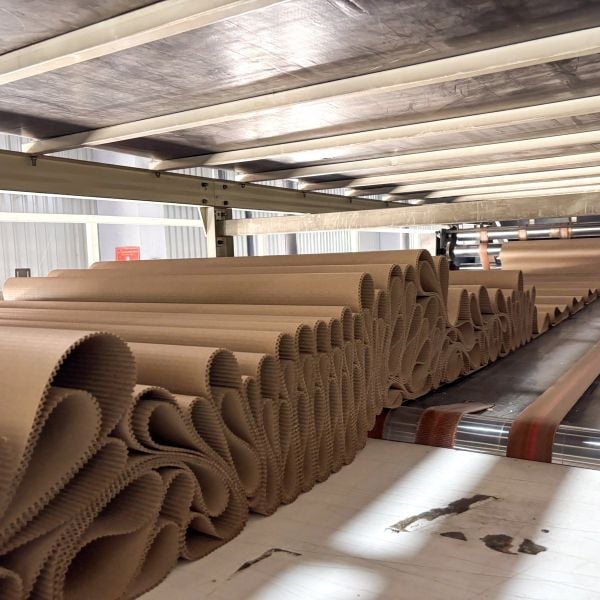

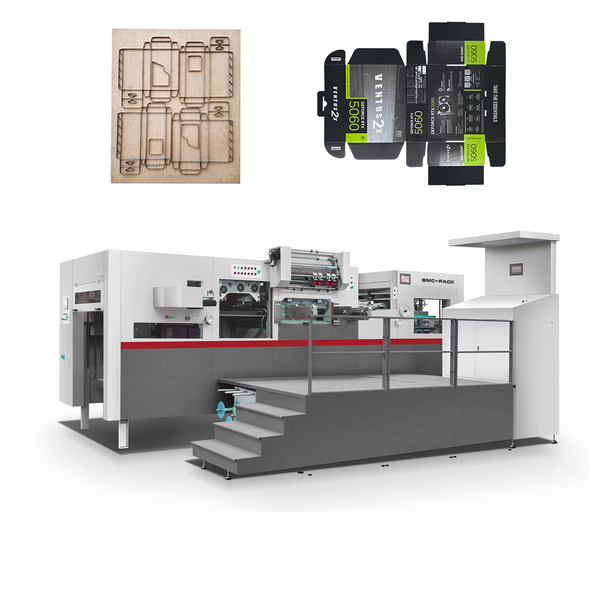

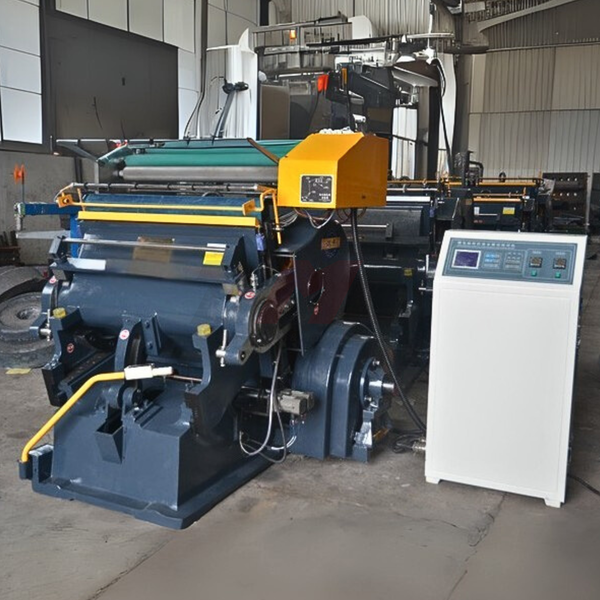

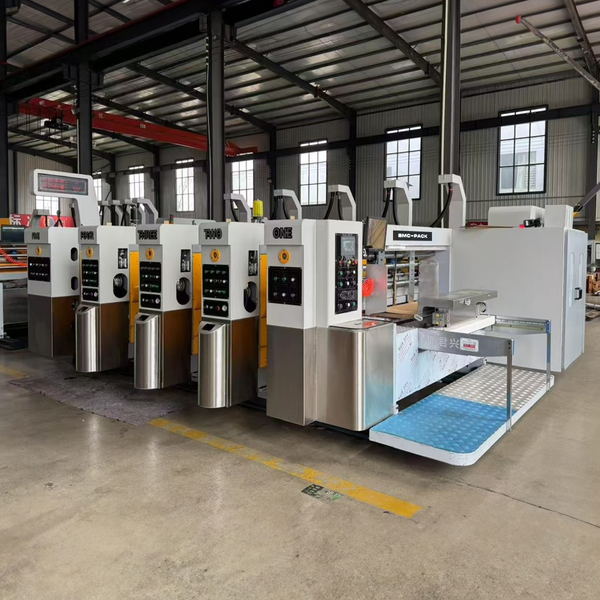

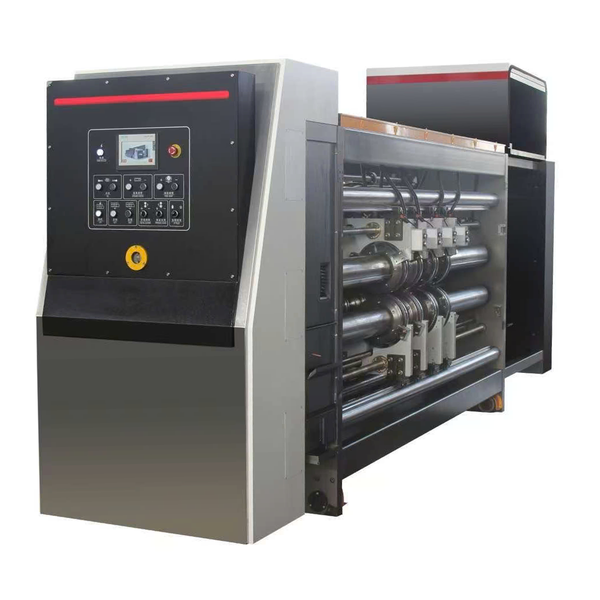

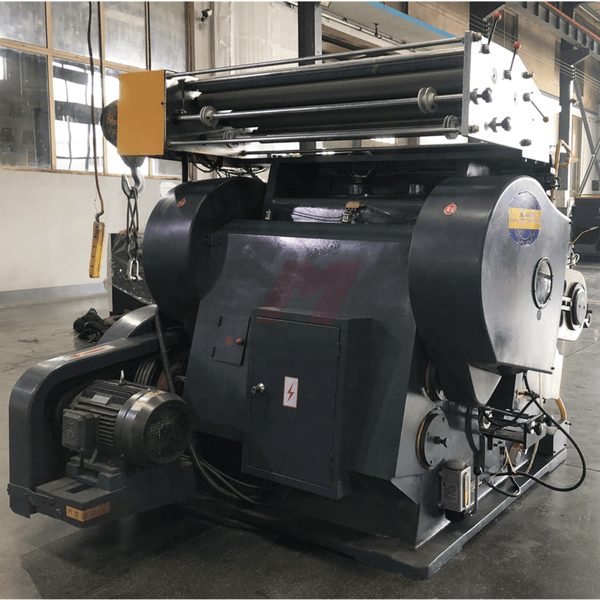

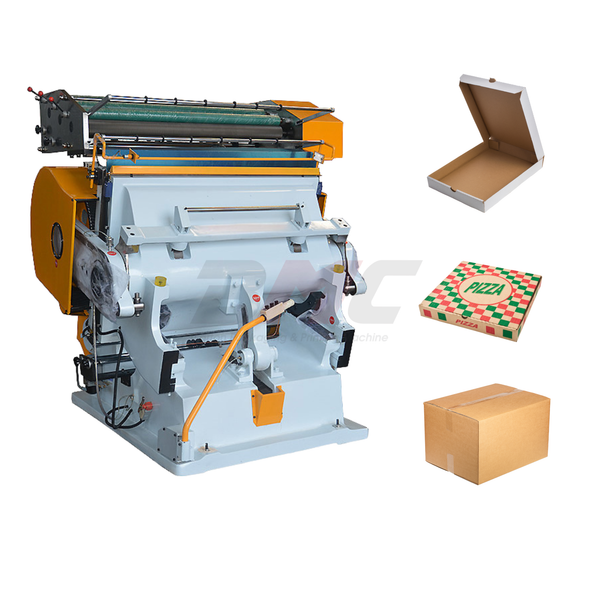

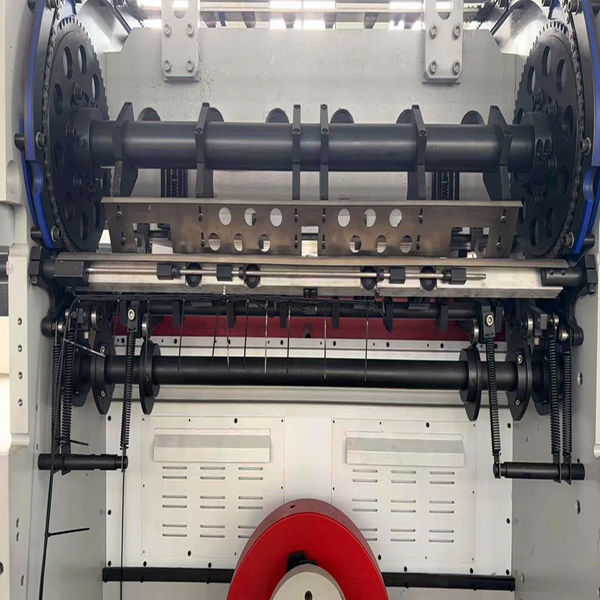

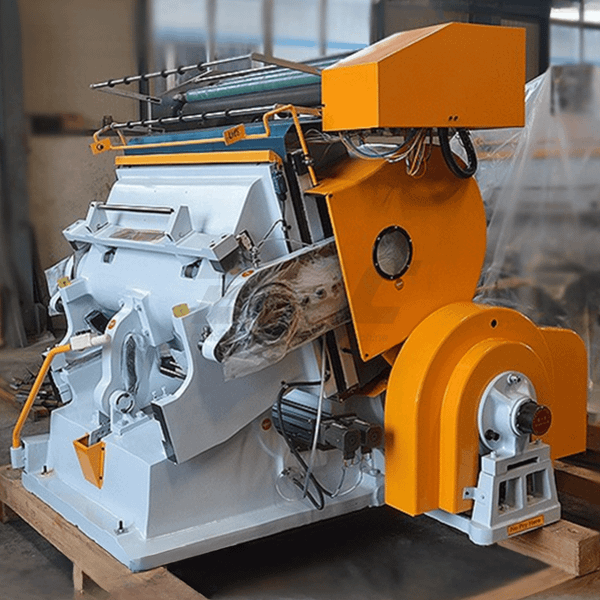

- flatbed Creasing and Die Cutting Machine
- rotary die cutter
- Flexo Printer Slotter Die Cutter systems
Step 4 — Verify print-to-cut synchronization in die-cut / die cutting operations
In any modern flexo printer or Flexo Printer Slotter Die Cutter system, the timing between printing and die-cut cylinders must be perfectly synchronized. Even a 0.1 mm shift in rotation causes the printed image and die cutting outline to misalign.
Technicians should:
- Reset encoder values
- Perform cam alignment
- Scan timing marks

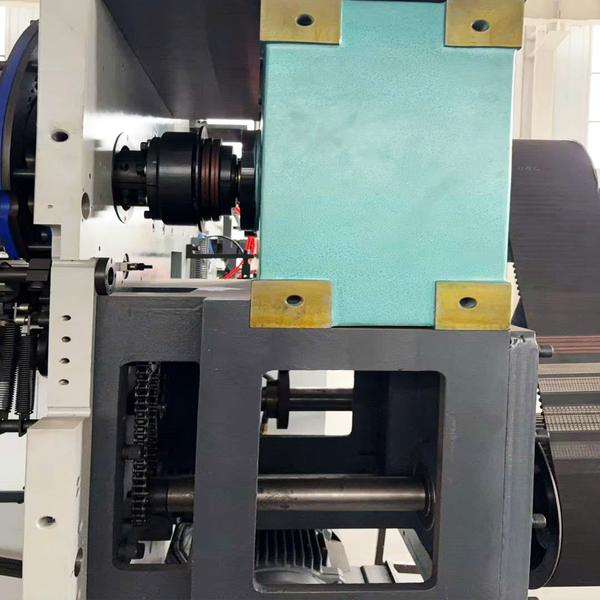

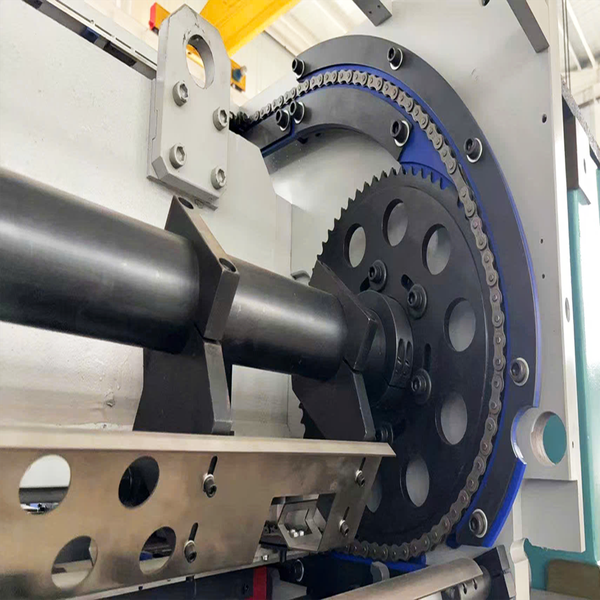

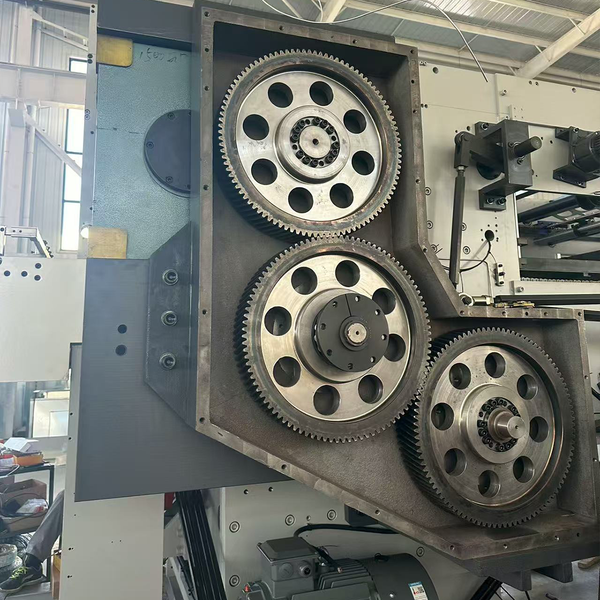

- Check backlash on gear trains
This step is essential when running high-volume Corrugated Carton or custom Pizza Box orders where registration accuracy must remain stable across thousands of sheets.

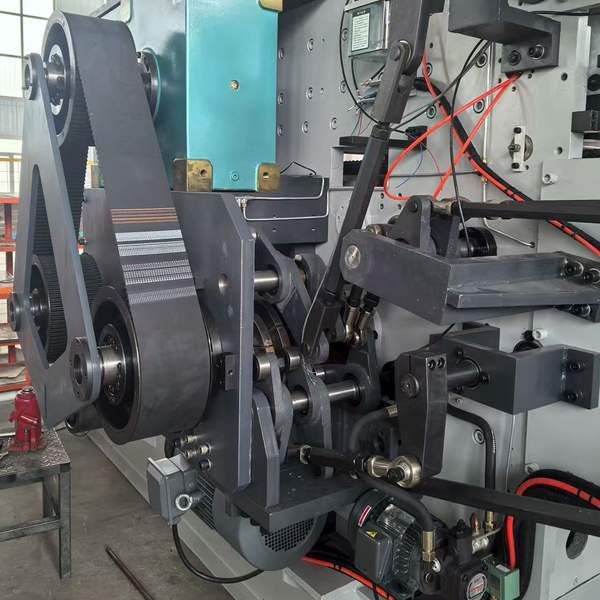

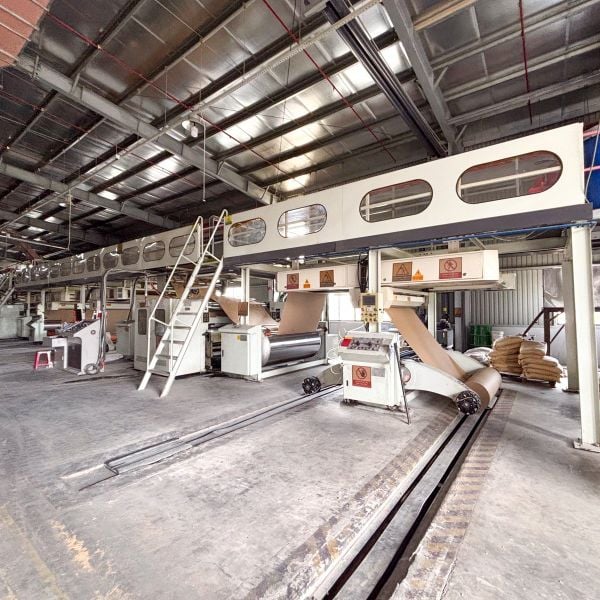

Step 5 — Inspect sheet moisture and tension from Corrugated Cardboard Production Line
If moisture is too high or too low, the sheet warps, causing immediate die cutting deviation.
From the Single Facer to Double Facer, moisture must remain within ±2% tolerance to ensure perfect sheet flatness before entering the flexo printer or rotary die cutting unit.
Warped sheets = misaligned die-cut results every time.
Step 6 — Check side register and front stop accuracy
Side register drift is a silent killer in die cutting quality.
BMC Pack recommends:
- Adjusting front-stop timing
- Ensuring linear guide lubrication
- Recalibrating side pullers
- Stabilizing vacuum intake
Factories using BMCPack machinery typically experience up to 60% fewer misalignment issues after proper side-register calibration.
Step 7 — Examine bearer rings and impression cylinder wear
Worn bearer rings cause oscillation during rotary die cutting, leading to “walking cuts”—cuts that shift left and right across the sheet.
Replace or re-machine bearer rings when:
- Excessive play is detected
- Sheet crush marks appear
- Cutting depth varies across the sheet
This applies to all rotary die cutter and flatbed Creasing and Die Cutting Machine systems.

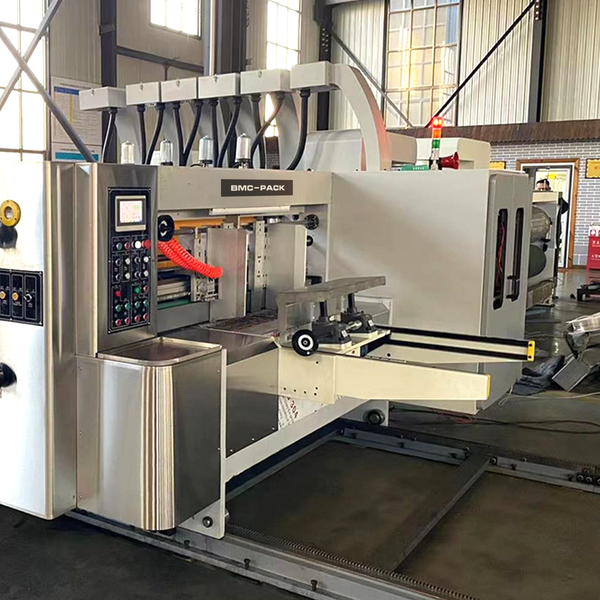

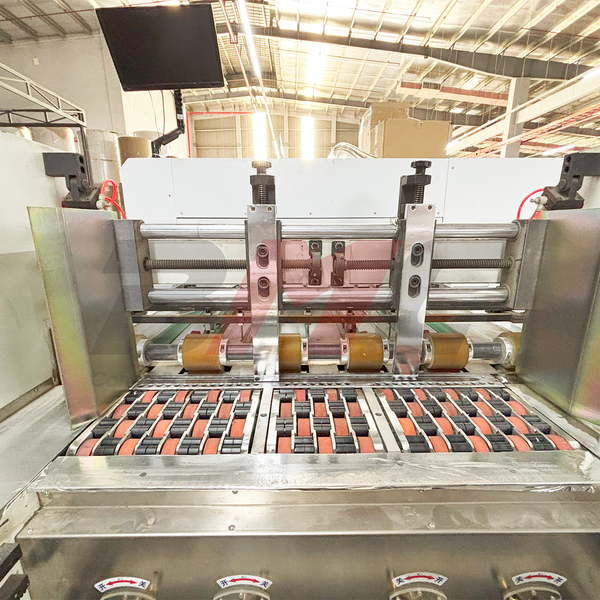

Step 8 — Stabilize the transfer system (critical for Flexo Printer & die cutting combo)
A stable Servo Vacuum Transfer is required to keep sheets perfectly aligned between printing and die-cut stations.
Vibration or uneven suction causes drift at high speeds, especially on lightweight Corrugated Carton.
Recommended tuning includes:
- Calibrating vacuum turbine speed
- Cleaning transfer belts
- Checking suction hole blockage
- Synchronizing servo motors
Step 9 — Evaluate tooling accuracy with test sheets
Run 20–50 sheets on the flexo printer + die cutting machine and measure:
- Cutting center alignment
- Blade-to-print alignment
- Slot position accuracy
Record deviations and adjust the pressure, side guides, or anilox-to-plate timing accordingly.
Step 10 — Reconfirm everything under real production speed
Never finalize calibration at low RPM.
Misalignment sometimes appears only at high-speed industrial output, especially on integrated systems with:
- flute laminator
- folder gluer stitcher making machine
- sticher and gluer machine
- Carton Printing Machine
- Flexo Printing Machine
Real production speed reveals the true behavior of the die-cut mechanism.
Extended section: Real-world applications, ROI benefits, productivity gains and why factories choose BMC Pack
Perfect accuracy during die-cut, die cutting, and die-cutting operations is essential for packaging manufacturers serving high-demand sectors such as FMCG, electronics, e-commerce logistics, and food packaging (especially Pizza Box producers). When misalignment is eliminated, factories not only reduce waste but also dramatically increase output uniformity.
Factories running flexo printer + rotary die cutter or flatbed Creasing and Die Cutting Machine under BMC Pack standards routinely report measurable gains:
• Reduction of rejected sheets by 20–45%
• Ink & material savings up to 18%
• Higher die-board lifespan by 30–60%
• Machine uptime increased by 25–40%
• Labor cost reduction due to fewer manual adjustments
By incorporating precise die cutting controls, 3/5/7 ply Corrugated Cardboard Production Line calibration, and stable sheet feeding, factories see immediate ROI improvements.
BMC Pack provides powerful synergy across the entire workflow:
- From Single Facer and Double Facer
- To high-precision flexo printer units
- To converting systems like rotary die cutting, flatbed creasing and die cutting, and folder gluer stitcher making machine
This integrated engineering eliminates the typical inconsistencies found in mixed-brand production lines.
Key ROI advantages when partnering with BMC Pack:
• Reduced operator intervention → lower labor cost
• Optimized pressure & timing → reduced wear on tooling
• Stable feeding → fewer stoppages and higher hourly output
• Accurate Servo Vacuum Transfer → perfect print-to-cut registration
• Improved carton quality → stronger brand reputation & customer retention
Whether producing export-grade Corrugated Carton, lightweight Pizza Box, or custom die-cut creative packaging, factories using BMCPack equipment experience higher reliability and smoother long-term operation.
Conclusion
Troubleshooting die-cut, die cutting, and die-cutting misalignment is essential for any modern packaging workflow. With proper calibration, synchronized feeding, controlled pressure, die board maintenance, correct moisture control and precision engineering from BMC Pack and BMCPack, factories can eliminate cutting defects, stabilize production and achieve world-class results. A well-optimized flexo printer + die cutting system ensures higher productivity, less waste, reduced downtime and superior packaging quality across Corrugated Carton, Pizza Box, and all industrial carton applications.
