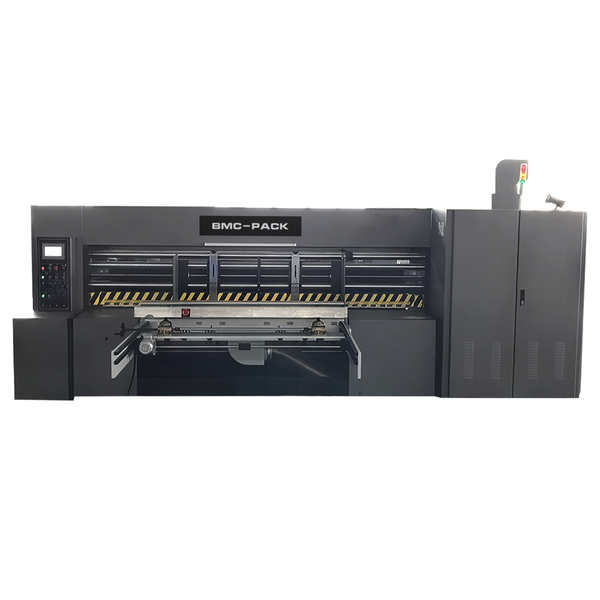

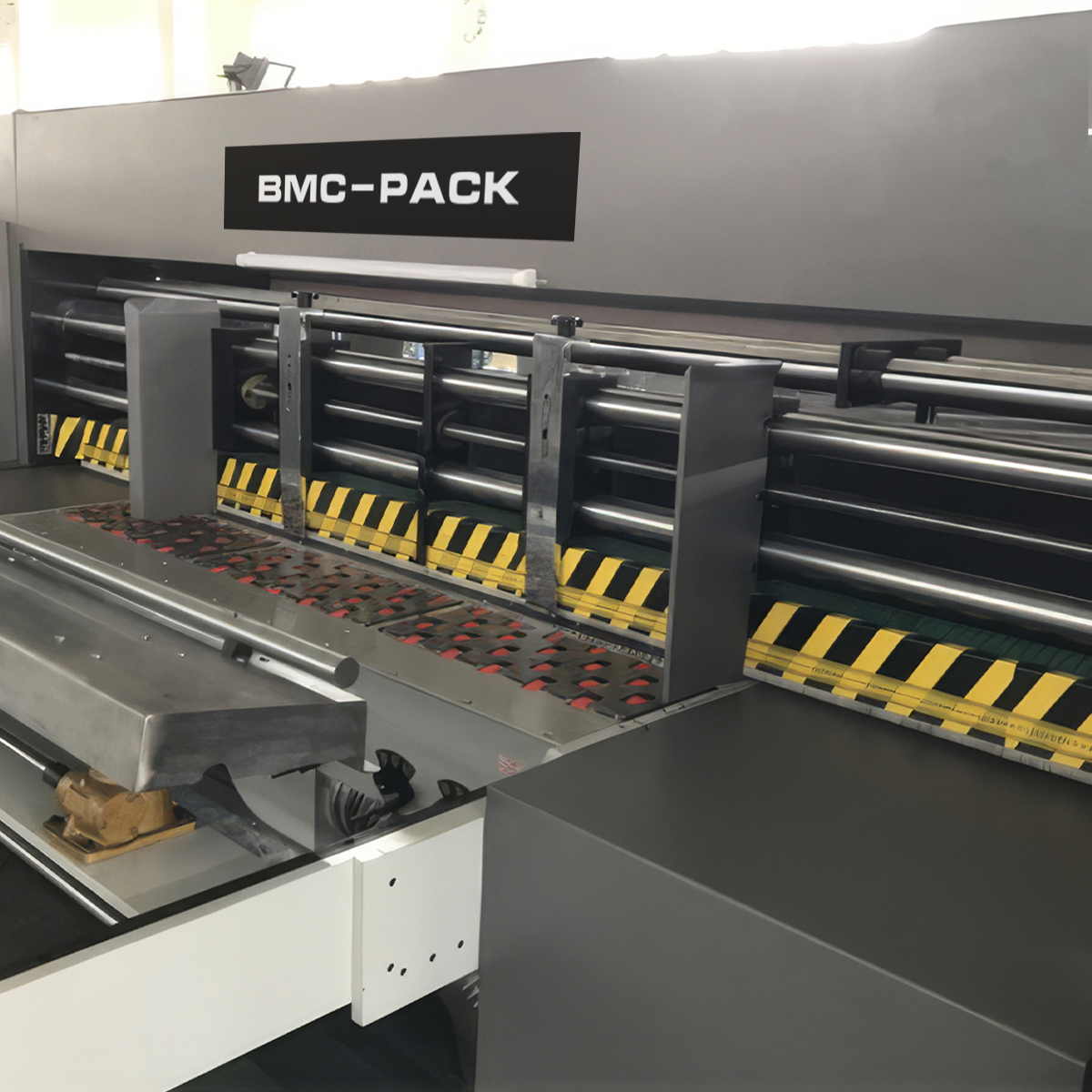

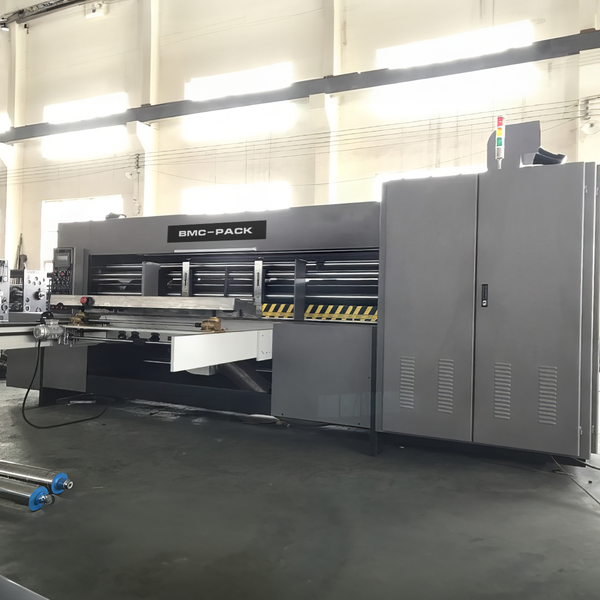

The Vacuum Rotary Die Cutting Machine – Type II is engineered for high-volume corrugated packaging plants that require speed, precision, and long-term reliability. As factories upgrade their Corrugated Cardboard Production Line and Corrugated Carton Production Line, the demand for fast and accurate Rotary Die Cutting increases dramatically—especially for applications involving Pizza Box, food packaging, e-commerce cartons, and retail display boxes. The Vacuum Rotary Die Cutting Machine – Type II from BMC Pack (BMCPack) delivers outstanding performance with its vacuum-assisted feeding, high-precision steel die cylinder, automatic eccentric lifting system, and reinforced structural components designed for demanding 24/7 production environments.
Designed to integrate smoothly with upstream systems such as Flexographic Printer, Flexo Printer, Flexographic Printing Machine, Flexo Printer Slotter Die Cutter, Carton Box Machine, Single Facer, Double Facer, and downstream finishing equipment like Folder Gluer Stitcher, folder gluer stitcher making machine, and Packaging Box Making Machine, the Vacuum Rotary Die Cutting Machine – Type II enables manufacturers to achieve higher throughput while maintaining excellent Creasing and Die Cutting precision. With support for 3/5/7-ply corrugated sheets, vacuum roller feeding, and a planetary gear adjustment structure, it provides consistent accuracy and reduced waste in mass production.
Technical Specifications of the Vacuum Rotary Die Cutting Machine – Type II
Model 1400 × 2400 (Based on uploaded technical files)
Item | Specification |
Design Speed | 120 sheets/min |
Actual Speed | 100 sheets/min |
Max Feeding Size | 1400 × 2600 mm |
Min Feeding Size | 450 × 750 mm |
Max Die Cutting Size | 1400 × 2400 mm |
Die Cylinder Diameter | 445 mm |
Motor Power | 11 kW inverter |
Die Cutting Accuracy | ≤ ±1.0 mm |
Machine Dimensions | 4.6 × 2.1 × 1.3 m |
Wall Thickness | 14 mm |
How the Vacuum Rotary Die Cutting Machine – Type II Works

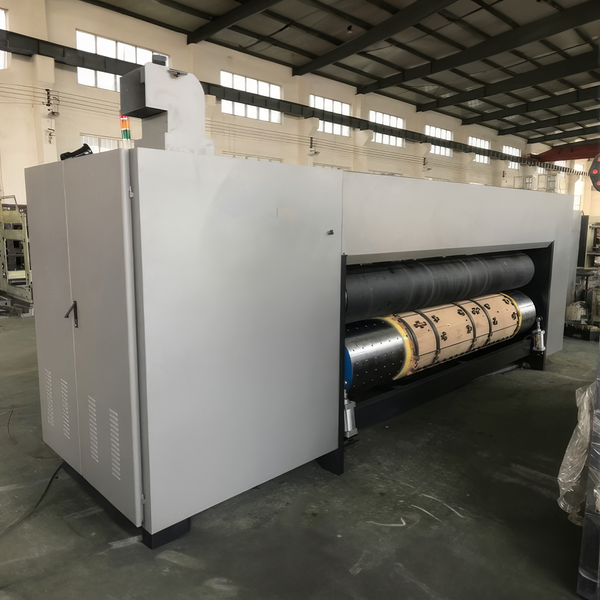

The Vacuum Rotary Die Cutting Machine – Type II uses a reinforced vacuum roller feeding system to stabilize warped or uneven corrugated sheets. Airflow from an adjustable blower ensures smooth entry into the die-cutting section. The die cylinder and rubber cushion roller are made from hard-chromed steel and balanced to reduce vibration, ensuring consistent Rotary Die Cutting accuracy even at high speed.
An automatic eccentric lifting mechanism disengages the die cylinder when not cutting, reducing wear and extending the lifetime of the rubber blanket and die blades. The planetary gear system allows horizontal die adjustments up to 10 mm, useful for high-precision Creasing and Die Cutting operations.
Comparison: Vacuum Rotary Die Cutting Machine – Type II vs Conventional Rotary Die Cutter
Feature | Vacuum Rotary Die Cutting Machine – Type II | Conventional Rotary Die Cutter |
Feeding System | Vacuum roller feeding | Friction / belt feeding |
Accuracy | ≤ ±1.0 mm | ±1.5 mm |
Die Cylinder Material | Hardened steel + chrome | Standard steel |
Cushion Lifting | Automatic pneumatic | Manual or basic air lift |
Ideal Applications | Pizza Box, retail boxes, food boxes | Standard shipping boxes |
Waste Rate | Low | Higher |
Integration | Full line with Flexo Printer and Slotter and Die Cutting | Partial integration |
Advantages of the Vacuum Rotary Die Cutting Machine – Type II
High-Speed Rotary Die Cutting
The machine reaches up to 120 sheets/min while maintaining consistent cutting depth and stable sheet control, outperforming traditional die cutters in mass production environments.
Superior Creasing and Die Cutting Precision
With a static-balanced die cylinder and pneumatic cushion lifting, each sheet receives consistent pressure distribution—critical for Pizza Box, display boxes, and branded corrugated cartons.
Vacuum Roller Feeding System
Ideal for 3/5/7-ply boards, warped sheets, or large-format corrugated materials. Ensures zero misalignment entering the die section.
Easy Integration With Full Corrugated Lines
Perfect for full-automation plants running Flexo Printing Machine, Flexo Printer Folder Gluer, sticher and gluer machine, Flute Laminator, and other packaging modules.
Long-Term Cost Savings
Lower maintenance, extended die life, reduced operator errors, and minimized material waste contribute to significant cost savings over time.
Extended Section – Real Applications, ROI, Labor Savings, Production Efficiency, and BMC Pack Partnership Benefits
The Vacuum Rotary Die Cutting Machine – Type II is widely used in facilities producing large batches of Corrugated Carton, Pizza Box, fast-food packaging, and branded e-commerce boxes. With its automatic vacuum feed, the machine drastically reduces manual sheet correction, lowering operator fatigue and improving consistency across shifts.
Manufacturers typically see ROI improvements thanks to:
- Higher hourly output compared to manual or friction-fed die cutters
- Reduced waste due to better sheet feeding and stable Rotary Die Cutting accuracy
- Lower labor involvement, as one operator controls the entire system
- Compatibility with existing Corrugated Cardboard Production Line investments
- Higher selling price for precisely cut, premium packaging products
Efficiency further improves when paired with a Flexographic Printer or Flexo Printer, allowing inline operations: printing → slotting → die-cutting → transfer → Folder Gluer Stitcher. This minimizes handling, increases throughput, and streamlines the carton-making process.
Factories partnering with BMC Pack (BMCPack) benefit from:
- Customized machine configurations
- On-site installation and international support
- Fast spare parts delivery
- 25+ years of manufacturing experience
- Compatibility with global safety & performance standards
Conclusion – Why the Vacuum Rotary Die Cutting Machine – Type II Is the Best Choice
The Vacuum Rotary Die Cutting Machine – Type II is the optimal solution for manufacturers seeking high-speed, high-precision rotary die-cutting with vacuum-assisted feeding. Its advanced structure ensures excellent Creasing and Die Cutting performance, extended machine life, and low operating costs. Perfect for Corrugated Carton, Pizza Box, and all high-quality packaging applications, this machine integrates smoothly into advanced Corrugated Cardboard Production Line workflows.
For factories aiming to improve output speed, reduce labor dependency, and deliver premium packaging results, the Vacuum Rotary Die Cutting Machine – Type II from BMC Pack stands as a superior investment for long-term production stability.
