In the evolving world of corrugated packaging, precision, efficiency, and automation define the success of modern manufacturing plants. Among all the technological breakthroughs, the Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer stands out as one of the most critical and transformative innovations in the corrugated carton production line. It bridges high-speed flexographic printing, precise slotting, accurate folding, and reliable gluing — all in a single streamlined operation.
As a senior engineer with more than two decades of experience in the corrugated cardboard production line industry, I have witnessed the transformation from conventional semi-manual systems to fully automatic, intelligent packaging solutions. The Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer not only represents an evolution of machinery but a revolution in productivity and print quality. With the integration of Vacuum Transfer Fully Automatic Servo Flexo Printing Machine, servo-driven controls, and computer-based automation, manufacturers can now achieve exceptional consistency while minimizing waste and downtime. This innovation defines the future of carton manufacturing — where precision engineering meets operational excellence.
1. The Core Mechanism of the Flexo Printer Folder Gluer
At its core, the Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer performs multiple key processes — printing, slotting, folding, and gluing — seamlessly in one continuous flow. This machine eliminates the need for separate equipment and manual intervention, drastically improving throughput and accuracy. Advanced servo motors ensure that every stage, from creasing and die cutting to final gluing, operates with perfect synchronization.

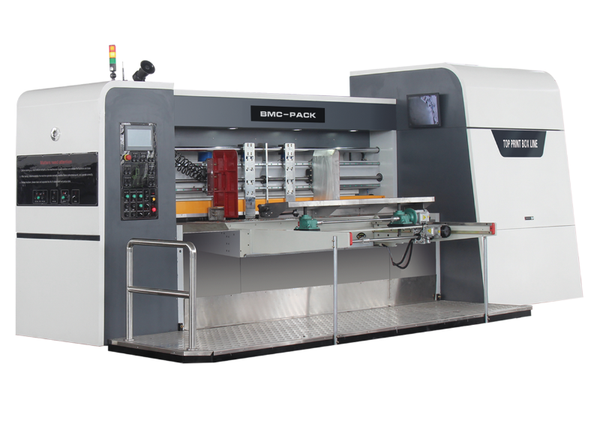

Modern models like the NDVT-925FFG and NDVT-1224FFG utilize Servo Vacuum Transfer technology, a critical upgrade that enhances paperboard feeding precision. The ceramic vacuum wheels provide uniform pressure and stability, preventing slippage or misalignment during high-speed operations. This system ensures smooth transport of the sheets through the Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer, maintaining flawless registration even at speeds exceeding 300 sheets per minute.
2. Technological Integration and Intelligent Control
The sophistication of today’s Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer lies in its integration of electronic, pneumatic, and mechanical systems through an intelligent control network. The machine’s CNC-based control system supports automated troubleshooting, production management, and even remote maintenance. This allows technicians and operators to minimize downtime while maximizing uptime.
The adoption of Flexographic Printer technology enables precise color reproduction using eco-friendly water-based inks, ensuring vibrant yet sustainable printing. Meanwhile, Carton Printing Machine elements embedded in the system enable rapid plate mounting with motorized phase alignment. This eliminates the trial-and-error approach of old mechanical setups, making job changeovers faster and more efficient — a vital advantage in today’s fast-moving packaging market.
3. Mechanical Precision and Durability
Every section of the Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer reflects years of accumulated engineering excellence. The slotting unit, equipped with a Flatbed Creasing and Die Cutting mechanism, ensures that every fold and crease is perfectly aligned. The use of hardened steel components and precision bearings guarantees long-term durability, even in continuous multi-shift operations.
The counter ejector — a highlight of modern design — integrates a down-stacking system for efficient product handling. This ensures that finished boxes are neatly stacked and ready for bundling, reducing manual handling and maintaining consistent output. With precision parameters of ±1.0 mm for slotting and ±1.5 mm for folding, this machine delivers unmatched accuracy in every carton produced.
4. Energy Efficiency and Environmental Responsibility
The Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer doesn’t just deliver performance — it delivers sustainability. The Corrugated Carton Production Line today faces growing environmental regulations, pushing manufacturers to reduce waste, noise, and power consumption. This machine answers that call. Servo-driven components and vacuum transfer systems reduce friction losses, while smart automation optimizes power usage during idle cycles.
Water-based printing, coupled with recyclable corrugated materials, ensures compliance with global environmental standards. When integrated with a 3/5/7 Ply Corrugated Cardboard Production Line, this machine completes a closed-loop, sustainable production ecosystem — from raw paper roll to finished printed carton.
5. Productivity and Economic Impact
From an economic perspective, the Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer is a powerhouse. Its ability to combine four major processes — printing, slotting, folding, and gluing — reduces the overall footprint of the production floor by up to 40%. This consolidation minimizes maintenance costs and maximizes production output.
In terms of ROI, companies investing in Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer technology can expect returns within 18 to 24 months due to its operational efficiency and product quality consistency. With fewer operators required and reduced wastage, it drastically lowers labor costs. The flexibility to handle different carton sizes and designs also gives manufacturers a competitive edge in the global packaging industry.
6. Seamless Integration into the Corrugated Ecosystem
In a fully automated Corrugated Cardboard Production Line, the Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer acts as the final and most crucial stage. After the Single Facer, Double Facer, and Flute Laminator complete the sheet forming process, the Flexo unit takes over to transform plain corrugated sheets into printed, folded, and glued boxes — ready for logistics and product packaging.
The modular design of the Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer allows it to integrate easily with pre-feeders, stackers, and strappers, forming a unified packaging box making machine line. Whether paired with a Rotary Die Cutter or a Folder Gluer Stitcher Making Machine, the result is a smooth and uninterrupted production cycle that guarantees high-speed, high-quality outcomes.
7. The Future of Flexo Printing and Automation
As automation and AI continue to reshape manufacturing, the Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer remains at the forefront of smart packaging solutions. Equipped with intelligent sensors, data logging, and real-time diagnostics, the next generation of Vacuum Transfer Flexo Printing Machine models will leverage predictive maintenance and automatic adjustment technologies to achieve near-zero downtime.
In the years ahead, we can expect hybrid systems combining Vacuum Transfer Fully Automatic Servo Flexo Printer Slotter Die Cutter technology with Folder Gluer Stitcher modules under a unified digital control platform. This integration will create smarter, faster, and more adaptive carton manufacturing systems — a true hallmark of Industry 4.0 for the packaging sector.
Conclusion
In conclusion, the Vacuum Transfer Fully Automatic Servo Flexo Printer Folder Gluer is far more than a machine — it is the culmination of decades of innovation, engineering precision, and deep understanding of corrugated packaging demands. It embodies the synergy of automation, sustainability, and quality, setting new benchmarks in the corrugated carton production line industry.
For businesses seeking reliable, efficient, and future-ready packaging solutions, investing in the Flexo Printer Folder Gluer means investing in long-term operational excellence. It’s not simply about making boxes — it’s about building smarter factories that can meet tomorrow’s packaging challenges today.
The convergence of Servo Vacuum Transfer, advanced control systems, and high-speed automation ensures that this technology remains a central pillar in the global movement toward intelligent, sustainable manufacturing. As both an engineer and industry leader, I can confidently affirm — the Flexo Printer Folder Gluer isn’t just the future of packaging. It is the present — efficient, intelligent, and unstoppable.

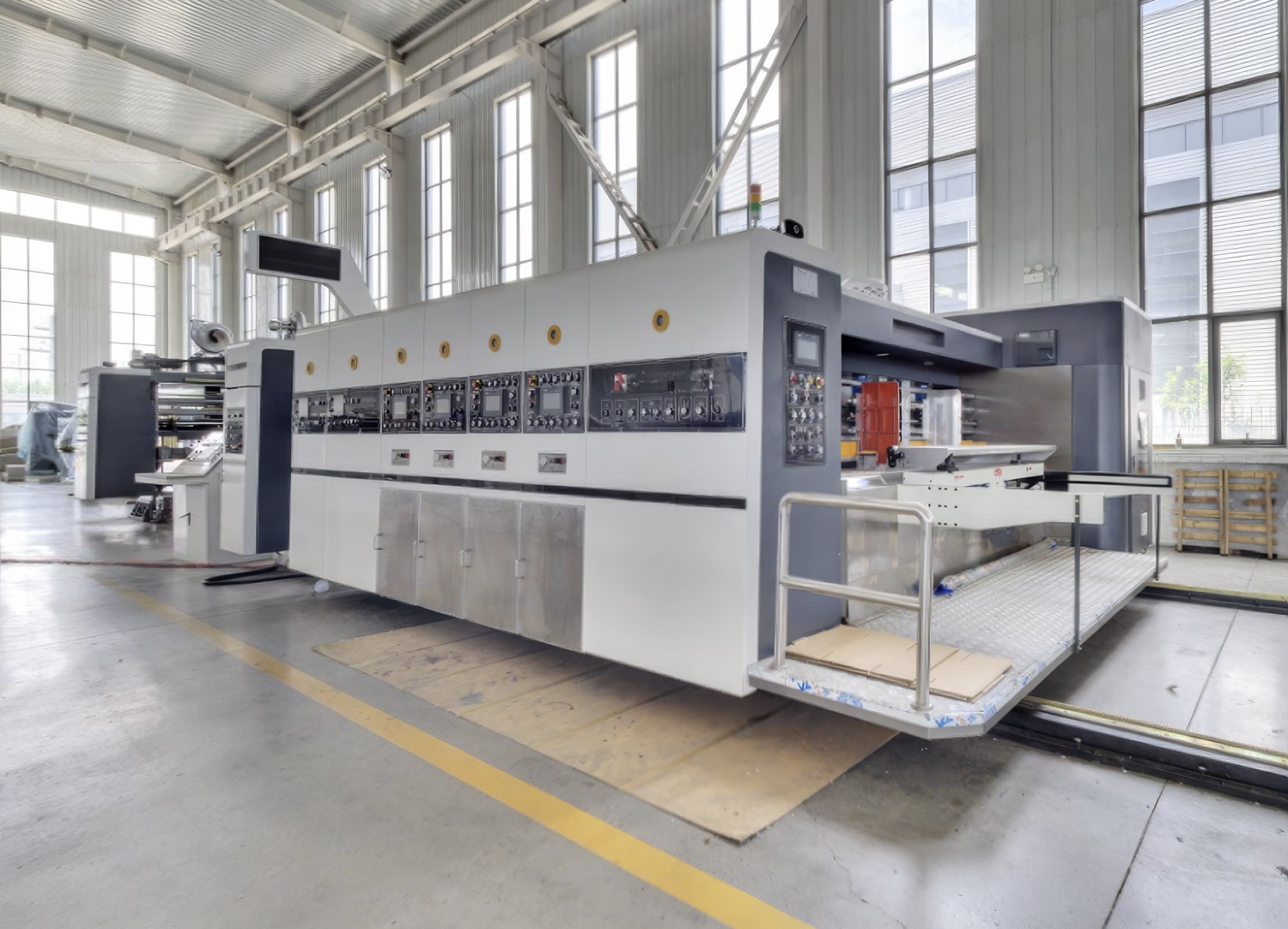

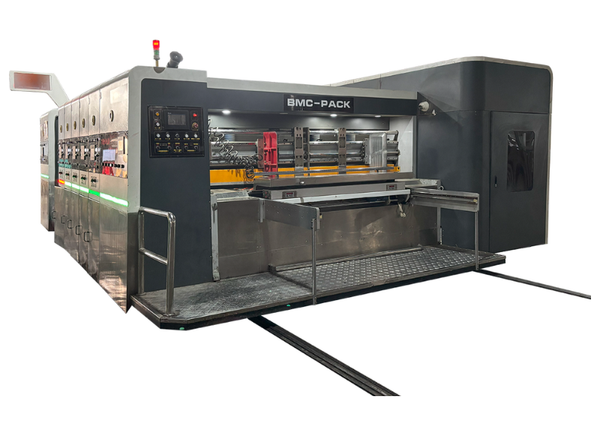

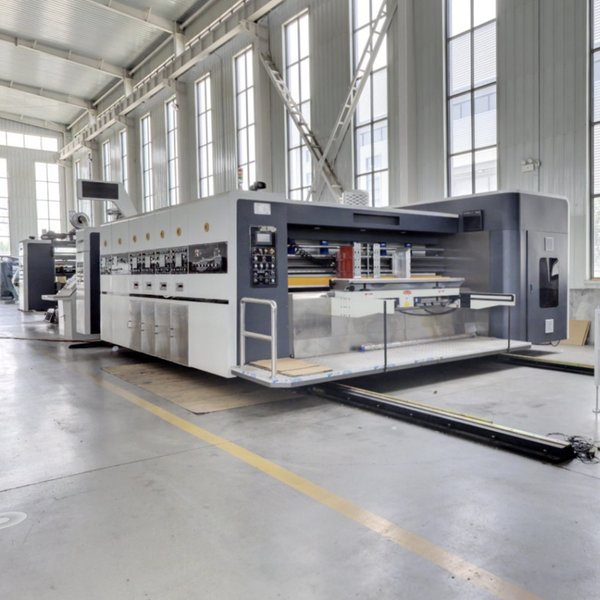

Extended Overview – NDVT-920FFG / NDVT-1224FFG Flexo Printer Folder Gluer
The NDVT-920FFG and NDVT-1224FFG Flexo Printer Folder Gluer machines are designed to be the core of a modern corrugated carton packaging plant. They combine high-precision printing, automatic slotting, folding, and gluing into one fully synchronized production flow. With advanced servo drive control, vacuum transfer, and quick-change plate systems, these models deliver not only superior printing registration but also remarkable stability and durability for long-term industrial use.
In practical operation, both models demonstrate outstanding return on investment (ROI) through three major advantages:
- Reduction in labor costs: The integrated feeding, folding, and gluing sections allow one operator to manage the entire process, eliminating multiple manual stations. Compared with traditional semi-automatic setups, factories typically reduce 40–60% of manpower requirements.
- Increased productivity: With a designed speed of up to 350 pieces per minute and real-time servo synchronization, production output can increase by 2–3 times compared to conventional printing-slotting-stitching lines.
- Lower production cost: The servo-driven vacuum transfer ensures minimal waste, precise alignment, and reduced downtime for adjustment, saving on both materials and maintenance costs.
Both NDVT-920FFG and NDVT-1224FFG support a wide range of corrugated board thickness (2–11 mm) and plate thickness up to 3.94 mm, making them suitable for diverse packaging applications—from e-commerce delivery boxes and FMCG packaging to industrial and export cartons. The folding and gluing precision of ±1.5 mm ensures perfect box formation even at high speed, while the dust-extraction and quick-mounting printing system improve working hygiene and changeover efficiency.
Technical Specifications Summary
Parameter | NDVT-920FFG | NDVT-1224FFG |
Max Print Size | 900 × 2500 mm | 1200 × 2800 mm |
Min Print Size | 300 × 650 mm | 350 × 690 mm |
Designed Speed | 350 pcs/min | 350 pcs/min |
Servo QVT | 8 sets | 8 sets |
Precision (Print/Slot/Die-Cut/Fold) | ±0.1 / ±1.0 / ±1.0 / ±1.5 mm | ±0.1 / ±1.0 / ±1.0 / ±1.5 mm |
A | Max | 1000 | 1100 |
Min | 150 | 150 | |
B | Max | 1000 | 1100 |
Min | 150 | 150 | |
A + B | Min | 300 | 300 |
C | Max | 2420 | 2720 |
Min | 620 | 650 | |
F | Max | 2500 | 2800 |
Min | 660 | 690 | |
X | Min | 80 | 80 |
H | Max | 900 | 1200 |
Min | 350 | 350 | |
Max print size | 900X2500 | 1200X2800 | |
Min print size | 300X650 | 350X690 | |
Servo QYT | 8 | 8 | |
Designed speed (pcs/min) | 400 | 350 | |
Working speed (pcs/min) | 350 | 300 | |
Plate Thickness (mm) | 3.94 | 3.94 | |
Suit corrugated thickness (mm) | 2~11 | 2~11 | |
Print precision (mm) | ± 0.1 | ± 0.1 | |
Slot precision (mm) | ± 1.0 | ± 1.0 | |
Die cutting precision (mm) | ± 1.0 | ± 1.0 | |
Fold gluing precision (mm) | ± 1.5 | ± 1.5 | |
Why Partner with BMC Pack
Partnering with BMC Pack (Hainan Baomingcheng Carton Packaging & Printing Machinery Co., Ltd.) means more than just purchasing a machine—it means securing a complete packaging production solution.
- Comprehensive support: From layout design, installation, and on-site training to lifetime technical service.
- Optimized cost-performance ratio: Machines are engineered in China with global-standard components (CE-certified motors, bearings, and electronics), ensuring quality equivalent to European brands at 30–50% lower investment cost.
- Sustainable growth: BMC Pack focuses on long-term collaboration, offering upgrade kits, spare parts, and 24/7 online support to ensure continuous productivity.
With the NDVT series, BMC Pack helps carton manufacturers worldwide achieve higher output, lower cost, and faster profit recovery—the true heart of modern corrugated packaging technology.
