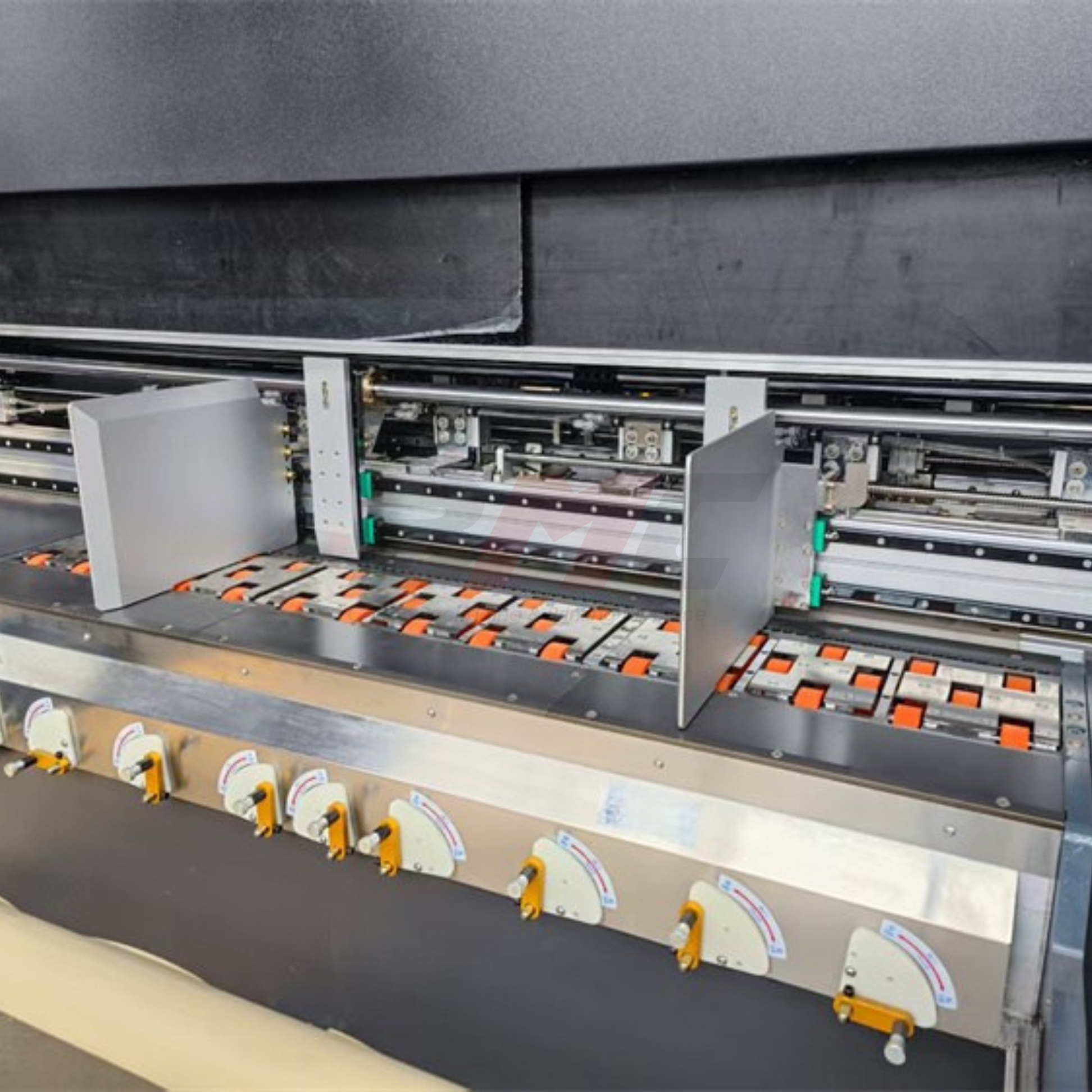

Automatic Paper Feeding: 7.5KW high-power leading edge feeder ensures accurate cardboard feeding without slipping or trailing.
Automatic Slotting & Scoring: Equipped with 2 × 500mm slotting knives, fully automatic adjustment. Slotting and scoring are completed in one pass with high efficiency.
Servo-Driven Slitting & Scoring: Independent servo-driven slitter knives and scoring wheels with pre-creasing function. Quick order change within 1–3 seconds.

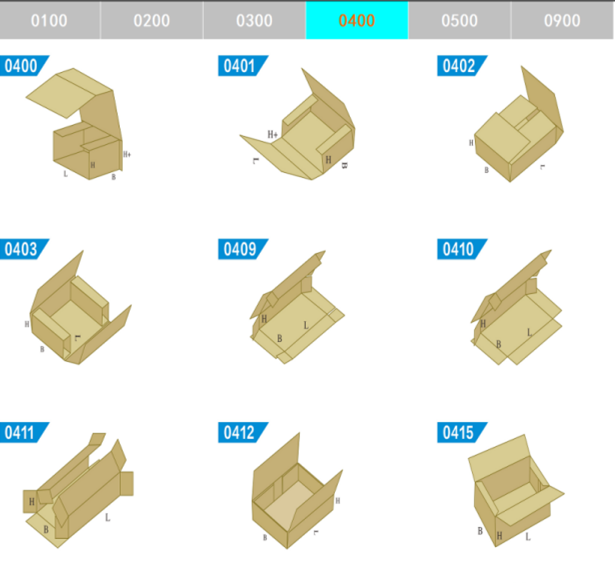

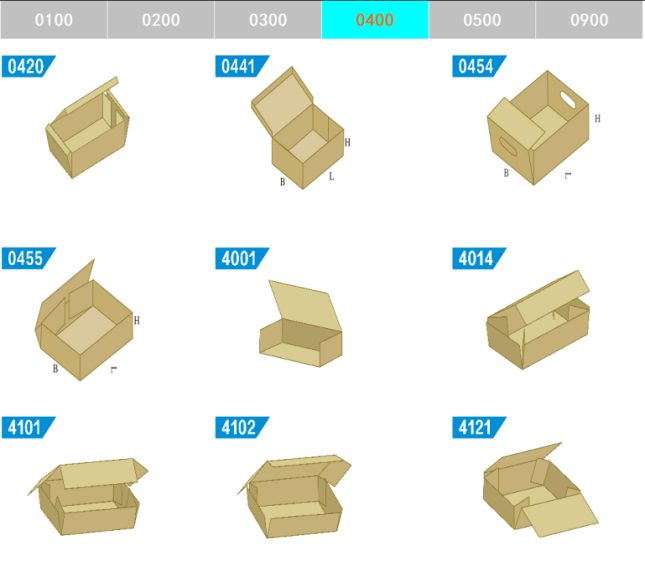

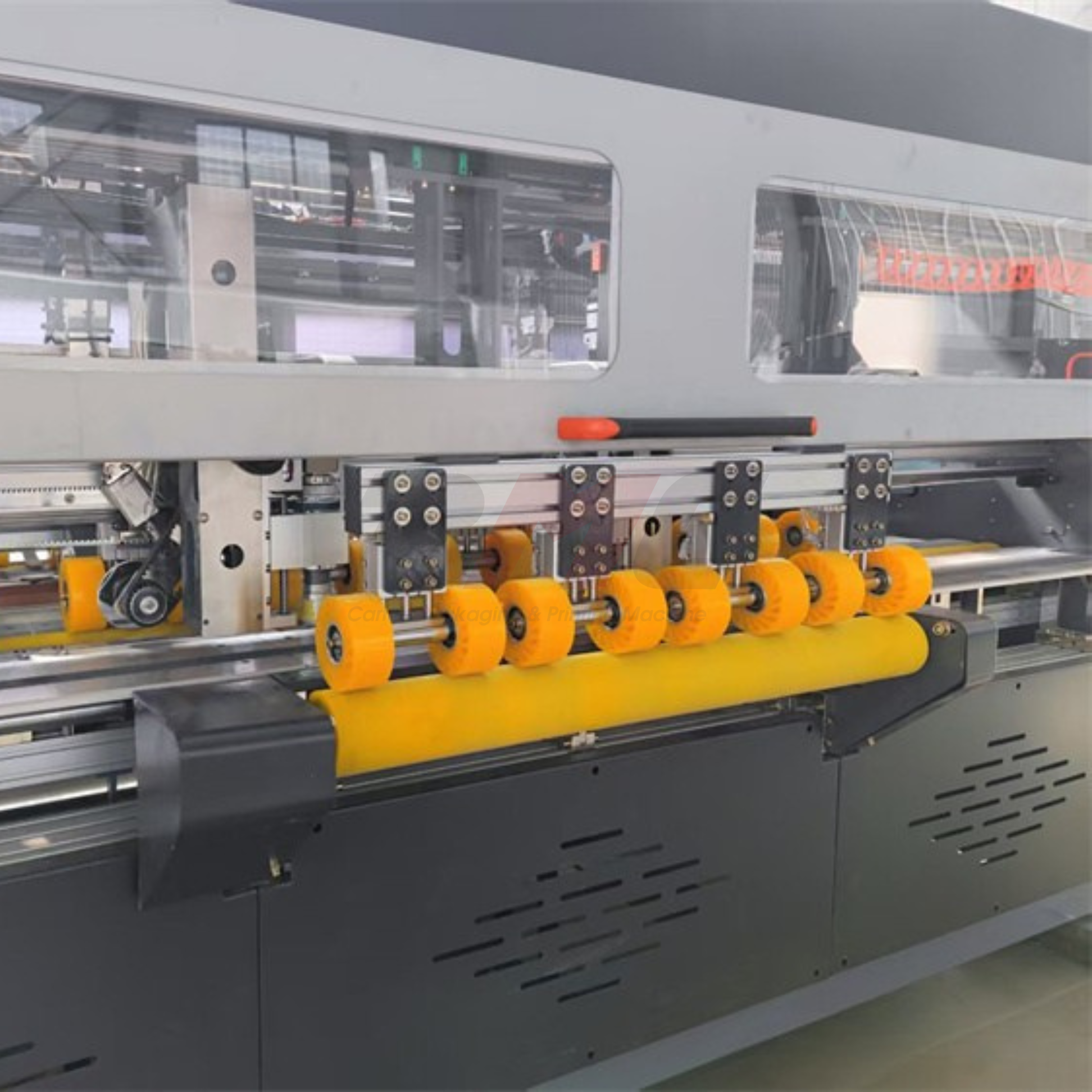

Longitudinal Slitting & Creasing: Powered creasing wheels with tungsten carbide slitter blades deliver smooth, precise cuts. Pneumatic pressure adjustment enables complex box types to be formed in a single process.
Horizontal Cutting: One active rotary cross-cutting knife trims excess cardboard, eliminating the need for an additional paper cutter.

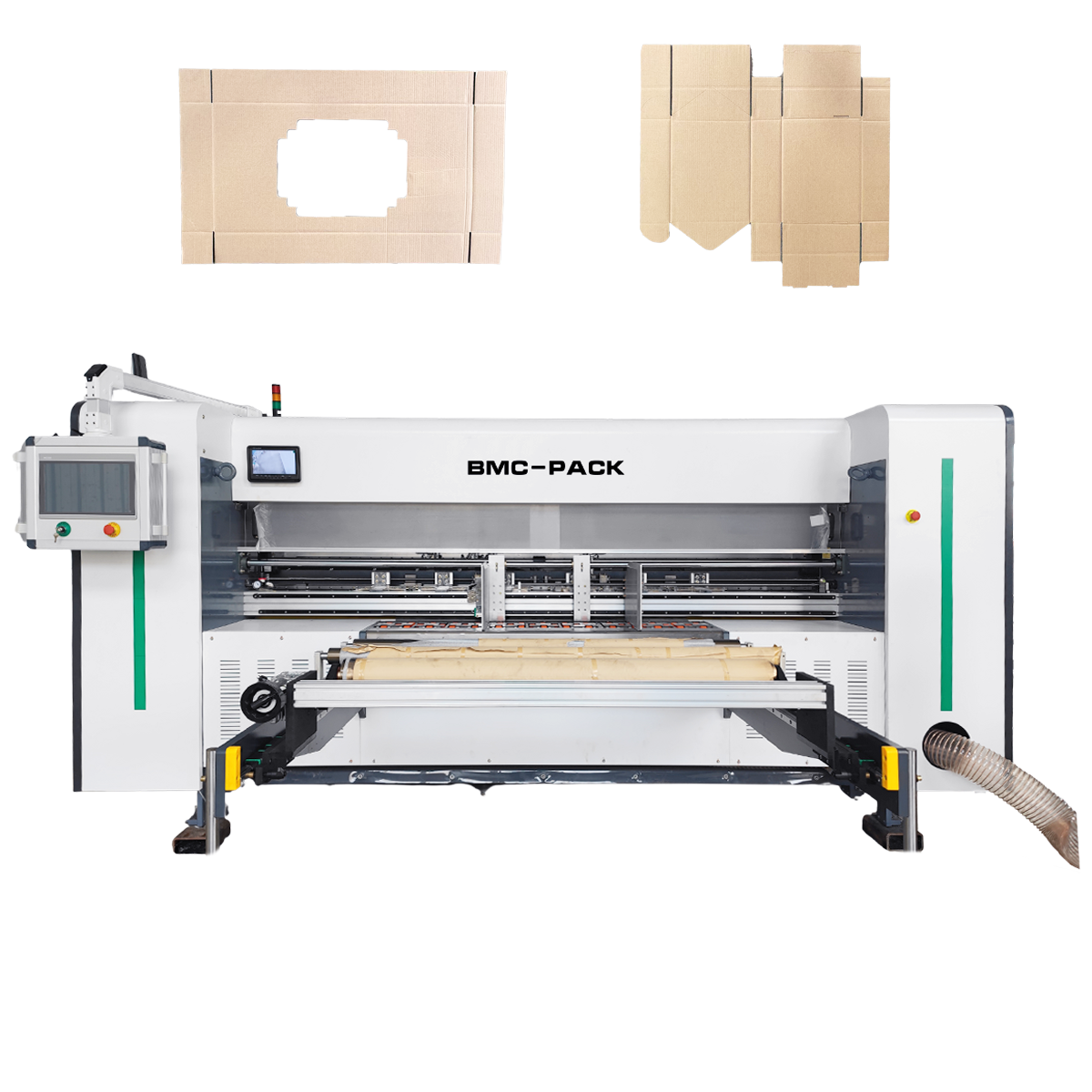

Vibrating Knife: Special vibrating knife allows precise cutting of irregular or customized box shapes.
TECHNICAL SPECIFICATIONS
| Model | ND-25000MBM |
| Max Paper Feed Size | Unlimited Length, Width 2500mm |
| Min Paper Feed Size | Length 650mm, Width 200mm |
| Distance (Left Slot to Right Slot) | Max. 2500mm, Min 30mm |
| Distance (Creasing to Creasing) | 1–2 Creasing: 35mm; 2–3 Creasing: 150mm;
3–4 Creasing: 35mm |
| Knife to Knife Distance | 1–2: 85mm; 2–3: 55mm; 3–4: 85mm |
| Change Order Time | ≤10 Seconds |
| Processing Speed | 20 PCS/min |
| Standard Slotting Knife | 2 × 500mm (Optional) |
| Slitting Blade Quantity | 4 or 6 |
| Creasing Blade Quantity | 4 or 6 |
| Cut-off Blade Quantity | 1 |
| Power | 22kW (380V ±10%, 50Hz) |
| Air Source | 0.6–0.7 MPa, Air Consumption: 75L/min |
| Overall Size L×W×H | 4080×1800×2030mm |
| Total Weight | About 3800kg |
| Paper Feed Module | 3-Axis Leading Edge Feeding |
| Vibrating Knife | 2 |
