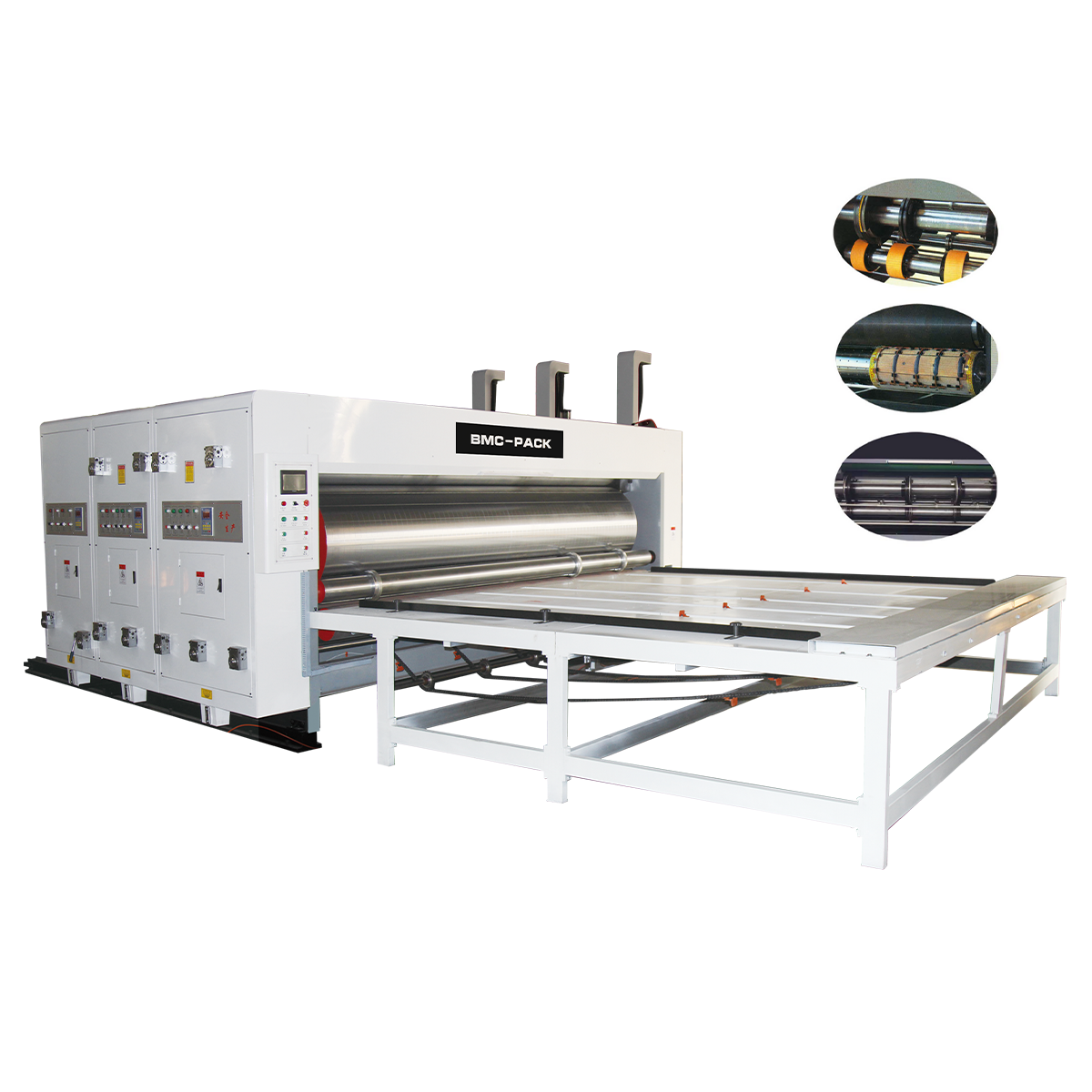

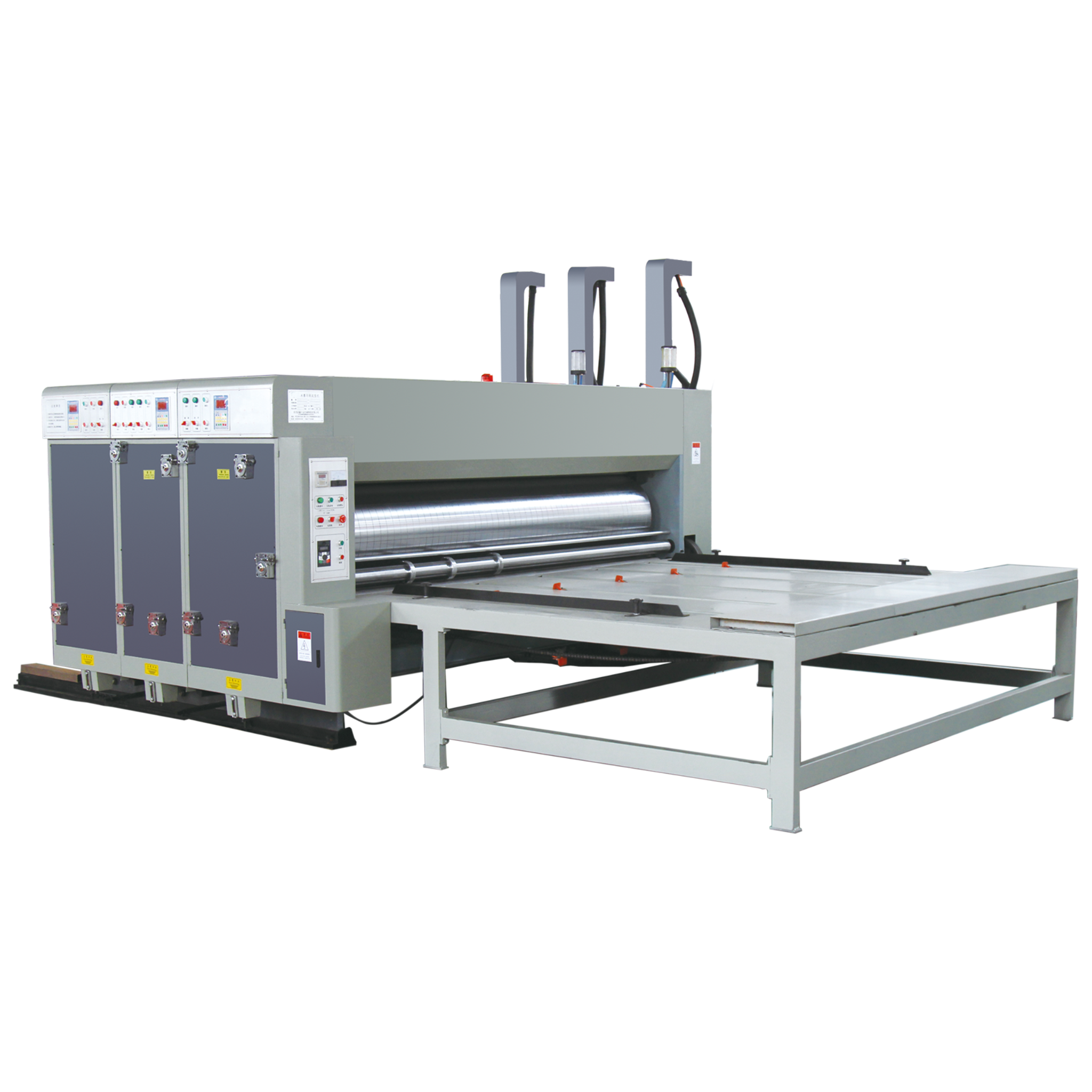

Feeder unit
◆ Semi-Automatic Chain Feeder
◆ Lateral Positioning: Ensures accurate sheet alignment.
◆ Automatic Counting: For efficient tracking and output control.

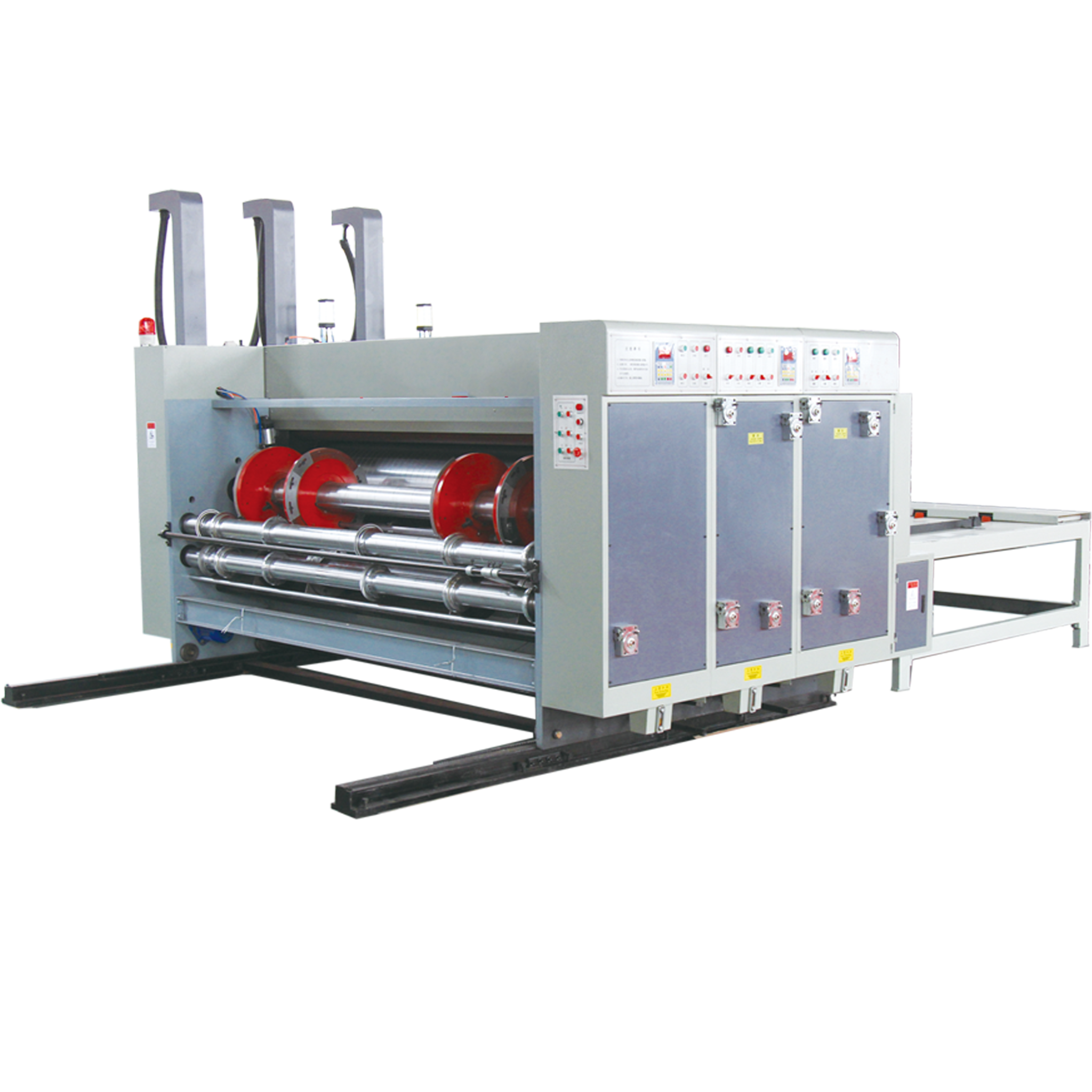

Printer unit
◆ Electric Planetary Phase Adjustment: Digital display for precise control.
◆ Mechanical Parking System: Anilox roller lifts automatically from the plate during stop.
◆ Idle Ink Roller System: Prevents ink from drying when the machine stops.
◆ Automatic Brake System: Locks the unit position after separation to maintain registration.
◆ Flexible Color Configuration: Supports 1 to 4 color combinations.
◆ Pneumatic Ink Suction System: Saves ink and simplifies cleaning.
◆ Optional Plate Hanging Device: Speeds up plate mounting, saving time and effort.

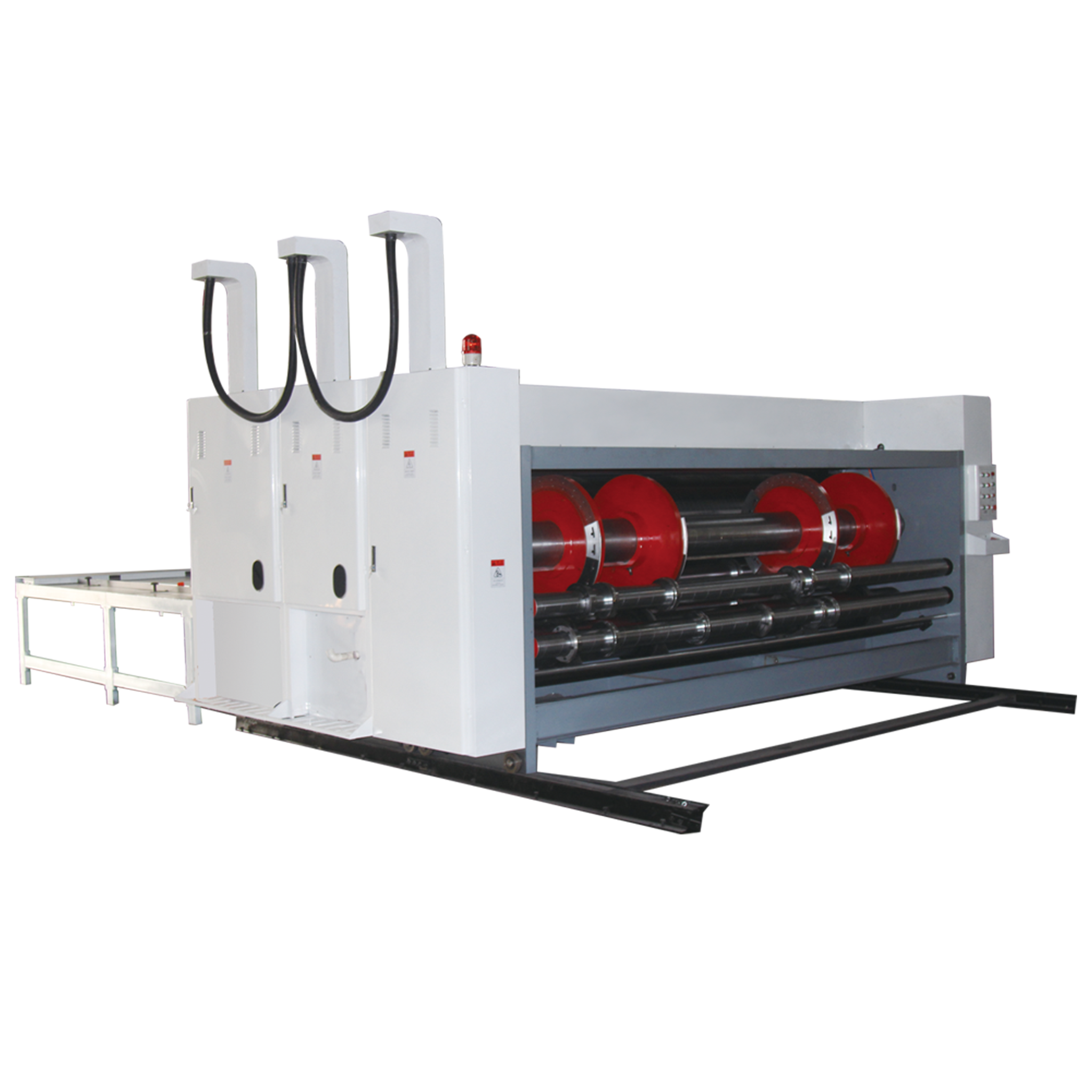

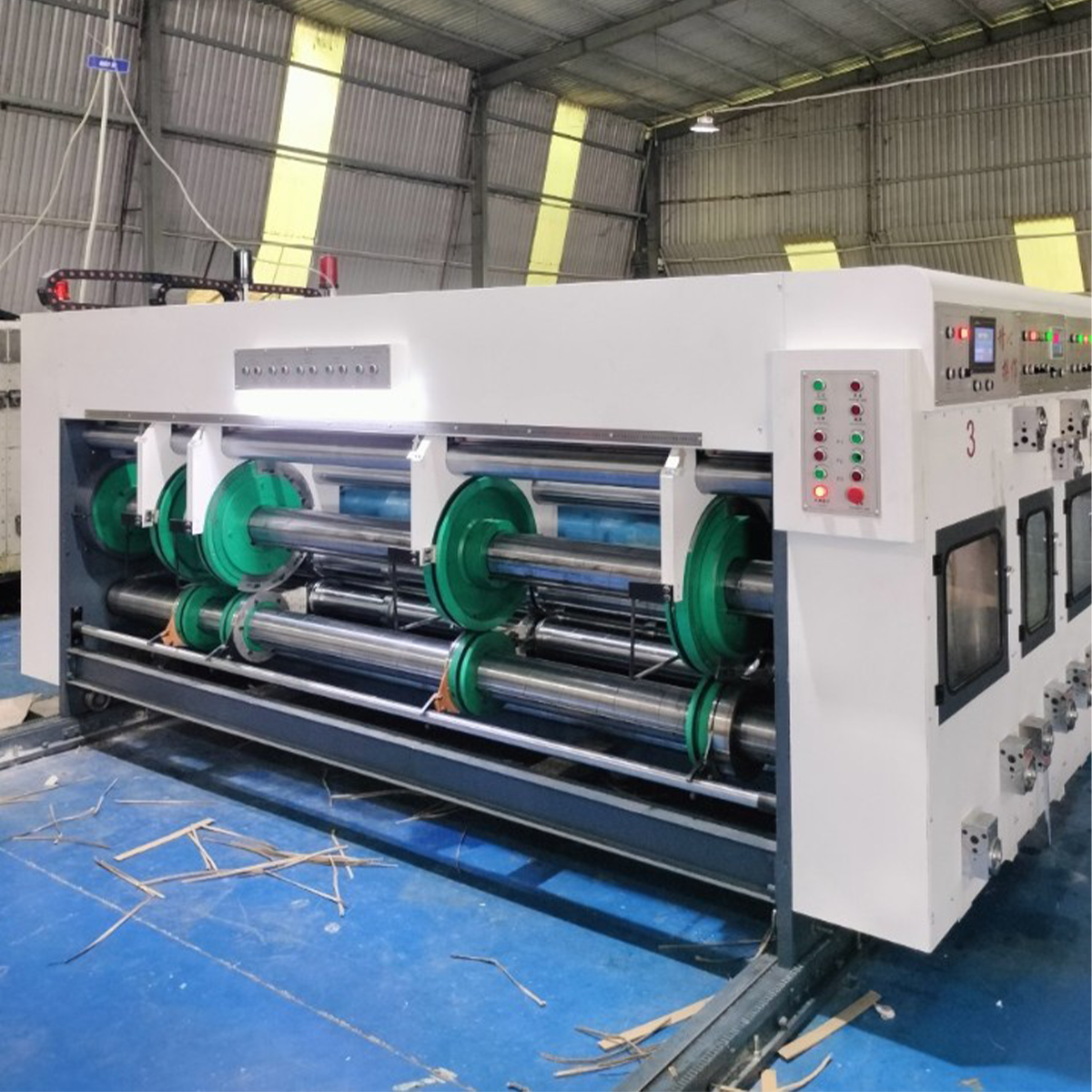

Slotter unit
◆ Slotting Phase Adjustment: 360° electric planetary gear control.
◆ Durable Slotting Tools: Specially designed from forged 45# steel for extended service life.
◆ Helical Gear Drive: Ensures smooth and efficient transmission.
◆ Chrome-Plated Rollers: All rollers are polished and chrome-coated for durability.
◆ Spray Lubrication System: Extends component life.
◆ Electric Unit Displacement: With pneumatic cylinder locking for stability.
| MODEL | NDCF-920FSDC | NDCF-1224FSDC | NDCF-1628FSDC |
| Design speed (pcs/min) | 80 | 60 | 60 |
| Working speed (pcs/min) | 80 | 60 | 60 |
| Max feeding size (mm) | 900×2000 | 1200×2400 | 1600×2800 |
| Min feeding size (mm) | 280×650 | 350×680 | 500×680 |
| Max Depth of slotting (mm) | 230 | 300 | 300 |
| Registration precision (mm) | ≤±1.5 |
| Die cutting accuracy (mm) | ≤±0.5 |
| Printing plate thickness | 3.94 |
| Max.printing area (mm) | 2–12 |
| Min.slotting interval (mm) | Normal | 150×150×150×150 |
| Reverse | 260×70×260×70 |
