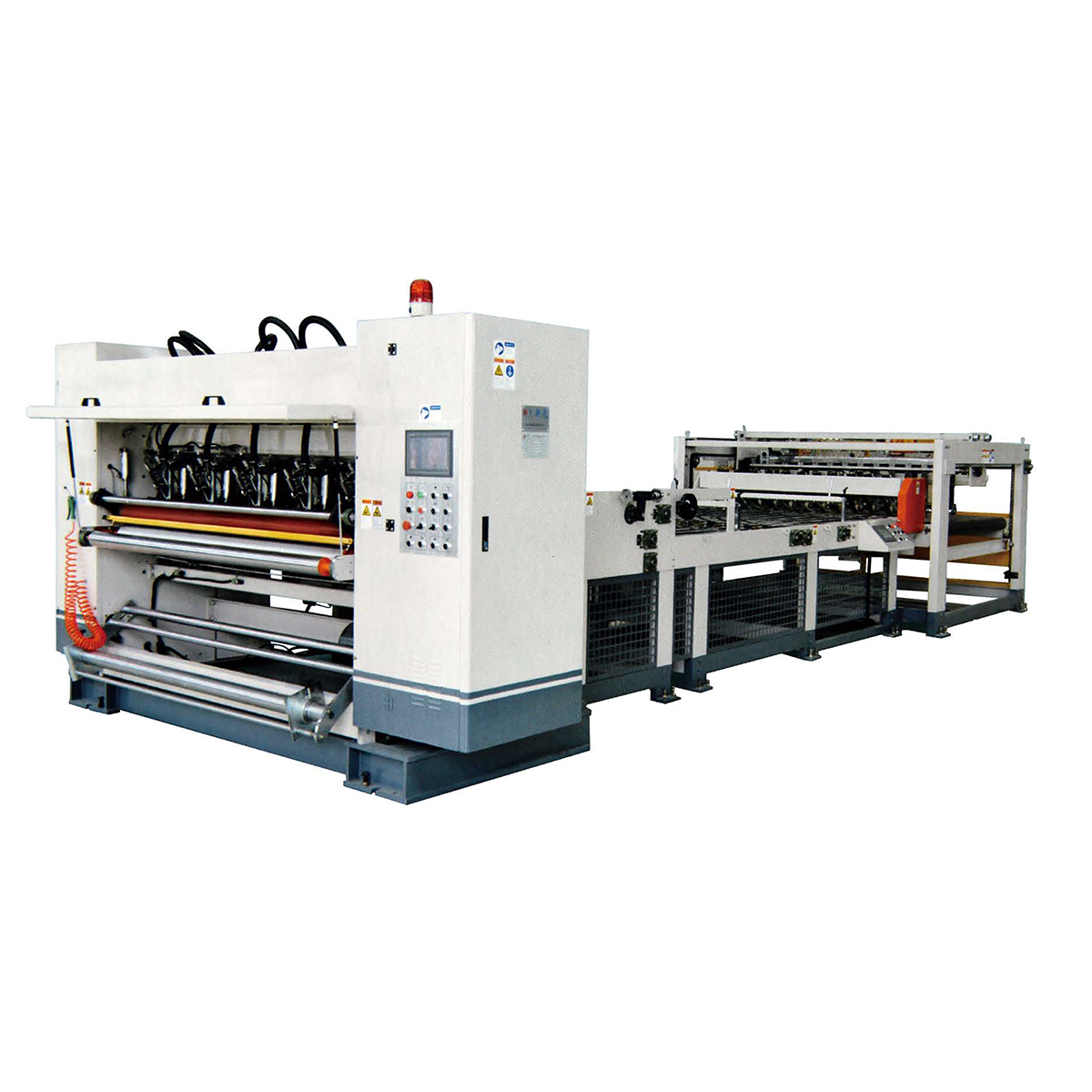

Computer 2 ply Corrugated Cutter and Stacker

FUNCTION AND FEATURESEffective width: 1600–2200mmMaximum speed: 150m/minThe number of slitting knives: 5Minimum slitting width: 180mmCutting time: 3–8sBlade accuracy: 0.5mmCross-cutting length:...

Inquiry Now

Status: In stock

Product Description

FUNCTION AND FEATURES

Effective width: 1600–2200mm
Maximum speed: 150m/min
The number of slitting knives: 5
Minimum slitting width: 180mm
Cutting time: 3–8s
Blade accuracy: 0.5mm
Cross-cutting length: 300~9999mm
Cross-cutting accuracy: 1mm (constant speed)
Stacking height: 250~600mm (according to customers' needs)
Maximum carton length: 1600mm
Constant tension cardboardboard conveying speed is strictly synchronized with the speed of the single-side machine.
Alloy steel thin knife slitting, automatic grinding knife, blade life long, cutting quality high.
Single servo control with longitudinal cutting knife, the list is fast, accurate and reliable.
Adjust the speed inverter motor and frequency converter, adjust the speed of the board.
The position of the left and right suction side of the blade should be adjusted with the edge tool.
The cross-cutting cabinet adopts high quality casting, strict aging treatment, precise processing, and long-term stable operation of the equipment.
Alloy steel seamless steel tube spiral cutter shaft, economic processing, dynamic balance correction, high rigidity, small inertia.
Cross-cutting knife uses the German kobe communication servo controller.

Computer 2 ply Corrugated Cutter and Stacker

Computer 2 ply Corrugated Cutter and Stacker
