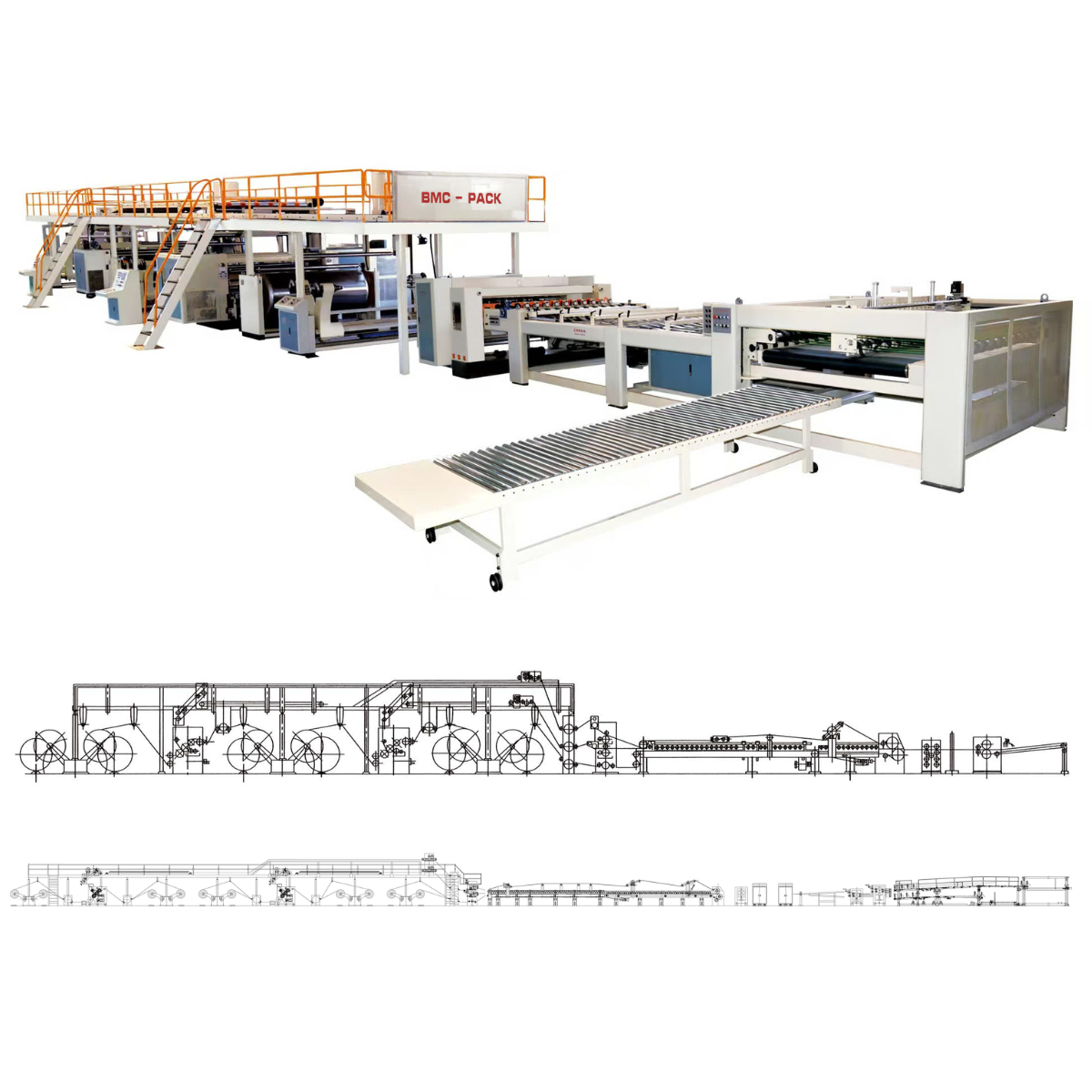

Eco 3/5/7 Ply Corrugated Cardboard Production Line
Eco 3/5/7 Ply Corrugated Cardboard Production Line
This production line is available in large amount automatic production, which can produce corrugated paperboard correspond to national standard with...
This production line is available in large amount automatic production, which can produce corrugated paperboard correspond to national standard with high quality, and adopted concentrated control, operated and repaired easily, safely, reliable, reducing manpower. This production line adopts international energy saving technology with oil heating, which can saving 40 percents energy than steam heating. So this can reduce costs effectively. It's an economical production in big, middle paperboard company.
Total Length: 50-100m
Total Power: 100–200kw
Two options for electric mill roll stand and hydraulic mill roll stand.
Corrugated paperboard marching: diameter of corrugated router is 280-405mm, electric adjust speed motor used.
Double cylinder gum mounting machine: On the adoption, inside two layers draw the gun, descend to carry the paper lead the paper roller.
Designed speed of 150m/min, working speed 120m/min, with a diameter of 320mm.
Designed speed of 120m/min, working speed 100m/min, with a diameter of 280mm.
Drying oven: Total length 7.8m, combined with 9-18 heating flocks.
Setting part: total length approx. 3.8-5m, combined with some pairs of symmetrical shafts.
Horizontal/Lengthways slitting machine: Common knife or super-thin knife selected based on customer’s demand, high automation, handy operating.
