Product Description

USE AND CHARACTERISTICS

Automatic Gluing and Nailing Machine (Five Servo Motors) - A fully automated, high-efficiency machine composed of cardboard feeding, folding, nailing, counting/stacking, and electrical control sections. Equipped with PLC and touch-screen interface, five servo motors, and intelligent synchronization, it delivers high-speed, accurate performance with simplified operation and adjustment.

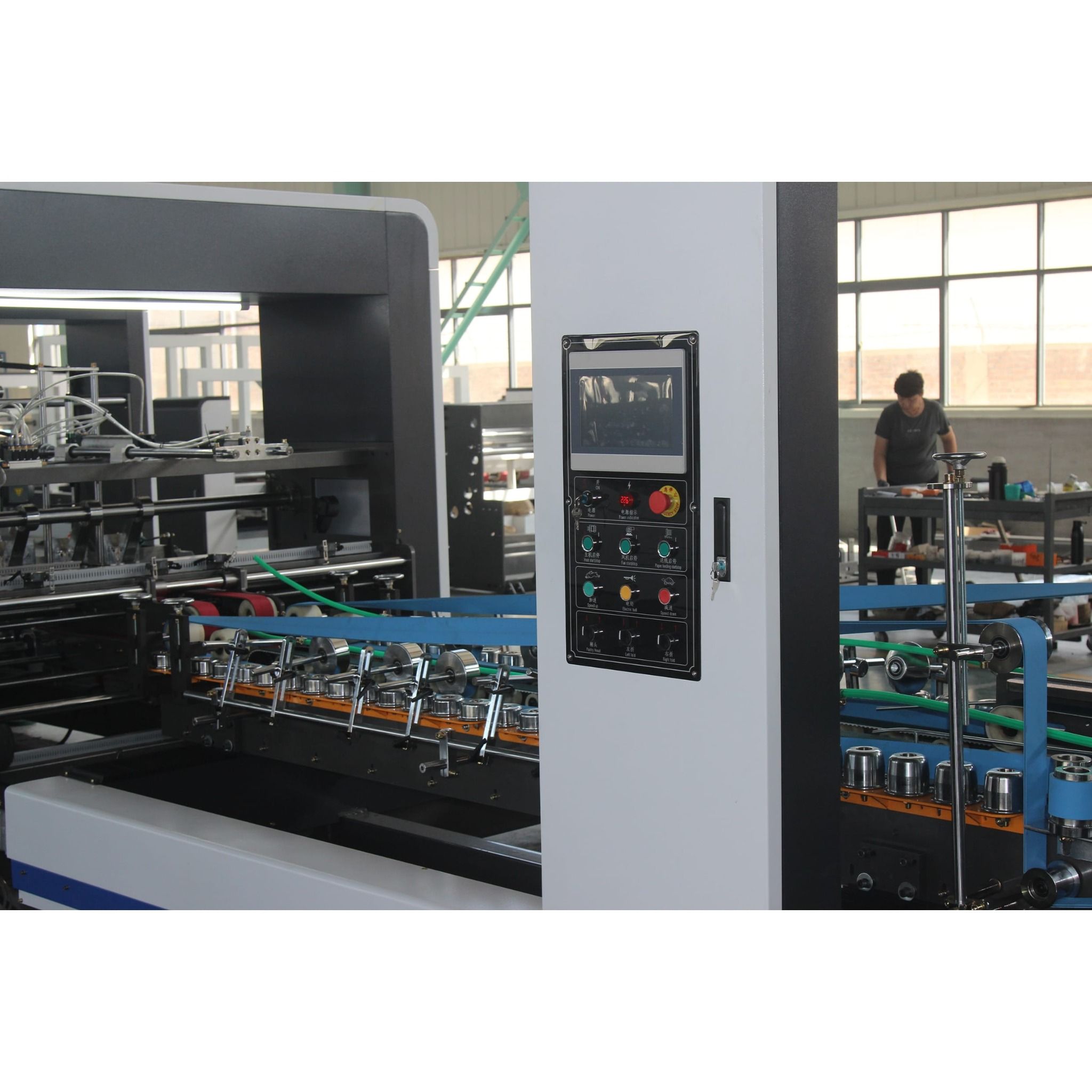

PLC Control System: Touch-screen interface for data input; servo-controlled nail box operation for reliable and precise performance
Full Automation: Automatic cardboard feeding, folding, correction, nailing, counting, stacking, and synchronized machine adjustments
Smart Operation: Order storage, defect distinction (gluing vs. nailing), one-key conversion, left/right movement, and independent tacking operation
High Efficiency: Seamless switching and easy adjustment improve setup time and operational speed
Advanced Technology: Durable construction and components ensure long-term stability and accuracy

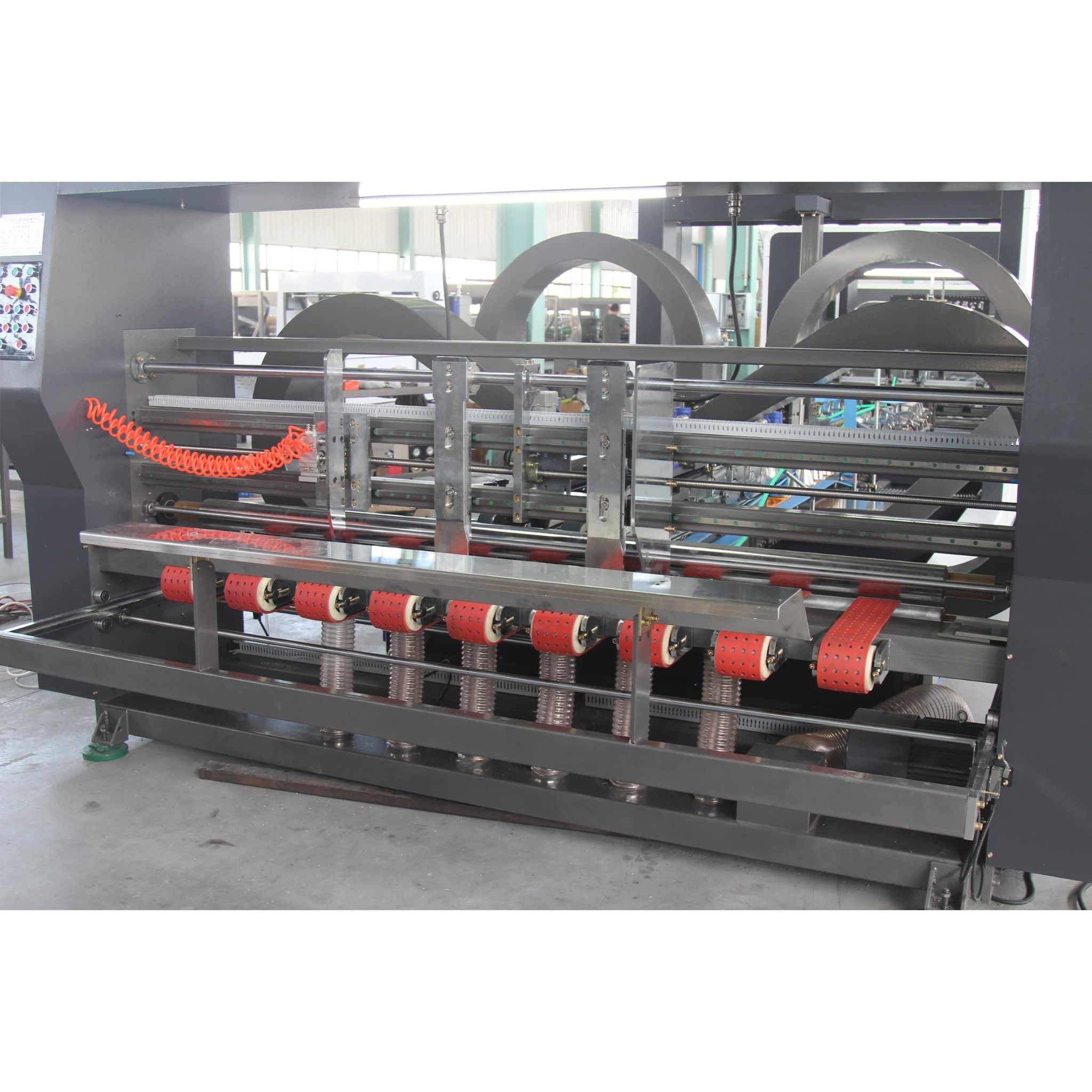

A. Cardboard Feeding Section

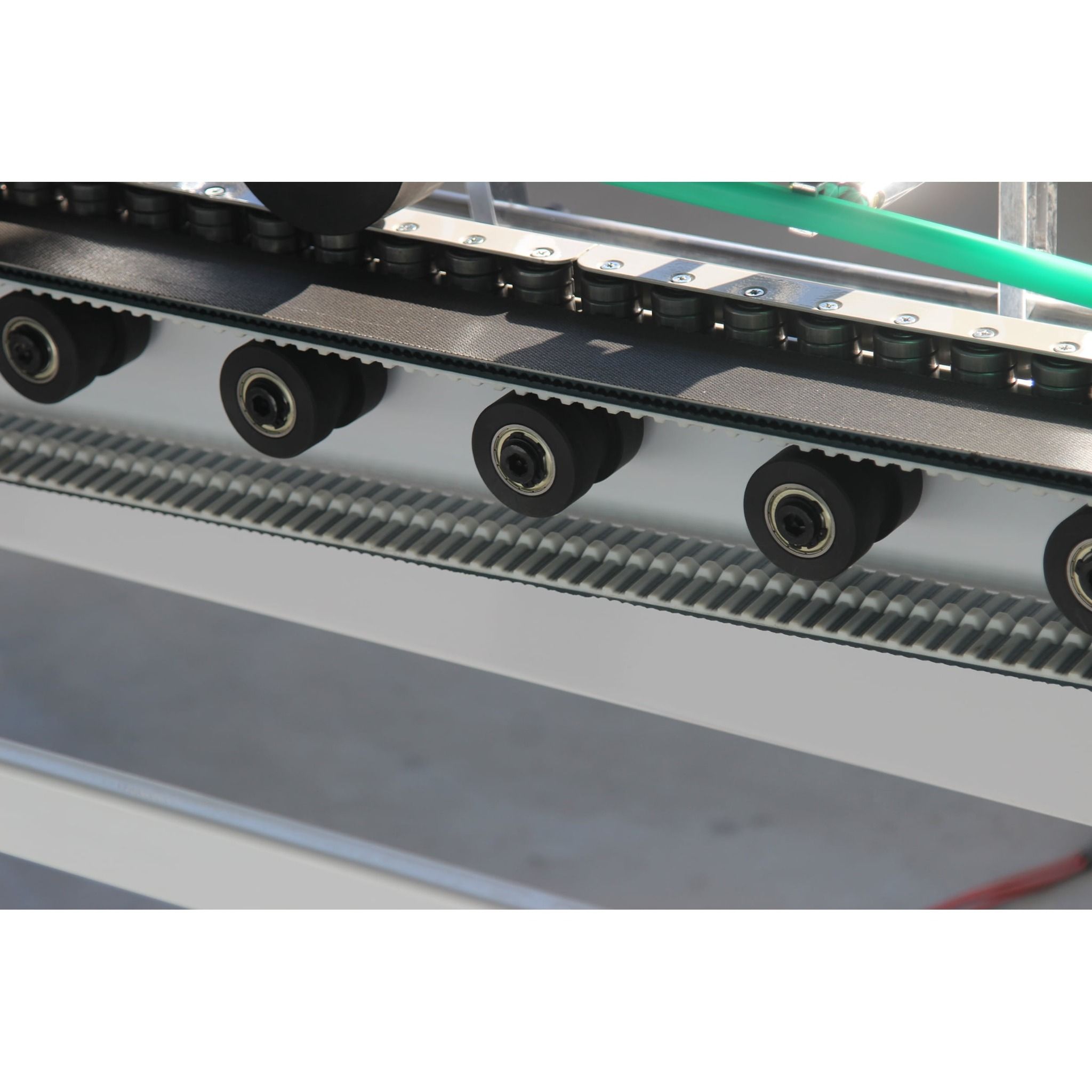

High wear-resistant suction belts with independent air volume control ensure stable feeding
Dual servo drive separates front and rear feeding for precise board positioning

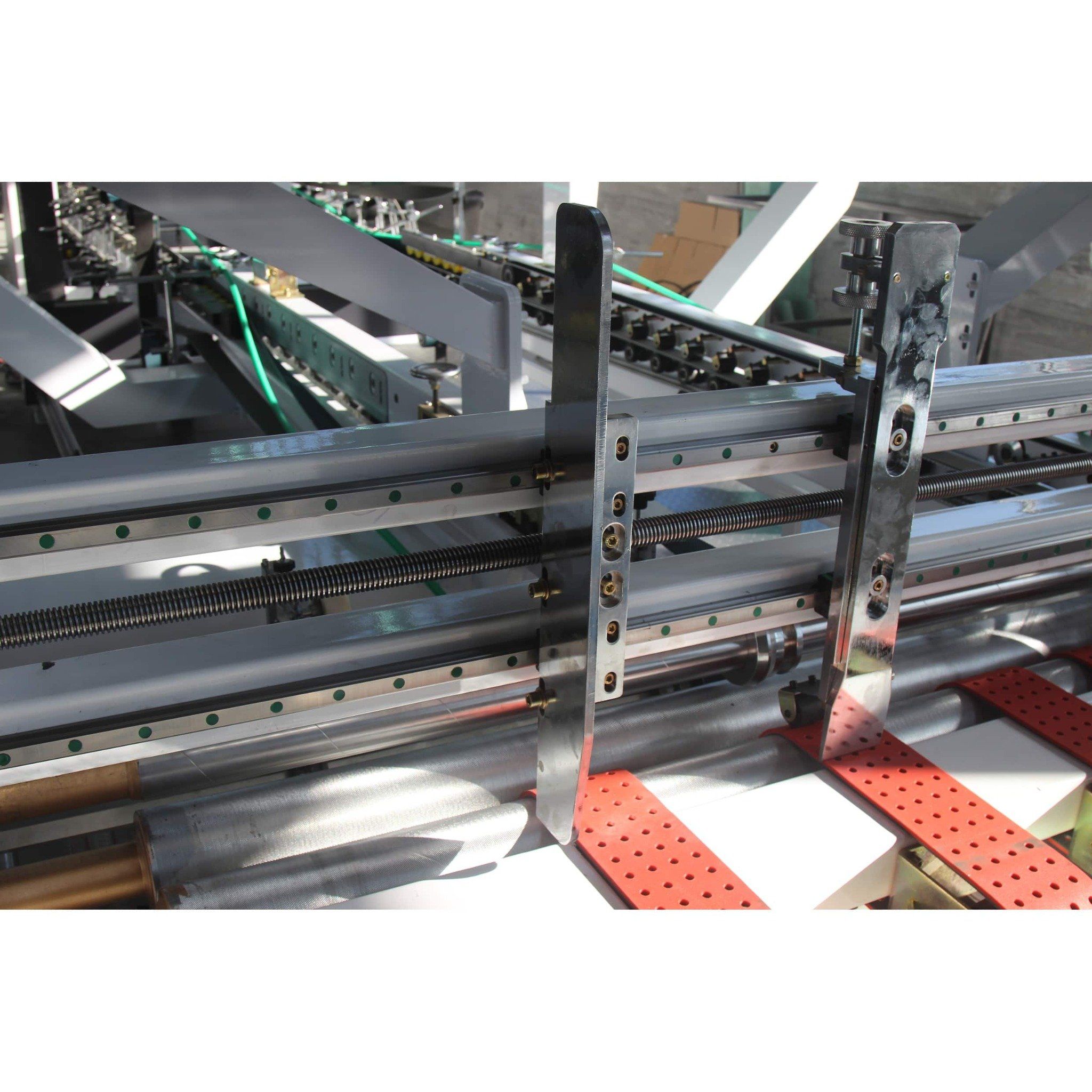

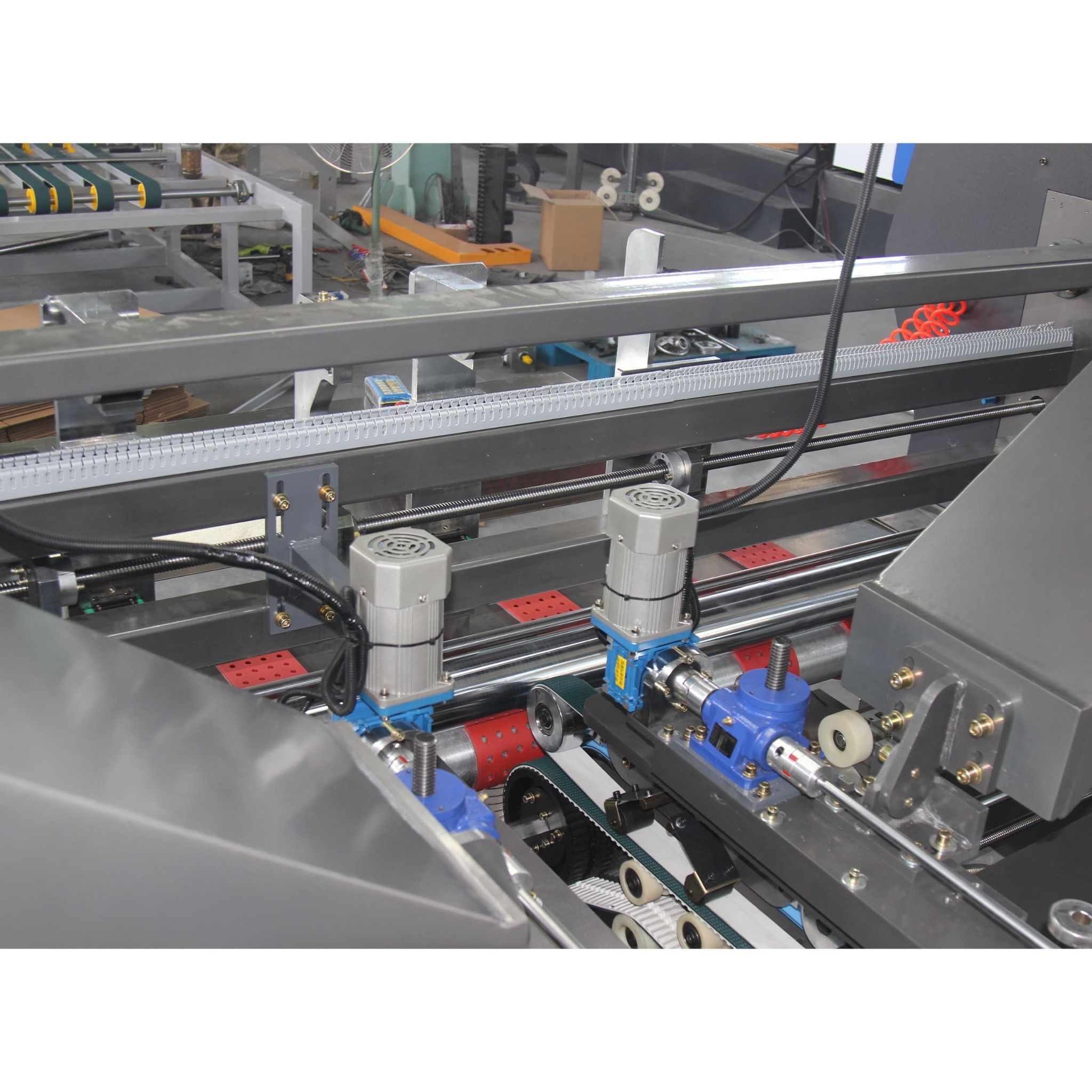

Electric adjustment of left/right front baffle and feed section for various carton sizes
Glue application via knurled wheel for even, efficient gluing with no waste
Prepresses the tongue section for improved carton formation

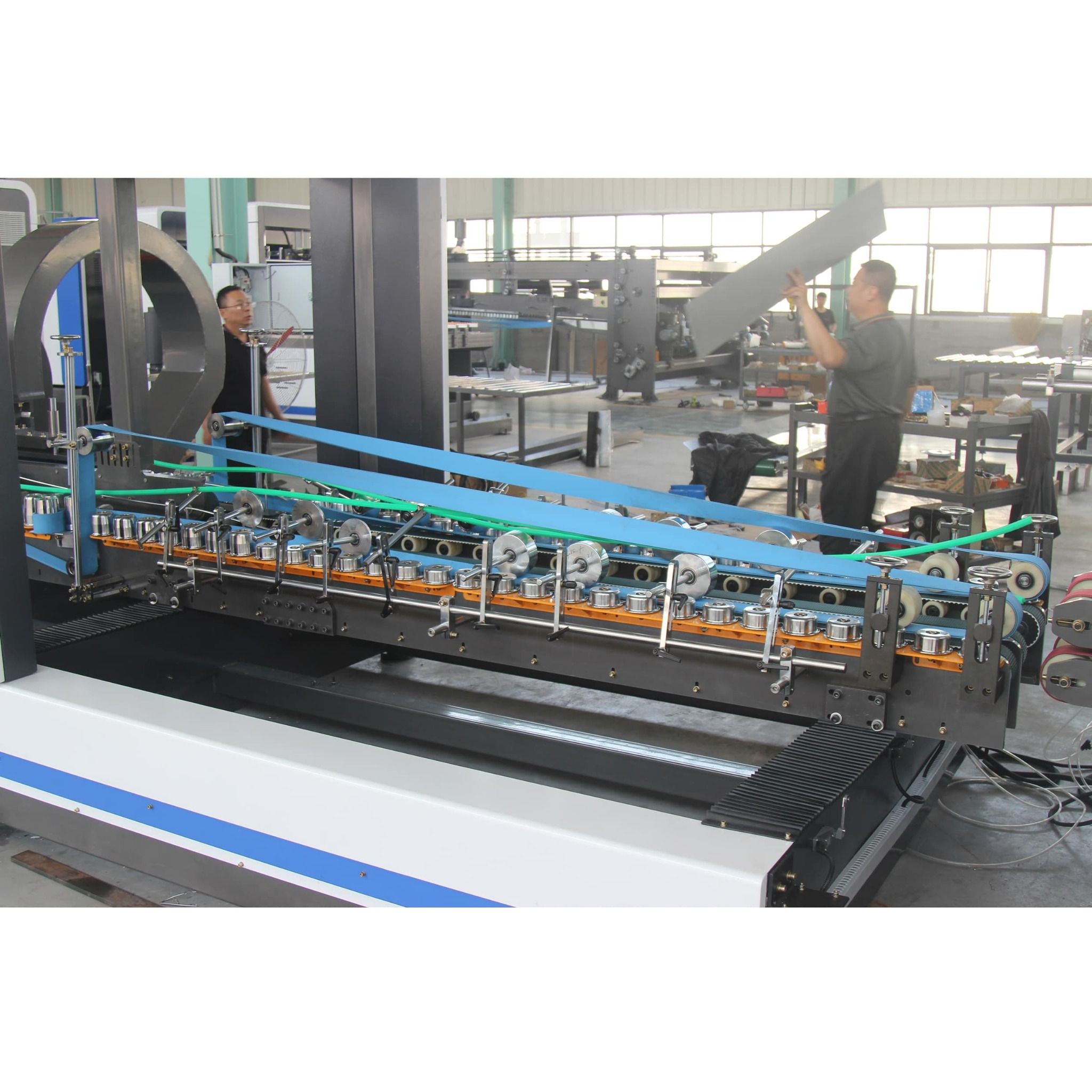

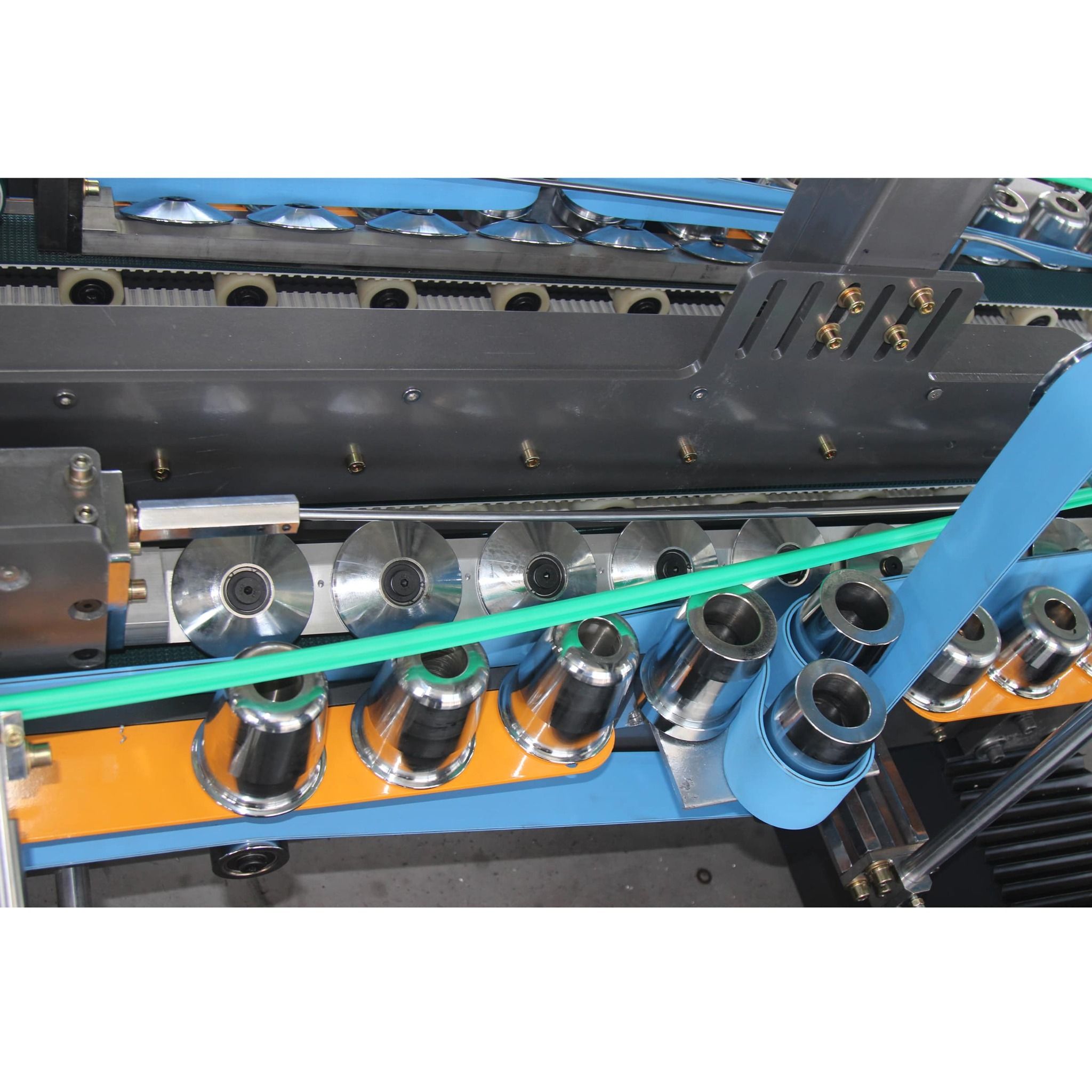

B. Folding Section

Equipped with multi-pass rolling wheels for secondary crease reinforcement
Ensures perfect alignment and scratch-free feeding from the leading edge to the nail box
Especially effective for laminated and polished cartons, preventing deviation or surface damage
Resolves alignment issues in mixed-grade carton operations

C. Correction Unit

The shaping system placed before the nail box corrects the folded carton for uniform alignment
Servo motor correction ensures no scissor-mouth effect, improving final carton quality

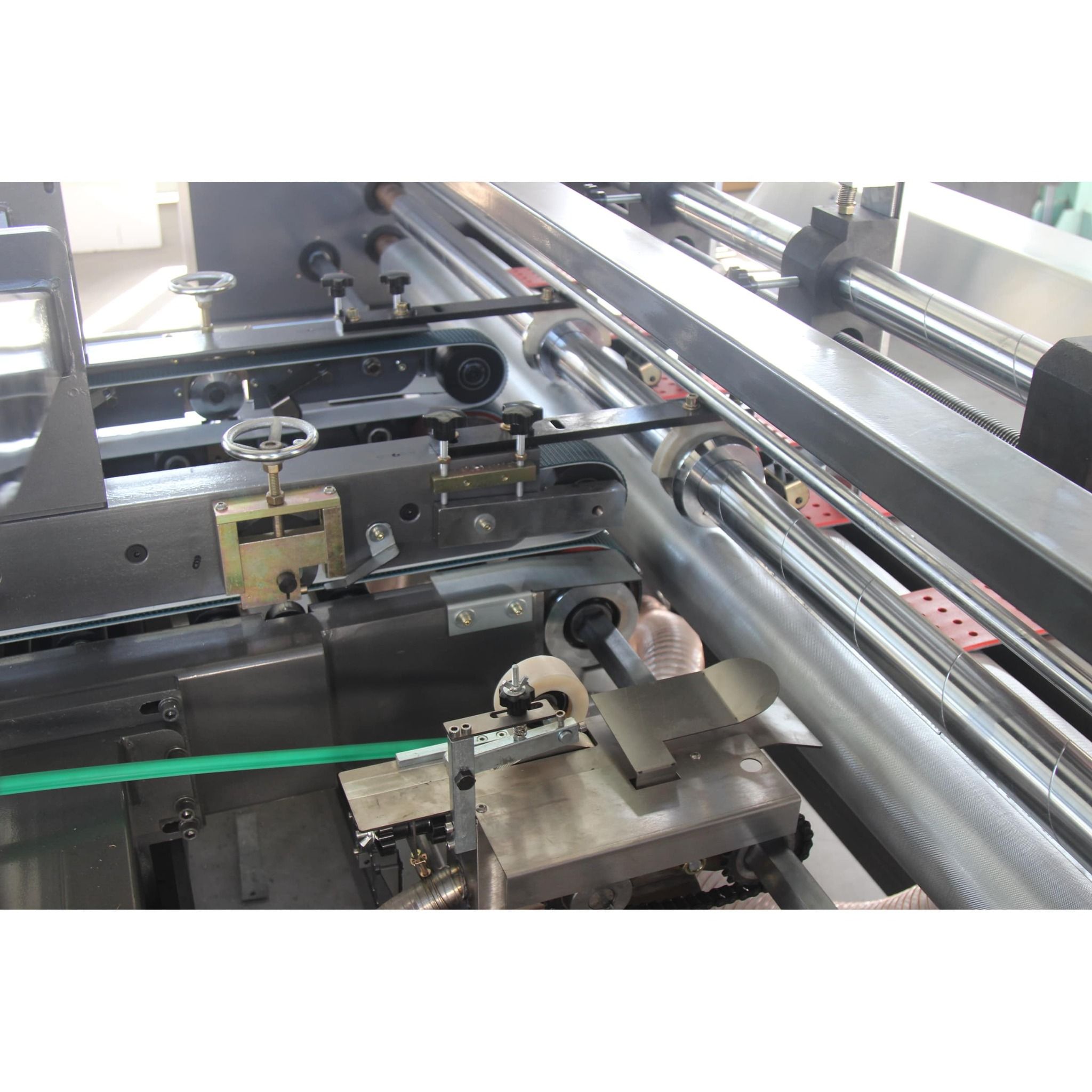

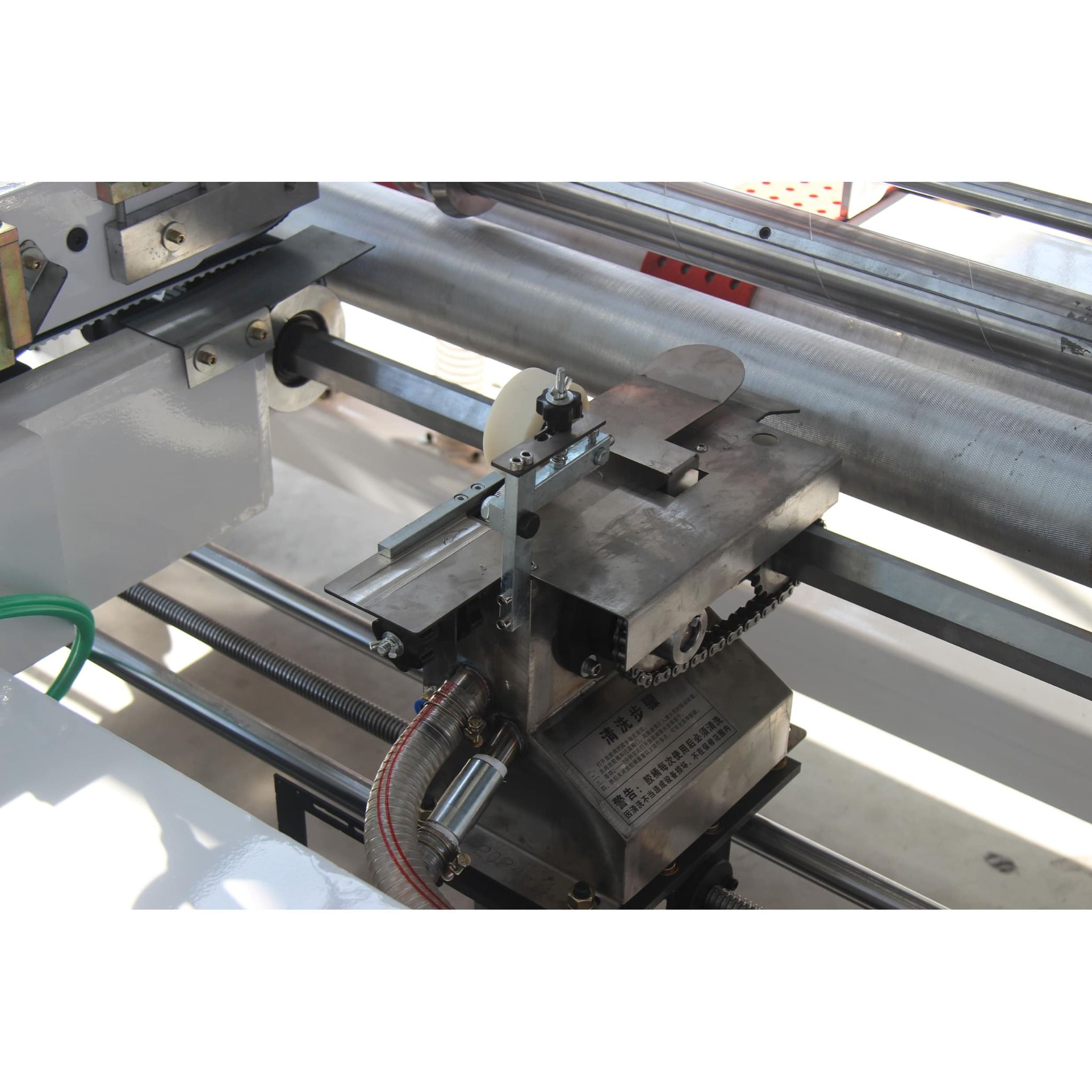

D. Nail Box Unit

Features a swing-rod fixed head made of special wear-resistant material
Stitching speed up to 1000 stitches/min, driven directly by an imported servo motor
Automatic wire feeding system supports two 20kg wire plates, reducing downtime

E. Counting & Stacking Output

Automatically completes patting, counting, stacking, and carton output after forming

TECHNICAL SPECIFICATIONS

GLUER MODEL	NDEA-1224FGS	NDEA-1628FGS
Max sheet size	1200 × 2400 mm	1600 × 2800 mm
Min sheet size	300 × 800 mm	300 × 850 mm
Design Speed	180m/min	180m/min
Working Speed	150m/min	150m/min
Maximum (A+B) × 2	2400 mm	2800 mm
Minimum (A+B) × 2	800 mm	850 mm
Maximum A	750 mm	950 mm
Minimum A	180 mm	180 mm
Maximum B	450 mm	450 mm
Minimum B	80 mm	100 mm
Maximum D	700 mm	900 mm
Minimum D	150 mm	150 mm
Maximum (C+D+C)	1200 mm	1600 mm
Minimum (C+D+C)	300 mm	300 mm
E width	40 mm	40 mm
Maximum C	400 mm	400 mm
Minimum C	100 mm	100 mm

STITCH MODEL	NDEA-1224FGS	NDEA-1628FGS
Max (A+B) × 2	2400 mm	2800 mm
Min (A+B) × 2	800 mm	800 mm
Min (C+D+C)	300 mm	300 mm
Max (C+D+C)	1200 mm	1600 mm
Min C	100 mm	100 mm
Max C	400 mm	400 mm
Max B	500 mm	500 mm
Stitching Speed (stitches/min)	1000	1000
Min A	250 mm	250 mm
Max A	850 mm	950 mm
Max D	800 mm	1000 mm
Min D	150 mm	150 mm
Max E	38 mm	38 mm
Min B	170 mm	170 mm
Stitch Qty	1–99	1–99
