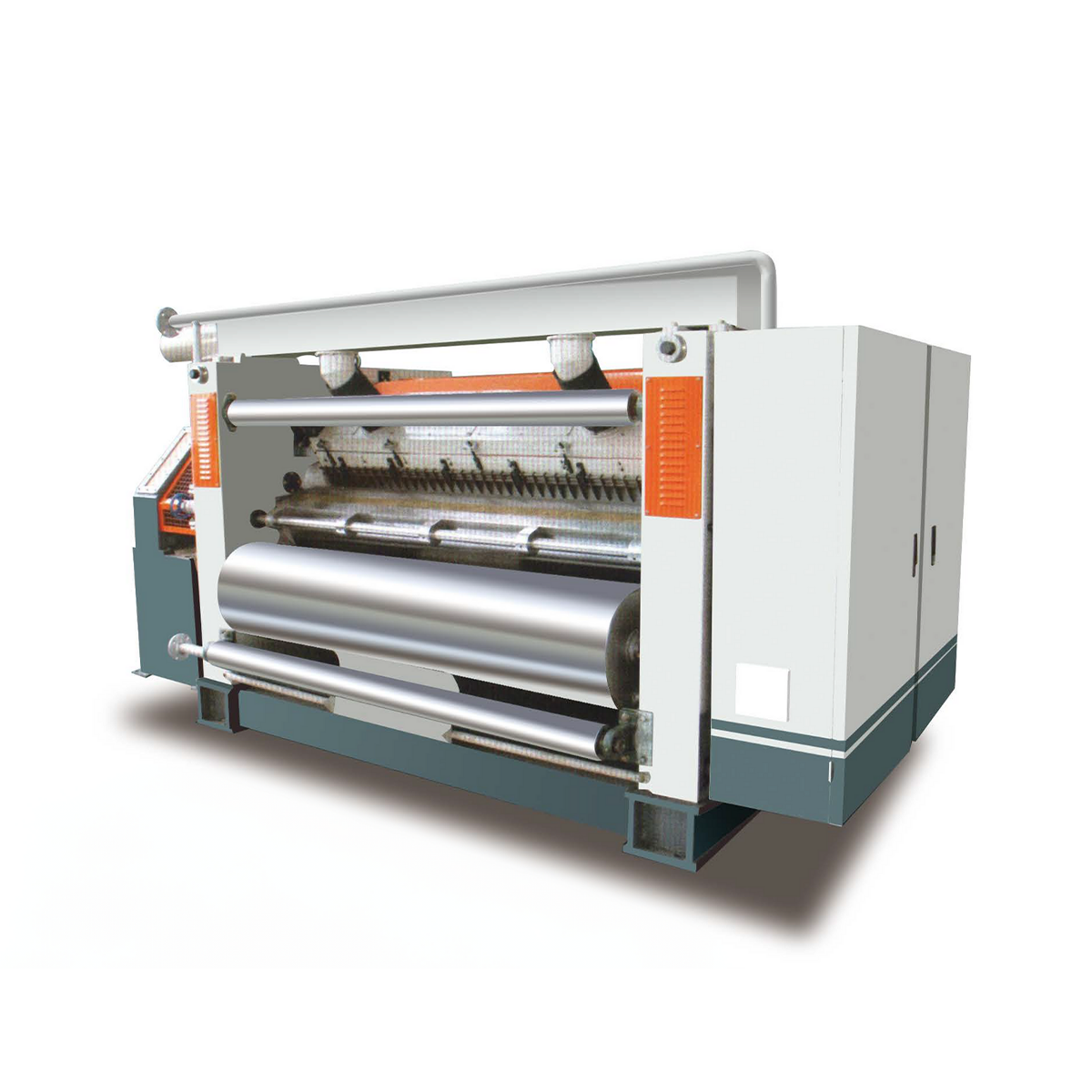

Fingerless Single Facer NDSF-320S/360S/380S

FUNCTION AND FEATURESDesign speed of NDSF-320S: 150m/min; NDSF-360S: 180m/min; NDSF-380S: 200m/minEffective width: 1400mm–2200mmCorrugated roller diameter: ϕ320mm, ϕ360mm, ϕ380mmDrive the gearbox...

Inquiry Now

Status: In stock

Product Description

FUNCTION AND FEATURES

Design speed of NDSF-320S: 150m/min; NDSF-360S: 180m/min; NDSF-380S: 200m/min
Effective width: 1400mm–2200mm
Corrugated roller diameter: ϕ320mm, ϕ360mm, ϕ380mm
Drive the gearbox to lubricate the oil, reduce the noise, the universal joint drive, and isolate the power source (optional)
The upper roller, pressure roller, and rubber roller lifts all have pneumatic control.
The glue department can be operated independently in two ways.
Manual or electric separation device.
The surface of the rubber roller is treated with a mesh cut and chrome plating.
The upper and lower corrugated roller adopts 48CrMo high-quality alloy steel. After heat treatment, the hardness is above HV1200, and the surface is carbonized tungsten or hard chromium plating treatment.
The glue is used as an adhesive.
The roller and pressure roller bearings are lubricated with high-temperature resistance grease.
The guide cardboard adopts vacuum adsorption, with an air volume adjustment device, to maintain the stability of corrugated and corrugated form at high speed.

Fingerless Single Facer NDSF-320S/360S/380S

Fingerless Single Facer NDSF-320S/360S/380S
