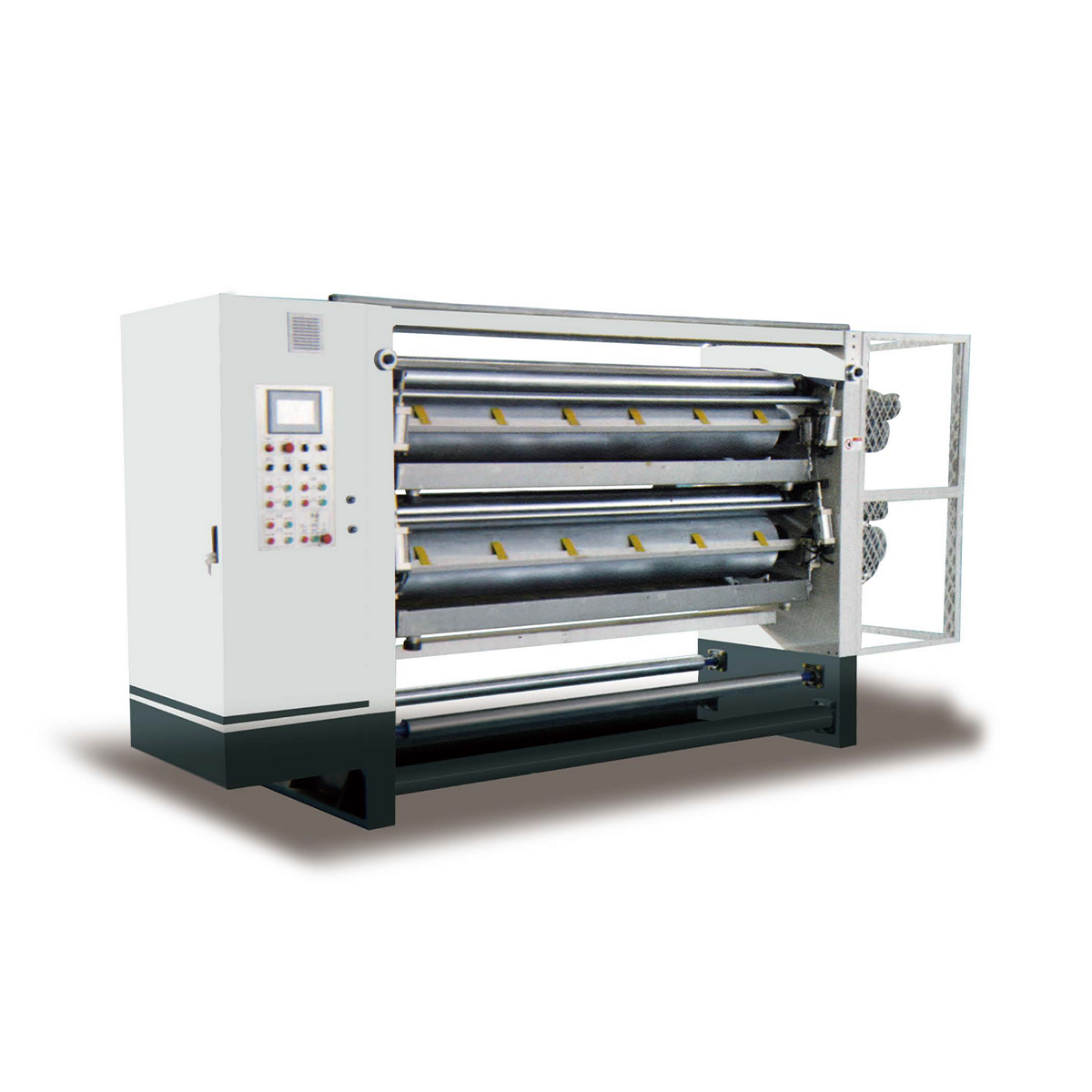

Gluing Machine Model NDGM-E

FUNCTION AND FEATURESDesigned speed of 200m/min, working speed 150-180m/min.Designed speed of 150m/min, working speed 120-130m/min.The rotation of each layer of...

Inquiry Now

Status: In stock

Product Description

FUNCTION AND FEATURES

Designed speed of 200m/min, working speed 150-180m/min.
Designed speed of 150m/min, working speed 120-130m/min.
The rotation of each layer of the gluing wheel is controlled by the inverter motor, which is controlled by the frequency converter to ensure the synchronization of each layer of paste speed, and can be operated separately.
Since the rotation of each layer of the glue wheel is controlled by the variable frequency motor, it can still be controlled by the frequency converter with the same speed on the same line as the converter.
The control of the amount of glue and the amount of control can be separated and automated.
According to the speed of the moving motor, to achieve the required amount of control.
According to the variation of speed automatically when completed by the coder and PLC automatic control and man–machine interface display values, to ensure that the corrugated machine at high and low speeds sees glue on the amount needed to ensure the stability of the pit of cardboard quality.
When the roller stops, the roller will lift automatically, and the roller will be automatically idled.
Optional roller compression or elastic contact pressure.

Gluing Machine Model NDGM-E

Gluing Machine Model NDGM-E
