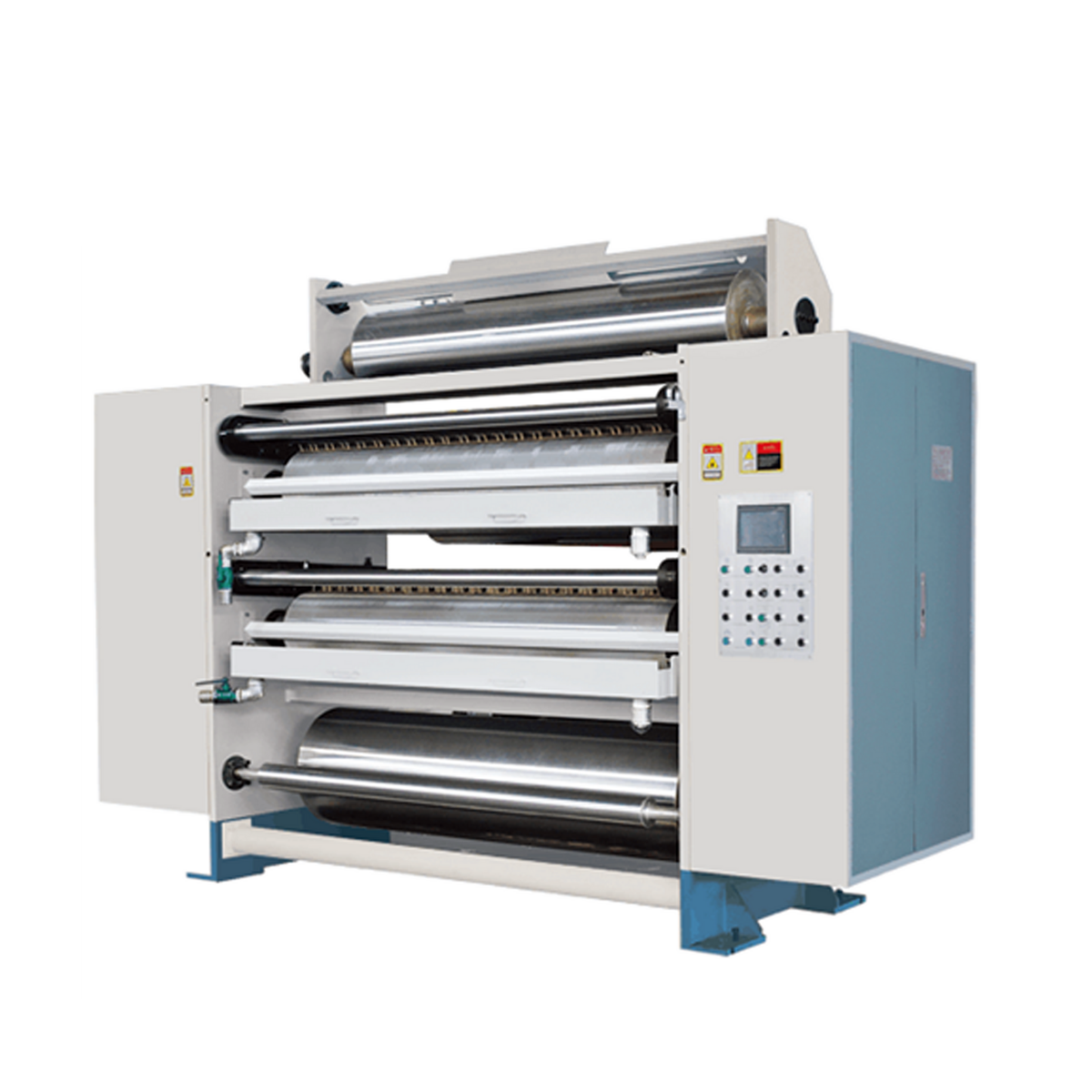

Gluing Machine Model NDGM2/3-2200

FUNCTION AND FEATURESDesigned speed of 350m/min, working speed 300m/min.Designed speed of 300m/min, working speed 250m/min.Designed speed of 250m/min, working speed...

Inquiry Now

Status: In stock

Product Description

FUNCTION AND FEATURES

Designed speed of 350m/min, working speed 300m/min.
Designed speed of 300m/min, working speed 250m/min.
Designed speed of 250m/min, working speed 200m/min.
Gluing rollers: Three rollers with engraved fine mesh surface and hard chrome plating.
Metering rollers: Three rollers, surface ground and hard chrome plated.
Gluing pressure is applied via ballast rollers.
Three-layer independent transmission (equipped with 3 gear motors).
Pneumatic control for raising and lowering the pressing rollers.
Pressing roller height is micro-adjusted by a gear motor.
The gap between gluing and metering rollers is electrically micro-adjusted by gear motor and displayed on the touchscreen, with precision of 0.01–0.02 mm.
The glue tray is made of stainless steel, easy to assemble, disassemble, and clean.

Gluing Machine Model NDGM2/3-2200

Gluing Machine Model NDGM2/3-2200
