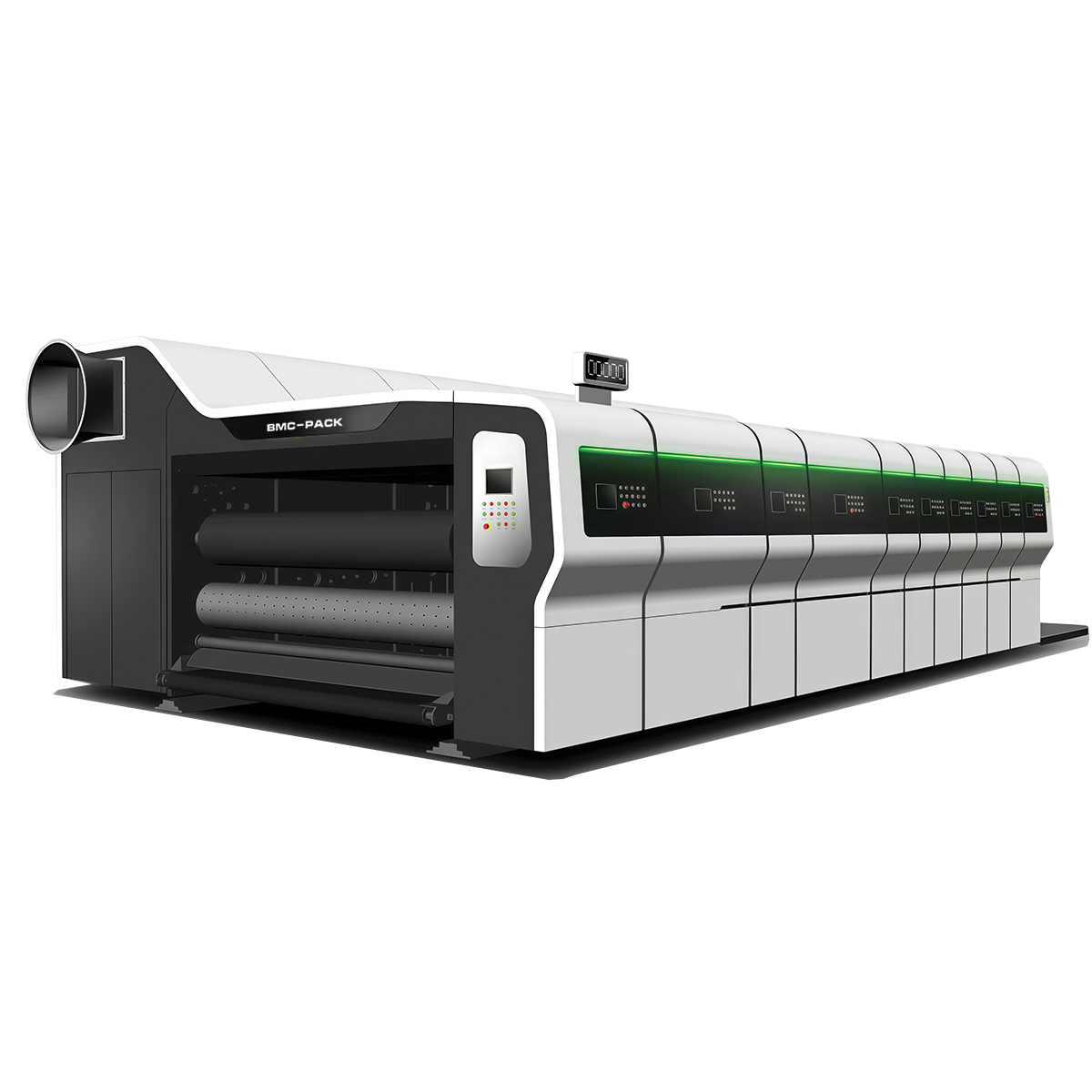

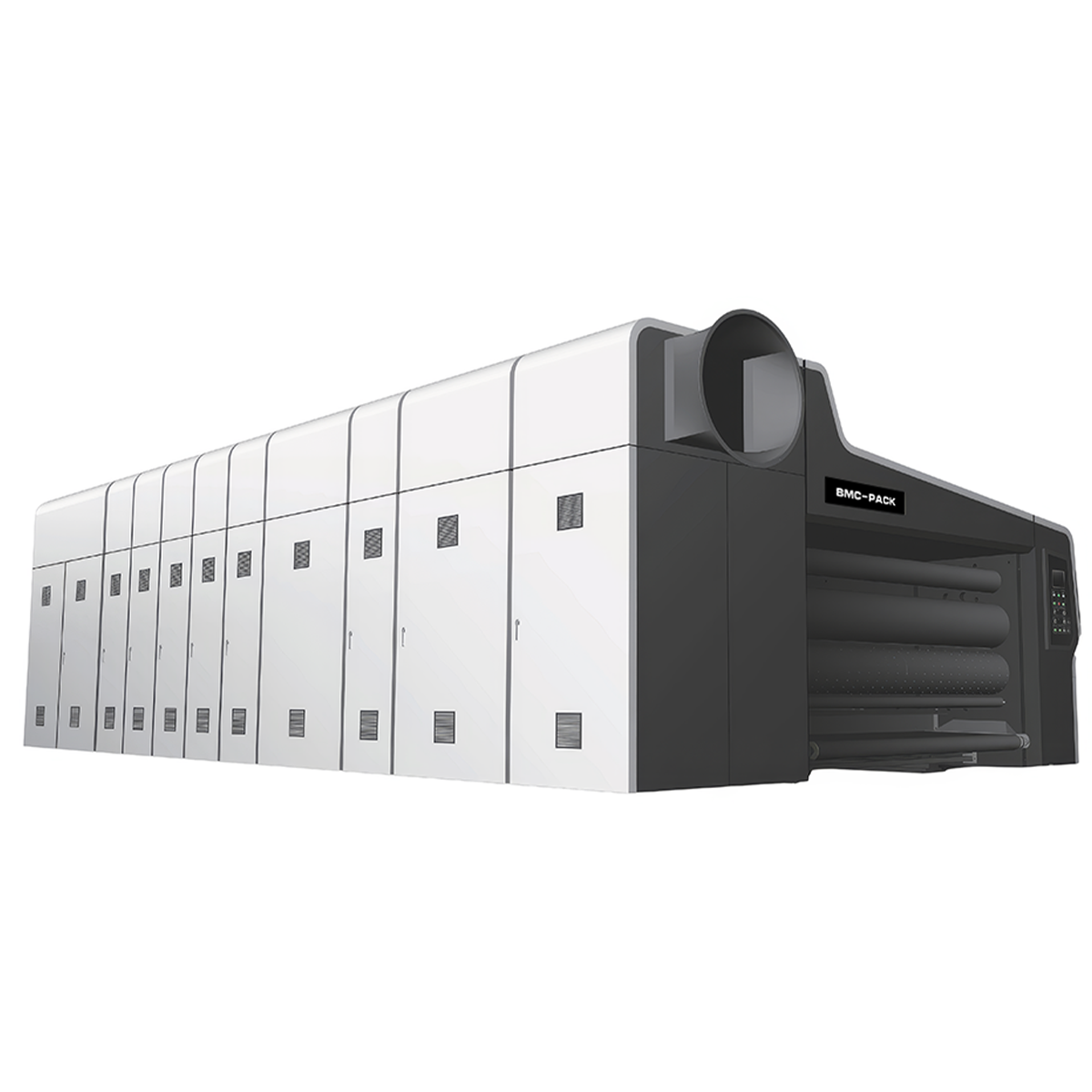

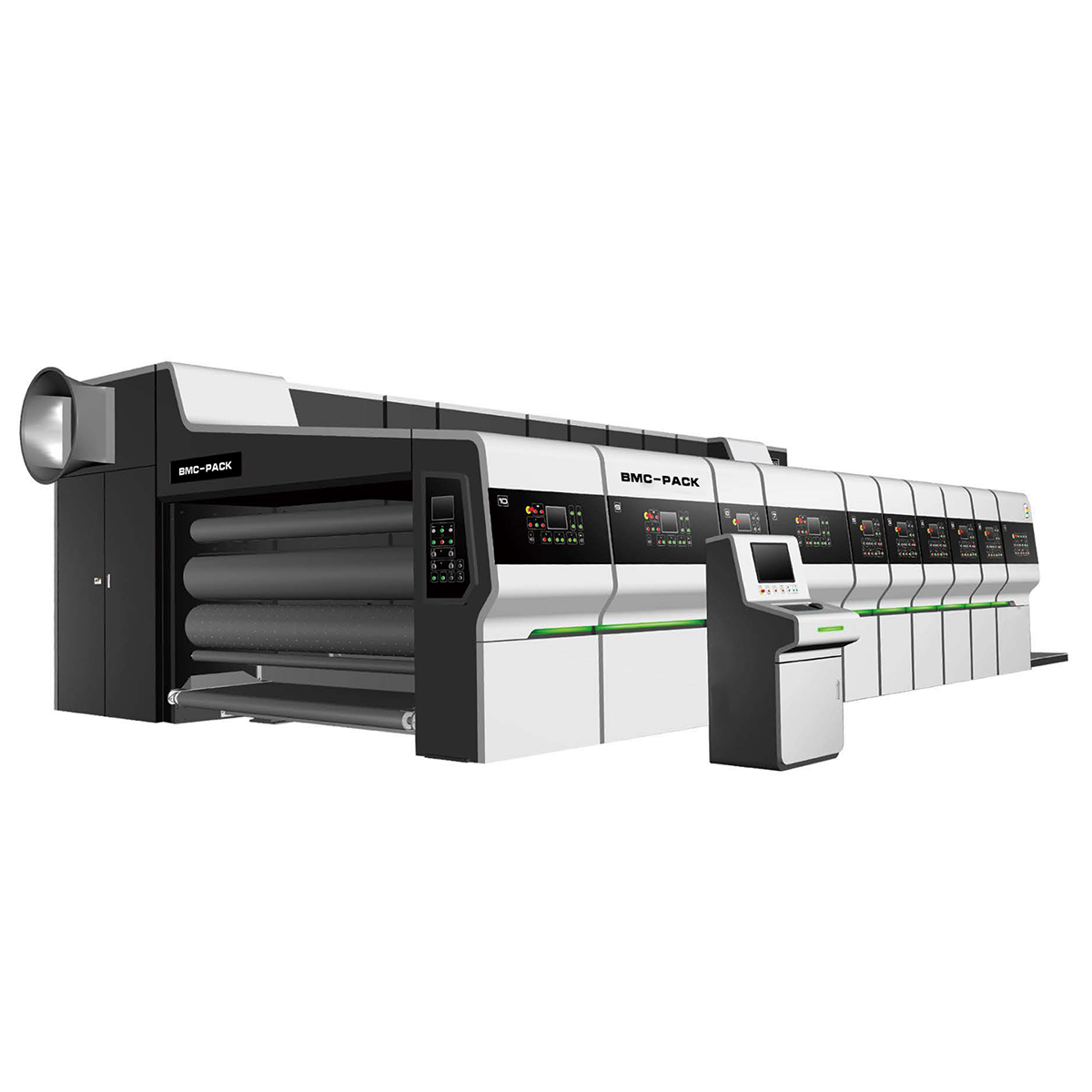

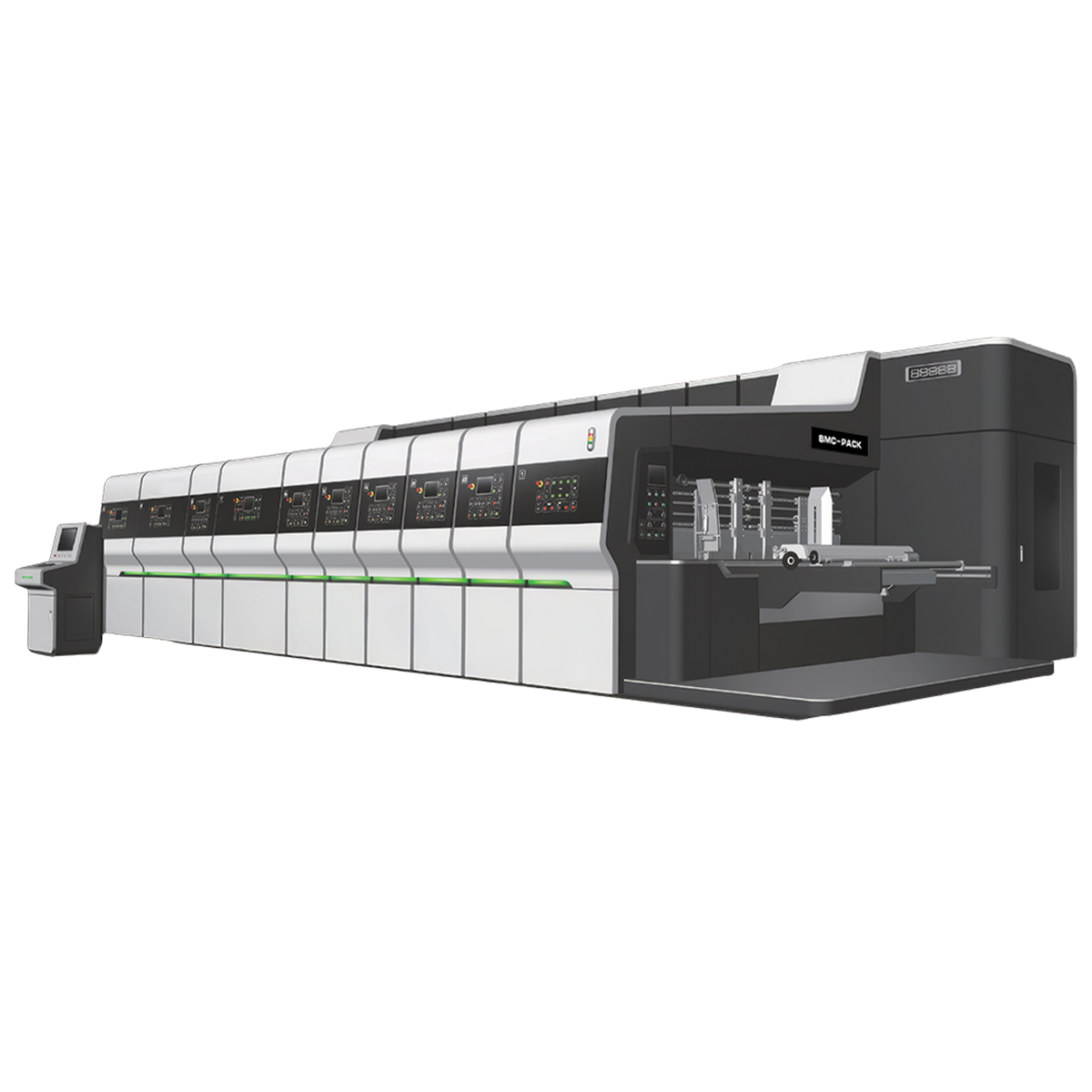

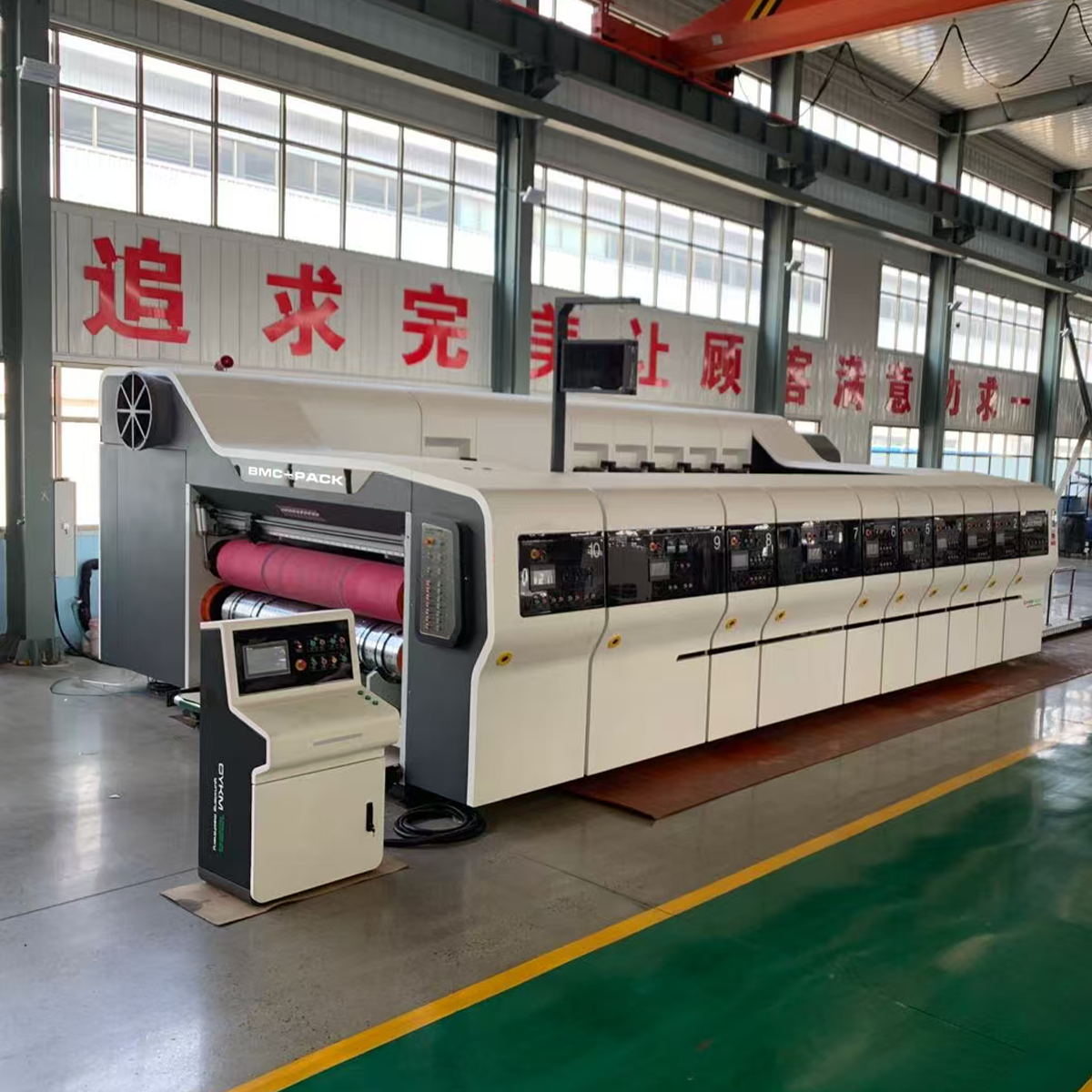

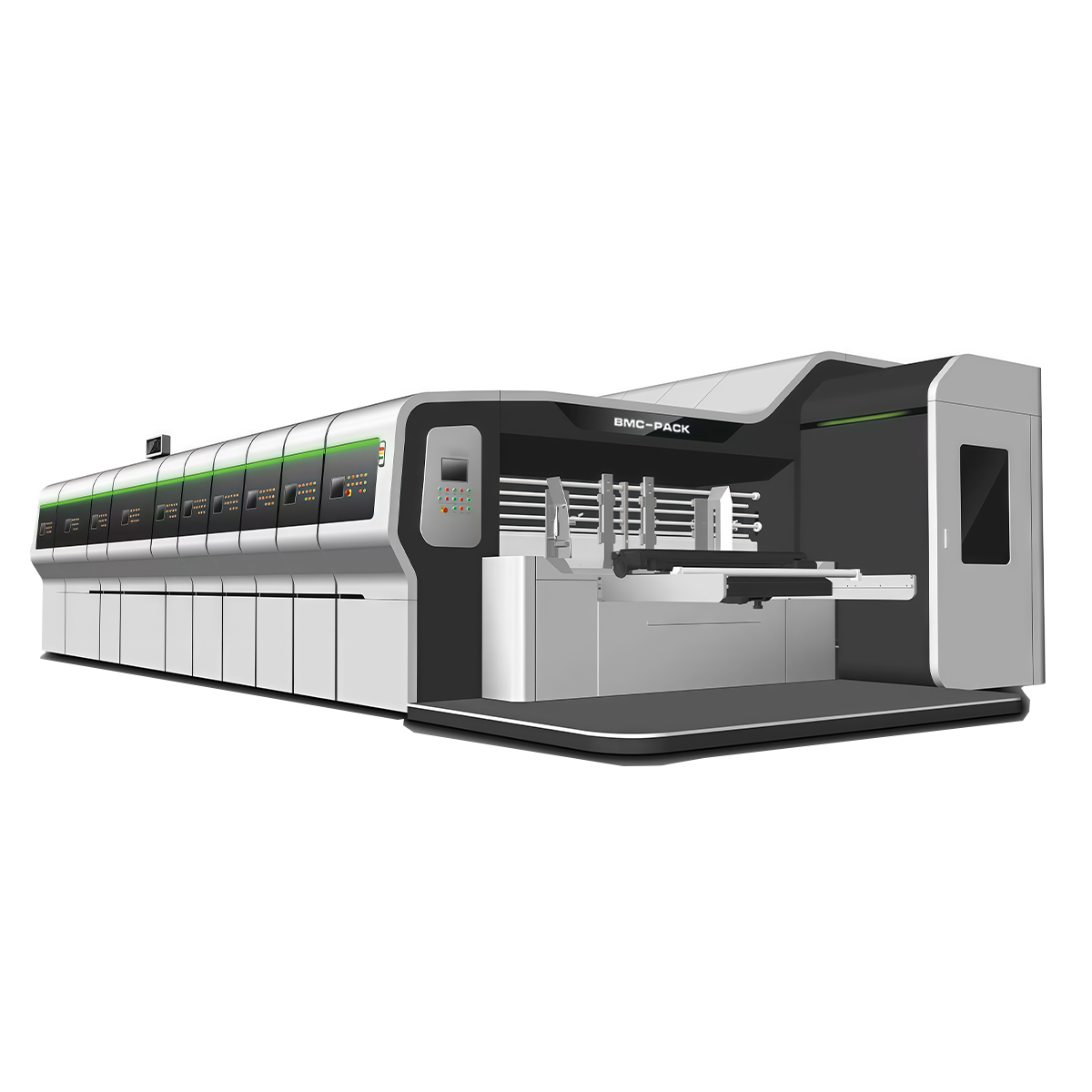

The machine features a lead-edge feeder with servo phase control and vacuum adsorption, enhanced by a multi-row dislocation layout to ensure stable cardboard transmission.
A reinforced frame positioning device and gear-driven direct rigid connection within the wallboard contribute to long-term mechanical stability.
High-speed imported gears from Taiwan and precision bearings from Japan support durable performance.
The integrated anilox roller lifting system ensures printing quality remains consistent during promotion.
The entire machine is equipped with French Schneider Electric components and uses German Siemens for the main motor, fans, PLC, and touch screen system.
◆ Precision
The rubber roller adopts double-glue coating technology, offering low-pressure transfer and minimizing the impact from pneumatic systems.
The fully controllable vacuum adsorption system works with a multi-row encrypted round ceramic array, increasing cardboard grip and stability without beating.

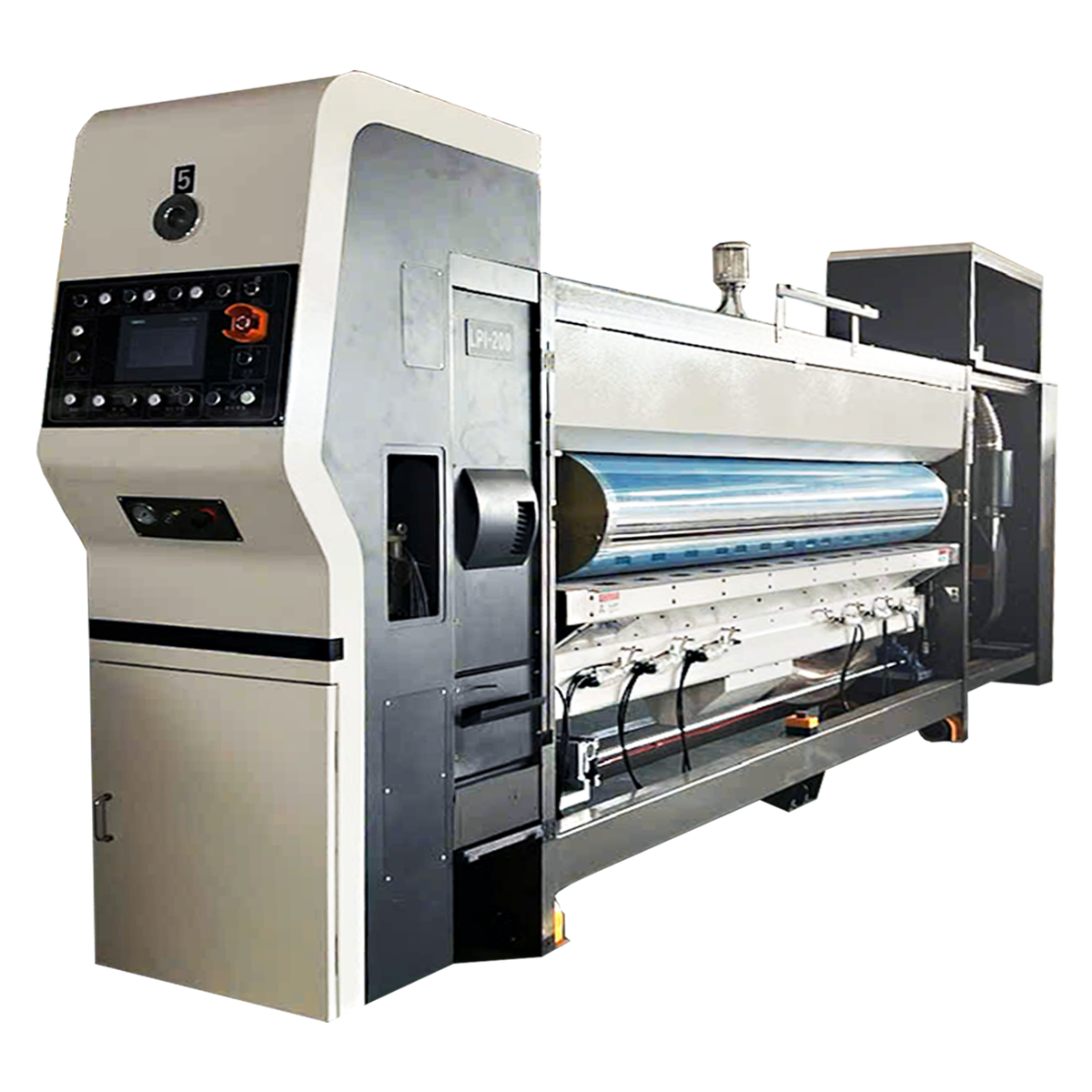

The high-precision anilox roller transmission design reduces roller vibration at high speeds.
Servo-driven phase adjustment further enhances anilox roller printing quality.
The die-cutting roller features a down-pressure adjustment system, ensuring precise alignment and consistent board transmission along the creasing line.
◆ Efficiency
Equipped with a patented automatic feeding width adjustment system and printing unit locking mechanism with screw control.
Built on a 4.0 industrial engineering design, integrating both software and hardware for maximum operational efficiency.
