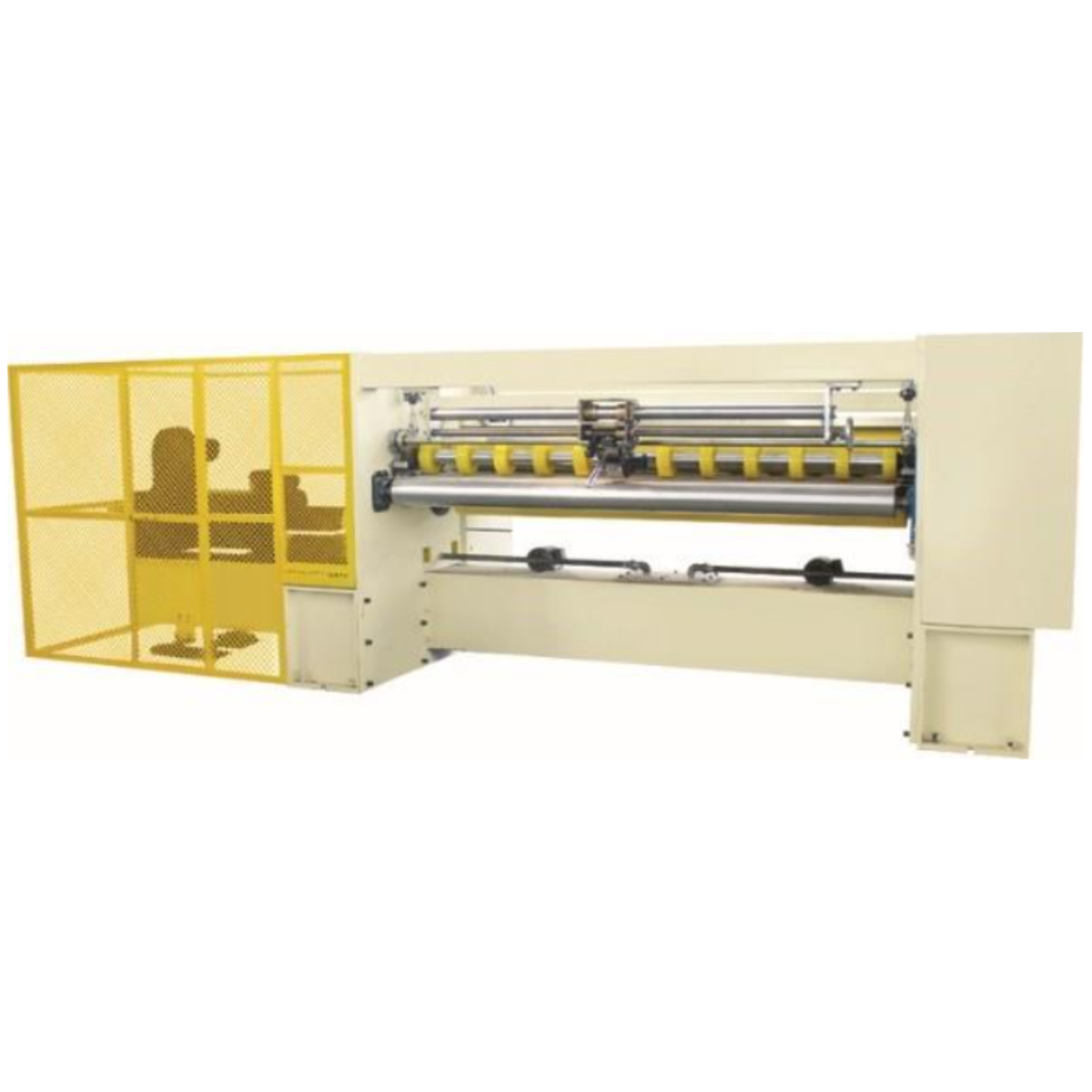

Helical Knives NC Cutting Machine Model NDHNC-180/200

FUNCTION AND FEATURESDesign speed: 180-200m/min; Effective width: 1400-2200mmCan store 200 sets of orders, change the cutting cardboard specifications quickly and...

Inquiry Now

Status: In stock

Product Description

FUNCTION AND FEATURES

Design speed: 180-200m/min; Effective width: 1400-2200mm
Can store 200 sets of orders, change the cutting cardboard specifications quickly and accurately, does not stop changing the order, and can realize computer networking, facilitating production management.
The gear shaft transmission gear adopts the high-frequency quenching of fine forging steel material to realize the no–side gap drive, and adopts the advanced seamless connection mode, and the transmission precision is high.
Transverse cutter blade with blade structure, sawtooth blade. Shear shear force, small shear force, long blade life.
Both front and rear corrugated board rollers are made of the sun wheel, which is smooth and uniform, with uniform pressure, not easy to press down or cause blockage.
This model is an energy storage brake (non–energy consumption braking). Therefore, the low energy consumption during the production process, the average electricity consumption is 1/3 of that an ordinary NC cutting machine, saving more than 70%, and achieving the goal of saving money.
Precision-adjustable gap gear ensures precise meshing and running balance.
Use an independent oil pump and filter to match the oil supply, lubrication, and cooling of each gear.
Knife roller: high-quality precision forging steel with good balance.

Helical Knives NC Cutting Machine Model NDHNC-180/200

Helical Knives NC Cutting Machine Model NDHNC-180/200
