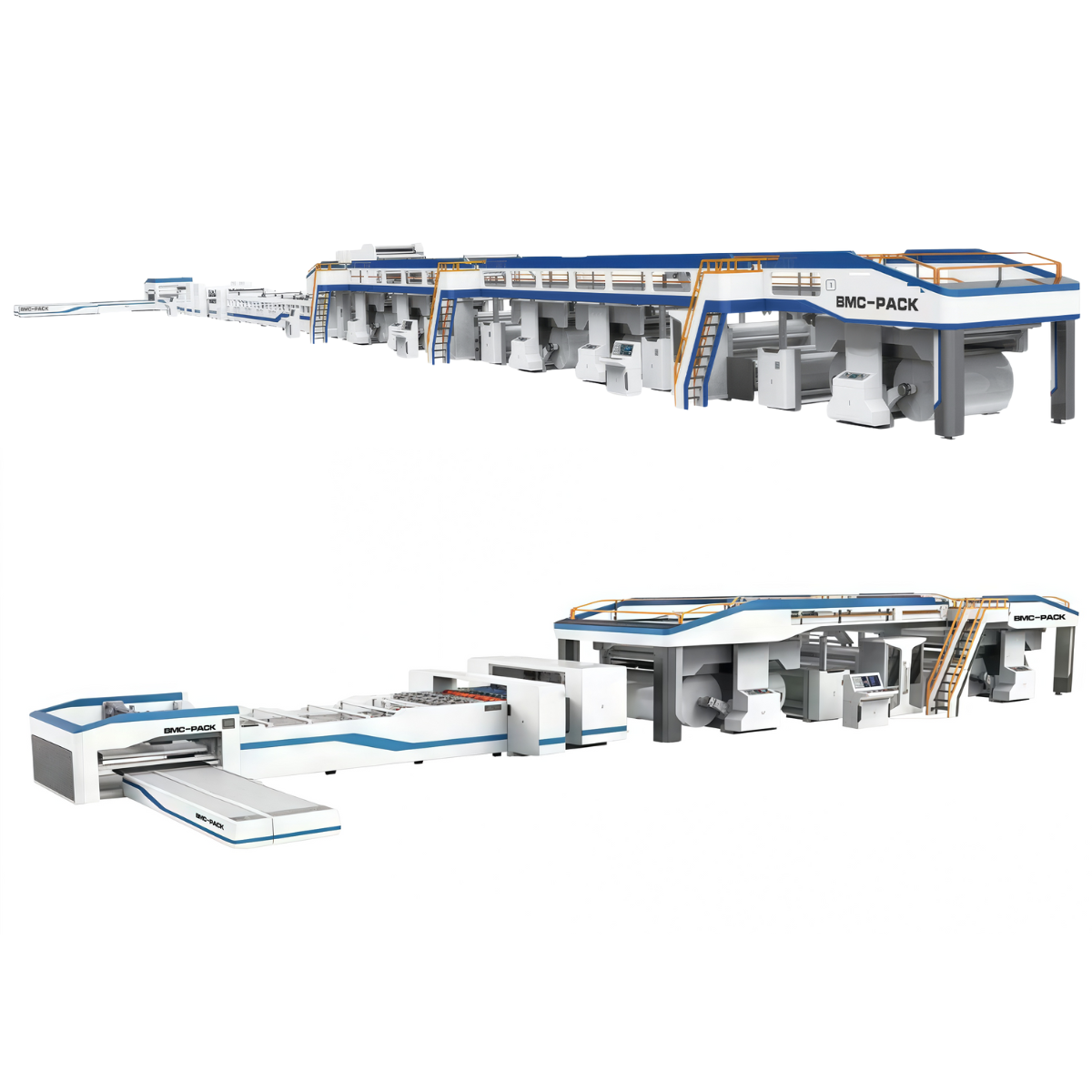

This production line enables high-volume automated production of corrugated paperboard that meets national quality standards. It features centralized control for easy, safe, and reliable operation and maintenance, while significantly reducing labor requirements. The system adopts international energy-saving technology with oil heating, which reduces energy consumption by 40% compared to steam heating, effectively lowering production costs. It is an economical and efficient solution for medium to large-scale corrugated paperboard manufacturers.
Total Length: Approx. 110 meters (based on foundation layout)
Total Power: Approx. 450 kW
Mill Roll Stand Options: Electric or hydraulic
Corrugated Section: Corrugating roll diameter 280–405 mm, with electric speed adjustment motor
Double Cylinder Gluing Machine: Twin-layer internal gum application; lowers to guide and feed the cardboard
Designed speed of 350m/min, working speed 300m/min, with a diameter of 460mm.
Designed speed of 300m/min, working speed 250m/min, with a diameter of 405mm.
Designed speed of 250m/min, working speed 200m/min, with a diameter of 380mm.
Drying Oven: Length 7.8 m; equipped with 9–18 heating flocks.
Setting Section: Length 3.8–5 m with symmetrical shaft pairs.
Slitting & Cutting: Horizontal and longitudinal slitting machine; common or ultra-thin blades available per customer requirements; high automation and easy operation
