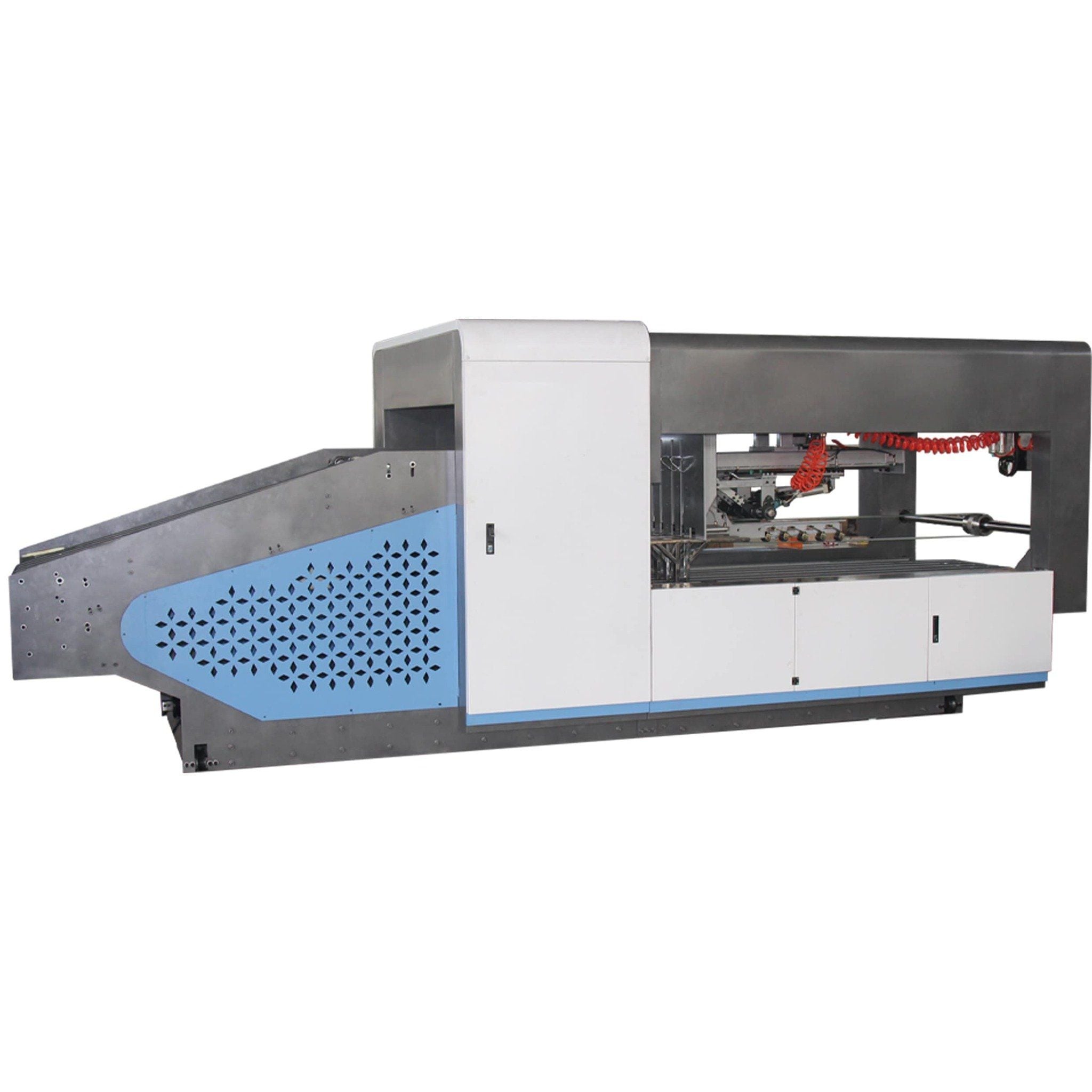

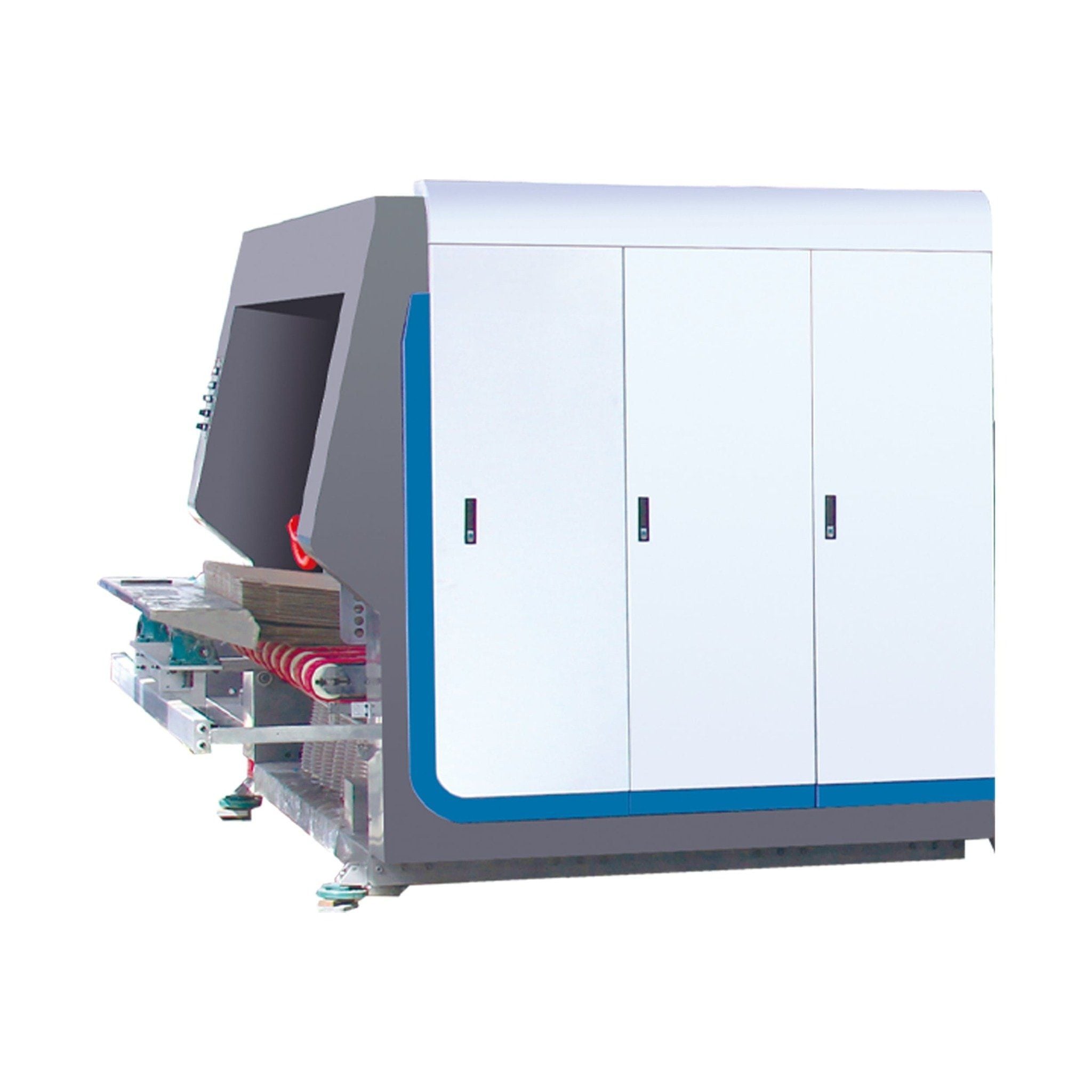

◆ The main features of this machine are full computer control, easy operation, stable quality, speed to achieve economic benefits, greatly saving manpower.
◆ This nailing machine is an all-in-one pasting machine, which can paste boxes, nail boxes, or paste first and then nail once. 3–5 minutes to complete the order change setting, you can mass production (with order memory function).
◆ Paste box nail box really achieves a one-key conversion function (original creation in China).
◆ Suitable for three, five, and single boards. A.B.C. and AB flute board nail. Electric adjustment of line pressure.
◆ With the pressure line function of each group (domestic initiative), the forming effect is better.
◆ Nail distance range: The minimum nail distance is 40mm, and the maximum nail distance range is 500mm.
◆ Maximum nailing speed: 1200 nailing/min.
◆ Speed with three nails, for example, the top speed is 140 per minute.
◆ It can automatically complete the output work of cardboard folding, deviation correction, nailing box, paste box, and counting heap.
◆ Single and double nails can be adjusted freely.
◆The swinging type nailing head is adopted, which has the advantages of low power consumption, faster speed, more stability, and effectively improves the quality of the nailing box.

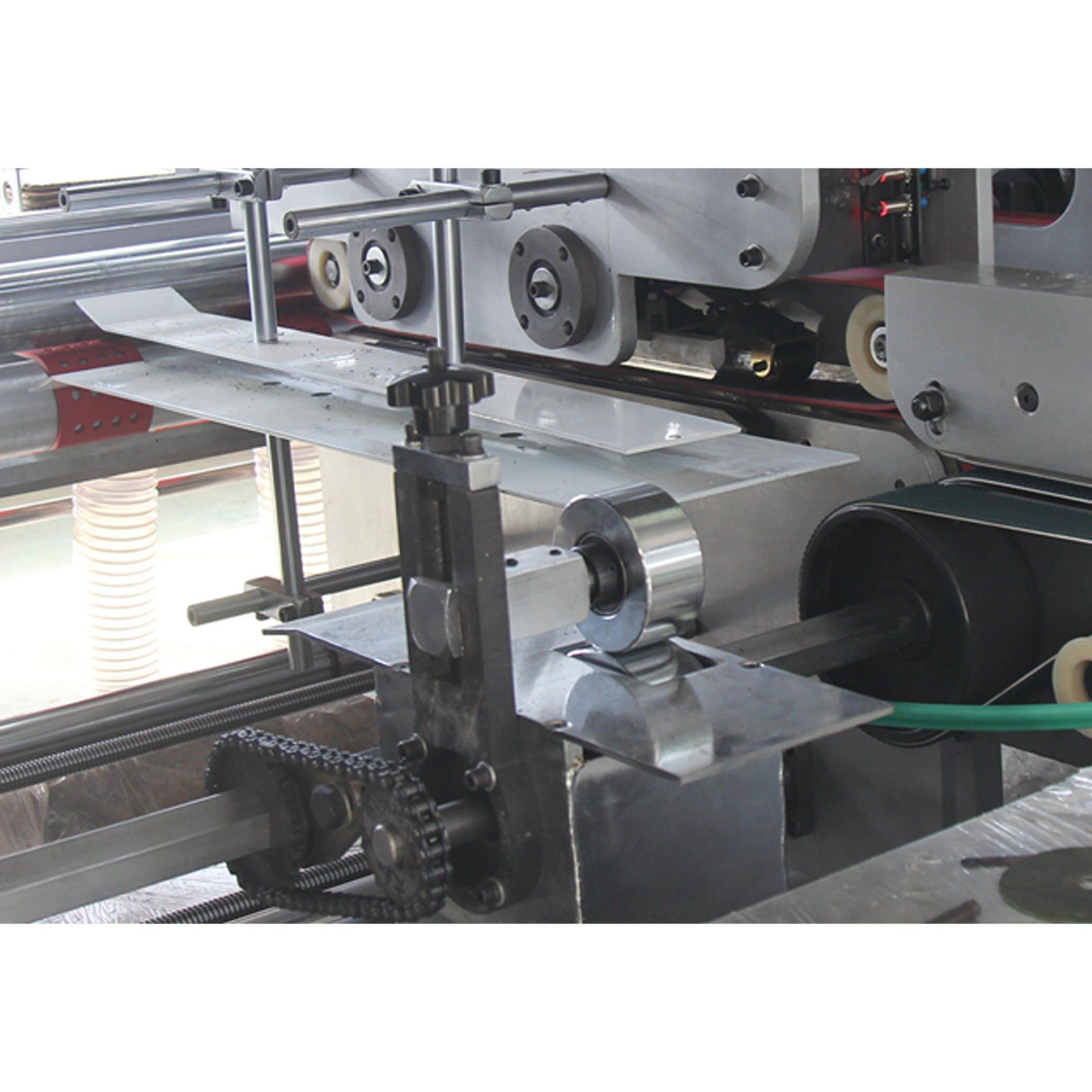

◆ The cardboard alignment device is used for secondary compensation and correction of missing box pieces to eliminate the scissors mouth.
◆ Nail boxes are more perfect.
◆ The stitching pressure can be adjusted automatically according to the cardboard thickness.

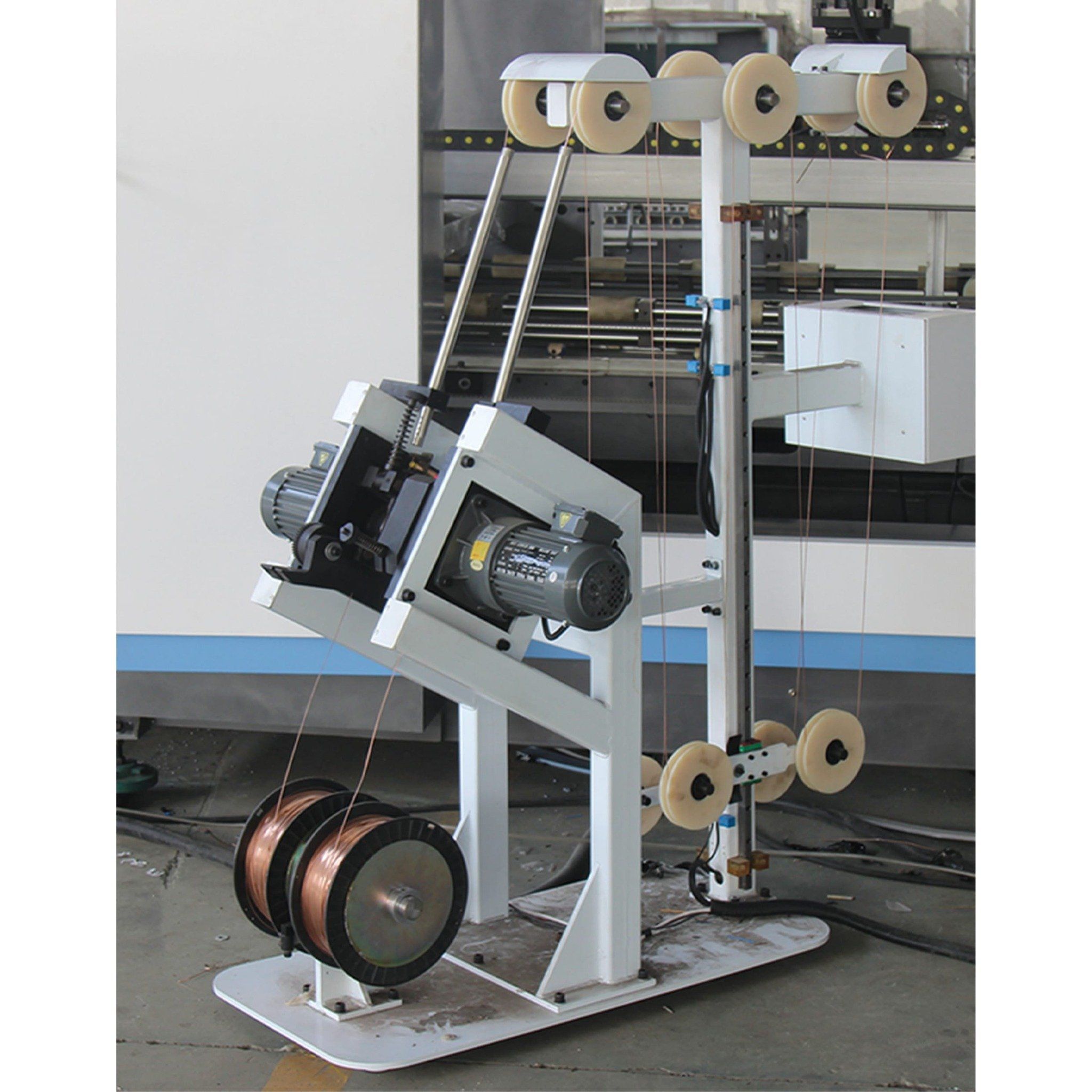

◆The automatic wire feeding machine can realize wire detection, wire breakage, and wire detection after use.
