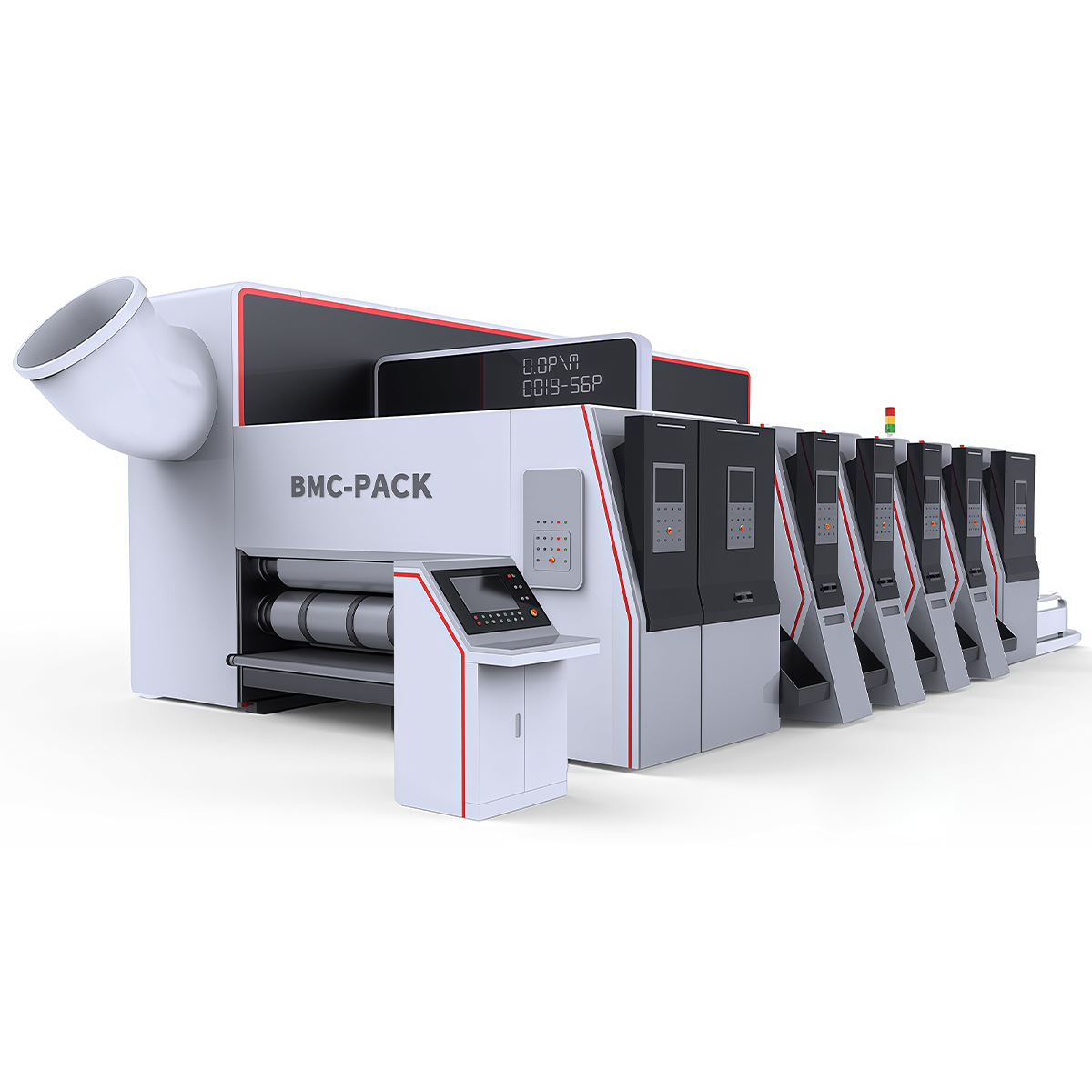

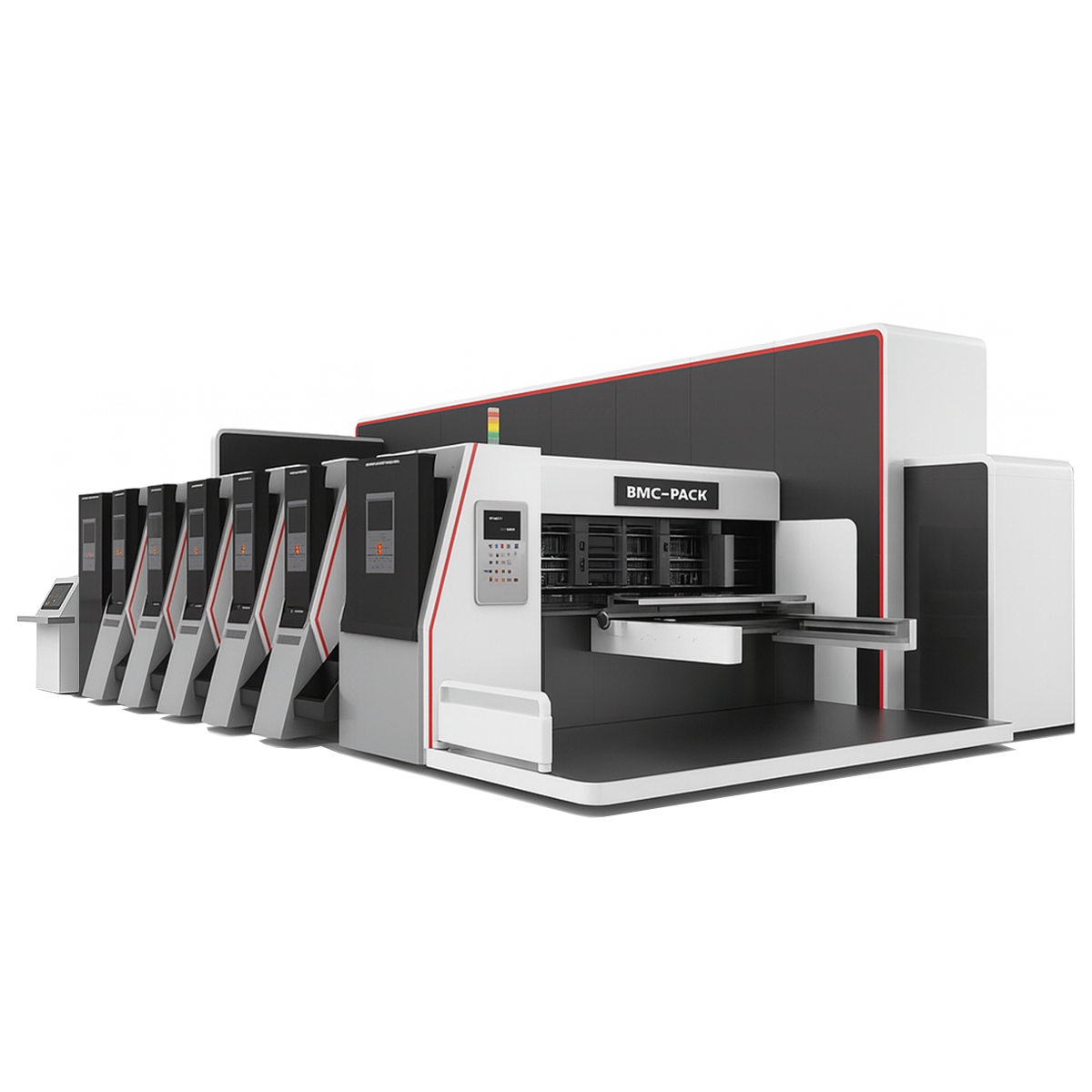

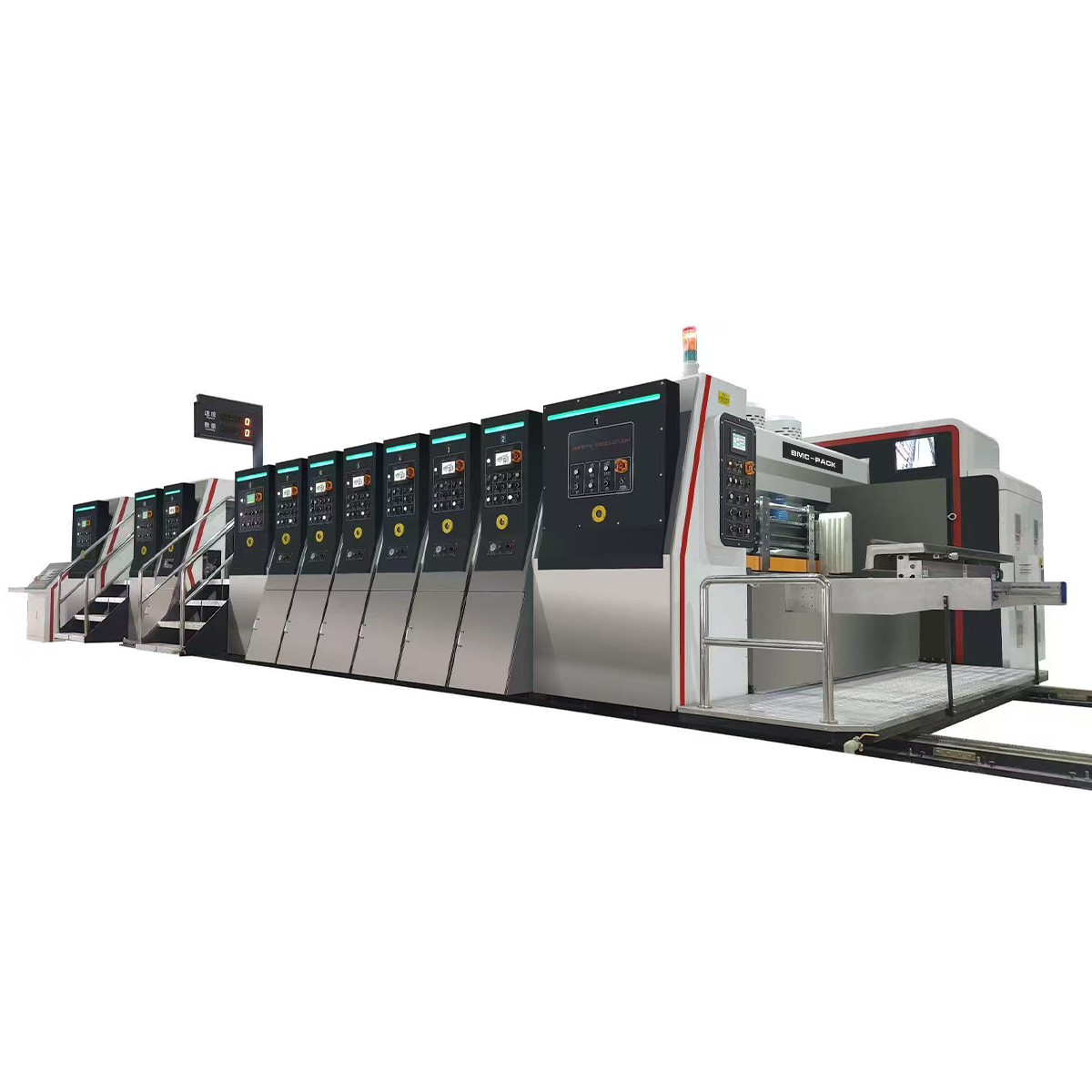

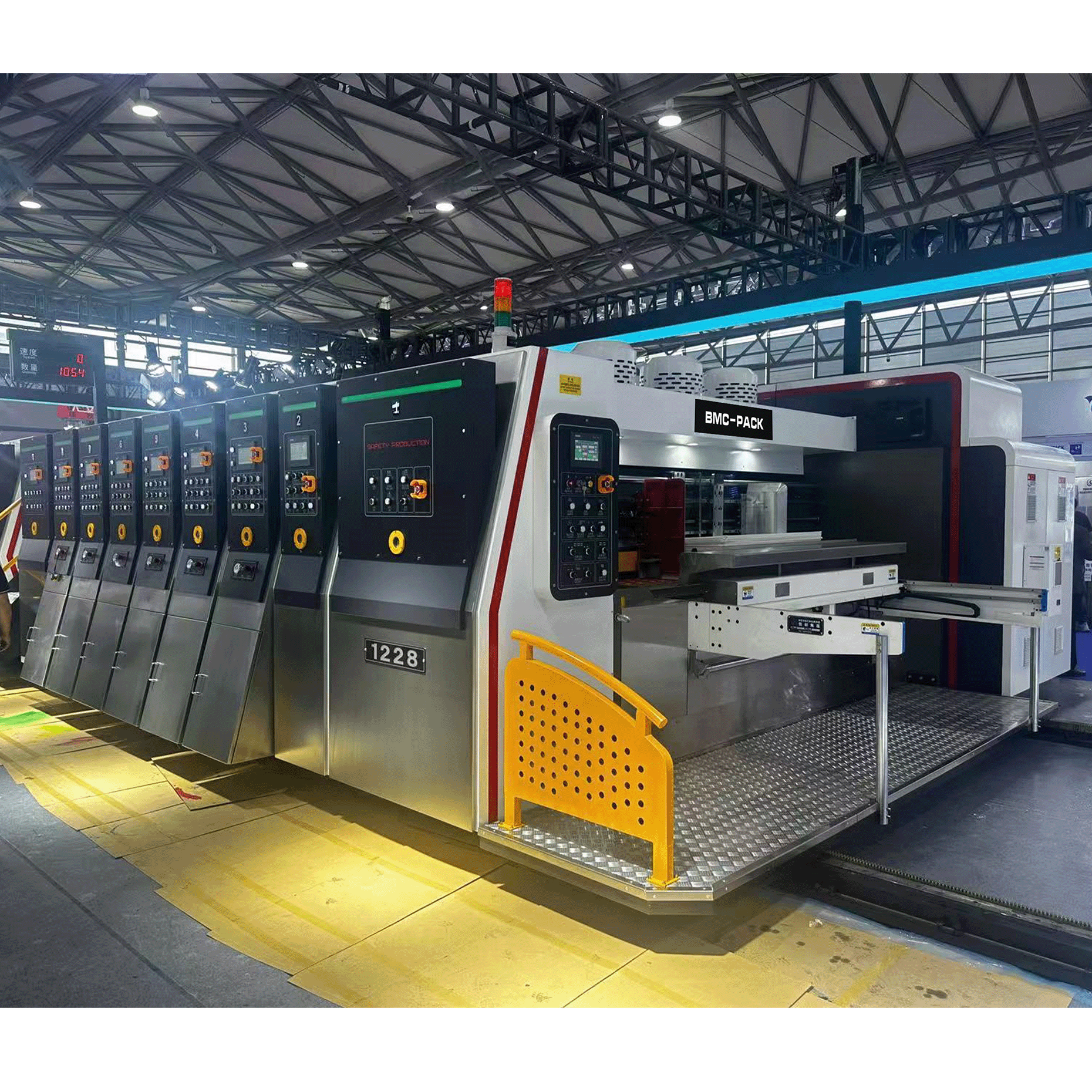

High Speed Vacuum Transfer Fully Automatic Servo Flexo Slotter Die Cutter Printing Machine
MODELNDVT-920FSDCHNDVT-1224FSDCHWall board thickness60mm60mmDesigned speed (pcs/min) 350300Working speed (pcs/min)300250Max. feeding size (mm)900×20001200×2400Min. feeding size (mm)250×600350×650Skip-feeding size (mm)1200×20001400×2400Standard plate thickness (mm)3.943.94Min. slotter distance...
Status:
In stock
| MODEL | NDVT-920FSDCH | NDVT-1224FSDCH |
| Wall board thickness | 60mm | 60mm |
| Designed speed (pcs/min) | 350 | 300 |
| Working speed (pcs/min) | 300 | 250 |
| Max. feeding size (mm) | 900×2000 | 1200×2400 |
| Min. feeding size (mm) | 250×600 | 350×650 |
| Skip-feeding size (mm) | 1200×2000 | 1400×2400 |
| Standard plate thickness (mm) | 3.94 | 3.94 |
| Min. slotter distance POSITIVE | 150×150×150×150 | 150×150×150×150 |
| Min. slotter distance NEGATIVE | 270×65×270×65 | 270×75×270×75 |
| Max slotter depth (mm) | 300 | 320 |
| Print precision (mm) | ±0.3 | ±0.3 |
| Slot precision (mm) | ±1.0 | ±1.0 |
| Die cutting precision (mm) | ±1.0 | ±1.0 |
| Suitable cardboard thickness (mm) | 1-12 | 1-12 |
