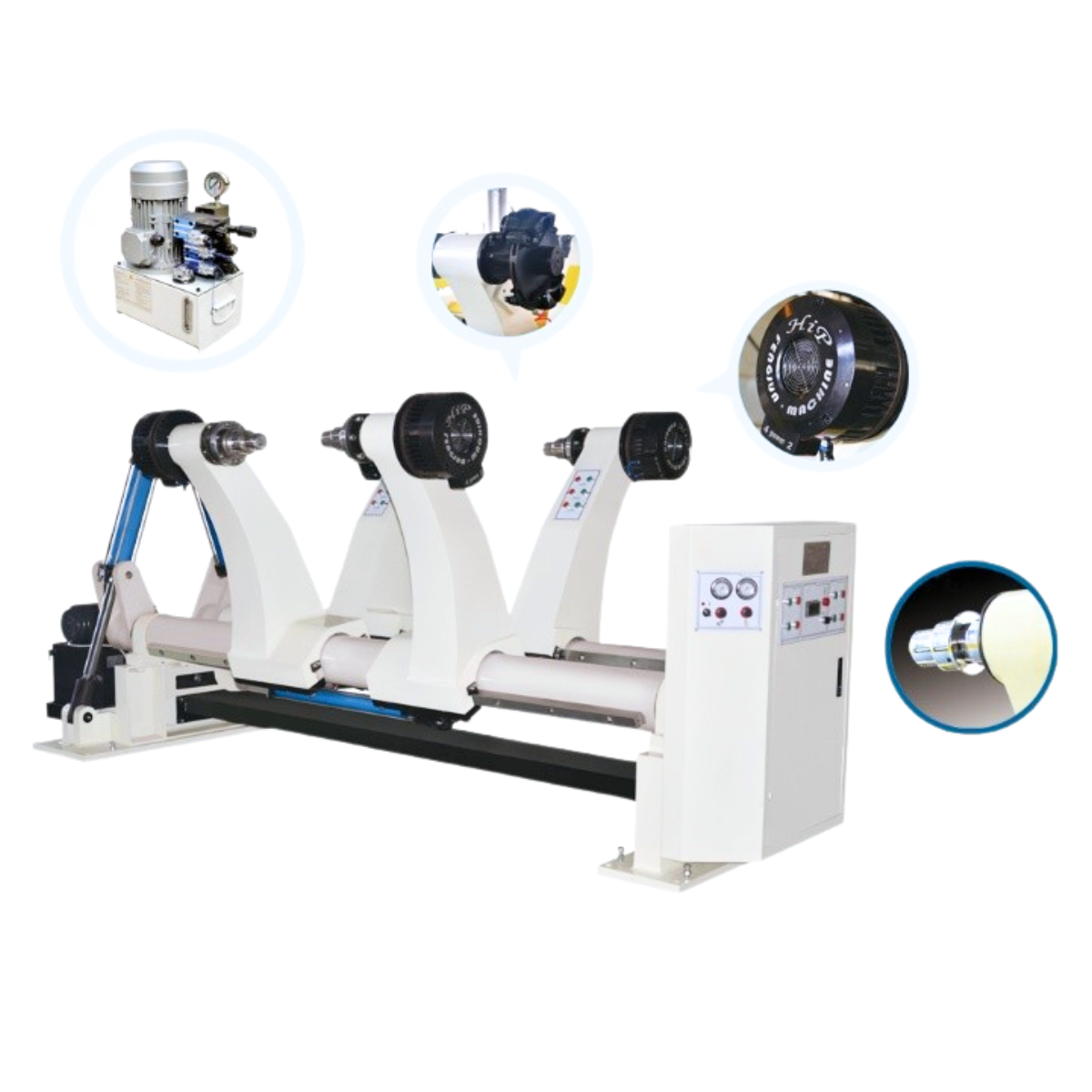

Hydraulic Mill Roll Stand V5

Hydraulic Mill Roll Stand V5

Hydraulic Mill Roll Stand V5

FUNCTION AND FEATURESMain ParametersOriginal Paper Stand Action Mode: Fully hydraulicWorking Width (Clamp Range): Max. 1800 mm / Min. 800 mmPaper...

Status: In stock

Product Description

FUNCTION AND FEATURES

Main Parameters

Original Paper Stand Action Mode: Fully hydraulic
Working Width (Clamp Range): Max. 1800 mm / Min. 800 mm
Paper Roll Diameter: Max. ɸ1500 mm / Min. ɸ350 mm
Maximum Load (Single Side): 2500 kg
Main Shaft Diameter of Stand: ɸ210 mm
Air Source Working Pressure: 0.6–0.9 MPa
Total Power: 4.0 kW
Power Supply: 380V, 50Hz
Overall Dimensions (L × W × H): 4250 × 1800 × 1650 mm

Hydraulic System Parameters

Working Pressure: 8–12 MPa
Hydraulic Cylinder Stroke (Swing Type): ɸ100 mm × 460 mm
Hydraulic Cylinder Stroke (Clamping Type): ɸ63 mm × 670 mm
Hydraulic Station Motor Power: 4.0 kW (intermittent duty)
Hydraulic Station Solenoid Valve Working Voltage: 220V, 50Hz
