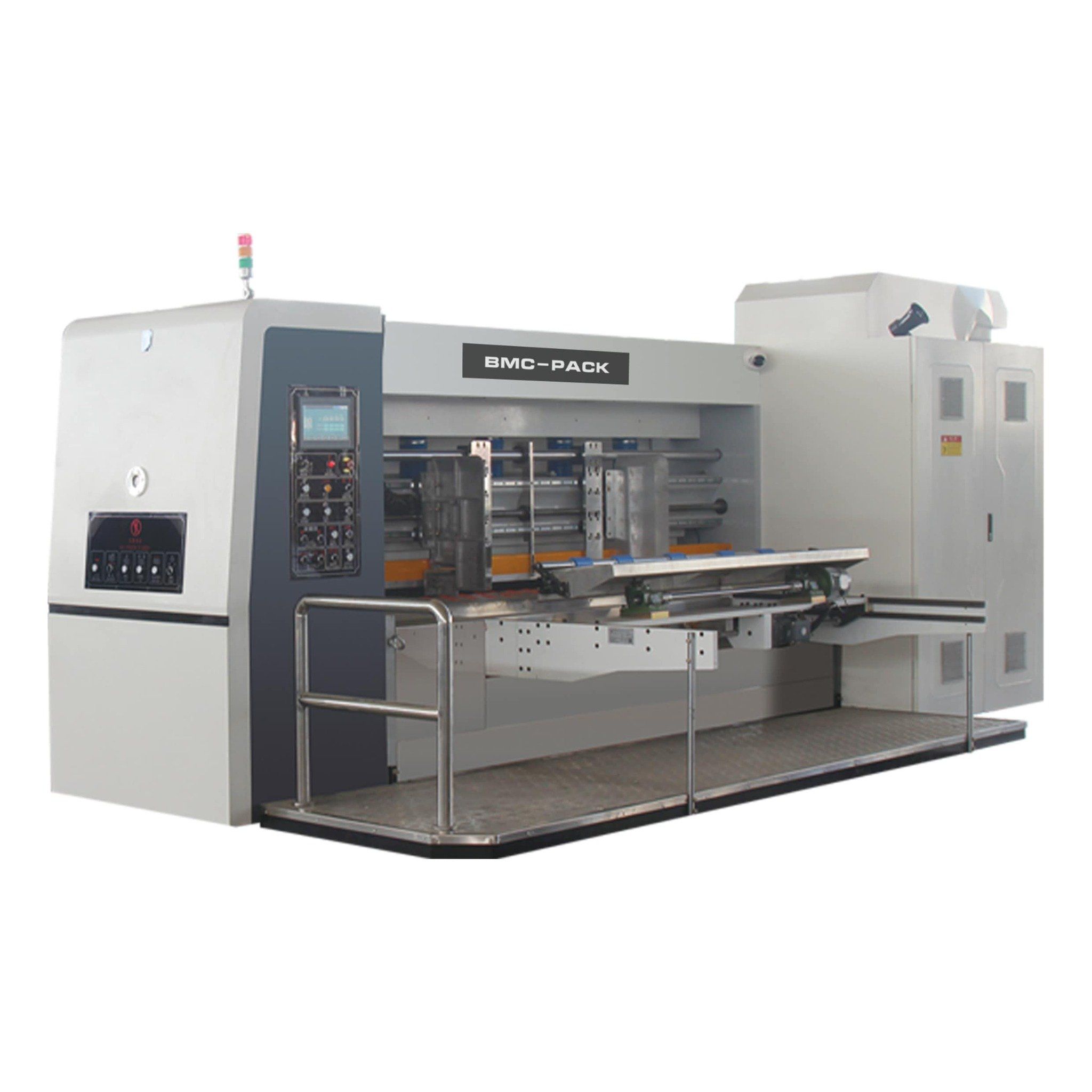

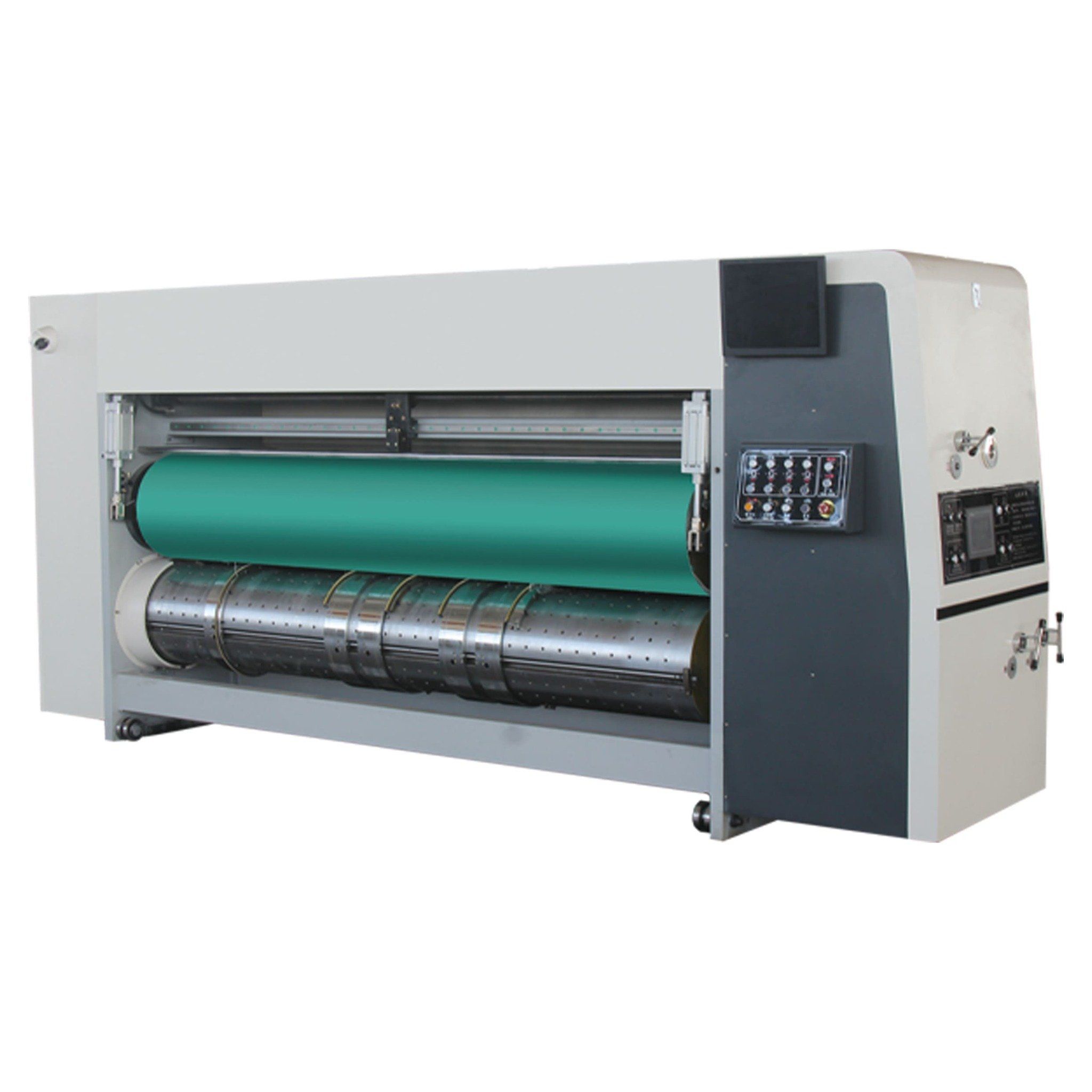

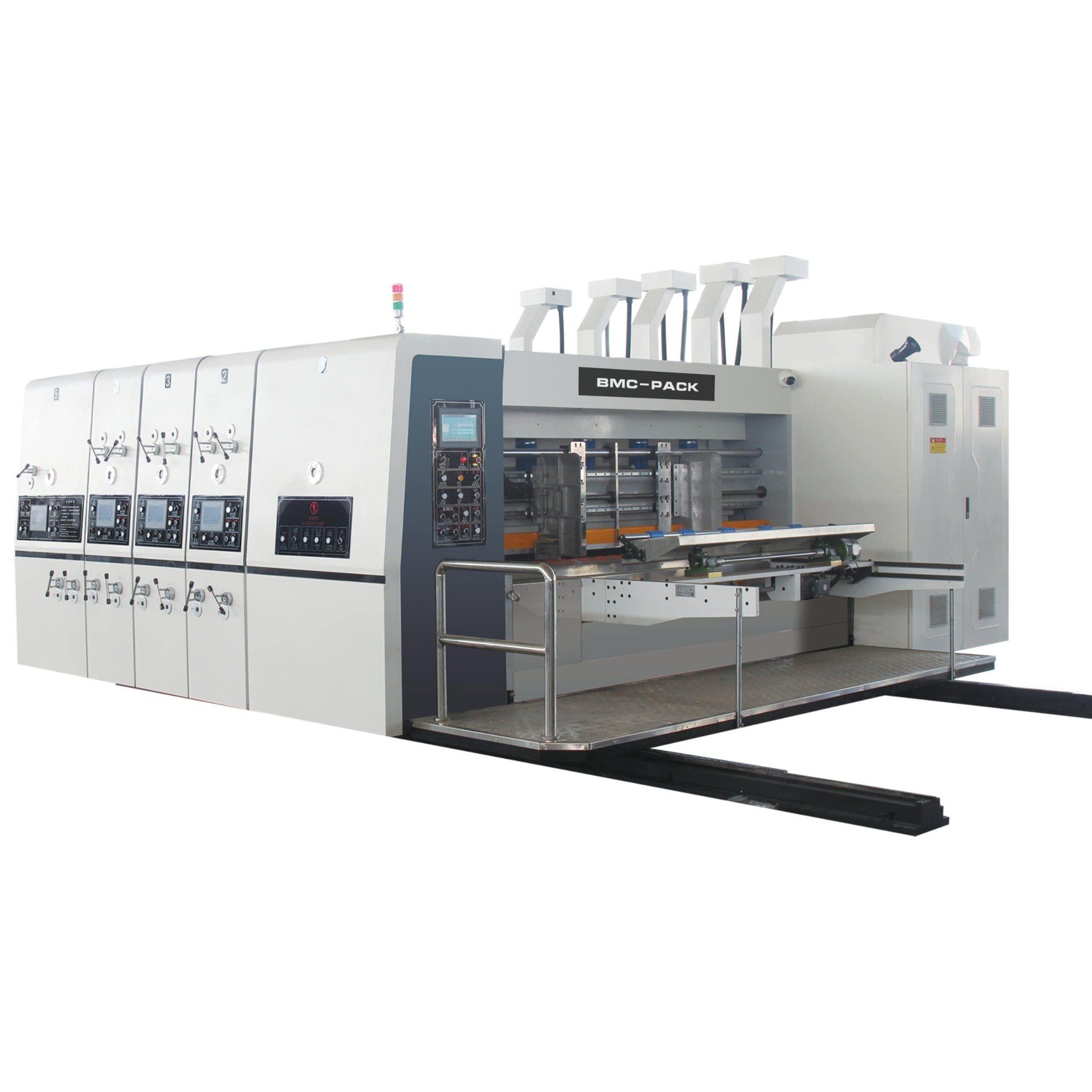

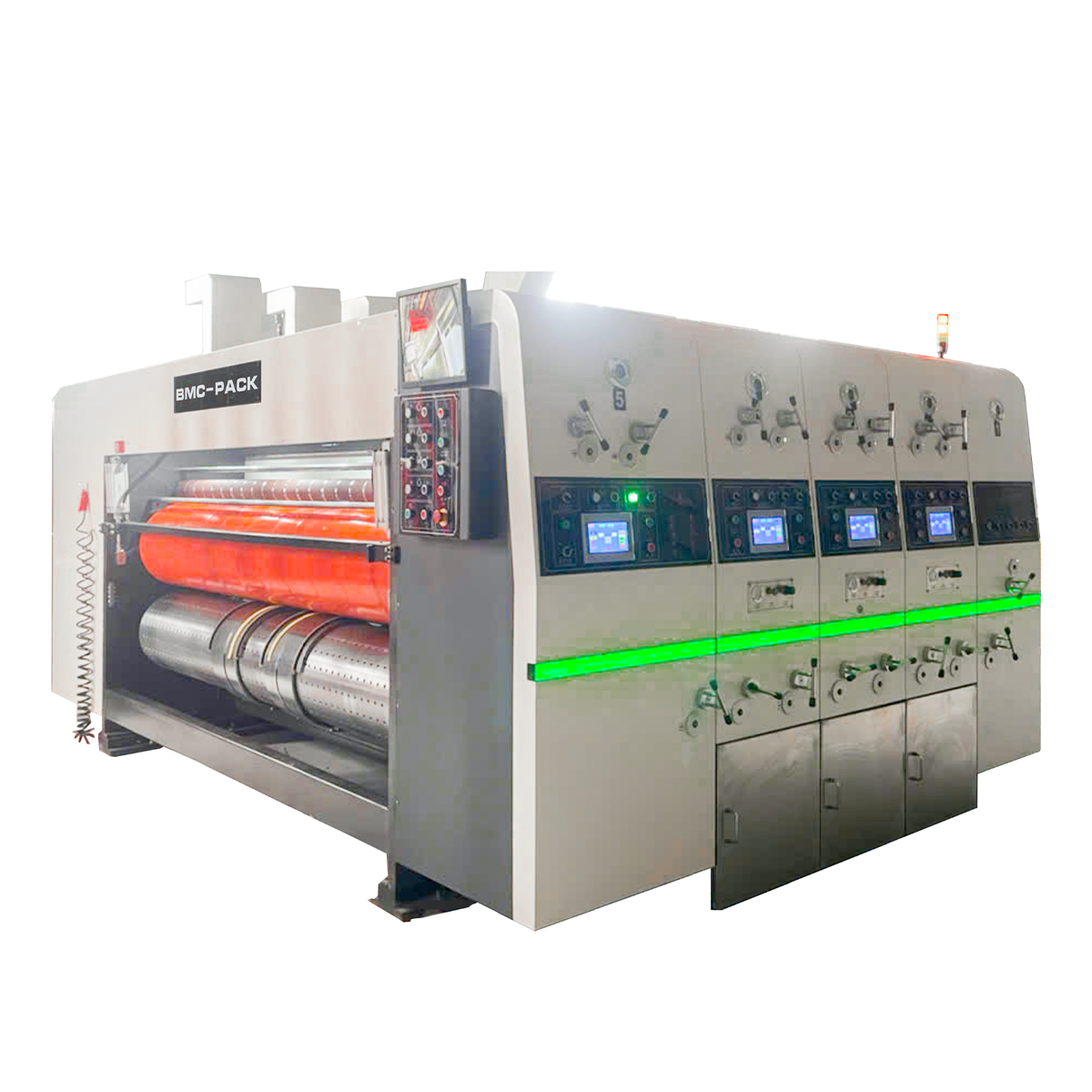

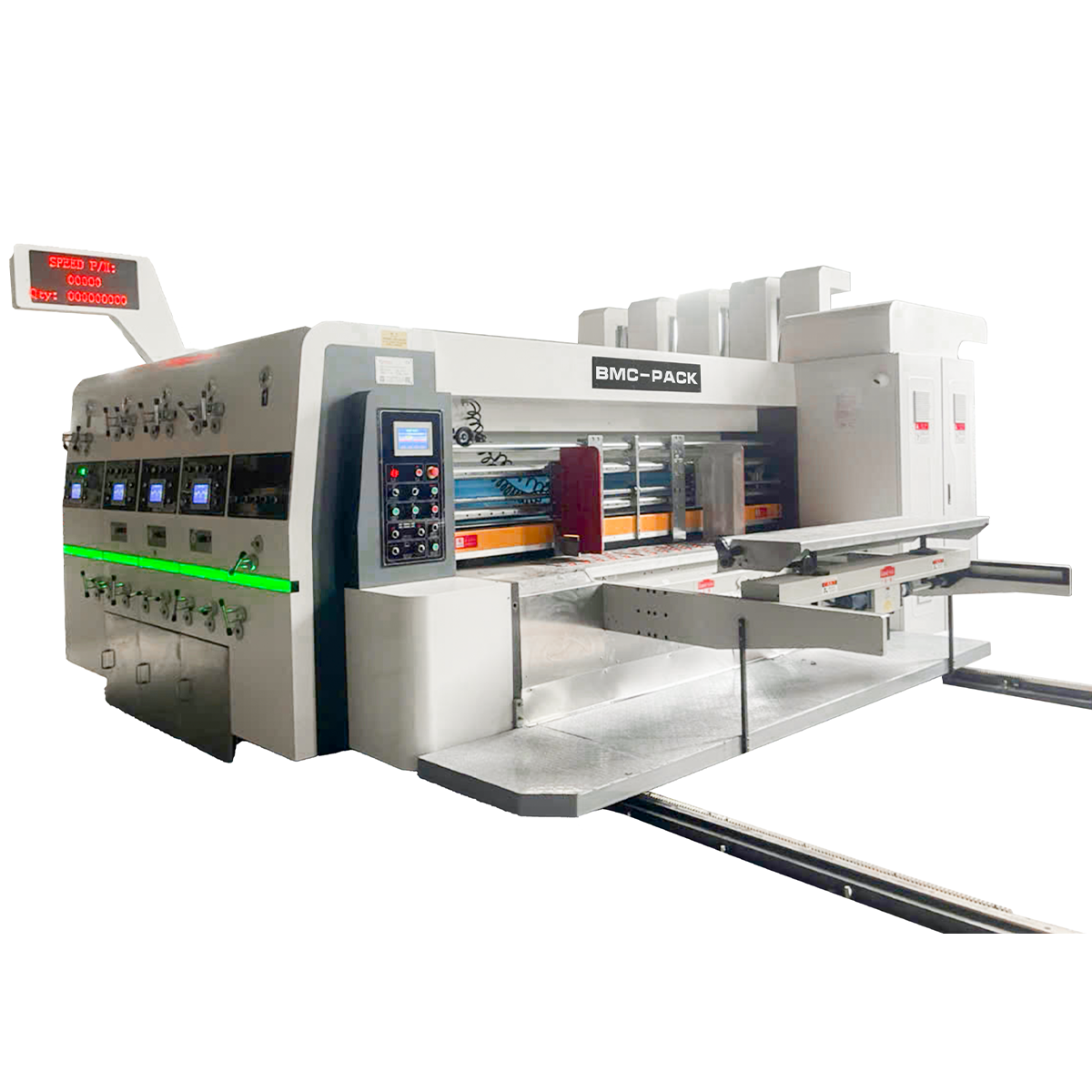

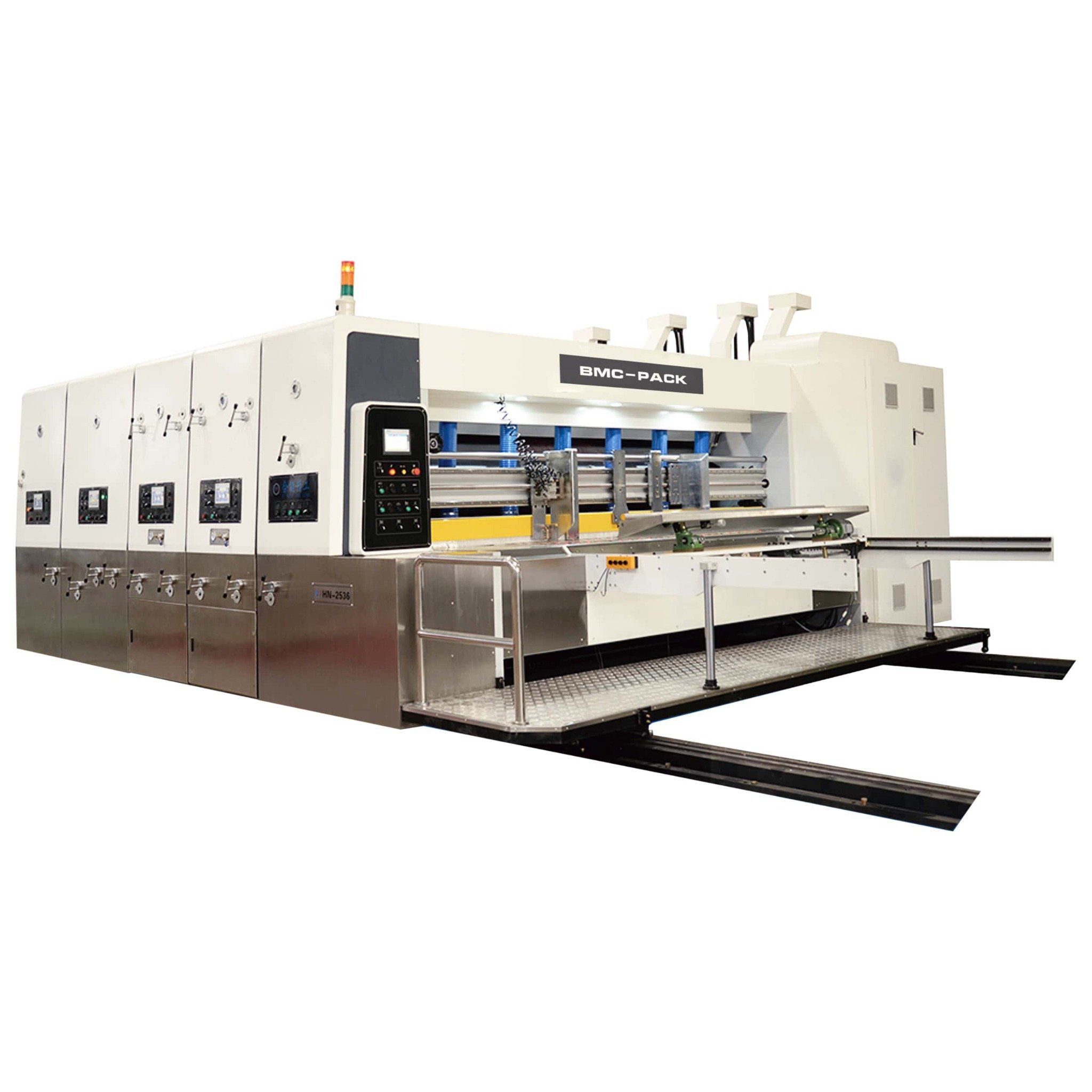

Lead Edge Flexo Slotter Die Cutter Printing Machine

Lead Edge Flexo Slotter Die Cutter Printing Machine - Type I

USE AND CHARACTERISTIC◆ Premium Materials: Built with high-quality components for durability.◆ Hardened Gears: Drive gears are ground and hardened (HRC...

Inquiry Now

Status: In stock

Product Description

USE AND CHARACTERISTIC

◆ Premium Materials: Built with high-quality components for durability.

◆ Hardened Gears: Drive gears are ground and hardened (HRC > 60) for long life.

◆ Auto Zero Setting: Ensures quick and accurate setup.

◆ Adjustable Clearances: Manual or electric adjustment is available.

◆ High Standards: Designed for safety, reliability, and easy operation with fast order changeovers.

◆ Chromium-Plated Shafts: Enhanced hardness and wear resistance.

◆ Reliable Electronics: Equipped with CHNT-brand components for stable performance.

TECHNICAL SPECIFICATION

MODEL		NDRT1-920FSDC	NDRT1-1228FSDC	NDRT1-1428FSDC
Design speed (pcs/min)		200	180	150
Working speed (pcs/min)		180	150	120
Max feeding size (mm)		900×2000	1200×2400	1400×2400
Min feeding size (mm)		280×650	350×680	400×680
Max Depth of slotting (mm)		300	320	410
Registration precision (mm)		≤±1.5
Die cutting accuracy (mm)		≤±0.5
Printing plate thickness		3.94
Max.printing area (mm)		2–12
Min.slotting interval (mm)	Normal	150×150×150×150
	Reverse	260×70×260×70
