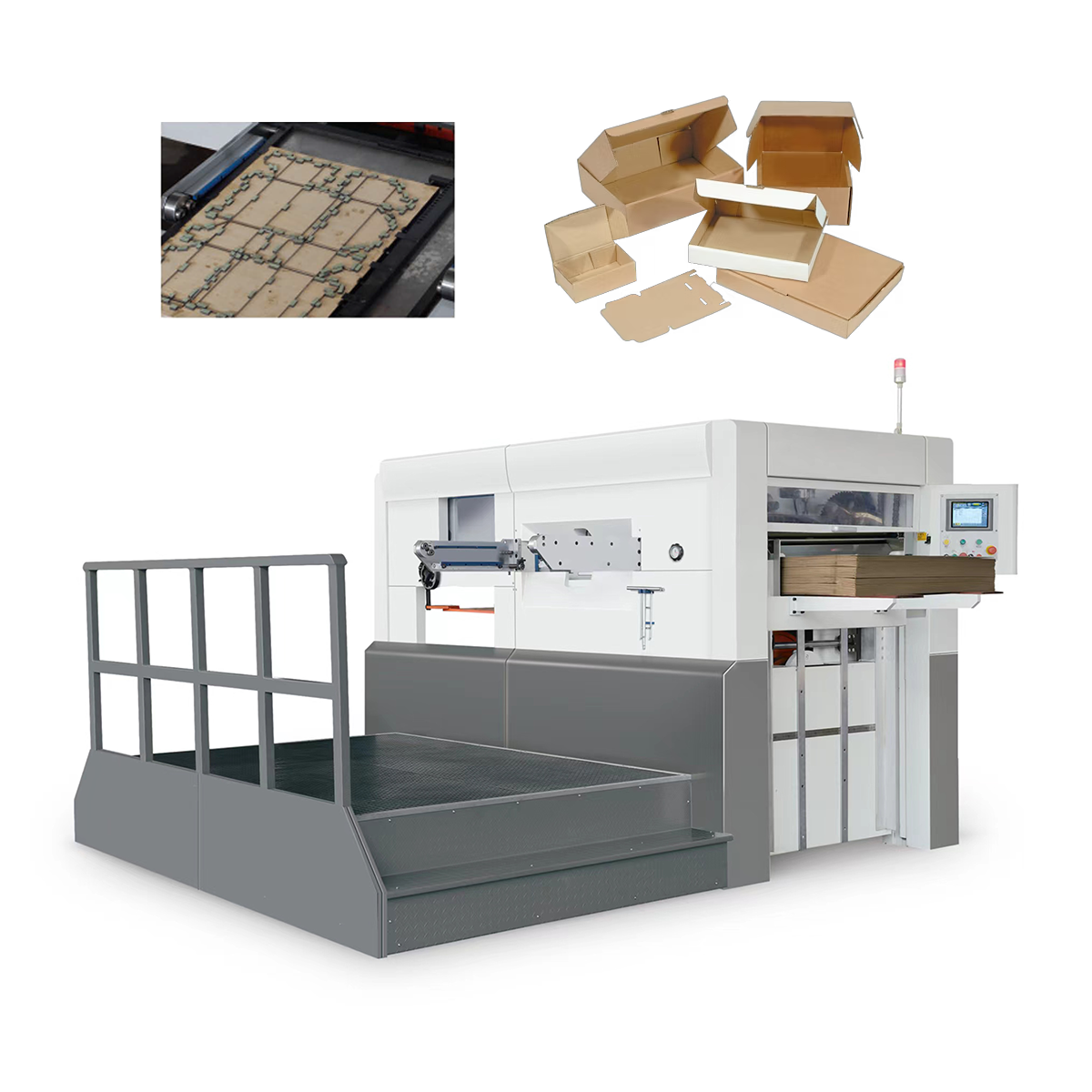

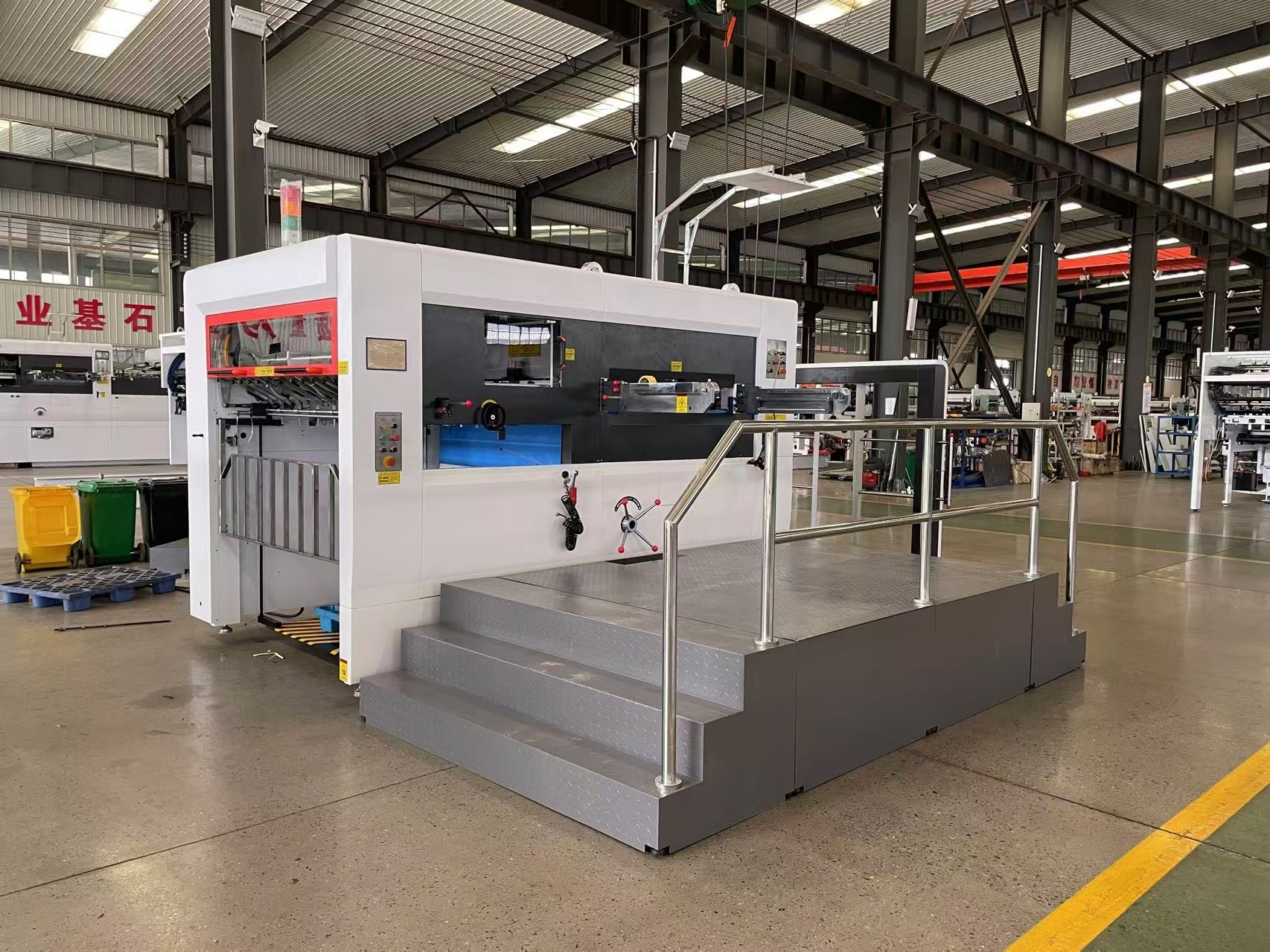

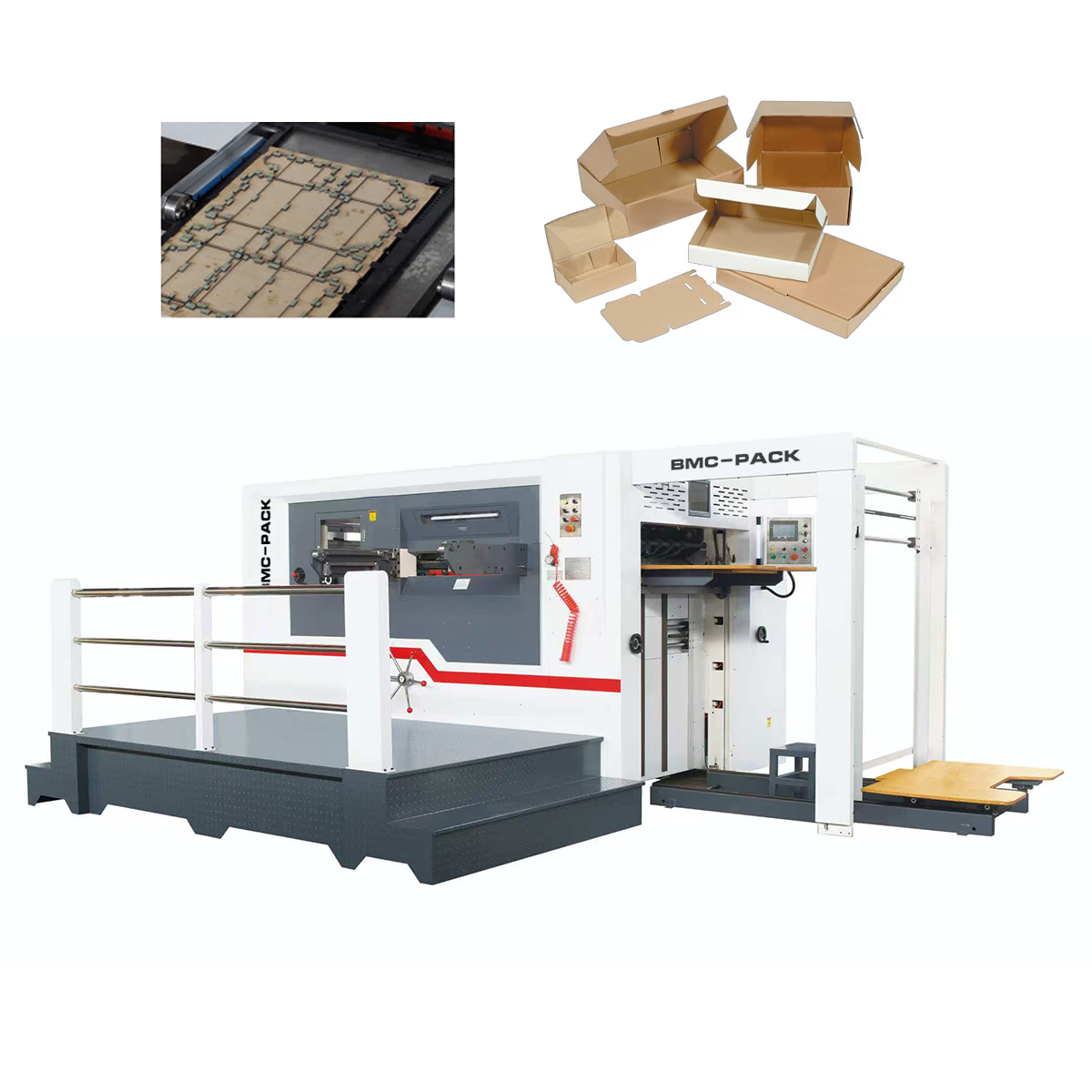

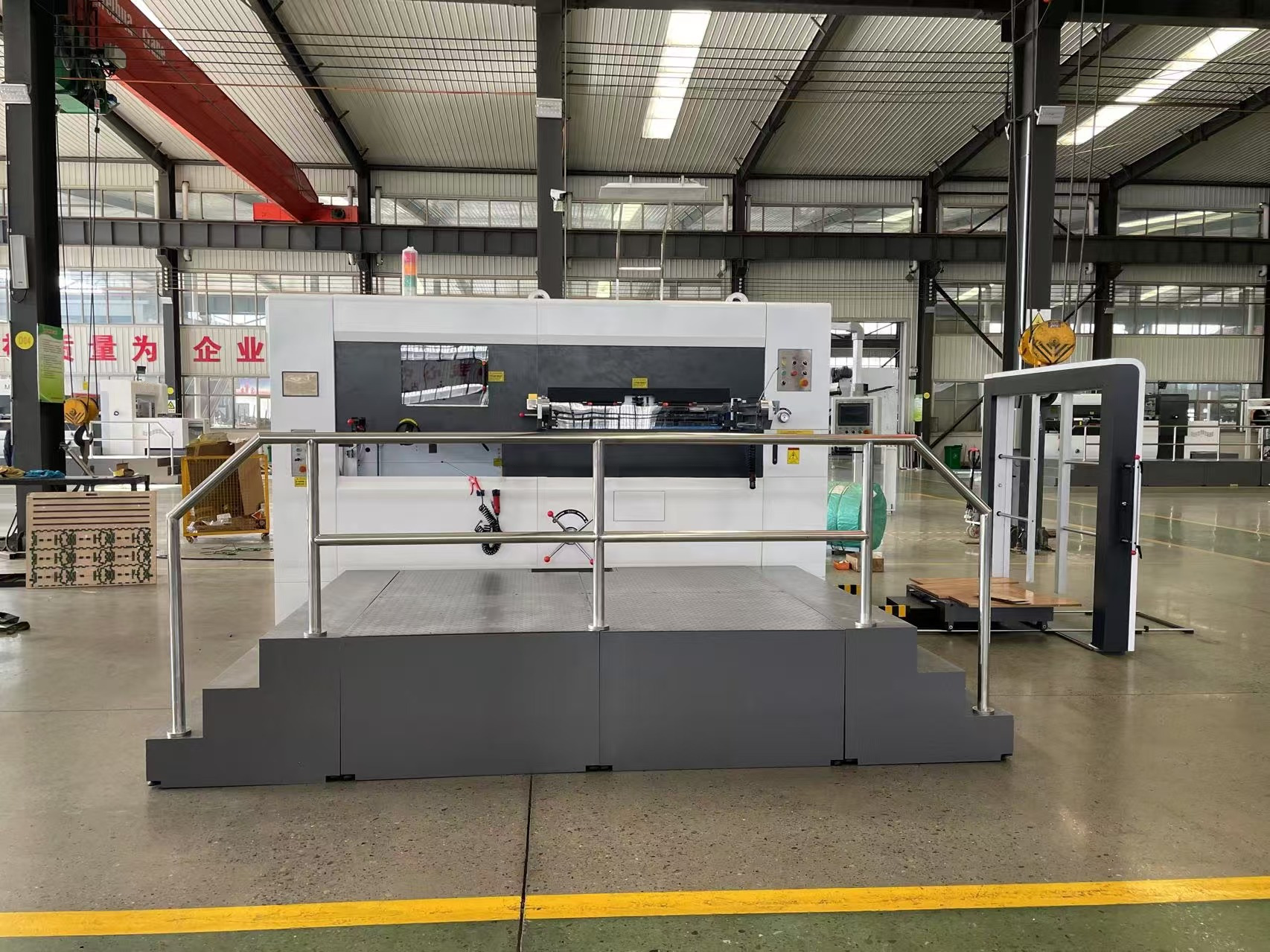

Semi-Automatic Flatbed Creasing and Die Cutting Machine

◆ The semi-automatic flat die cutting machine is specialized for die cutting, creasing, and embossing in the production of boxes, cartons, and labels.

◆ It features a high-strength gripper bar system combined with an advanced open-tooth cardboard feeding mechanism to handle various types of cardboard with precision.

◆ The front and rear positioning systems ensure accurate sheet alignment, supporting stable feeding and reducing errors during operation.

◆ Equipped with a high-precision intermittent feeding system, pneumatic die-cutting mechanism, air clutch, and pneumatic plate locking device to maximize cutting accuracy.

USE AND CHARACTERISTICS

◆ The machine is designed for die cutting, creasing, and embossing of boxes, cartons, and labels, featuring a high-precision intermittent system, pneumatic die-lock, air clutch, overload protection, and electric pressure adjustment for smooth, stable, and high-speed operation.

◆ Additional features include a preloading unit, secondary feeding mechanism, variable-speed paper conveying system, automatic lubrication system, and a main drive base oil cooling system, allowing the machine to operate at its full potential.

◆ Managed by a PLC and electronic encoder with components from international brands, the system provides real-time monitoring, fault diagnostics, and data display on a large HMI screen for stable operation and easy troubleshooting.

TECHNICAL SPECIFICATIONS
