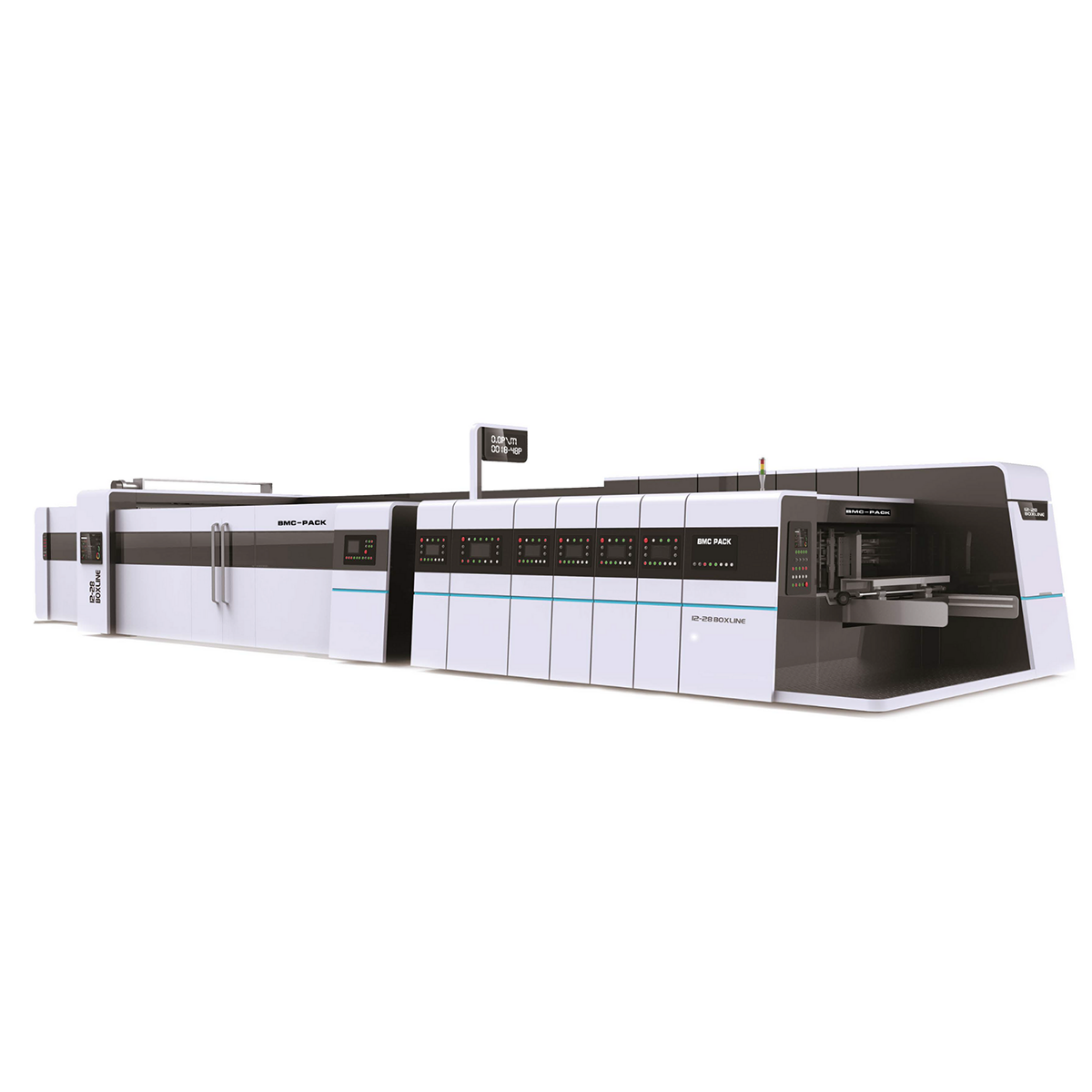

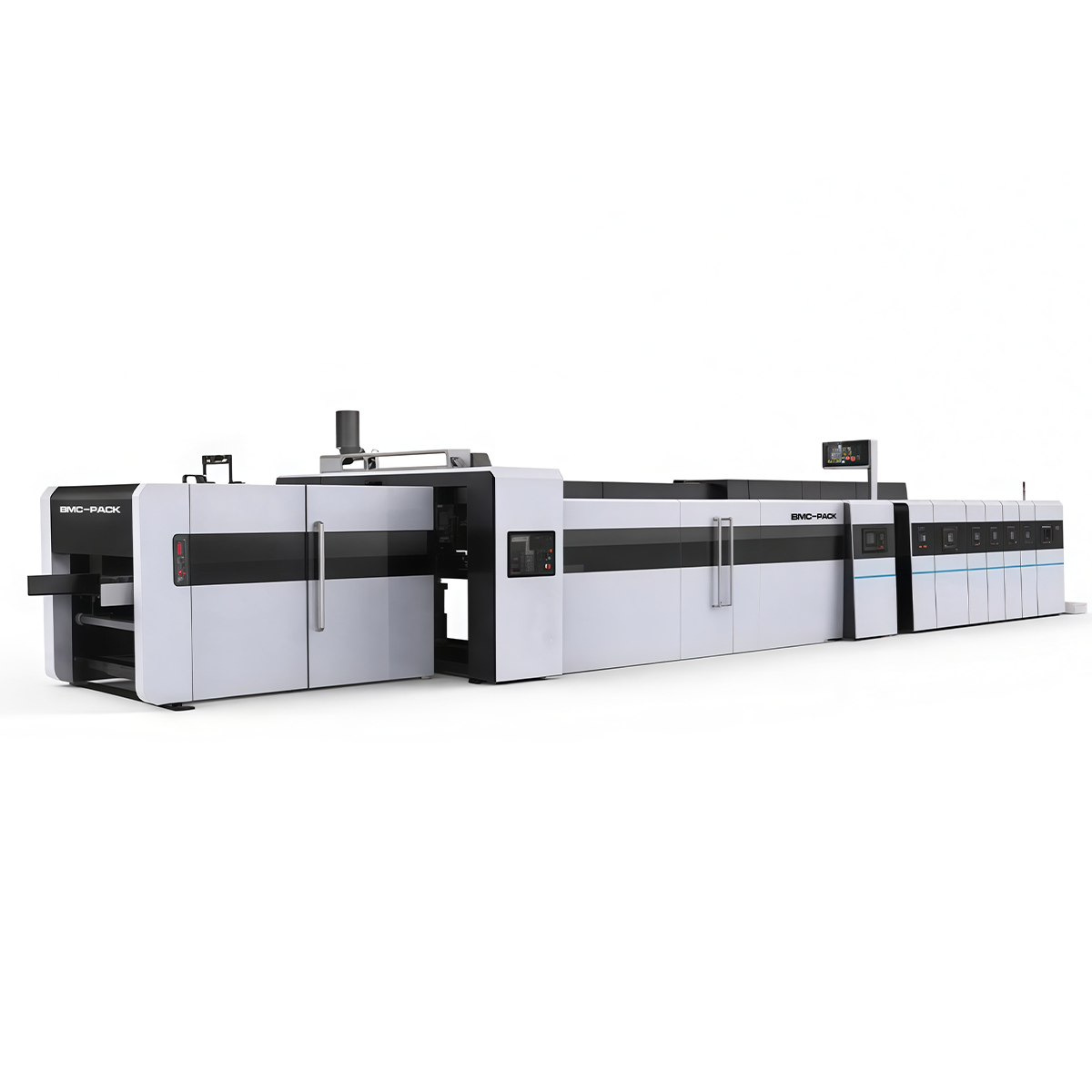

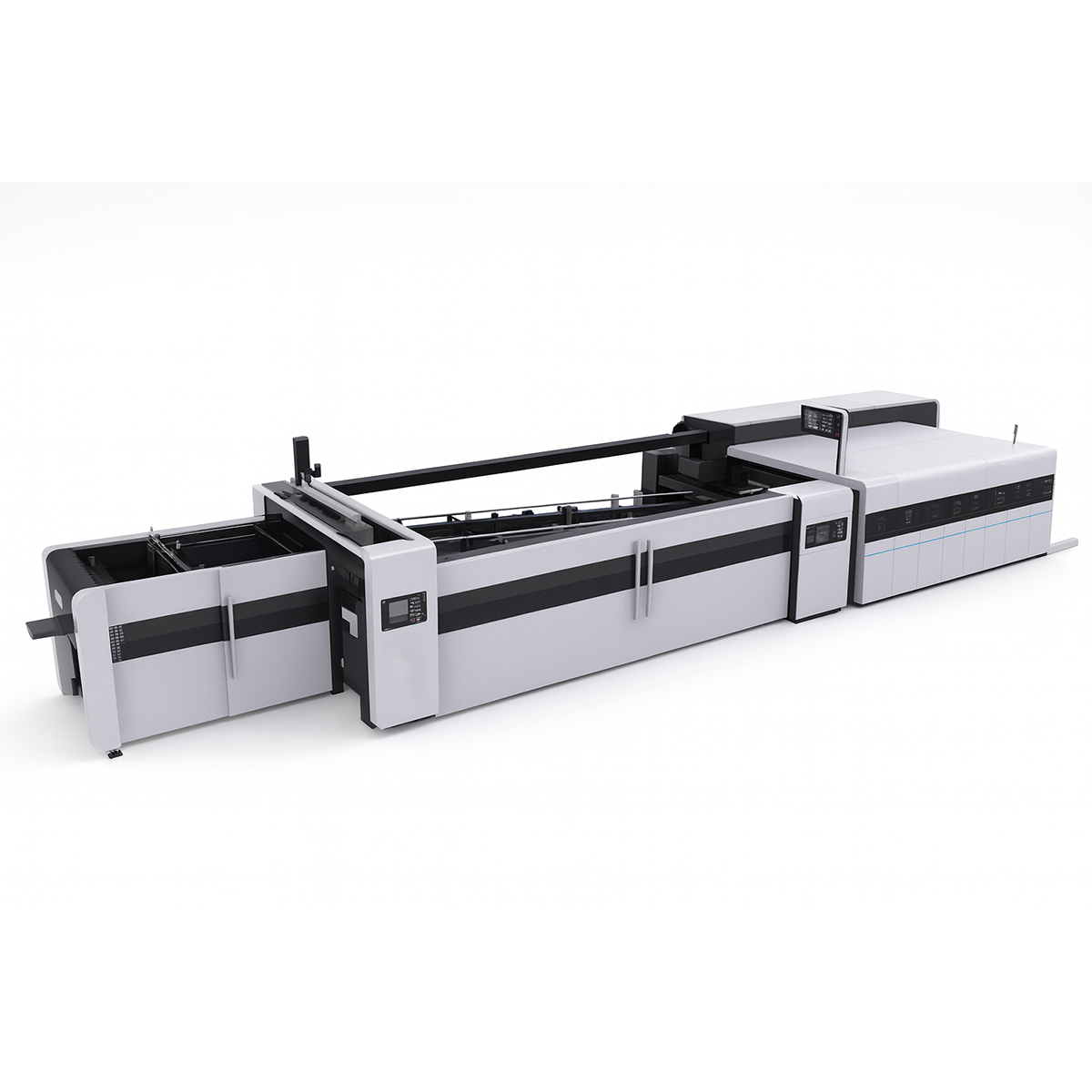

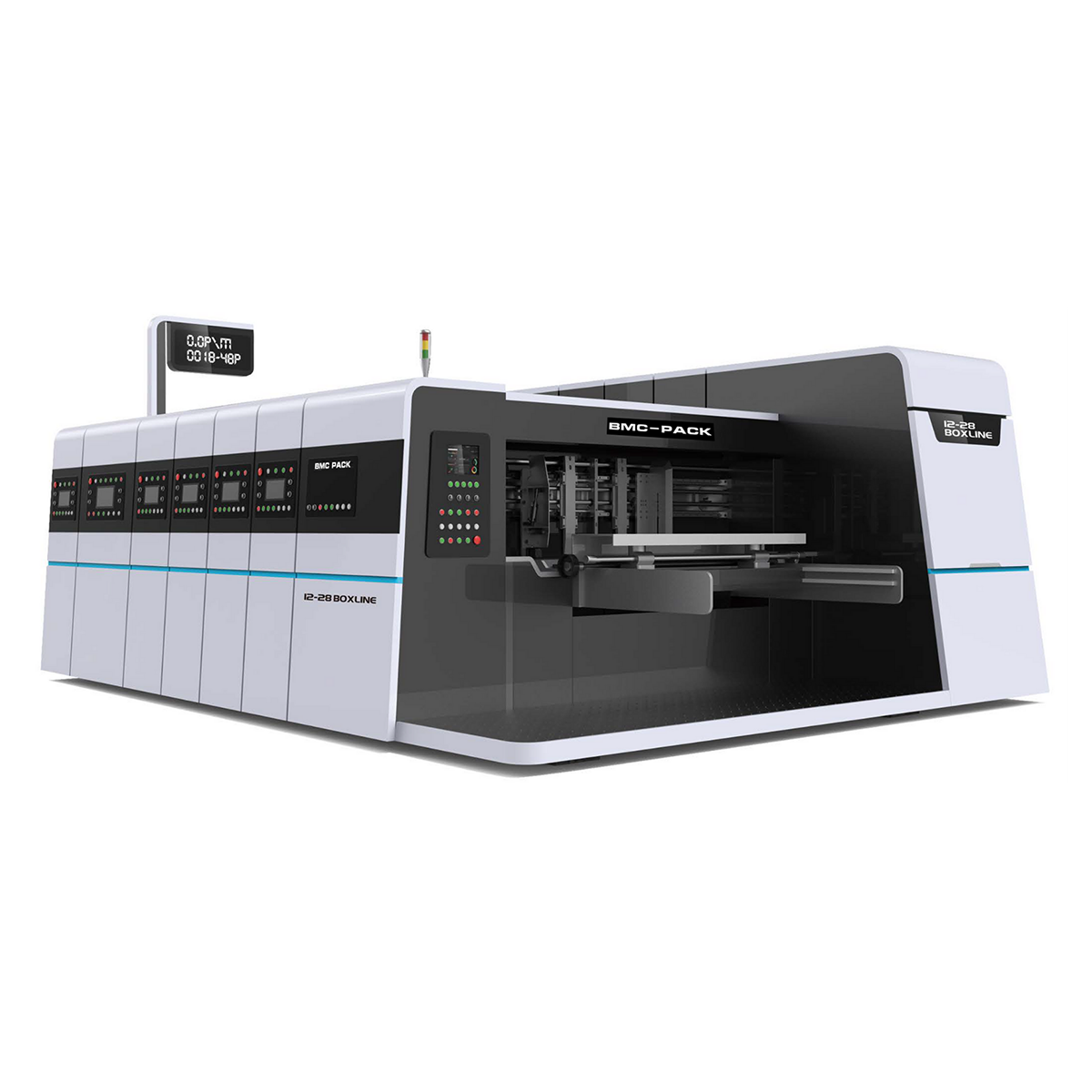

Smart Flexo Printer with Automatic Control & Precision Systems
◆ Fully Automatic Control System: Supports troubleshooting, production management, and remote maintenance.
◆ Quick Printing Plate Mounting: Equipped with motorized phase zero for fast and precise alignment.
◆ Advanced Dust Removal System: Features a powerful extractor, anti-static bar, and centralized dust collection, reducing ECT loss.
◆ High-Precision Transfer Mechanism: Utilizes a ceramic vacuum transfer wheel for excellent registration accuracy.
◆ Creasing-Slotting Unit: Designed to prevent creasing line bursts, ensuring improved folding quality.
◆ Counter Ejector: Includes a down-stacking system for efficient product handling.
◆ Premium Components: Uses internationally recognized electric components and transfer bearings, CE certified.
MODEL NDVT-920FFG NDVT-1224FFG A Max 1000 1100 Min 150 150 B Max 1000 1100 Min 150 150 A + B Min 300 300 C Max 2420 2720 Min 620 650 F Max 2500 2800 Min 660 690 X Min 80 80 H Max 900 1200 Min 350 350 Max print size 900 x 2500 1200 x 2800 Min print size 300 x 650 350 x 690 Servo QYT 8 8 Designed speed (pcs/min) 400 350 Working speed (pcs/min) 350 300 Plate Thickness (mm) 3.94 3.94 Suit corrugated thickness (mm) 2~11 2~11 Print precision (mm) ± 0.1 ± 0.1 Slot precision (mm) ± 1.0 ± 1.0 Die cutting precision (mm) ± 1.0 ± 1.0 Fold gluing precision (mm) ± 1.5 ± 1.5
